Best Bi-Level Drinking Fountain for Schools 2026
Find the best bi-level drinking fountain for schools in 2026. Ranked picks from Elkay and Haws — ADA compliant, vandal resistant, refrigerated options compared.

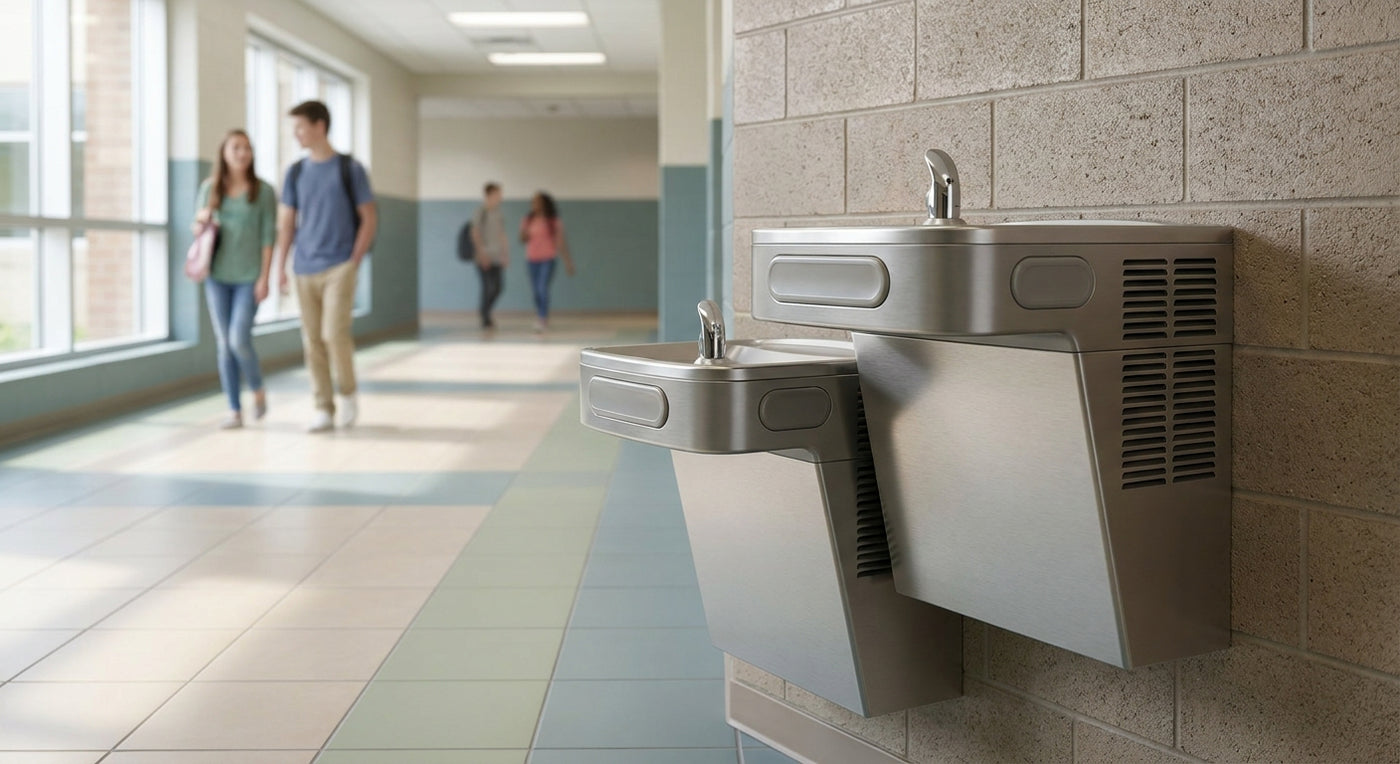

A bi-level drinking fountain puts a standard-height bubbler and a lower ADA-compliant bubbler on the same unit — one wall penetration, one supply line, and full code compliance for schools across the US in 2026.
TL;DR: The best bi-level drinking fountain for schools in 2026 is the Elkay EZSTL8WSS series for refrigerated wall-mount installs, the Elkay Swirlflo EDFPB117RAC for non-refrigerated budget builds, and the Haws 1119-14 for maximum vandal resistance in high-traffic hallways. All three meet ADA and are available at The Fountain Direct. If you need a bottle filler added, the Elkay EZH2O bi-level combos are the go-to.
Why bi-level matters in a school
Federal ADA Standards for Accessible Design (section 602) require at least one drinking fountain at a spout height no higher than 36 inches for wheelchair users whenever a fountain is provided. Schools must also maintain a fountain usable by ambulatory students — typically 38–43 inches. A bi-level unit satisfies both requirements at one location. In 2026, districts that fail this spec during a facilities audit face correction orders and potential loss of federal funding. A single bi-level unit costs less than two separate single fountains and saves rough-in labor.
How we ranked
Every pick below comes from The Fountain Direct's in-stock catalog of commercial-grade drinking fountains. Ranking criteria, in order of weight:
- ADA compliance — both bubblers must meet spout-height and knee-clearance specs
- Vandal resistance — school hallways are hard on equipment
- Refrigeration and flow rate — chilled water matters where fountains serve hundreds of students per day
- Filtration option — lead and microplastic reduction is increasingly required by state mandates in 2026
- Installation format — wall-mount vs. in-wall vs. pedestal, and whether a bottle filler can be added
- Price tier — budget, mid-range, and premium
No unit below lacks ADA certification. All are stainless steel or have a stainless-steel basin.
The ranked list
1. Elkay Versatile Wall-Mount Bi-Level ADA Cooler — Refrigerated, Stainless (EZSTL8SC)
The safe, spec-it-and-forget-it pick.
This is the fountain facilities managers order by default for K-12 corridors in 2026. The EZSTL8SC delivers 8 GPH of refrigerated water through two ADA-compliant bubblers, mounts directly to a standard wall carrier, and carries Elkay's anti-microbial, easy-clean bubbler guard. The stainless-steel cabinet resists dents and graffiti better than painted units. Flow control is factory-set to prevent waste — useful when 300 students hit the hallway between periods.
Why now: refrigerated bi-level units are backordered at several distributors through mid-2026; ordering early avoids project delays.
Verdict: Buy. Versatile wall-mount bi-level ADA cooler — refrigerated, stainless
2. Elkay EZH2O Bottle Filling Station + Versatile Bi-Level ADA Cooler — Filtered, Refrigerated, Stainless (LZSTL8WSSK)
The single-roughin bottle filler combo that state mandates increasingly require.
This unit combines a bi-level refrigerated cooler with an integrated EZH2O bottle filler above, all on one wall carrier. The WaterSentry filter (sold separately or bundled) is NSF/ANSI 42 and 53 certified — it reduces lead and microplastics, which matters in districts responding to state lead-in-water testing requirements active in 2026. The filtered version costs more up front but eliminates the retrofit headache of adding filtration later. Flow rate: 8 GPH refrigerated.
The bottle filler's sensor activation means students don't touch the spout. That alone reduces maintenance complaints.
Verdict: Buy if your district has a bottle-filler policy or state testing mandate. EZH2O bottle filling station versatile bi-level ADA cooler — refrigerated stainless lead reduction
3. Elkay Swirlflo Bi-Level Reverse Fountain — Non-Refrigerated, Stainless (EDFPB117RAC)
The budget pick for classrooms and low-traffic wings.
No chiller, no filter, no electronics. The Swirlflo EDFPB117RAC is a mechanical bi-level fountain with Elkay's Swirlflo bubbler — a bowl-style drain design that reduces splashback. Non-refrigerated means lower energy costs and near-zero mechanical failure risk. Stainless-steel construction meets the durability bar for schools. This is the right call for a classroom wing that already has a chilled unit nearby and just needs code-compliant coverage.
Verdict: Buy for secondary locations. Hold if this is the primary hallway fountain — students notice lukewarm water fast.
4. Haws 1119-14 Hi-Lo ADA Vandal-Resistant Dual Drinking Fountain — 14-Gauge Stainless, Wall-Mount
The vandal-resistant pick for middle and high schools.
Haws builds the 1119-14 from 14-gauge stainless steel — thicker than the 18-gauge used in most competitive units. The hi-lo (bi-level) configuration meets ADA. Tamper-resistant bubbler guards and a recessed basin make this the right call for middle and high school hallways where vandalism is a real maintenance budget line item. No refrigeration on the base model, but the construction means a 20-plus-year service life in harsh environments.
Verdict: Buy for grades 6–12. Hold for elementary — the 14-gauge premium is less justified where vandalism risk is lower. Haws 1119-14 hi-lo ADA vandal-resistant dual drinking fountain
5. Elkay Wall-Mount Vandal-Resistant Bi-Level ADA Cooler — Refrigerated, Stainless (VRCTL8SC)
The refrigerated vandal-resistant option when you need both cold water and durability.
This unit combines 8 GPH refrigerated output with Elkay's vandal-resistant cabinet and ADA bi-level configuration. It sits between the standard EZSTL8SC and the Haws 1119-14 in terms of abuse resistance — better than the Elkay standard line, not quite as heavy-duty as 14-gauge Haws. Best for elementary and middle schools where refrigeration matters but budget doesn't support the full Haws premium.
Verdict: Buy for elementary/middle hybrid installs. Wall-mount vandal-resistant bi-level ADA cooler — refrigerated stainless
Comparison table
| Model | Refrigerated | Vandal Resistant | Bottle Filler Option | Filtration | Best For |
|---|---|---|---|---|---|
| Elkay EZSTL8SC | Yes, 8 GPH | Standard | Add-on retrofit | No (non-filtered base) | Main corridors, all grades |
| Elkay LZSTL8WSSK | Yes, 8 GPH | Standard | Built-in | Yes, NSF 42/53 | Districts with lead mandates |
| Elkay EDFPB117RAC | No | Standard | No | No | Budget / secondary locations |
| Haws 1119-14 | No | 14-gauge, high | Bundle available | No | Middle/high school hallways |
| Elkay VRCTL8SC | Yes, 8 GPH | Enhanced | No | No | Elementary/middle hybrid |
What to avoid
Single-level fountains relabeled as ADA-compliant. Some units advertise ADA compliance because the single spout sits at 36 inches — but they lack a second higher spout for ambulatory users. That satisfies the wheelchair requirement but fails the dual-fountain intent in facilities that serve mixed populations. School inspectors know the difference.
Painted or powder-coated cabinets in indoor hallways. They look fine at install. By year two in a school corridor, chips, rust spots, and graffiti make them an ongoing maintenance problem. Stainless steel only for indoor school use.
Non-refrigerated units as the primary fountain in main hallways. In a 2026 school building without localized chilling, students served by a non-refrigerated fountain in a warm corridor will drink less water. That's a documented hydration issue in school health literature. Budget for at least one refrigerated unit per hallway cluster.
FAQ
What is a bi-level drinking fountain? A bi-level drinking fountain has two bubblers at different heights — typically one at 38–43 inches for standing users and one at 36 inches or lower for wheelchair users. It satisfies ADA requirements for accessible drinking water at a single unit.
Are bi-level fountains required in schools? Yes. ADA Standards for Accessible Design require accessible drinking fountain height at any location where a fountain is provided. For schools receiving federal funds, non-compliance risks facilities audit findings. As of 2026, most state building codes mirror or exceed federal ADA requirements.
What GPH flow rate do schools need? For a main hallway serving 300–500 students between periods, 8 GPH refrigerated is the standard spec. Lower-traffic secondary locations can use non-refrigerated units without a GPH concern.
Is a bottle filler the same as a bi-level fountain? No. A bottle filler is a separate activator (usually sensor-based) that fills water bottles from above the basin. Many bi-level fountains can be ordered with an integrated bottle filler — like the Elkay LZSTL8WSSK — but the two features are distinct.
Do schools need filtered bi-level fountains? Not universally, but the trend in 2026 is toward filtration. Several states have enacted lead-in-school-water testing laws that require remediation when lead exceeds 5 ppb. A fountain with NSF/ANSI 53-certified filtration is the cleanest remediation option.
What's the difference between the Elkay EZSTL8SC and the VRCTL8SC? Both are refrigerated bi-level wall-mount units. The VRCTL8SC has an upgraded vandal-resistant cabinet — recessed buttons, heavier-gauge front panel. The EZSTL8SC is the standard-duty version, appropriate where vandalism risk is low.
How long does a school drinking fountain last? With proper maintenance, a commercial-grade stainless-steel bi-level fountain lasts 15–25 years. Haws 14-gauge units routinely exceed 20 years in institutional settings. Refrigeration components (compressors) typically carry 5-year warranties and may need replacement before the cabinet does.
Can I add a bottle filler to an existing bi-level fountain? In many cases, yes. Elkay offers retrofit kits like the EZH2O Retrofit Bottle Filling Station Kit for EZ-family coolers. Compatibility depends on the existing model. Check The Fountain Direct's product pages for retrofit fit lists before ordering.
One last thing
The lower bubbler on a bi-level fountain must be positioned so the spout is no more than 36 inches above the finished floor and the unit provides knee clearance — at least 27 inches high, 8 inches deep, 30 inches wide — for a forward approach. Many facilities managers order the right fountain height but install it on a raised platform or over a floor drain stub that kills the knee-clearance spec. Measure the finished floor, not the rough slab, before finalizing the wall-carrier rough-in height.
