Product Information

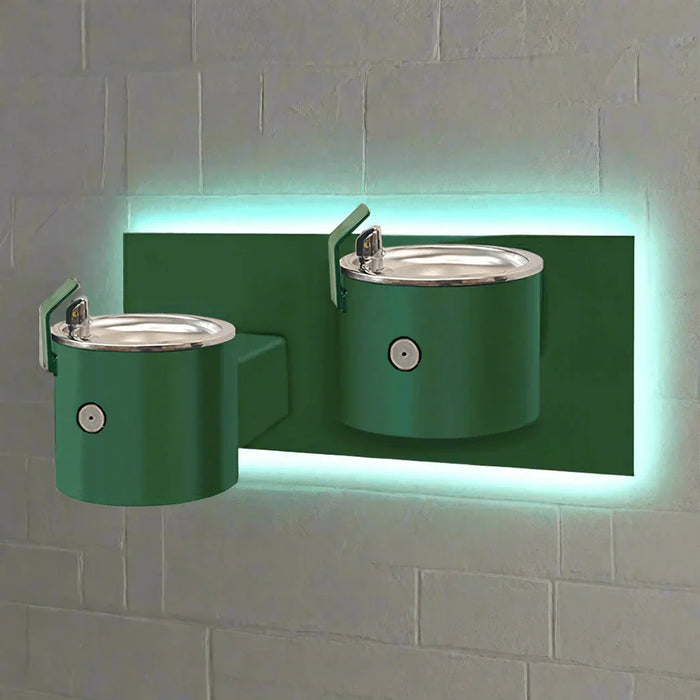

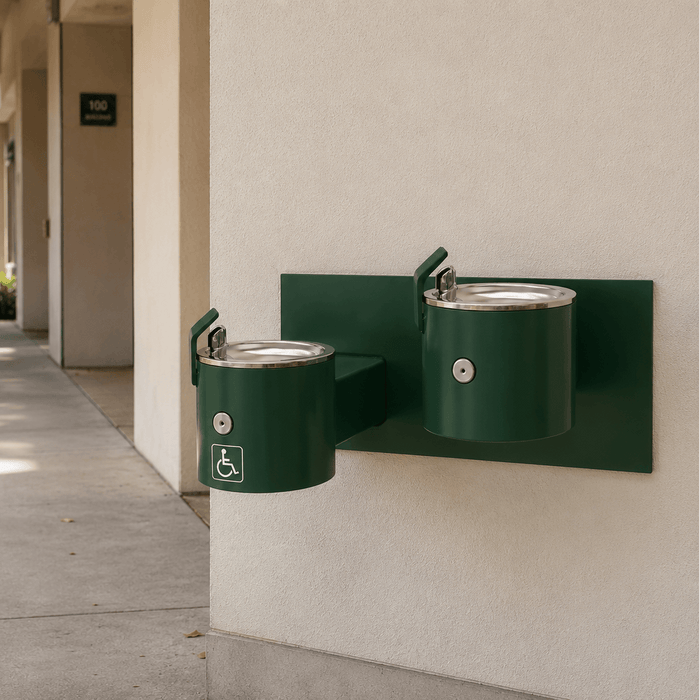

Durable, inclusive, and built for the real world. The 5315 Series is a modern, two-level wall-mounted fountain designed to deliver reliable hydration for users of all abilities. Whether installed in a park, school, or commercial building, this unit stands up to harsh weather, constant use, and vandalism without missing a beat.
Its ADA-compliant design makes it accessible to everyone, while heavy-duty stainless steel construction and a frost-proof option ensure it performs year-round even in freezing climates.
Key Benefits
✓ ADA compliant – Barrier-free access supports users of all abilities
✓ Two-level design – Serves people of different heights with ease
✓ Rugged construction – One-piece steel pipe with welded plates for long-lasting strength
✓ Vandal-resistant components – Recessed valve and tamper-proof access panels for protection
✓ Reliable push-button control – Chrome-plated brass valve resists damage and wear
✓ Consistent flow regulation – Adjustable settings maintain ideal water pressure
✓ Protected bubbler – Steel guard defends against impact and abuse
✓ Reinforced stainless back plate – Adds structure and extra durability
✓ Weatherproof finish – Standard woodland green powder coat, with stainless and color upgrades available
✓ Frost-proof option (-FP) – Prevents freezing to keep water flowing in cold weather
✓ Secure shutoff control – Lock shield stop deters unauthorized use
✓ Efficient drainage – 1-1/4” IPS waste pipes ensure proper water disposal
Specifications
| Feature |
Details |
| Material |
Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options |
Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type |
Wall-mounted with included plate |
| Surface Requirements |
Must be installed on a dry, level surface |
| Drainage |
1.25-inch (32 mm) IPS waste pipes included |
| Water Supply |
0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Model & Dimensions
| Model |
Type |
Height |
Length |
Mounting Type |
| 5315 |
Dual Wall-Mounted with Backplate |
13 inches (33 cm) |
20 inches (51 cm) |
Wall-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
Optional Features
-RV | Reverse heights
-SS | Stainless steel finish
BFCE-15 | Cane extension (must be requested at order placement)
BFCE-15-RV | Reverse heights
FLWMP-2-FM | Support carrier with mounting plate
FLMP-2-RV-FM | Support carrier with reversed heights
WMP-2-FM | Mounting plate
WMP-2-RV-FM | Mounting plate with reversed heights
Must-Read
Lead Time: Made to Order — Ships in 4-6 weeks
This item is built just for you. Each piece is made to order, ensuring exceptional craftsmanship and attention to detail. A short wait for a product designed to last decades is a worthwhile investment.
Need it sooner? Check out our fast shipping options: Quick Ship Fountain Program
