Product Information

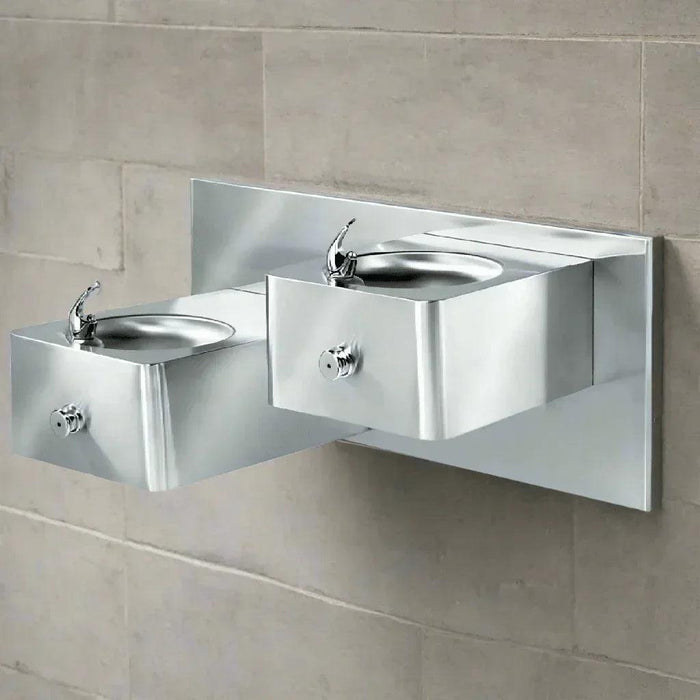

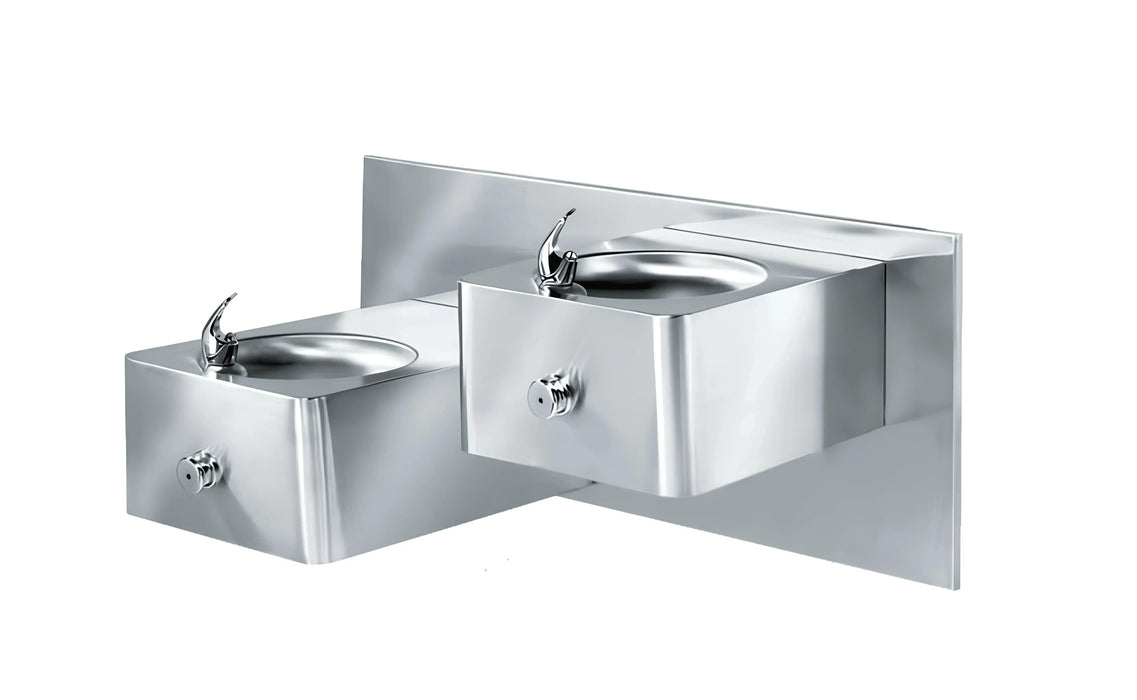

The BF-5000 Series Barrier-Free Dual Wall Mount Drinking Fountain is designed for durability, accessibility, and ease of maintenance, making it ideal for medical centers, office buildings, and high-traffic commercial environments. Constructed with lustrous satin-finish stainless steel, this unit meets the highest standards for cleanliness and easy care.
A push-button control is conveniently located on the front panel, providing effortless operation. The vandal-resistant bottom plate and mounting plate come standard for added security. Available in single or dual-level configurations, this drinking fountain offers flexible installation options, with frost-proof (-FP) models for cold-weather applications.
It is recommended that a dual check valve backflow prevention system be installed in the waterline for frost-proof fountains.
Features
✔ Barrier-Free Design – ADA-compliant for accessibility in public spaces.
✔ Satin-Finish Stainless Steel – Lustrous, durable, and easy to clean.
✔ Push Button Valve – Located on the front for user-friendly operation.
✔ Adjustable Flow Regulation – Allows precise water control.
✔ Vandal-Resistant Construction – Bottom plate and mounting plate provide added protection.
✔ Stainless Steel Supply Fittings – Reinforced tubing ensures long-term durability.
✔ In-Line Mesh Screen Strainer – Prevents debris from entering the water system.
✔ Protective Stainless Steel Back Plate – Enhances durability and aesthetics.
✔ Frost Proof Option (-FP) – Available for cold-weather environments.
✔ Secure Water Supply Control – 1/2” IPS lock shield screwdriver stop prevents tampering.
✔ Efficient Drainage System – 1-1/4” IPS waste pipes included.
✔ Optional Cane Touch Apron (BFCA-1) – Enhances accessibility for visually impaired users.
✔ Reverse Heights Option (-RV) – Allows customization for varied installation needs.
Specifications
| Feature | Details |
|---|---|
| Available Models | Single & Dual-Level Wall-Mounted Fountains |
| Material | 18-gauge brushed stainless steel |
| Finish Options | Satin-finish stainless steel |
| Mounting Type | Wall-mounted with standard mounting plate |
| Surface Requirements | Must be installed on a dry, level wall surface |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Extension |
|---|---|---|---|---|
| BF-5000 | Two-level with back plate | 14.88 inches (38 cm) | 35 inches (89 cm) | 18.5 inches (47 cm) |
| BF-5000-FP | Frost Proof Model | Same as BF-5000 | Same as BF-5000 | Same as BF-5000 |
| BF-5020 | Single with back plate | 9.63 inches (24 cm) | 19 inches (48 cm) | 18.5 inches (47 cm) |
| BF-5020-FP | Frost Proof Model | Same as BF-5020 | Same as BF-5020 | Same as BF-5020 |
| BF-5040 | Single with front push button | 7 inches (18 cm) | 12 inches (30 cm) | 18 inches (46 cm) |
| BF-5040-FP | Frost Proof Model | Same as BF-5040 | Same as BF-5040 | Same as BF-5040 |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
