Product Information
Our line of stainless steel, wall-mounted, refrigerated drinking fountains is designed for versatility and durability. Featuring a traditional beveled front with a push-button control on the front panel, these fountains provide reliable hydration for schools, offices, and commercial spaces.

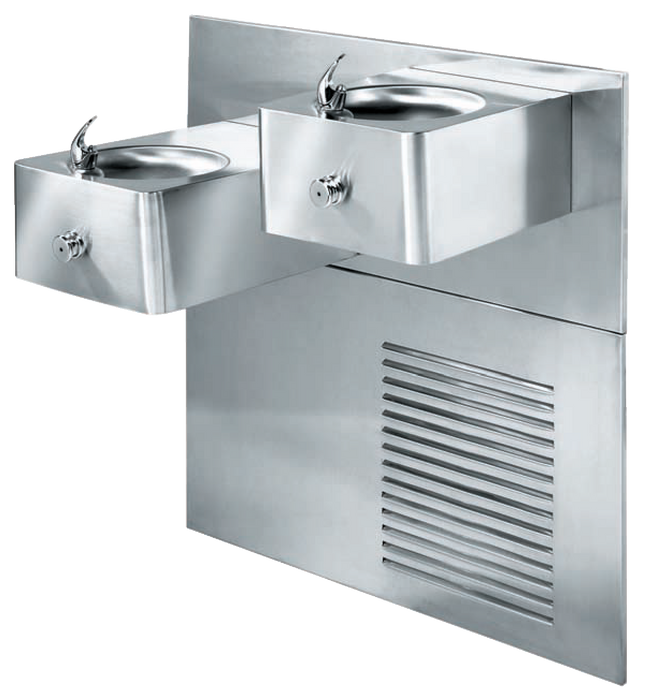

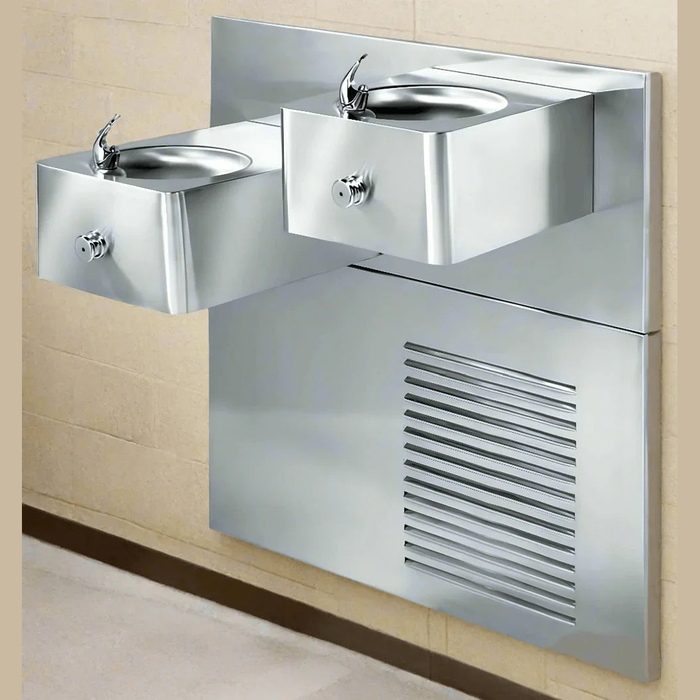

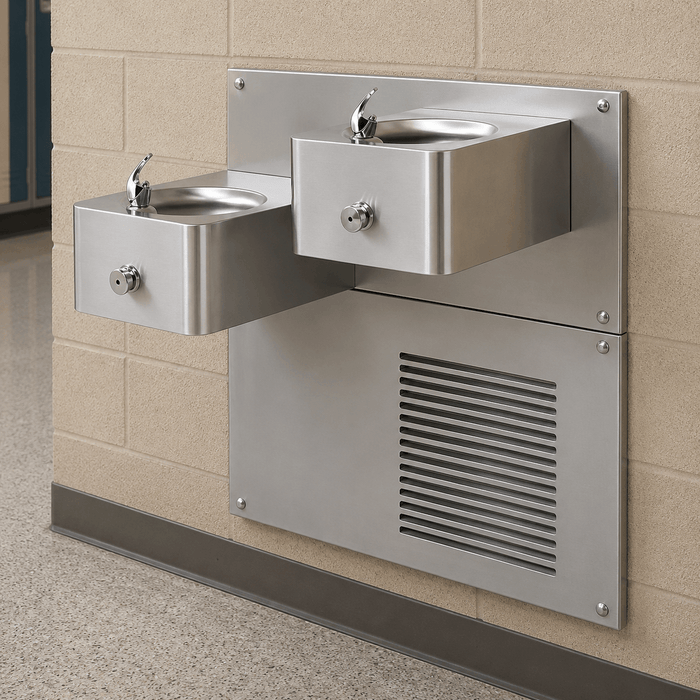

Built with a stainless steel receptor and vandal-resistant components, these fountains ensure long-term performance. The series includes dual-level (BFR-6000) and single-level (BFR-6050) configurations, offering flexibility for different installation needs.
Features
✔ Wall Mounted Refrigerated Fountain – Delivers chilled water for high-traffic environments.
✔ Stainless Steel Construction – Durable and easy to clean.
✔ Push Button Valve – Located on the front panel for user-friendly operation.
✔ Adjustable Flow Regulation – Allows precise water control.
✔ Vandal-Resistant Design – Includes reinforced access plates for added security.
✔ Stainless Steel Supply Fittings – Connected to reinforced tubing for long-term durability.
✔ In-Line Mesh Screen Strainer – Prevents debris from entering the water system.
✔ Protective Stainless Steel Back Plate – Enhances durability and aesthetics.
✔ Secure Water Supply Control – 1/2” IPS lock shield screwdriver stop prevents tampering.
✔ Efficient Drainage System – 1-1/4” IPS waste pipes included for proper water disposal.
✔ Optional Cane Touch Apron (BFCA-1) – Improves accessibility for visually impaired users.
✔ Reverse Heights Option (-RV) – Customizable for different user needs.
Specifications
| Feature | Details |
|---|---|
| Available Models | Single & Dual-Level Wall Mounted Refrigerated Drinking Fountains |
| Material | 18-gauge brushed stainless steel |
| Finish Options | Satin-finish stainless steel |
| Mounting Type | Wall-mounted with standard mounting plate |
| Surface Requirements | Must be installed on a dry, level wall surface |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Extension | Recess Depth |
|---|---|---|---|---|---|
| BFR-6000 | Two-level fountain with push button | 35.88 inches (91 cm) | 35 inches (89 cm) | 18.5 inches (47 cm) | N/A |
| BFR-6050 | Single-level fountain with push button | 33.5 inches (85 cm) | 19 inches (48 cm) | 18.5 inches (47 cm) | 12 inches (30 cm) |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
Must-Read Before Buying
Stern-Williams Products Are Made-to-Order and Highly Customizable [Click here]
Need your fountain faster? Check out our Quick Ship Fountain Program [Click here] for quicker delivery options.
Stern-Williams Policies
- Warranty
- RGA Policy
- Custom Order Policy & Procedures
- Drinking Fountain & Shower Tower Cancellation Policy
- ADA Compliance
- ACA Compliance
Downloads
BFR-6000 & BFR-6050 Spec Sheet
