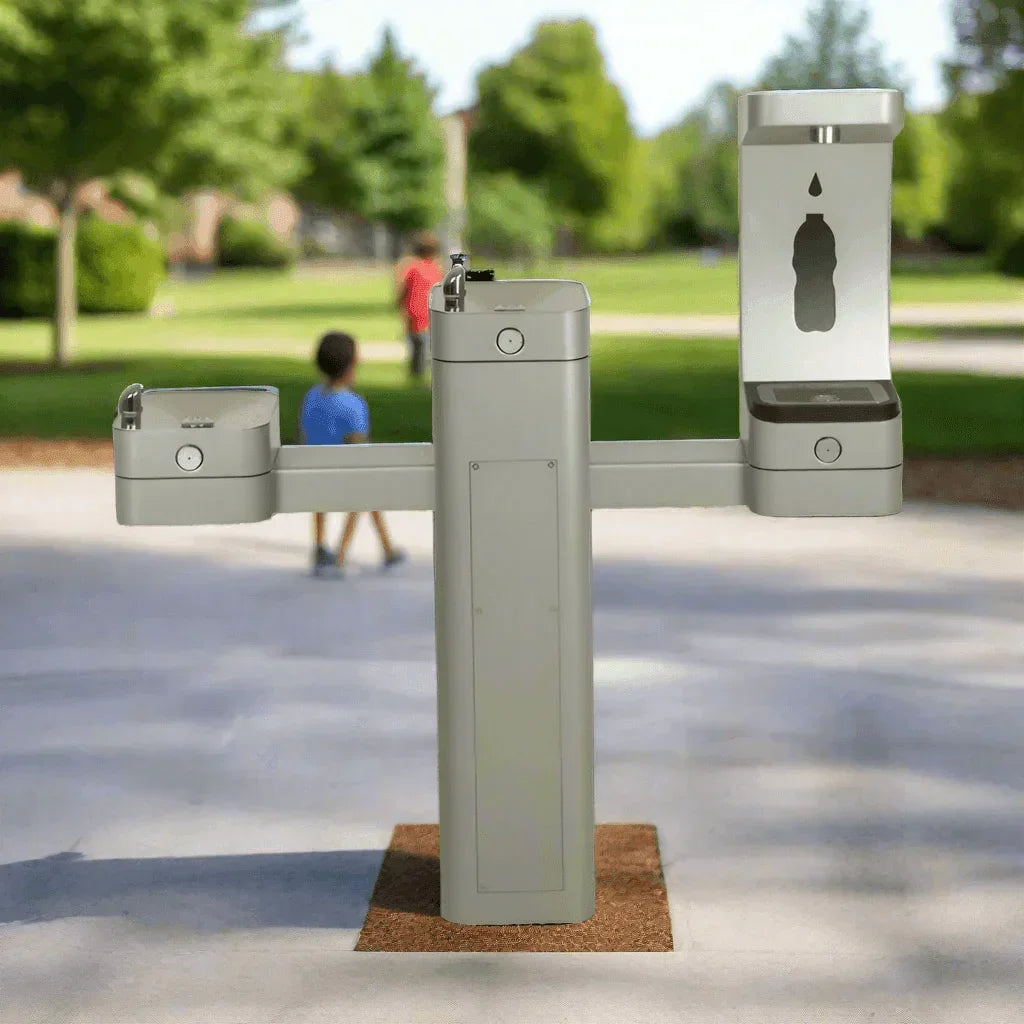

Upgrade any public space with the Haws 3612BFA, a durable, ADA-compliant bottle filler and dual drinking fountain designed for outdoor environments. This modular pedestal unit delivers consistent hydration access for standing adults and wheelchair users while withstanding heavy use, weather conditions, and potential vandalism. With its stainless-steel construction and streamlined service access, the 3612BFA is ideal for parks, campuses, and commercial facilities aiming for long-term performance and accessibility.
Lead Time: Ships in 2–3 weeks.
Standard Color: Silver. Custom colors may require additional processing time.
Built to order with precision, each unit reflects lasting quality. A brief wait ensures you receive a product engineered for decades of performance.
✓ Built for Extreme Environments – Heavy-duty stainless steel with matte silver powder coating resists corrosion, vandalism, and environmental wear
✓ Dual Drinking Fountains + Bottle Filler – Serves more users with high and low ADA-compliant drinking stations and quick-fill bottle filler
✓ Quick & Easy Filling – Large-opening bottle filler provides a rapid 1 GPM fill rate
✓ Vandal-Resistant Construction – Bubbler heads, buttons, access plates, and drains are reinforced for durability and security
✓ Modular & Adaptable – Interchangeable arms support future upgrades with hose bibs, pet fountains, or additional stations
✓ Low-Maintenance Access – Front-facing valve and cartridge system enables easy flow adjustment and service without disassembly
✓ Lead-Free Waterways – Fully compliant with NSF/ANSI standards and safe for all public installations
✓ Rotatable Components – Bowl and bubbler head can be rotated to fit unique site layouts

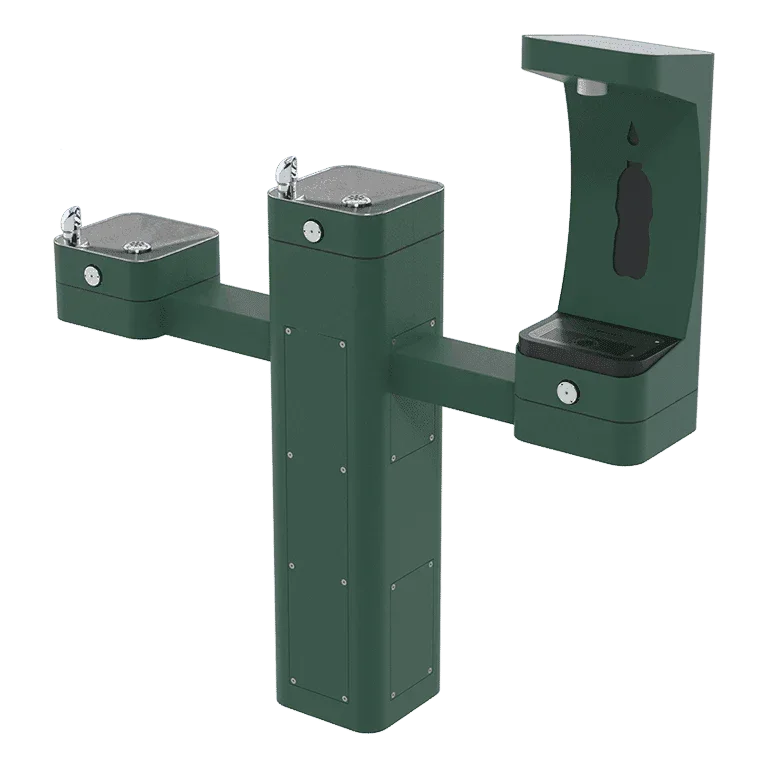

✓ Custom Color Options Available – Tailor the look to fit your facility branding or landscape design
Specification | Details |
---|---|
Model | 3612BFA |
Material | Stainless steel with matte silver powder coat |
Stations | Two drinking fountains, one bottle filler |
Flow Rate | 1.0 GPM (bottle filler) |
ADA Compliant | Yes – adult & wheelchair-accessible |
Lead-Free Compliance | 100% lead-free waterways |
Mounting | Pedestal, surface-mounted |
Maintenance | Front-access cartridge and valve adjustment |
Customizable | Yes – optional add-ons & color finishes |
Use | Outdoor |
Drainage | 1-1/2" slip waste |
Certifications | CSA, ADA, NSF/ANSI/CAN 61-2020 |
Spec Sheet
Operational / Maintenance Manual
Installation Drawing
Parts Breakdown Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
MasterSpec® Files
Limited Warranty
