Product Information

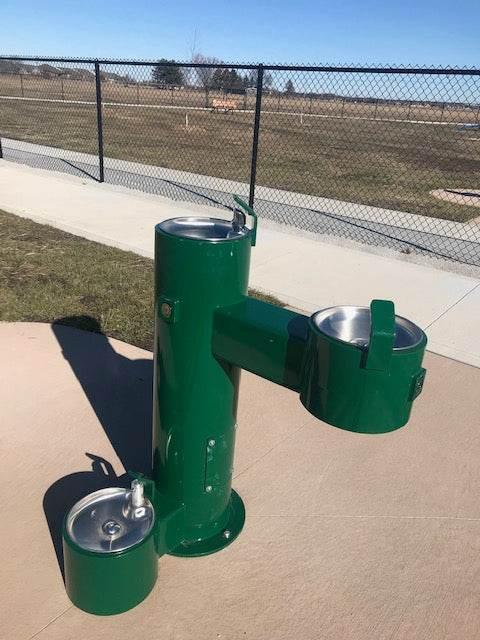

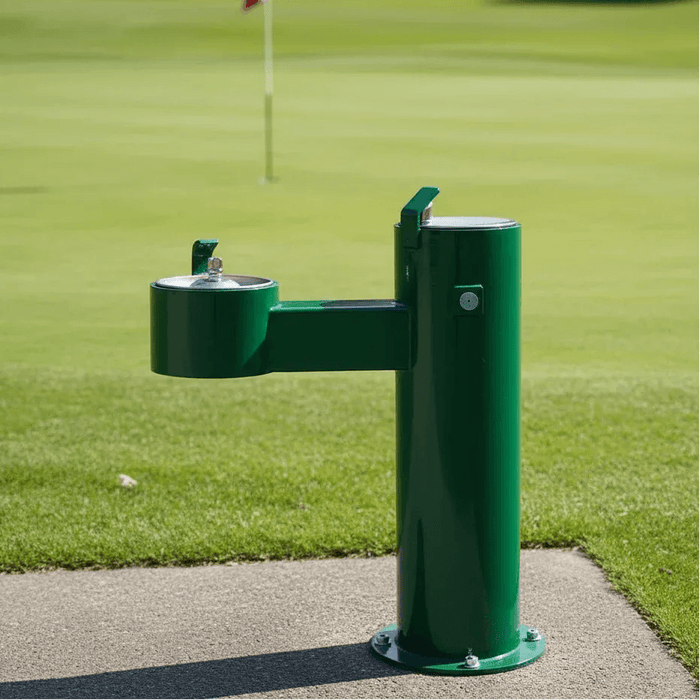

The 5700 Series features a modern, sleek design, built to withstand harsh outdoor conditions, resist vandalism, and endure heavy use. Designed for parks, schools, and public spaces, this model is available as both a pedestal-mounted and wall-mounted (MWL) fixture, providing flexible installation options.
Constructed from one-piece heavy-duty steel pipe, this fountain ensures long-lasting performance. Available in standard, frost proof (-FP), and Sanifrost (-FPS) models, it offers solutions for various climates. Frost proof models prevent freezing in cold weather, while Sanifrost models ensure stored water does not re-enter the bubbler, maintaining hygiene.
A dual check valve backflow prevention system is recommended for all FP models to maintain safe and clean water flow.
Features
✓ ADA compliant – Accessible for all users.
✓ Heavy-duty construction – One-piece steel pipe with welded steel plates for durability.
✓ Vandal-resistant access panels – Prevents tampering while allowing easy maintenance.
✓ Push button water control – Chrome-plated brass valve recessed in a 3/8” thick steel plate.
✓ Adjustable flow regulation – Maintains steady water pressure.
✓ Steel bubbler guard – Protects against damage and vandalism.
✓ Weather-resistant finish – Standard woodland green powder coat, with optional stainless steel (-SS) and other colors available.
✓ Frost proof option (-FP) – Protects against freezing in cold climates.
✓ Sanifrost option (-FPS) – Prevents stored water from re-entering the bubbler for better hygiene.
✓ Secure water supply control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✓ Efficient drainage system – 1-1/4” IPS waste pipes included for proper water disposal.
✓ Wall-mounted option (MWL models) – Provides flexibility for installation.
Available Models

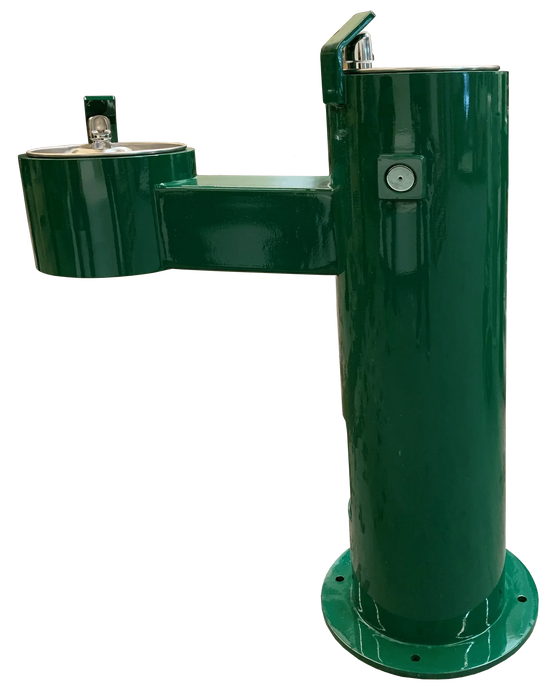

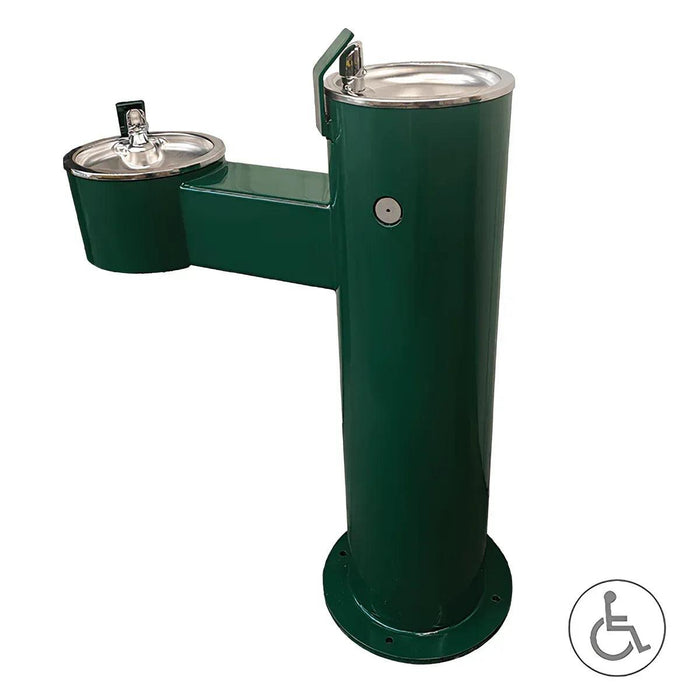

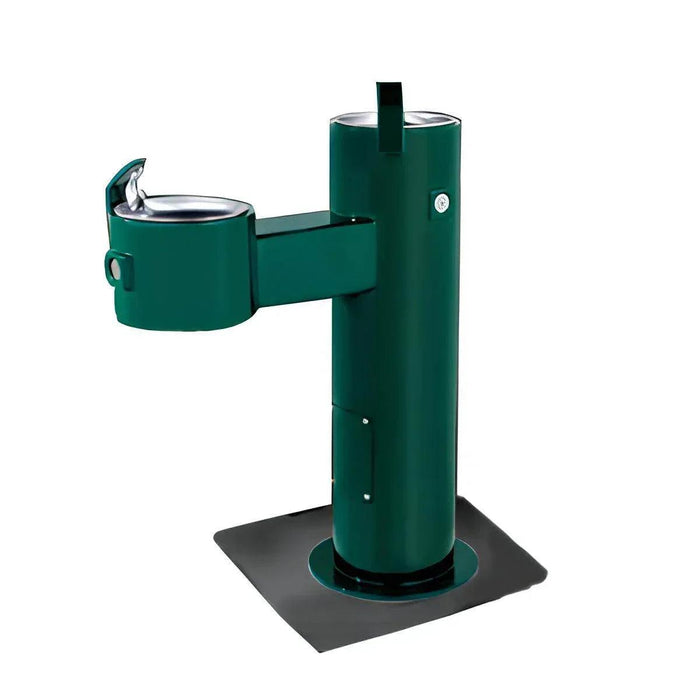

5700 – Standard dual pedestal drinking fountain
5700-FP – Frost proof dual pedestal drinking fountain
5700-FPS – Sanifrost dual pedestal drinking fountain
5725-MWL – Surface and wall-mounted dual drinking fountain
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Surface-mounted plate welded to pedestal (MWL models include wall-mounting options) |
| Surface Requirements | Must be installed on a dry, level surface |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Length | Mounting Type |
|---|---|---|---|---|---|
| 5700 | Standard Pedestal Model | 40 inches (102 cm) | 10.75 inches (27 cm) | 30.75 inches (78 cm) | Surface-mounted plate |
| 5725-MWL | Surface & Wall-Mounted Model | 43.25 inches (110 cm) | 10.75 inches (27 cm) | 25.38 inches (64 cm) | Surface and wall-mounted |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
