Retrofit a Bottle Filler Onto an Existing Fountain (2026)
Bolting a bottle filler onto a fountain that was never plumbed for one usually fails at the rough-in, not the install ā the fix is either a companion unit tied into the same line or a swap-in combo that reuses the existing bracket. Instead of hoping a universal kit fits your old basin, pick the retrofit path that matches your rough-in and wire the water, drain, and mounting hardware to spec the first time.
- You can retrofit a bottle filler onto an existing drinking fountain by adding a companion unit or swapping in a bi-level combo that reuses the rough-in.
- ADA-compliant spout height tops out at 36 inches, so measure before ordering any bottle filling station.
- The Elkay EZH2O vandal-resistant bottle filling station ties into most existing 3/8-inch supply lines without new rough-in work.
- A 6-bolt mounting kit and a filter rated for at least 6,000 gallons cover most school and park retrofit jobs.
- Skip the retrofit entirely and replace the whole unit when the existing basin is cracked or the drain line is undersized.
Why this matters
Most facilities managers assume a bottle filler is a bracket you screw onto the front of an old fountain. It isn't. The fountains built before roughly 2015 weren't designed with a bottle filling head in mind, so the supply line, drain, and wall bracket rarely line up with a modern filler's footprint.
The two paths that actually work in 2026 are: add a standalone bottle filling station next to the existing fountain on a shared supply line, or replace the fountain body with a combo bi-level unit that reuses the same rough-in. Guessing which one fits before you order hardware is the single most common reason retrofit jobs stall mid-install. A bottle filler retrofit guide for outdoor installs covers the same supply-line logic if your unit sits outside.
Before you start
- Confirm you have valve access. You need a shutoff on the existing supply line within reach of the new unit ā if the only valve is behind a finished wall, budget for an access panel before ordering anything.
- Check the drain line size. A refrigerated bottle filler pushes more condensate and waste water than a basic bubbler; a 1-1/4 inch drain that handled the old fountain fine can back up under a filler with a chiller.
- The gotcha: ADA clearance rules apply to the new configuration, not the old one. If your existing fountain sat at 38 inches with no accessible unit nearby, adding a filler doesn't fix your ADA gap ā you need a spout reachable at 36 inches or lower somewhere on site.
Set up your bottle filler retrofit
Measure the existing rough-in and wall bracket
- Record the center-to-center bolt spacing on the current wall bracket.
- Measure from the finished floor to the top of the drain stub-out.
- Note the supply line diameter at the shutoff ā most commercial fountains run 3/8 inch, some older institutional units run 1/2 inch.
Expected result: you have three numbers ā bolt spacing, drain height, supply diameter ā that any bottle filler spec sheet can be checked against before you buy.
Select a compatible bottle filling station
- Cross-check your bolt spacing against the unit's mounting template ā most manufacturers publish this in the install PDF, not the marketing page.
- Pick filtered vs. non-filtered based on whether you're adding a filter housing to the wall cavity or mounting it inline under the basin.
- For public, unsupervised sites, choose a vandal-resistant model like the Elkay EZH2O vandal-resistant bottle filling station ā the push-button trigger and heavy-gauge basin hold up where a sensor-activated unit gets kicked or jammed.
Expected result: a specific model number in hand that matches your rough-in without cutting new holes in the wall.
Tie into the water supply and drain
- Shut off the main valve and confirm zero pressure at the fixture before disconnecting anything.
- Install a tee fitting at the existing supply line if you're running a companion unit alongside the old fountain rather than replacing it.
- Route the drain from the new unit into the existing stub-out, adding a trap if the manufacturer's install sheet calls for one.
Expected result: water and drain both connected with the main valve still off, ready for a dry-fit before power or filtration goes on.

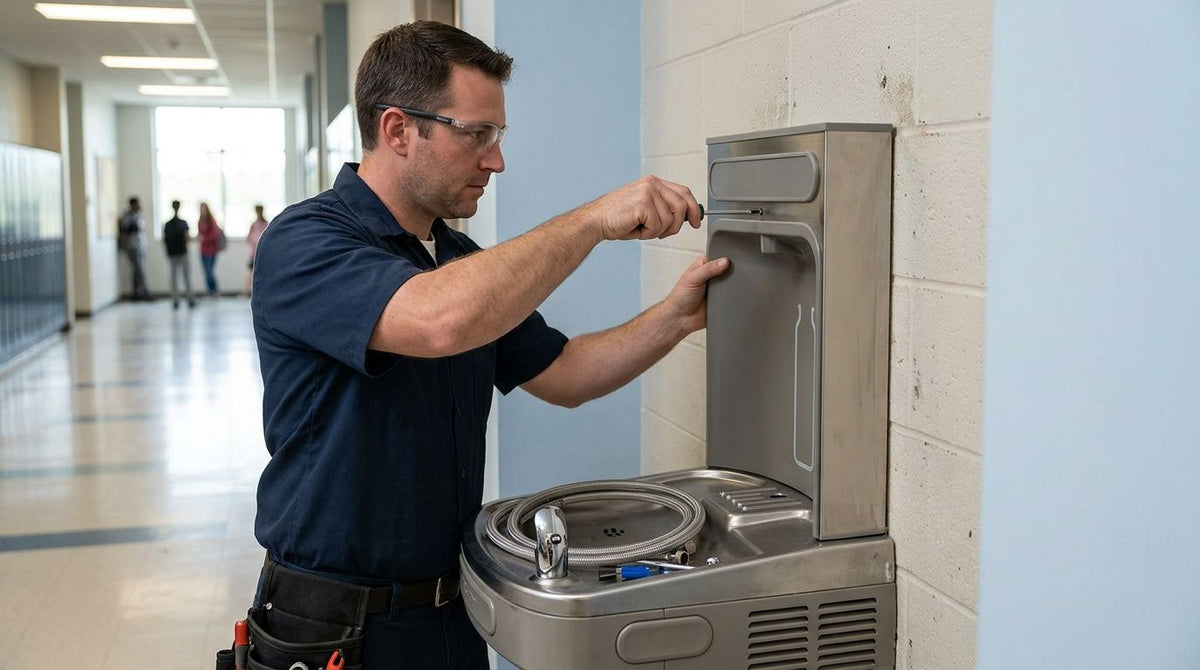

Mount and secure the unit
- Use a 6-bolt mounting kit rated for wall-hung fixtures when the existing bracket doesn't match the new unit's hole pattern ā the Willoughby 6-bolt mounting kit covers most standard retrofits without core-drilling new anchor points.
- Torque the mounting bolts to the manufacturer's spec, not just hand-tight ā a loose bracket on a bottle filler shows up as a wobble within the first month of heavy use.
- Check level side-to-side and front-to-back before final tightening.
Expected result: the unit sits flush against the wall with no visible gap at the bracket, and it doesn't rock when you press the bottle filling trigger.
Test flow, filtration, and shut-off
- Turn the main valve back on slowly and check every fitting for drips before walking away.
- Run the bottle filler for a full 30-second fill cycle and confirm the auto shut-off actually stops the flow.
- If filtered, flush the new cartridge per the manufacturer's instructions ā most require a 3 to 5 minute initial flush before the water runs clear.
Expected result: a leak-free connection, a working auto shut-off, and clear water on the first fill.
Replace the fountain with a combo bi-level unit
When the existing basin is cracked, corroded, or the drain line can't handle a second fixture, don't force a companion unit next to it ā replace the whole fountain with a bi-level combo that includes the bottle filler built in. This is the more common retrofit in schools and parks departments working through 2026 budget cycles, because it solves the ADA reach problem and the bottle filler gap in one swap.
The process is nearly identical to adding a companion unit, with one difference: you're matching the old unit's rough-in to a new combo unit's footprint instead of adding a tee. A unit like the Elkay LZSTL8WSBPRO-FLP4 bi-level ADA cooler with an integrated bottle filler is built for exactly this swap ā same general wall footprint as a standard bi-level fountain, filler head added above the basin.
Troubleshooting
- Low flow after the retrofit is finished. Usually a kinked supply line at the tee fitting or a filter cartridge that wasn't fully seated ā recheck the connection before assuming the unit is defective.
- Filter housing doesn't match the new unit. Some retrofits mix an old filter bracket with a new bottle filler; confirm the filter model against the unit's spec sheet rather than reusing whatever was on hand.
- Drain backs up under heavy use. A drain sized for a single bubbler often can't keep up with a refrigerated bottle filler's condensate output ā upsize the drain line rather than tolerating standing water at the base.
- Sensor won't trigger. Check that the sensor eye isn't shadowed by the new bracket position ā a filler mounted slightly off the old centerline can put the sensor at an angle it wasn't designed for.
- Leak at the base after the first week. Almost always a bolt that backed off from vibration rather than a bad gasket ā retorque the mounting bolts before replacing any seal.
Customize your retrofit
Once the bottle filler is running, most facilities add a higher-capacity filter if the site sees more than a few hundred fills a day ā a filter rated for 6,000 gallons lasts considerably longer than a standard 1,500-gallon cartridge in a school or transit setting. If you're specifying for a renovation with an architect or a plan reviewer, the ADA reach and knee-clearance numbers above come straight from the same standards a reviewer will check your drawings against.
If your existing fountain is past the point of a clean retrofit ā cracked basin, seized valve, or a rough-in that doesn't match any current bottle filler on the market ā full replacement is usually faster and cheaper than forcing a fit.
FAQ
Can you retrofit a bottle filler onto any existing drinking fountain?
Not onto every fountain ā the retrofit works when the supply line, drain, and wall bracket can accept a companion unit or match a combo unit's rough-in. Fountains built before roughly 2015 often need a bracket swap or a new drain line to fit a modern bottle filler.
Is it cheaper to retrofit a bottle filler or replace the whole fountain?
A companion unit added to an existing fountain is usually the lower-labor option if the supply line and drain already have capacity. Full replacement with a bi-level combo unit costs more in labor but solves ADA reach and bottle filler access in one pass.
What ADA height does a retrofit bottle filler need to meet?
An accessible bottle filler spout needs to sit at or below 36 inches from the finished floor, with 30 by 48 inches of clear floor space in front of it. Pair it with a standard-height fountain in a bi-level configuration if you need both accessible and standing-height service.
Do you need a plumber to retrofit a bottle filler?
Yes for the supply line and drain connections ā cutting into an existing line without a licensed plumber risks code violations on public and institutional buildings. Mounting and bracket work can often be handled by facilities staff once the plumbing connections are made.
Can a bottle filler share a water line with an existing fountain?
Yes, a tee fitting at the existing supply line lets a companion bottle filling station run off the same water source as the old fountain. Confirm the line's diameter and pressure can support both fixtures running at once before finalizing the tee.
How long does a bottle filler retrofit take?
A companion-unit retrofit with existing supply and drain access typically runs a single day for the plumbing and mounting work. A full fountain swap to a combo unit takes longer if the old rough-in needs modification to fit the new bracket pattern.
Does a retrofitted bottle filler need its own filter?
Filtered models need a dedicated cartridge housing, either inline under the basin or mounted separately in the wall cavity. Non-filtered units skip this step entirely and only need the supply and drain connections.
What's the most common mistake in a bottle filler retrofit?
Ordering a unit before measuring the existing bolt spacing and drain height, which forces a bracket workaround mid-install. Checking those three numbers against the manufacturer's install sheet before ordering avoids the delay entirely.
One last thing
The detail most retrofit jobs miss isn't the plumbing ā it's the drain sizing. A basic bubbler drains almost nothing; a refrigerated bottle filler with a chiller pushes condensate and waste water at a rate that catches facilities staff off guard in the first month, long after the install crew has left the site. Check the drain line capacity before you order the unit, not after the leak shows up at the base.
