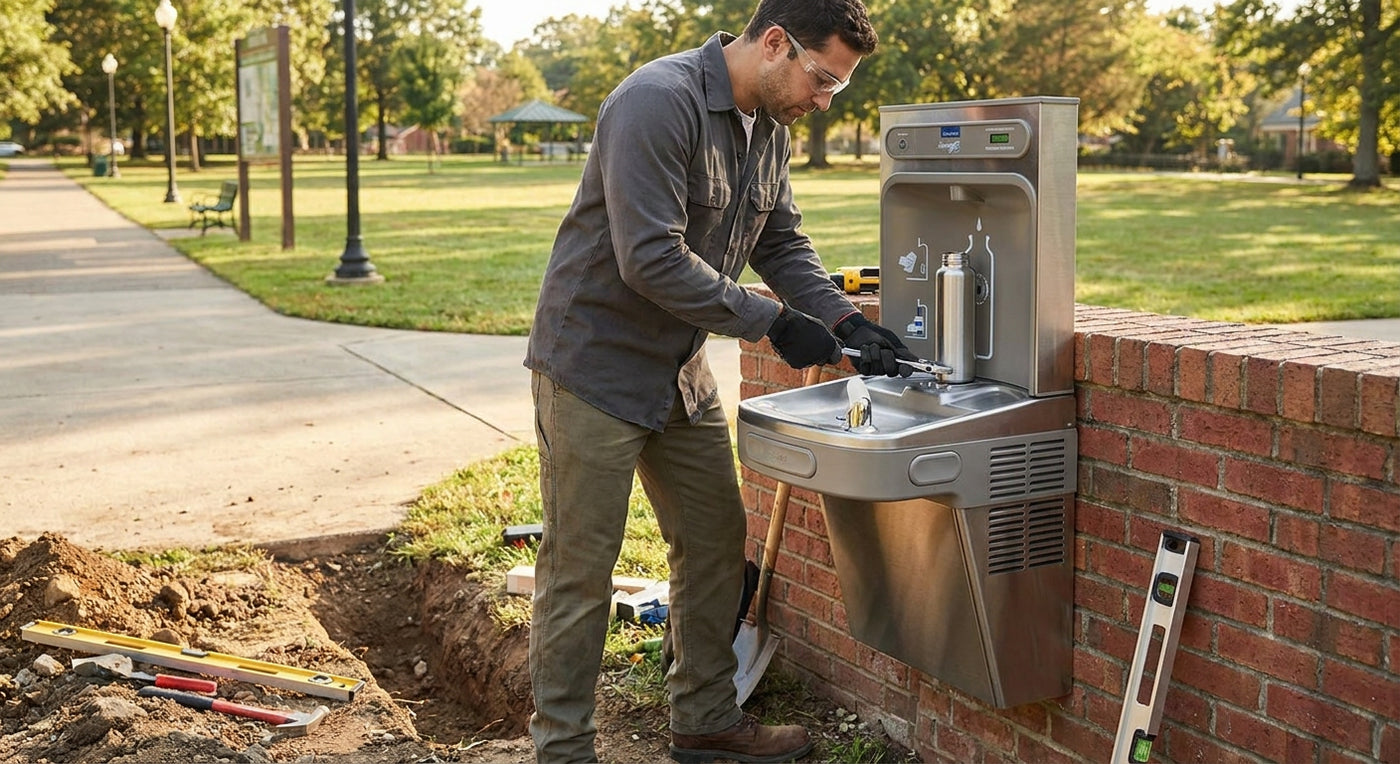

How to Install a Bottle Filling Station Outdoors (2026)

Step-by-step guide to installing an outdoor bottle filling station in 2026: supply lines, ADA heights, freeze protection, and drain requirements covered.

July 06, 2026

Outdoor bottle filling stations serve parks, schools, trails, and sports facilities that need a permanent, high-volume hydration point — but getting the installation right the first time saves you costly rework.

TL;DR: Learning how to install a bottle filling station outdoors takes one to two days and requires a cold-water supply line, a drain, and the right unit for your site conditions. Wall-mount models like the outdoor wall mounted bottle filler work where a masonry or concrete wall is present; pedestal models work in open areas. In 2026, freeze-resistant and vandal-resistant ratings are must-haves for any public-facing outdoor installation. Pick the wrong mounting type and you'll be cutting concrete a second time.

Why This Matters

A poorly sited or under-specified outdoor bottle filler fails fast. Vandals damage unprotected sensor heads. Standing water in supply lines cracks cast iron fittings in sub-freezing climates. ADA non-compliance draws code violations during inspections. Getting the unit selection and rough-in details right before concrete is poured or walls are penetrated is the difference between a 2026 install that lasts 15 years and one that fails in the first winter.

What You'll Need

Tools:

Adjustable pipe wrench and channel-lock pliers
Cordless drill with masonry and wood bits
Hammer drill (for concrete anchor bolts)
Level (24-inch minimum)
Pipe cutter or reciprocating saw
Teflon tape and pipe joint compound
Voltage tester (if unit includes a chiller or sensor)
Torque wrench for anchor bolts

Materials:

¾-inch cold-water supply line (copper or CPVC)
Isolation shut-off valve (ball valve, full-bore)
Appropriate drain line or surface drain
Concrete anchor bolts or threaded rods (for pedestal installs)
Freeze-resistant supply stop if site temps drop below 32°F
Filter cartridge (if unit is filtered)
Backflow preventer (required by most municipal codes)

Time: Allow 4–8 hours for a straightforward wall-mount install; 6–10 hours for a pedestal unit requiring anchor bolt placement in concrete.

Unit selection note: Before you start, confirm your unit type — wall-mount surface, in-wall recessed, or freestanding pedestal. Each has a different rough-in sequence. The model 7335 single bottle filler station is a typical pedestal format; the outdoor EZH2O single-arm bottle filling station wall mount non-filtered non-refrigerated is a surface wall-mount.

The Steps

Step 1: Confirm Site Conditions and Code Requirements

Walk the site and verify three things before ordering equipment: location of the nearest cold-water main (ideally within 20 feet to limit pressure drop), availability of a drain connection or surface drainage slope, and local ADA requirements for mounting height (the bottle fill point must be no higher than 36 inches above finished grade for ADA-compliant installs). Pull the required plumbing permit. In 2026, most municipalities also require a state-certified backflow preventer on any public drinking fixture — confirm this before purchasing fittings.

Common mistake: Skipping the permit. Inspectors who find an unpermitted outdoor water fixture can require full removal.

Step 2: Locate and Expose the Supply Line

Shut off the nearest isolation valve on the building side. Drain the line by opening the lowest fixture downstream. Cut into the ¾-inch cold-water supply at the tap point — use a pipe cutter for copper; a reciprocating saw for CPVC. Install a tee fitting and a full-bore ball valve. This valve becomes the service shutoff for the bottle filler, so position it somewhere accessible but protected from vandalism. Cap the line and restore pressure to test the new tee for leaks before proceeding.

Expected outcome: A dry, leak-free service valve ready to feed the new run.

Common mistake: Using a ½-inch supply run to save material. Most commercial bottle fillers are sized for ¾-inch inlet flow; undersizing the supply line reduces pressure and fill speed noticeably.

Step 3: Run the Supply Line to the Installation Point

Route ¾-inch copper or CPVC from the service valve to the unit location. Keep horizontal runs sloped at ⅛ inch per foot back toward the shutoff so the line fully drains when winterized. Insulate the pipe where it passes through a wall cavity. If your site is in a freeze-prone climate, use a freeze-resistant supply stop — these are code-required in many northern states and built into certain pedestal models. Terminate the supply line at the rough-in point with a ¾-inch threaded male adapter.

Common mistake: Running the supply line tight to the surface without a service loop. Leave 6–8 inches of slack at the connection point so you can disconnect the unit for filter changes or repairs without cutting pipe.

Step 4: Set the Anchor Points or Mounting Surface

For wall-mount units: Mark the mounting hole locations from the manufacturer's template (included in the box). Use a hammer drill to set concrete anchors or toggle bolts into masonry. Check level before tightening. The backing surface must support at least 150 lbs — add a steel backing plate if the wall is hollow CMU.

For pedestal units: Mark the anchor bolt layout from the base template. Drill holes to the specified depth (typically 3.5–4 inches into concrete). Set the anchor bolts, check that they're plumb and match the base hole pattern, then allow epoxy anchors to cure for the manufacturer-specified time — usually 60 minutes at 70°F, longer in cold weather. Do not set the pedestal until cure is complete.

Expected outcome: Anchor points that are flush, level, and within 1/16 inch of the template pattern.

Common mistake: Setting anchors without the actual unit base as a final check. Template paper shifts. Test-fit the base over dry anchors before epoxy sets.

Step 5: Mount the Unit and Make Plumbing Connections

Lift the unit onto the anchors or wall brackets. Hand-tighten the nuts or screws first, then use a torque wrench to the manufacturer spec — typically 25–35 ft-lbs for pedestal anchor bolts. Connect the supply line using two wraps of Teflon tape on all male threads plus pipe joint compound on the fitting shoulders. Connect the drain outlet to the site drain or verify that the drain is directed away from foot traffic at the correct slope. If the unit includes a filter housing, install the filter cartridge now before pressurizing.

Common mistake: Over-torquing stainless steel fittings. Stainless threads gall easily — hand-tight plus ¾ turn with a wrench is the maximum for most ¾-inch fittings.

Step 6: Pressurize, Test, and Flush

Slowly open the isolation valve. Check every threaded connection for weeping before the system reaches full line pressure. Once pressure holds, activate the fill sensor or push the button and let the unit run for 3 full minutes to flush the supply line and any debris from the filter housing. Confirm fill sensor range — most sensor heads activate at 4–6 inches — and that the fill stream is centered on the drain. Check drain flow: water should clear the drain within 10 seconds of the stream stopping.

Expected outcome: No leaks at any fitting, consistent fill stream, no pooling around the base.

Common mistake: Not flushing before putting the unit in service. New copper supply lines carry flux residue and fine solder particles that contaminate the first several gallons.

Step 7: Final ADA Check and Signage

Measure the fill point height above finished grade. ADA requires the operable part to be reachable from a 48-inch forward or side reach — the fill point at 36 inches or lower satisfies this in most configurations. Confirm the unit has at least 30 inches × 48 inches of clear floor space at the front. In 2026, many jurisdictions also require a lead-free certification label to be posted on or near any public drinking fixture. Attach the required signage and document the installation date and filter install date for your maintenance log.

Troubleshooting

Low fill speed or weak stream First check: supply pressure at the inlet. Most bottle fillers require 20–80 PSI. If pressure is in range, inspect the filter cartridge — a clogged filter cuts flow to a trickle. Replace the filter. If the unit has a flow restrictor, confirm it's sized for your inlet pressure.

Sensor doesn't activate Clean the sensor window with a damp cloth. Infrared sensors false-trigger or fail to trigger when the lens is coated in mineral deposits or debris. If cleaning doesn't fix it, check for direct sunlight hitting the sensor — bright afternoon sun at certain angles overwhelms passive IR sensors. Reorient the unit or add a sun shade.

Water pooling at the base The drain line slope is insufficient or blocked. Disconnect the drain outlet and flush with a garden hose. If the drain is clear, the outlet pipe needs to be re-sloped at ⅛ inch per foot minimum toward the drain field.

Unit freezes in winter The supply line was not pitched back toward the shutoff, or the freeze-resistant supply stop is not functioning. Drain the line manually each fall: close the shutoff, open the fill sensor, and hold it open until air replaces the water column. In 2026, models with built-in freeze-resistant valves handle this automatically — confirm the valve is the correct model for your hardiness zone.

Leaking at supply connection after install Disassemble the fitting and inspect the threads. If the male threads are galled, replace the fitting. Re-tape with three wraps of Teflon and apply pipe joint compound. Galling is irreversible — do not reuse damaged stainless fittings.

ADA height is out of spec after mounting If a pedestal unit sits too high because of an uneven pad, use a grinder to trim the anchor bolts and shim the base level, or break out the pad and repour. Wall-mount units can be relocated 2–3 inches by resetting anchors — patch the original holes with hydraulic cement.

Tools and Resources

Isolation valve: A dedicated shut-off valve at the supply tap is essential — never skip this on a public fixture.
Freeze-resistant outdoor pedestal bottle fillers: The outdoor EZH2O bottle filling station single pedestal non-filtered non-refrigerated freeze-resistant handles northern climates without a manual winterization procedure.
Manufacturer installation templates: Included with every unit from The Fountain Direct — do not discard the box until anchor holes are drilled.
Filter cartridges: Keep a spare on-site at all times. Replacement schedules in 2026 range from 1,500 to 6,000 gallons depending on the filter grade.

What to Do Next

Once the station is live, set a recurring maintenance reminder for filter replacement and sensor cleaning — quarterly for high-traffic sites, semi-annually for low-traffic. If you're planning multiple stations across a campus or park system, check the outdoor EZH2O bottle filling station bi-level pedestal with pet station non-filtered non-refrigerated for combined human and pet hydration in a single footprint.

FAQ

How long does it take to install a bottle filling station outdoors? A wall-mount unit on an existing supply line takes 4–6 hours. A pedestal unit requiring new anchor bolts in concrete takes 6–10 hours, including epoxy cure time. Both assume a licensed plumber is on-site for the supply connection.

Do outdoor bottle filling stations need a drain? Yes. Every outdoor bottle filler produces wastewater from splashing and overflow. Without a proper drain, water pools at the base and creates a slip hazard. The drain must slope at ⅛ inch per foot minimum toward a collection point.

What water pressure is required for a bottle filling station? Most commercial units operate between 20 and 80 PSI. Below 20 PSI, fill speed drops significantly. Above 80 PSI, internal valve components wear prematurely. Install a pressure-reducing valve if your supply line exceeds 80 PSI.

Is a permit required to install an outdoor bottle filling station? In most US jurisdictions in 2026, yes — any new connection to a potable water supply line requires a plumbing permit. Some municipalities also require a separate inspection for the backflow preventer. Check with your local building department before starting.

What does ADA compliance require for an outdoor bottle filler? The fill point must be no higher than 36 inches above finished grade. A clear floor space of 30 × 48 inches must be available at the front of the unit. The operable control must be usable with one hand and require no tight grasping or twisting.

Do outdoor bottle fillers need to be freeze-resistant? Only in climates where temperatures drop below 32°F. Freeze-resistant models use a below-grade bury valve or internal drain-back mechanism that empties the water column when the unit is not in use. Standard models will crack internal components in a single hard freeze.

Can I add a bottle filler to an existing outdoor drinking fountain? In many cases, yes. Retrofit kits exist for compatible fountain models. The supply line must support the additional flow, and the sensor head mounts to the existing column. Confirm the fountain model is listed as compatible before purchasing a retrofit kit.

How often should the filter be replaced on an outdoor bottle filling station? Depends on the filter grade. Standard filters rated at 1,500 gallons need replacement more frequently at high-traffic sites — as often as every 3–4 months. High-capacity filters rated at 6,000 gallons typically last 12 months at moderate use. Track gallons dispensed when your unit has a counter display; otherwise replace on a time schedule per the manufacturer spec.

One Last Thing

The most common reason outdoor bottle fillers get removed within two years of install in 2026 is not mechanical failure — it's drain neglect. A clogged or improperly sloped drain turns a clean hydration station into a muddy, mosquito-breeding puddle that facility managers condemn on sight. Spend 20 extra minutes during install confirming drain slope and you'll protect a fixture that could otherwise serve thousands of refills per year.
