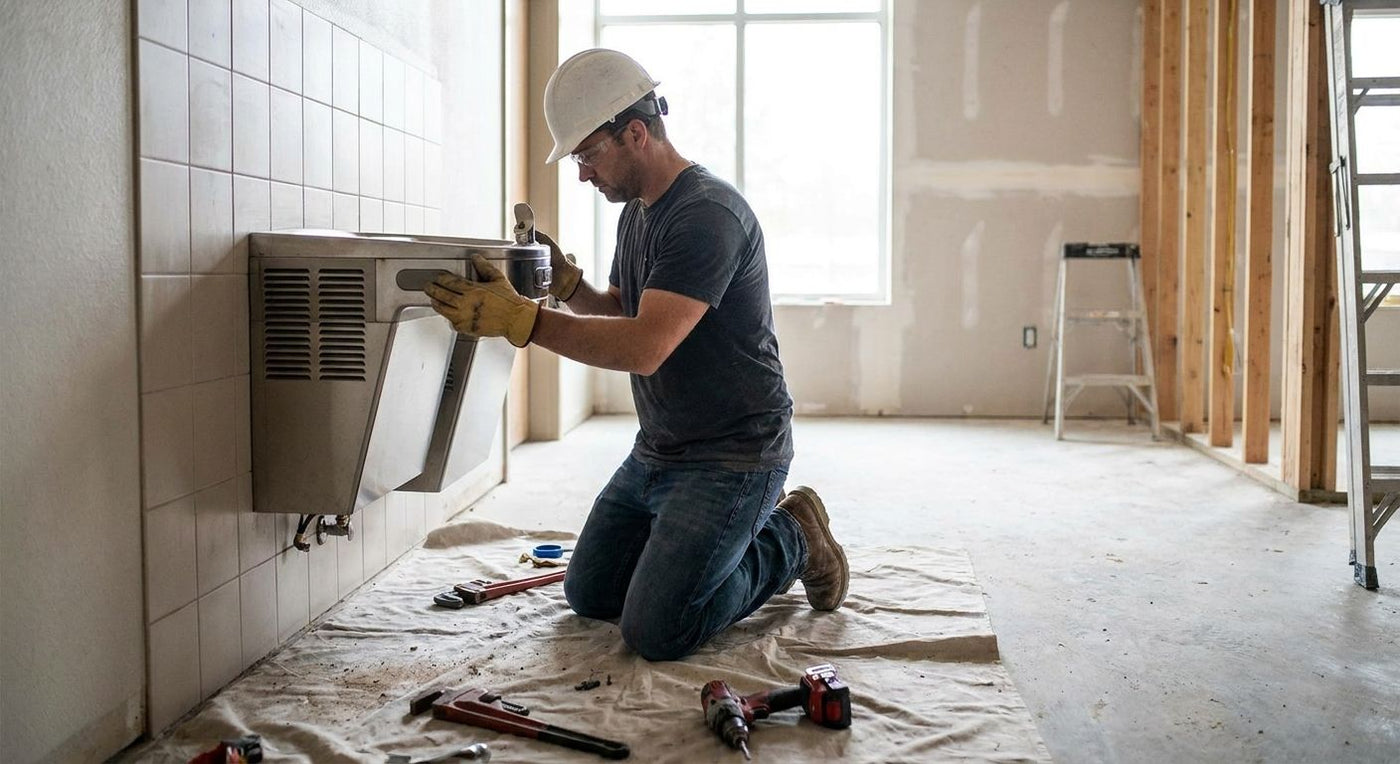

Relocate a Drinking Fountain During a Remodel (2026)
Moving a drinking fountain to a new wall or a new footprint during a remodel is a plumbing job wrapped inside an ADA compliance check, and skipping either half gets the fixture failed at final inspection. This guide walks through the disconnect, the rough-in move, and the reinstall so the new location passes the first time in 2026.
- Relocating a drinking fountain during a remodel requires new supply and drain lines plus an ADA clearance check before you cut into a wall.
- Spout height at the new location must sit at or below 36 inches for a forward-approach unit — off by an inch fails inspection.
- A retrofit bottle-filling kit lets you keep the existing cooler body and just move the plumbing, which saves demo time in 2026 remodels.
- The ADA vandal-resistant 14-gauge fountain and bottle filler bundle is a solid reinstall pick when the old unit won't survive the move — Buy for most remodel jobs.
- Pressure-test before you close the wall; a slow leak at a slip-joint nut is the single most common callback on relocated fountains.
Why this matters
A drinking fountain isn't a light fixture you unscrew and remount. It has a pressurized supply line, a drain, and — on ADA units — a fixed reach range that's regulated, not optional. Move the fixture 8 feet down the corridor during a school or office remodel and you've created a new rough-in point, a new drain run, and a fresh inspection trigger.
Most relocation jobs in 2026 fail one of two ways: the plumber routes the lines correctly but nobody checks that the new wall location still hits ADA clearance, or the fixture gets reinstalled fine but the old supply line was undersized for the new run length and flow drops. If you're touching an ADA-compliant unit, spec an ADA drinking fountain for a renovation before the contractor frames the new wall, not after.
What you'll need
- Shutoff wrench and a bucket — you're draining a pressurized line, not just a hose
- Tubing cutter or a basin wrench set for the drain fitting
- New 1/2 inch supply line sized for the new run length (longer runs need larger diameter to hold pressure)
- P-trap and drain assembly matched to the new location's waste line
- Mounting bracket or pedestal anchors rated for the wall or floor material at the new spot
- Tape measure and a 4-foot level for the ADA reach-range check
- A replacement unit on standby if the existing fountain won't survive the move — the ADA vandal-resistant 14-gauge fountain and bottle filler bundle covers most remodel reinstalls without a custom order
The steps
1. Verify the new location clears ADA rough-in first
Measure before anyone touches a wrench. Spout height at the new spot needs to land at or below 36 inches for a forward-approach fountain, and the knee clearance in front of the unit needs at least 27 inches of depth. Confirming this before demo saves a second wall patch when the framer finds out the studs don't leave room for a proper approach.
Common mistake: measuring to the top of the basin instead of the spout outlet — that's the number code inspectors actually check.
2. Shut off and drain the line before you touch a fitting
Close the shutoff valve, then open the bubbler to bleed remaining pressure before you crack any fitting. A line that's still under a few PSI of residual pressure sprays when you loosen a compression nut, which soaks insulation and drywall you just installed.
3. Disconnect the existing fountain and cap the old stub-outs
Pull the fixture, then cap both the supply and drain stub-outs at the old location — don't leave them open behind a wall that's about to get closed up. Common mistake: capping the supply but forgetting the drain, which traps standing water that turns into an odor problem six months later.
4. Route new supply and drain lines to the relocated spot
This is the step that turns a "quick move" into a real plumbing job. Drain lines need proper slope — roughly 1/4 inch of fall per foot of run — to avoid backups, and supply lines longer than about 15 feet may need to step up from 1/2 inch to 3/4 inch to hold flow. Get this checked against the local plumbing code before the wall closes, since a re-open after drywall costs more than the extra hour now.
5. Prep the mounting surface and set anchors
Blocking behind drywall needs to carry the weight of a wall-mounted cooler, not just drywall anchors. Pedestal units need a level pad or footing at the new floor location. Common mistake: relying on toggle bolts alone for a unit that weighs more than 40-50 lbs loaded — use backing.
6. Reinstall or swap in a replacement, then connect lines
If the original fountain is more than a decade old, a remodel is the natural point to upgrade instead of reinstall. A retrofit bottle-filling kit lets you keep an existing cooler cabinet and just add filling capability at the new location, which cuts both cost and labor versus a full swap. Connect supply, drain, and — for refrigerated units — power, in that order.
7. Pressure-test before you close anything
Run the water for a full cycle and check every joint for weeping. This is the step people skip under schedule pressure, and it's the reason base leaks show up two weeks after the drywall crew has already moved on.
8. Schedule the final inspection before you close the wall
Most jurisdictions want to see the rough-in before it's covered. Book the inspector for the rough-in stage, not just the final walkthrough, so a failed ADA measurement doesn't mean cutting open a finished wall.
Troubleshooting
- Leak at the base right after reinstall — almost always a slip-joint nut that got hand-tight instead of wrench-tight. Recheck every connection, not just the one that's visibly wet.
- Weak flow at the new location — a supply line that was fine at the old run length is now undersized. Step up from 1/2 inch to 3/4 inch if the new run adds more than 10-15 feet.
- Bottle filler sensor won't trigger — the new mounting height changed the sensor's field of view. Re-aim or reset per the sensor's calibration cycle before assuming it's defective.
- Fails ADA inspection by an inch — recheck spout height against the finished floor, not the subfloor; flooring thickness (tile, carpet pad) shifts the number after install.
- Compressor won't cool at the new spot — refrigerated units need clearance around the condenser coil; a tight utility closet chokes airflow and the compressor short-cycles.
- Drain backs up after the move — the trap needs a vent within code distance of the fixture; a relocated fountain sometimes lands past the vent's reach, and that's a code fix, not a fixture fix.
Relocating a fountain rarely happens in isolation — it's usually one line item inside a bigger scope with the general contractor, and the same rough-in logic that governs a full basement remodeling project applies here: verify supply, drain, and vent locations against the new floor plan before anyone starts cutting.
Tools and resources
- Rough-in dimensions from the manufacturer spec sheet for whichever unit you're reinstalling
- A tape measure and level kept on-site through the whole move, not just at the start
- The ADA vandal-resistant 14-gauge fountain and bottle filler bundle if the reinstall calls for a fresh unit instead of the original
- A local plumber licensed for commercial rough-in work if the move crosses a wall cavity or changes the drain run
- Your local building department's inspection schedule — book the rough-in inspection early in the 2026 remodel timeline, not the week before occupancy
What to do next
If this relocation is part of a larger renovation with multiple fixtures, work from a full plan instead of moving units one at a time. The drinking fountain specification guide for architects covers rough-in dimensions, ADA reach ranges, and finish specs across an entire remodel scope, which keeps every fixture consistent instead of solving each move in isolation.
FAQ
Can you relocate a drinking fountain without moving the plumbing?
No. Relocating a drinking fountain always means new supply and drain runs to the new spot, since the fixture can't be more than a few inches from its rough-in point. Any real move requires a plumber to extend or reroute both lines.
Does relocating a fountain trigger an ADA compliance check?
Yes, in most jurisdictions a new fixture location counts as new construction for accessibility purposes. Spout height needs to be at or below 36 inches and knee clearance needs at least 27 inches of depth at the new spot.
Is it cheaper to relocate an old fountain or replace it during a remodel?
It depends on the fountain's age and condition — a unit over 10-15 years old often costs more to move and requalify than to replace outright. A retrofit bottle-filling kit is usually the middle option when the cooler body is still sound.
How long does relocating a drinking fountain take during a remodel?
The plumbing move itself is typically a one-day job for a licensed plumber, not counting drywall patching or the inspection wait. Add time if the new run crosses a load-bearing wall or needs a longer drain slope.
Do you need a permit to relocate a commercial drinking fountain?
Most jurisdictions require a plumbing permit for any new supply or drain rough-in, which a relocation always creates. Check with the local building department before work starts, since inspection timing affects the remodel schedule.
What happens if the new location doesn't meet ADA clearance?
The inspector fails the rough-in and the fixture has to move again before the wall closes. This is why checking the 36-inch spout height and 27-inch knee clearance before framing saves a second demo.
Can a retrofit bottle filler kit be used after a relocation?
Yes, retrofit kits attach to an existing cooler body at the new location, adding bottle-filling capability without a full fixture swap. This works as long as the cooler itself survived the move undamaged.
Should the fountain be relocated before or after drywall goes up?
Before. Rough-in plumbing and ADA measurements need to be verified and inspected while the wall is still open, since a failed check after drywall means cutting it back out.
One last thing
The detail that gets missed most on relocation jobs isn't the plumbing — it's flooring. A new tile or LVP floor added during the same remodel changes the finished floor height, which shifts the measured spout height after the fact even if the fixture was mounted correctly to spec. Measure ADA clearance against the final flooring plan, not the subfloor, before you sign off on the rough-in in 2026.
