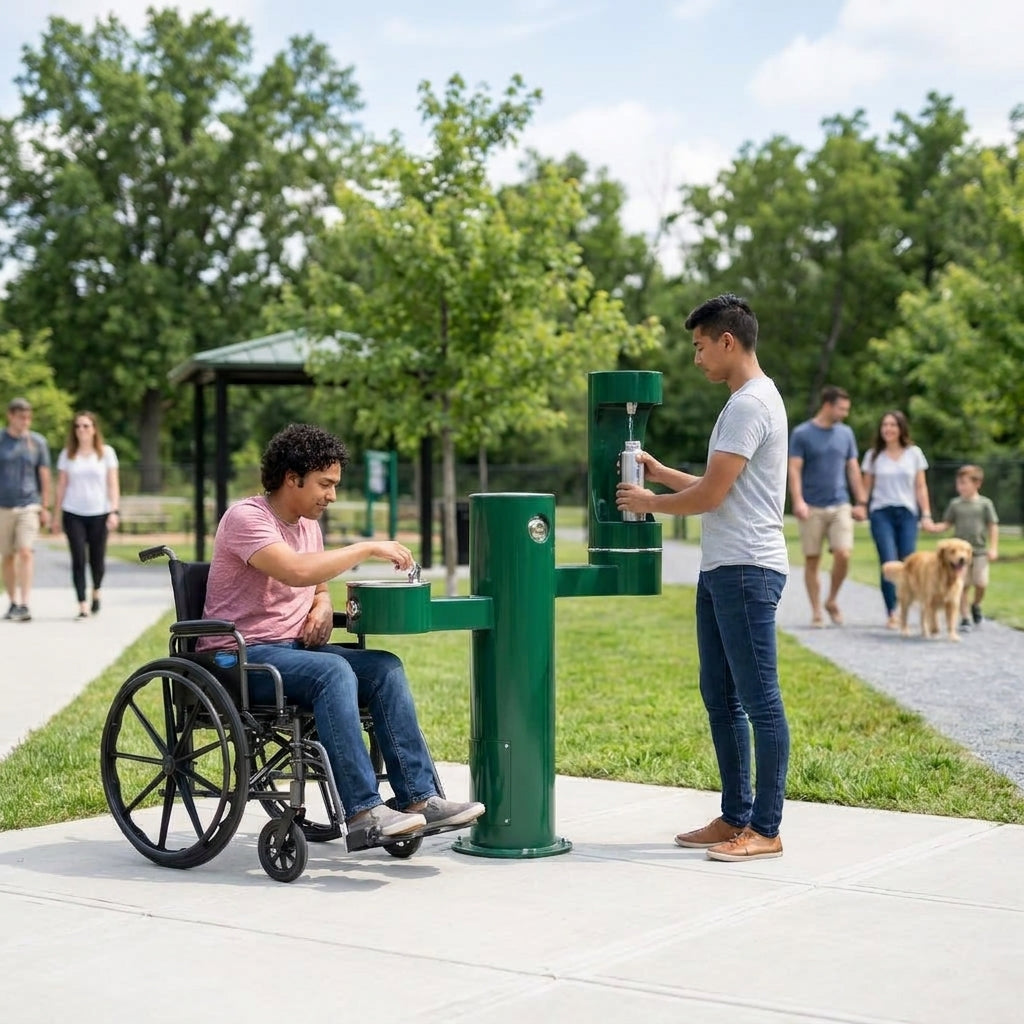

How to Spec an ADA Drinking Fountain for 2026 Renovations
How to spec an ADA drinking fountain for a renovation in 2026: exact spout heights, knee clearance, and bi-level picks that pass inspection the first try.
Renovating a facility to add or replace a drinking fountain means matching spout heights, knee clearance, and approach space to the 2010 ADA Standards before a single wall gets opened — get one dimension wrong and the inspector fails the job on day one.
- Spec bi-level ADA drinking fountains at 36-inch and 43-inch spout heights in one unit — the Willoughby CWBF-2WM covers both. Buy.
- Knee clearance needs 27 inches height, 30 inches width, 19 inches depth minimum — measure the existing wall cavity before ordering.
- Bottle fillers skip ADA height rules only when paired with two compliant fountains under the 2010 ADA Standards still enforced in 2026.
- The ADA vandal-resistant 14-gauge fountain and bottle filler bundle fits renovation retrofits where studs can't move. Consider it.
- Single-height coolers fail first-walkthrough inspections on any 2026 public renovation — replace with bi-level from the start.
Why this matters
Renovation jobs get flagged more often than new construction because the plumbing stub-out and framing are already in the wall — they weren't built to 2010 ADA Standards, and they usually don't match modern rough-in heights. A fountain that looked fine in a 1995 corridor can sit 4 inches too high once you measure it against current code.
The fix costs real money if you catch it after the unit ships. Reworking a rough-in after a failed inspection means a second contractor visit, a change order, and a delay on the punch list. Spec The Fountain Direct products against the exact clearances below before you order, and the inspection is a formality instead of a redo.
What you'll need
- Existing rough-in dimensions: water supply height, drain centerline, wall stud spacing
- Tape measure and a printed ADA clearance reference (spout height, knee, and floor-space numbers)
- A bi-level or high-low fountain, or two single-height units set at different heights
- A bottle filler if the renovation scope adds hydration station capacity
- Backing/blocking material for wall-mounted units where studs don't align with the mounting bracket
- A decision on filtered vs. non-filtered and refrigerated vs. non-refrigerated before you lock the spec sheet
- A contractor who has pulled an accessible-plumbing permit before — this is not the job to learn ADA math on
The steps
1. Measure the existing rough-in and wall cavity
Pull the tape before you pull a catalog. Record the water supply stub height off the finished floor, the drain location, and the depth of the wall cavity behind the mounting point. A renovation with a stub-out at 30 inches limits which units drop in without replumbing — know that number before you spec anything.
2. Confirm spout heights against ADA 602.4 and 602.5
ADA 2010 Standards require a spout outlet no higher than 36 inches above the floor for the wheelchair-accessible fountain, and 38 to 43 inches for the standing-height unit. A bi-level fountain satisfies both requirements in a single footprint, which is why most 2026 renovation specs default to bi-level over two separate units. Get this wrong and the whole install gets rejected regardless of how clean the plumbing looks.
3. Verify knee and toe clearance
The accessible spout needs 27 inches of clear height, 30 inches of width, and 19 inches of depth underneath for a forward wheelchair approach. Renovation walls often have a chase, pipe, or structural element eating into that depth — check it with a tape measure against the actual wall, not the spec sheet dimension alone. A fountain that meets the height rule but blocks knee clearance still fails.
4. Check clear floor space for forward approach
Code requires 30 by 48 inches of clear floor space in front of the accessible spout, unobstructed by doors, trash cans, or adjacent fixtures. In a renovated corridor this space competes with existing doorways and traffic paths — measure the swing radius of any nearby door before finalizing the mounting location.
5. Choose bi-level vs. two separate units
Bi-level wins most renovation specs because it's one rough-in, one mounting bracket, and one inspection point instead of two. The ADA vandal-resistant 14-gauge fountain and bottle filler bundle is built for exactly this scenario — a single retrofit-friendly footprint that covers both spout heights and adds a bottle filler without a second rough-in.
6. Decide on bottle filler integration
A bottle filler mounted above two ADA-compliant fountains is exempt from the fountain height rules under the 2010 ADA Standards, but a standalone bottle filler with no paired fountain has to meet accessible reach-range rules on its own. If the renovation scope is adding hydration capacity to an existing ADA fountain, confirm the pairing rule applies before ordering a filler-only unit.
7. Confirm vandal-resistant and filtered specs for the space
A school corridor or unsupervised park path needs different hardware than an office break room. The Willoughby CWBF-2WM is spec'd for exactly the renovation jobs where vandalism risk and ADA compliance both matter — 14-gauge stainless construction with the bi-level height profile built in.
8. Schedule inspection sign-off before final punch list
Book the accessibility inspector before the general contractor closes out the punch list, not after. A failed ADA inspection on a fountain that's already grouted into a tile wall costs far more to fix than one caught with the unit still on the loading dock.
Common mistake across all eight steps: ordering off a spec sheet without physically re-measuring the existing wall. Catalog dimensions assume new construction; renovations rarely give you a clean slate.
Where these fit on a renovation punch list
Troubleshooting
The existing rough-in is 4 inches too high for the new unit. Extend or lower the supply line before mounting — don't shim the fountain bracket to compensate, since that changes the spout height calculation and can push the unit out of compliance.
Knee clearance is blocked by a wall chase or pipe. Recess the fountain deeper into the wall cavity or switch to a unit with a shallower base profile. A fountain that reads compliant on paper still fails if the chase eats into the required 19 inches of depth.
A standalone bottle filler doesn't meet reach-range rules. Pair it with two ADA-compliant fountains to trigger the height exemption, or lower the filler mount to meet the standalone reach requirement directly.
Vandal-resistant housing blocks a clean bottle filler retrofit. Not every vandal-resistant shell accommodates a bottle filler add-on — confirm compatibility before ordering the housing, not after it's mounted.
The corridor is unheated and the unit risks freezing. Standard indoor units aren't rated for that exposure; a freeze-resistant or heated-line model prevents a burst line the first cold snap of the season.
Tools and resources
- ADA vandal-resistant 14-gauge fountain and bottle filler bundle for single-footprint renovation retrofits
- Willoughby CWBF-2WM for corridors that need both vandal resistance and bi-level compliance
- ADA compliant drinking fountain for schools for spec guidance specific to K-12 renovation scopes
- A physical tape measure — not a stated rough-in dimension from an old blueprint
What to do next
Once the fountain spec is locked, confirm the mounting substrate can carry the unit's weight and that the water line meets the flow-rate requirement listed on the spec sheet. If the renovation also touches an outdoor space — a courtyard, a pool deck, or a school yard — check clearance and freeze-resistance requirements separately, since outdoor ADA specs carry different exposure rules than indoor corridors.
FAQ
What is the required spout height for an ADA drinking fountain?
36 inches maximum for the wheelchair-accessible spout, 38 to 43 inches for the standing-height spout. A bi-level fountain meets both in one unit, which is why most 2026 renovation specs default to it.
Does a bottle filler need to meet ADA height rules?
A bottle filler is exempt from fountain height rules only when it's paired with two ADA-compliant fountains. A standalone bottle filler has to meet accessible reach-range requirements on its own.
How much knee clearance does an ADA fountain need?
27 inches of height, 30 inches of width, and 19 inches of depth minimum for a forward wheelchair approach. Renovation walls with a chase or pipe often eat into that depth, so measure the actual cavity, not the catalog spec.
Is bi-level or high-low better for a renovation?
Bi-level wins most renovation specs because it needs one rough-in and one inspection point instead of two separate units. High-low setups make sense only when the existing plumbing already has two stub-outs at different heights.
How much clear floor space does an ADA fountain need in front of it?
30 by 48 inches of unobstructed floor space for a forward approach. Check nearby door swings and adjacent fixtures in the renovated corridor before finalizing the mounting location.
Can an existing rough-in be reused for a new ADA fountain?
Only if the stub-out height and drain location already match the new unit's requirements. Most renovation jobs need at least a minor plumbing adjustment since older rough-ins predate current spout-height rules.
What happens if a fountain fails an ADA inspection after installation?
The unit has to be remounted, replumbed, or replaced, which costs more than catching the issue before installation. Book the accessibility inspection before the punch list closes, not after tile work is finished.
Are vandal-resistant fountains available in ADA-compliant models?
Yes, several 14-gauge stainless units combine vandal-resistant construction with bi-level ADA spout heights, built specifically for school corridors and unsupervised park paths.
One last thing
Most renovation delays trace back to one overlooked number: knee clearance depth. Spout height gets checked every time because it's the obvious ADA rule, but 19 inches of clear depth under the fountain gets missed when a wall chase or old pipe run sits closer to the surface than the blueprint shows. Measure that dimension with your own tape before the fountain ships in 2026 — it's the check that actually prevents a failed walkthrough.
