Product Description

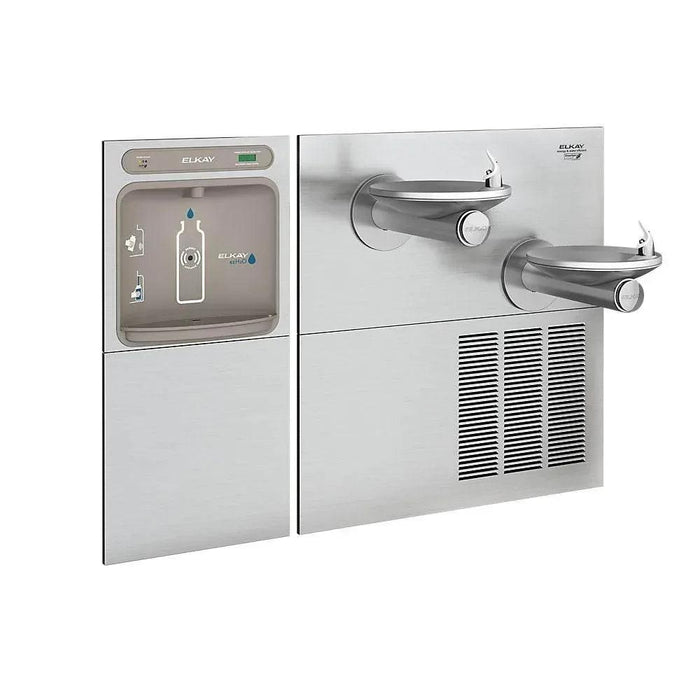

If you're outfitting a high-end building with a hydration system, this is the one that turns heads and turns visitors into fans. The Elkay LZWS-SFGRN28K is a fully recessed, three-station stainless steel solution that combines the iconic SwirlFlo® bi-level fountain with a hands-free, sensor-activated bottle filler, high-efficiency cooling, and advanced NSF-certified filtration.
With real-time Green Ticker™ tracking, silver ion antimicrobial protection, and ADA-compliant dual heights, this unit provides a premium hydration experience that’s cleaner, safer, and more sustainable. It delivers water so cold and refreshing, people will wonder why every building doesn’t have one.
It’s not just a water station—it’s a long-term asset to your space.
Features
✓ Recessed SwirlFlo® Design – Stylish, curved form enhances modern interiors
✓ Sensor-Activated Bottle Filler – Hygienic and touch-free with auto shut-off
✓ ADA-Compliant Bi-Level Fountains – Two height levels for universal accessibility

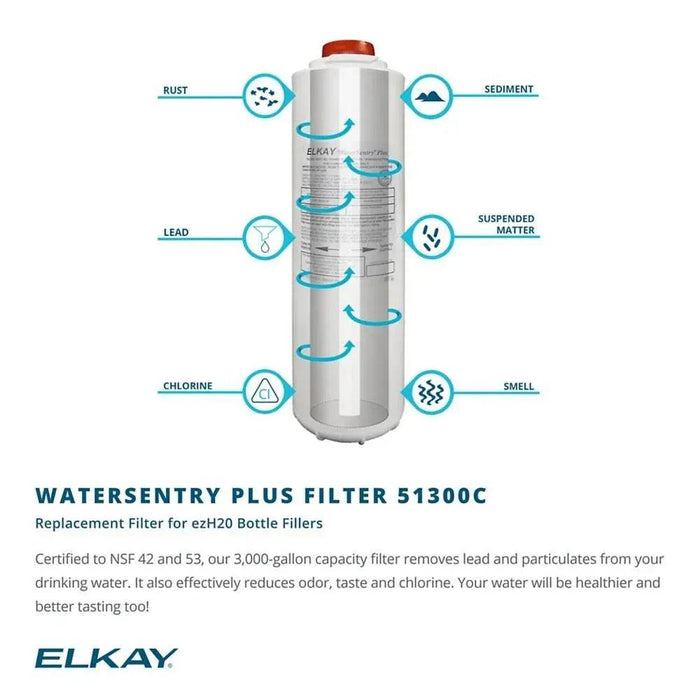

✓ 3,000-Gallon Filter – NSF 42 & 53 certified to reduce lead, chlorine, and particles
✓ Flexi-Guard StreamSaver™ Bubbler – Antimicrobial, flexible, and splash-resistant
✓ Energy-Efficient Chillers – Two high-performance ECH8GRN units reduce power use
✓ Antimicrobial Protection – Built-in silver ion agent combats mold and odor
✓ Real Drain System – Prevents standing water and minimizes bacteria buildup
✓ Visual Filter Monitor – LED display alerts when a filter change is needed
✓ Laminar Flow Fill – Smooth stream with 1.1 GPM flow rate and minimal splash
Specifications
| Feature |
Details |
| Brand |
Elkay |
| Model Number |
LZWS-SFGRN28K |
| Type |
Recessed Bottle Filling Station with Bi-Level Fountain |
| Number of Stations |
3 (Bottle Filler + Two Fountains) |
| Material |
Stainless Steel |
| Activation |
Sensor (Bottle Filler), Push Button (Fountains) |
| Chilling Capacity |
8.0 GPH (Gallons Per Hour) |
| Filtered |
Yes – NSF 42 & 53 Certified |
| Power Supply |
115V / 60Hz |
| Mounting Option |
Wall Mount (In-Wall Frame) |
| Installation Location |
Indoor |
| Dimensions |
Length: 58-1/4 inches, Width: 19 inches, Height: 40-13/16 inches |
| Shipping Dimensions |
Length: 41 inches, Width: 82-1/8 inches, Height: 46 inches |
| Shipping Weight |
167 lbs |
| Included With Product |
Bottle Filler (LZWSM8C), Fountain (LRPBGRND28C), 2 Chillers (ECH8GRN), Filter (EWF3000), Mounting Frames (MF200, MFWS100) |
| Certifications |
ADA, ICC A117.1, NSF 42, 53, 61, 372, 401, UL 399, GreenSpec, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120 |
| Country of Origin |
USA |
| Ideal For |
Corporate Headquarters, Universities, Airports, Indoor Classrooms |
Warranty
Elkay Warranty
Return & Refund Policy
Elkay accepts returns within 30 days of delivery on most items, but authorization is required prior to return. All returns must be in new, unused condition and shipped freight prepaid. A restocking fee may apply, and certain items may be non-returnable depending on their condition or category.
To request a return, contact us at (314) 200-1341 or email support@thefountaindirect.com. We’ll help you coordinate directly with Elkay to ensure proper authorization and handling.
