Product information

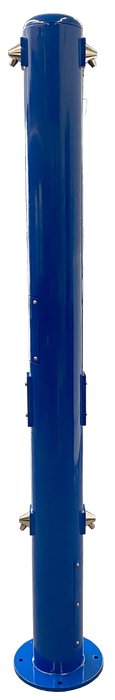

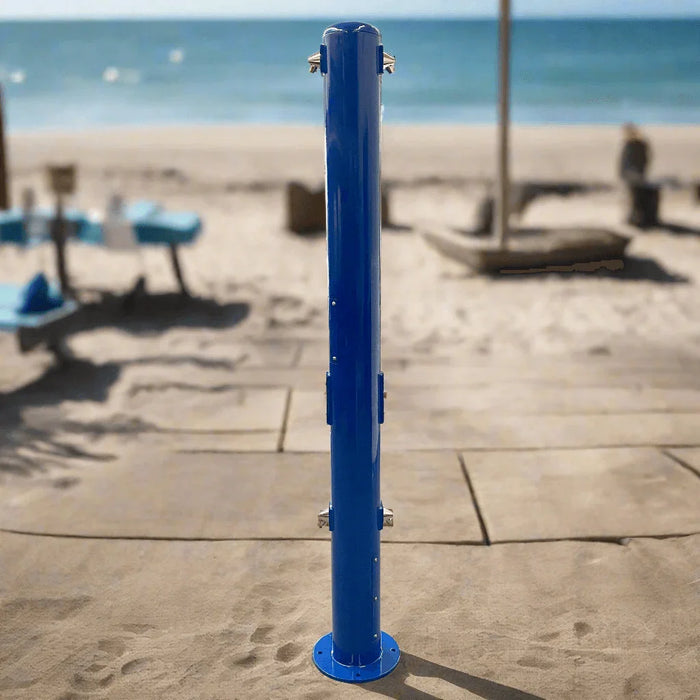

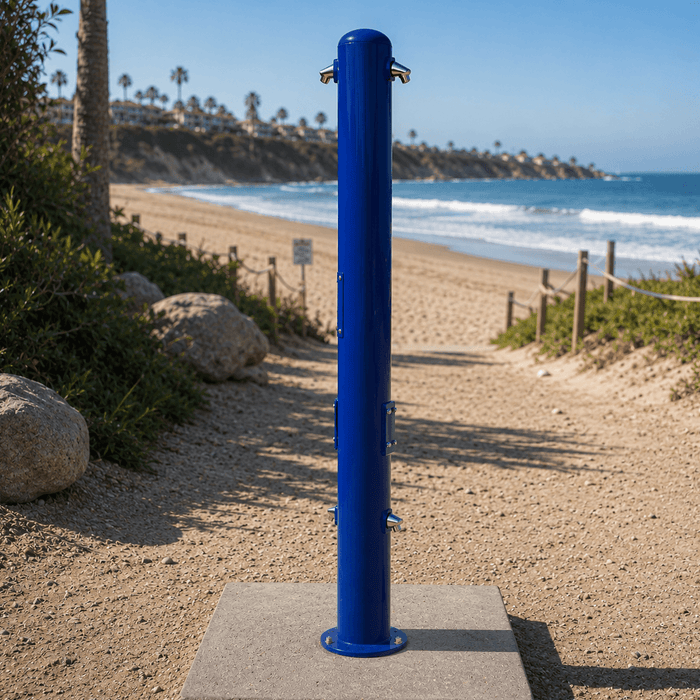

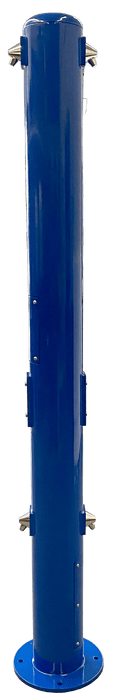

One of our best complete lines of outdoor showers with body sprays, the 6400 model is a versatile and durable solution for resorts, playgrounds, and recreational outdoor areas. Designed to withstand harsh conditions, this unit is built for long-term use in high-traffic environments.

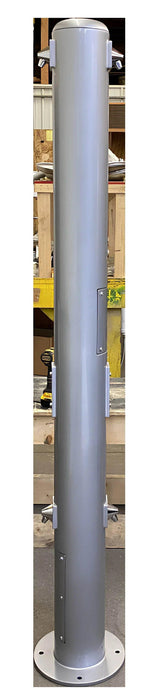

Fabricated from one-piece steel pipe, all exposed components are recessed in welded steel plates for enhanced durability and vandal resistance. A metering valve ensures controlled water flow, while timer-controlled spray heads minimize maintenance. The blue powder-coated finish is standard, with optional stainless steel (-SS) finishes available.
Features
✔ Dual Outdoor Shower and Foot Spray – Provides both a full-body rinse and foot wash in one unit.
✔ Heavy-Duty Steel Construction – Fabricated from one-piece steel pipe for superior strength and longevity.
✔ Scratch-Resistant Finish – Durable blue powder coat, with optional stainless steel (-SS) available.
✔ Water-Saving Metering Valve – Controls water flow efficiently, reducing waste.
✔ Vandal-Resistant Push Button Valve – Chrome-plated brass push button recessed in a 3/8” thick steel plate.
✔ Timer-Controlled Spray Heads – Ensures low maintenance and efficient water usage.
✔ Mist Heads – Made from heavy-duty materials and timer-controlled for consistent performance.
✔ Stainless Steel Supply Fittings – Connected to reinforced tubing for corrosion resistance and durability.
✔ Secure Water Supply Control – Equipped with a 1/2” IPS lock shield screwdriver stop.
✔ Efficient Drainage System – 1-1/4” IPS waste pipes included for proper water disposal.
✔ Surface Mounting Plate – Comes standard for secure installation.
✔ Easy Maintenance Access – Vandal-resistant access plates provide convenient servicing.
Specifications
| Feature | Details |
|---|---|
| Available Models | Dual Outdoor Shower & Foot Spray |
| Column Pipe Dimensions | 6.63-inch (17 cm) diameter steel pipe with 1/8-inch (3.2 mm) wall thickness |
| Material | Heavy-duty stainless steel and steel components |
| Finish Options | Blue powder coat (standard), optional stainless steel (-SS) finish |
| Mounting Type | Surface mounting plate welded to pedestal (SMP-6 included) |
| Surface Requirements | Must be installed on a dry, level surface |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Height | Diameter |
|---|---|---|
| 6400 | 80 inches (203 cm) | 6.63 inches (17 cm) |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
