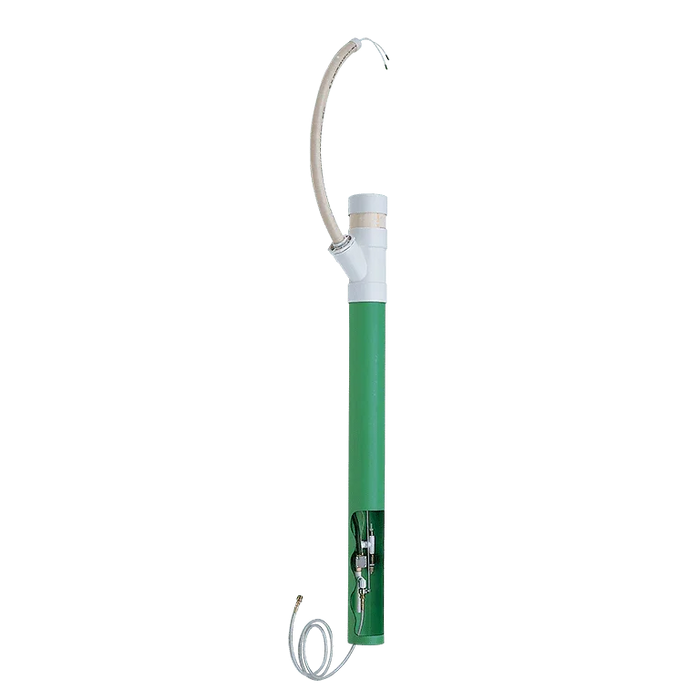

The Haws 6518.2FR freeze-resistant valve system is a fully-engineered pneumatic operated valve for use on all Haws hi-lo two bubbler freeze-resistant pedestal fountains. The placement of the valve below the frost line allows the system to function when freezing conditions are present at surface level. Its fully accessible design allows for reliable service year round.

• Installed below the frost line, the valve remains fully functional under the worst of weather conditions, with the fountain remaining functional as well
• If a maintenance issue ever arises, rest assured that the valve assembly is easily removed and replaced without disrupting the remainder of the fountain
• Flow is easily adjustable with supplied regulator valve
• Unit is applicable for dual pedestal mounted fountain designs
• Consult with the local authority having jurisdiction before installation in order to determine if any additional regulations or requirements may apply

Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.

Features

Model 6518.2FR freeze-resistant bury valve for use with dual bubbler head pedestal fountains shall include dual brass pneumatic-operated valves installed below the frost line, check valve to drain water from unit when not in use and to prevent back-flow cross contamination, regulator valve to control stream height, separate valve access and pull-out design for easy maintenance, 6" (15.2 cm) diameter PVC pipe to encase valve assembly, and 1/2" NPT supply.
