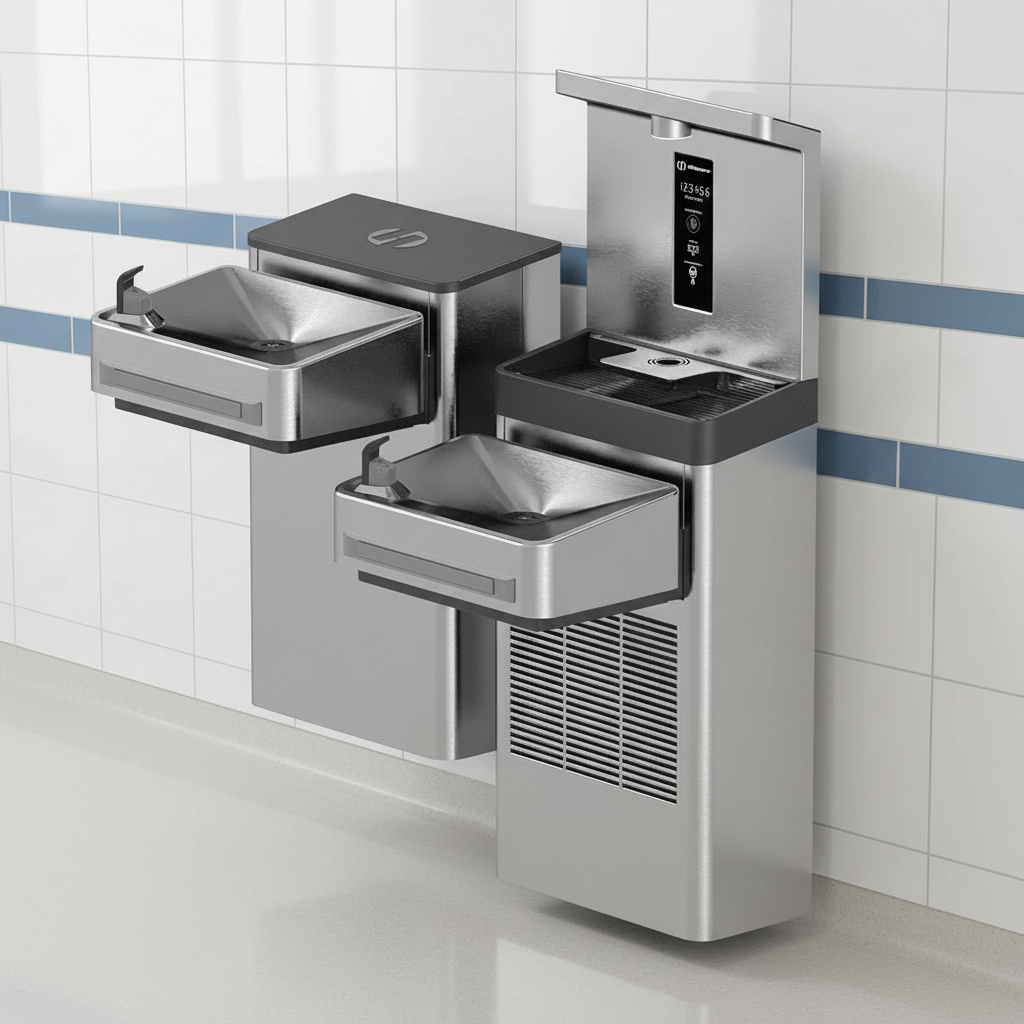

Haws 1212SF Wall Mount Hi-Lo Indoor ADA Filtered Water Cooler with Bottle Filler

Why Shop With Us?

Free
Shipping

No Sales
Tax

Manufacturer
Warranty

30 Day
Returns
Free
Shipping
No Sales
Tax
Manufacturer
Warranty
30 Day
Returns
Looking for a water cooler that checks every box: ADA compliance, filtered water, vandal resistance, and zero-hassle maintenance? The Haws 1212SF combines functionality, durability, and efficiency into one streamlined unit designed for high-traffic, high-standard environments like schools, airports, corporate offices, and public institutions.
The dual Hi-Lo design ensures accessibility for everyone while delivering consistently cold, fresh, filtered water. Push bar activation makes the fountains simple to use, and the motion-activated bottle filler adds convenience and hygiene. With a 3000-gallon filter capacity, LED diagnostics, and an energy-saving refrigeration system that powers down after 2 hours of non-use, this unit gives you smart features without overcomplicating operation.
If you're responsible for outfitting a public space, there’s no reason to compromise, this is the hydration solution that delivers on every front.
Lead Time: Ships in 2 weeks.
Each unit reflects lasting quality. A brief wait ensures you receive a product engineered for decades of performance.
✓ Filtered and chilled water you can trust – Integrated 3000-gallon Electronic Lifecycle Control filter ensures clean, safe hydration with automatic shutoff when the filter needs replacement
✓ Accessible for everyone – Hi-Lo dual station design meets ADA standards, providing inclusive access
✓ Hands-free bottle filling – Touchless bottle filler boosts hygiene in high-traffic areas
✓ Durable, vandal-resistant build – Constructed from 304 stainless steel with anti-rotational bubblers and secure hardware

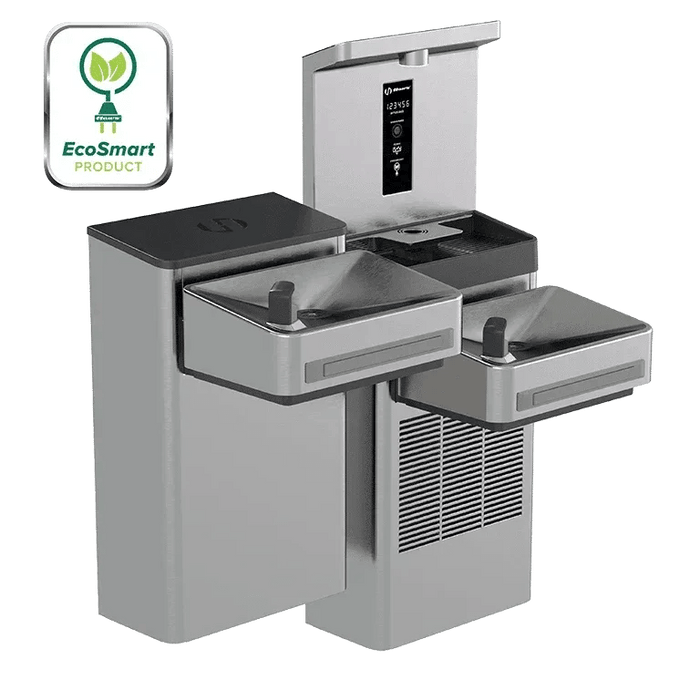

✓ Energy-smart performance – Auto shutoff after 2 hours of inactivity and programmable facility shutdowns

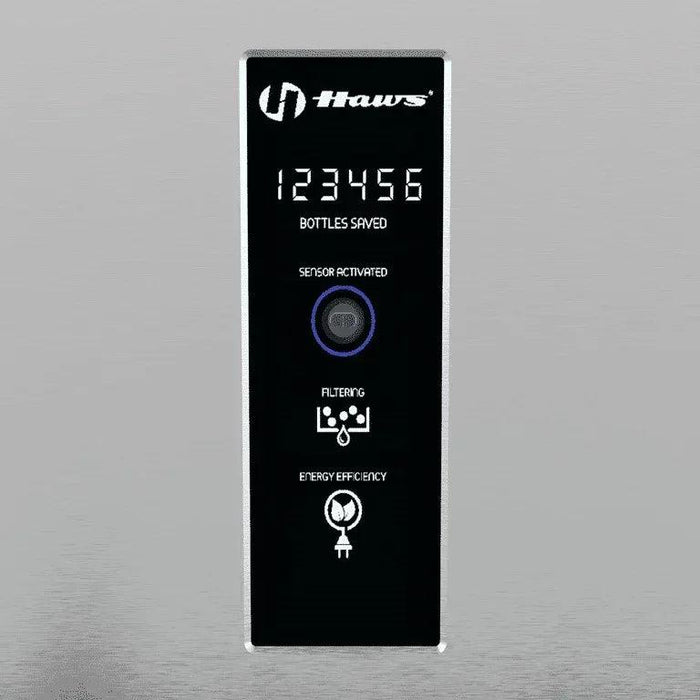

✓ Smart maintenance – LED display keeps you informed of filter status, errors, and programming with zero guesswork
✓ Quick-fill design – 1.1 GPM fill rate minimizes wait time
✓ Low-maintenance internal system – Galvanized steel frame, splash-reducing basin, and front-access components simplify upkeep
Model | 1212SF |
---|---|
Material | 304 Stainless Steel, Satin Finish |
Dimensions | Length: 18.75", Width: 34.0625", Height: 40.75" |
ADA Compliant | Yes |
Activation | Push bar (fountain), Sensor (bottle filler) |
Filtration | 3000-gallon Electronic Lifecycle Control filter |
Cooling System | Hermetically sealed, ASHRAE-compliant, 8 GPH at 50°F |
Power | 115V, 60Hz, 350W, 5A |
Flow Rate | 1.1 GPM (bottle filler) |
Auto Purge | Every 24 hours |
Compliance | ADA, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI/CAN 61: Q ≤ 1, NSF/ANSI/CAN 372, CSA, UL 399 |
Use | Indoor only |
Installation | Wall Mounted |
Spec Sheet
Spec Sheet French
Installation Template
Installation Template
Operational / Maintenance Manual
Operational / Maintenance Manual French
Installation Drawing
Installation Drawing French
Parts Breakdown Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
MasterSpec® Files
3D Revit (RFA)
