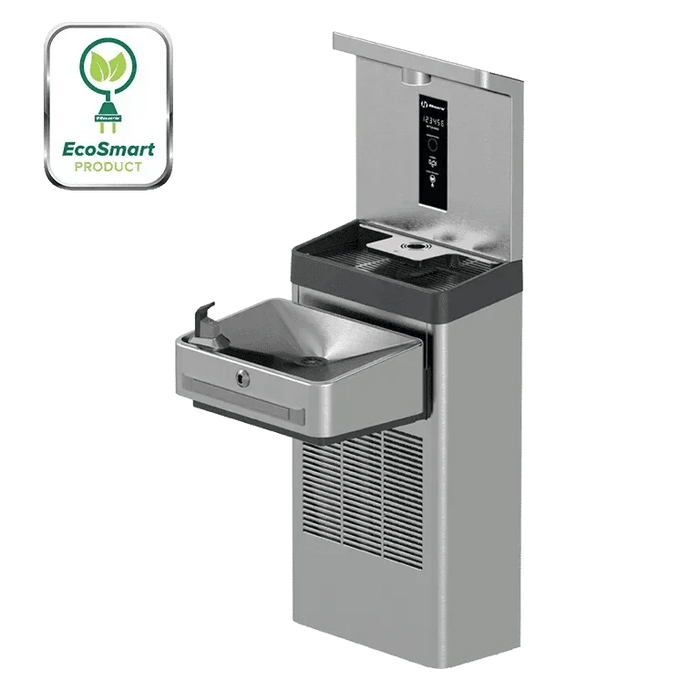

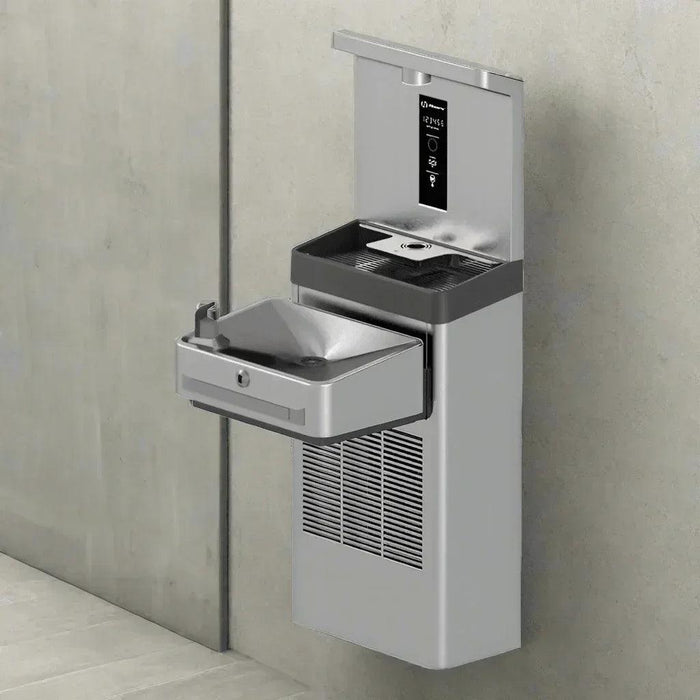

Haws 1211SH Wall Mount Indoor ADA Motion Activated Water Cooler and Bottle Filler

Why Shop With Us?

Free
Shipping

No Sales
Tax

Manufacturer
Warranty

30 Day
Returns
Free
Shipping
No Sales
Tax
Manufacturer
Warranty
30 Day
Returns
The Haws 1211SH is a no-contact, hygienic hydration station built for reliability and performance in high-traffic environments like offices, schools, and public facilities. Its ADA-compliant Hi-Lo fountain design, vandal-resistant bottle filler, and easy-clean stainless steel frame make it a powerful solution for modern indoor spaces where accessibility, hygiene, and durability matter.
Engineered with sensor-activated operation, automatic energy savings, and a thermal mass cooling system that chills up to 8 gallons per hour, this unit delivers reliable, touch-free access to clean, cold water day after day.
Lead Time: Ships in 2 weeks.
Each unit reflects lasting quality. A brief wait ensures you receive a product engineered for decades of performance.
✓ Touchless operation – Hands-free bottle filler and bubbler improve hygiene in busy environments
✓ Antimicrobial mouth guard – Helps reduce germ spread with built-in safety design
✓ Self-regulating flow – No need to adjust water pressure, even in older buildings
✓ Advanced cooling system – Delivers consistent cold water via thermal mass coil
✓ Auto purge feature – Automatically cycles every 24 hours to keep water fresh
✓ Smart energy-saving mode – Powers down refrigeration after 2 hours of inactivity
✓ LED-lit bottle fill area – Easy visibility, clean look
✓ Retrofit-ready design – Compatible with many existing water cooler installations
✓ Built for heavy use – Stainless steel construction with galvanized steel frame
✓ Fully ADA compliant – Meets all modern accessibility and safety standards
Model | 1211SH |
---|---|
Material | 304 Stainless Steel, Satin Finish |
Dimensions | Length: 18.75", Width: 15.6875", Height: 40.75" |
ADA Compliant | Yes |
Activation | Sensor-activated bottle filler and bubbler |
Cooling Capacity | 8.0 GPH at 50°F (based on 80°F inlet, 90°F ambient) |
Flow Rate | 0.45 GPM (Bubbler), 1.1 GPM (Bottle Filler) |
Filter | Not included (see model 1211SFH for filtered version) |
Power | 115V, 60Hz, 350W, 5A |
Auto Purge | Yes, every 24 hours |
Installation | Wall Mounted |
Use | Indoor Only |
Certifications | ADA, CSA Certified, NSF/ANSI/CAN 61: Q ≤ 1, NSF/ANSI/CAN 372, UL 399 |
Spec Sheet
Installation Template
Installation Template
Operational / Maintenance Manual
Operational / Maintenance Manual French
Installation Drawing
Installation Drawing French
Parts Breakdown Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
AutoCAD Installation Drawing
3D Revit (RFA)
MasterSpec® Files
Limited Warranty
