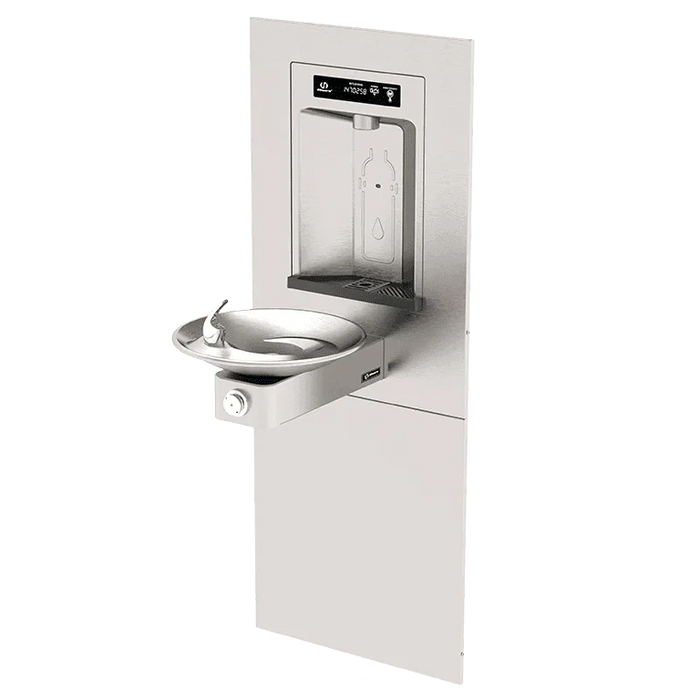

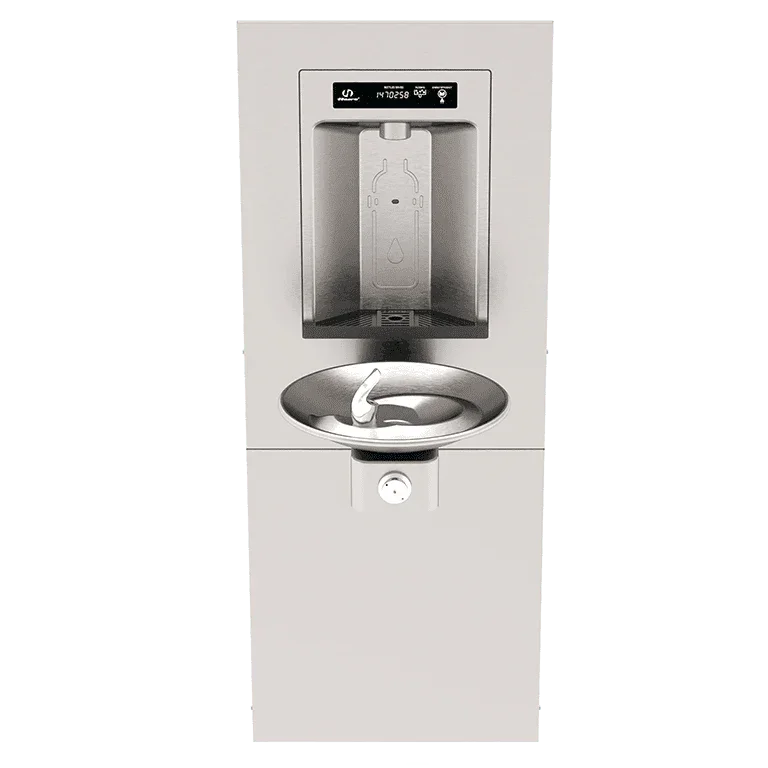

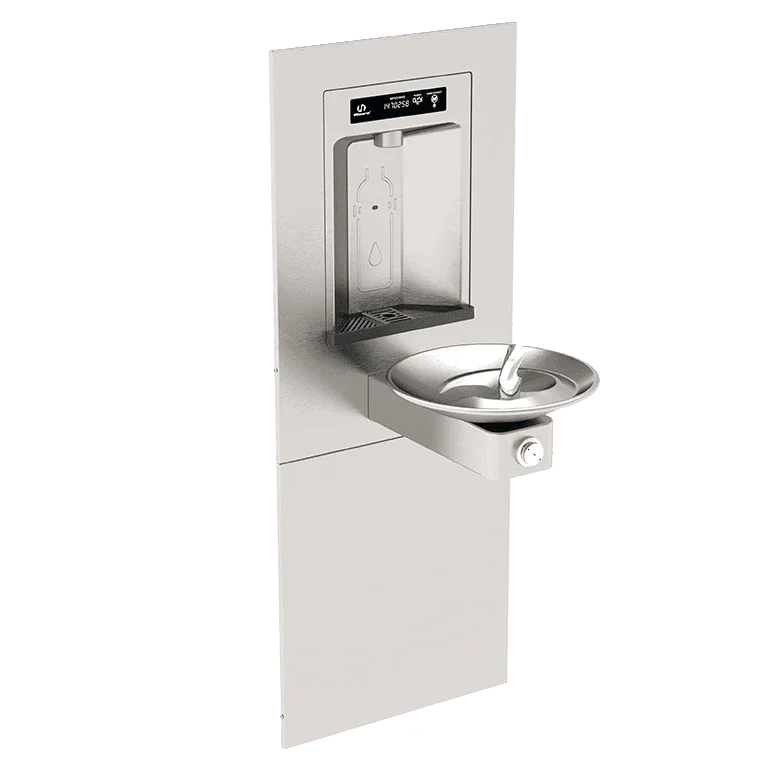

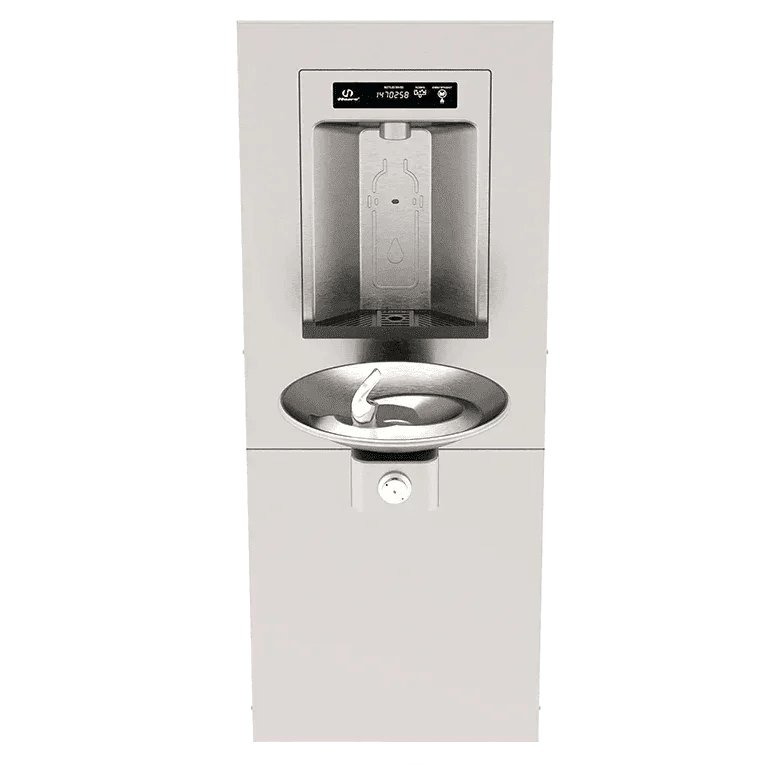

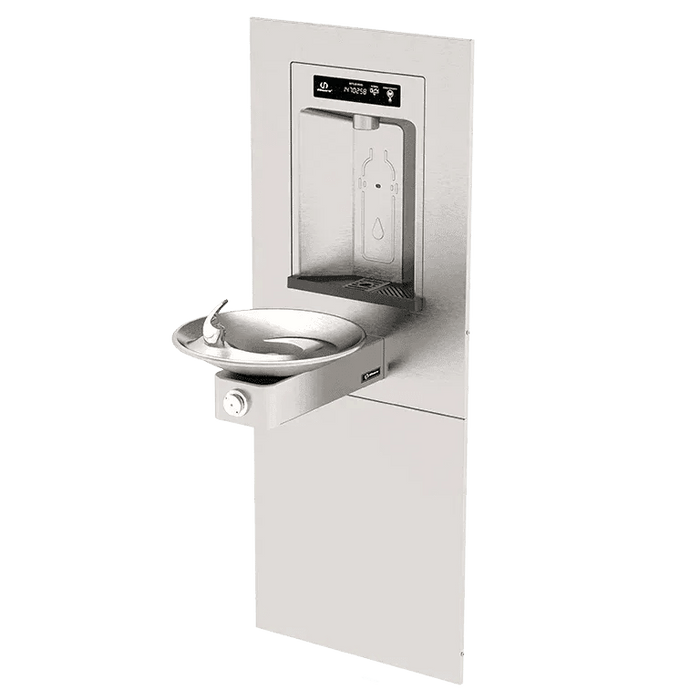

The Haws 1001HSA delivers powerful performance in a compact, vandal-resistant unit that’s built to last. Ideal for schools, transit stations, and commercial environments, this wall-mounted drinking fountain and recessed bottle filler combo helps reduce waste while promoting hydration through hands-free operation and a smart filtration system. Designed for easy access and even easier maintenance, it’s the go-to choice for high-traffic indoor areas where durability and compliance matter.
Lead Time: Ships in 2 weeks.
Each unit reflects lasting quality. A brief wait ensures you receive a product engineered for decades of performance.
✓ Hands-free hydration – Sensor-activated recessed bottle filler with LED lighting and 1.1 GPM flow rate
✓ Built to deter damage – Reinforced bubbler, bowl, waste strainer, and bottom plate resist vandalism
✓ Maintenance made easy – Full front access to water valve, filter, and height adjustment
✓ Smart electronics – Display panel shows sensor range, bottle count, filter status, and more
✓ 24-hour auto purge – Flushes the line daily to keep water clean and fresh
✓ Lead-free and hygienic – 100% lead-free internal waterways with NSF/ANSI/CAN certified components

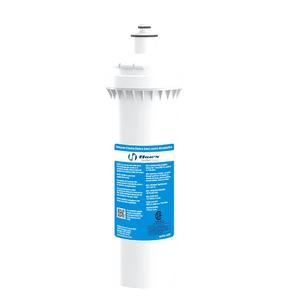

✓ Interchangeable filter system – Quickly switch between filtered or non-filtered use
Model | 1001HSA |
---|---|
Material | 14-gauge & 18-gauge Type 304 Stainless Steel (Satin Finish) |
Mounting | Wall-Mounted (In-Wall Frame Included) |
ADA Compliant | Yes |
Bottle Filler Type | Recessed, Sensor-Activated |
Filter Capacity | 3,000 gallons |
Flow Rate | 1.1 GPM |
Power | <1 Amp |
Dimensions | Length: 18.625", Width: 19.625", Height: 50" |
Code Compliance | ADA, NSF/ANSI/CAN 61 Section 9, NSF/ANSI/CAN 372, CSA Certified, CA Health Code 116875 & 116876 |
