Product Description

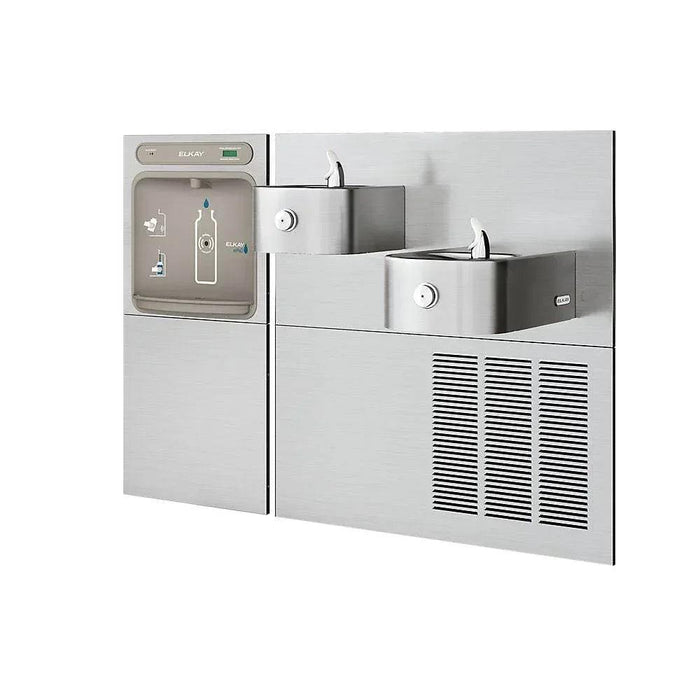

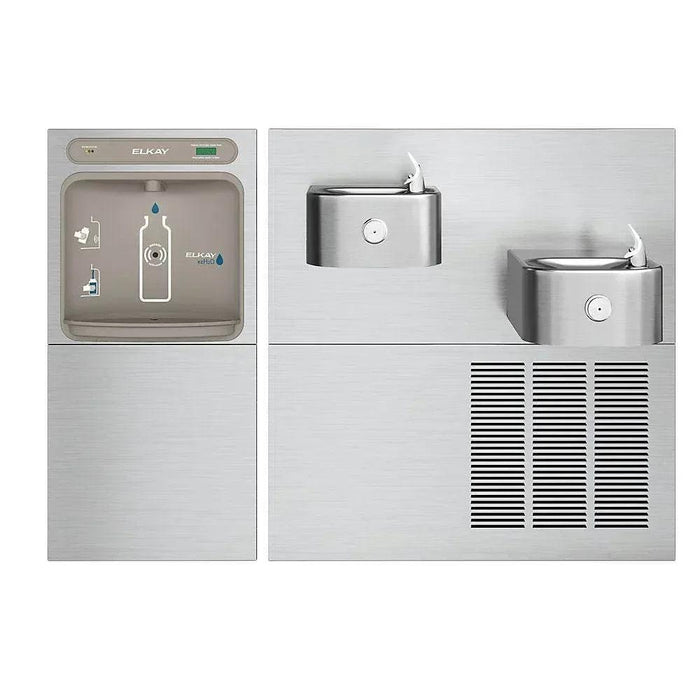

Want to install a hydration station so sleek and powerful your building looks smarter just for having it? The Elkay LZWS-SS28K is a fully recessed, ADA-compliant, three-station hydration solution with hands-free sensor activation, NSF-certified filtration, and chilled water delivery—all wrapped in a premium stainless steel design.
This setup includes a vandal-resistant bottle filler with antimicrobial protection, a real drain to eliminate standing water, and Elkay’s Green Ticker™ to remind users they’re reducing waste with every refill. Designed to install flush into the wall, it’s the ultimate combo of function, durability, and aesthetics.
If you’re upgrading a hospital, airport, university, or government building, this is the unit that says: “We don’t cut corners.”
Features
✓ Fully Recessed, In-Wall Design – Sleek, modern, and ideal for high-traffic indoor spaces
✓ Touchless Bottle Filler – Sensor-activated with automatic shut-off to reduce contamination
✓ ADA-Compliant Bi-Level Fountains – Push-button operation for easy access by all users

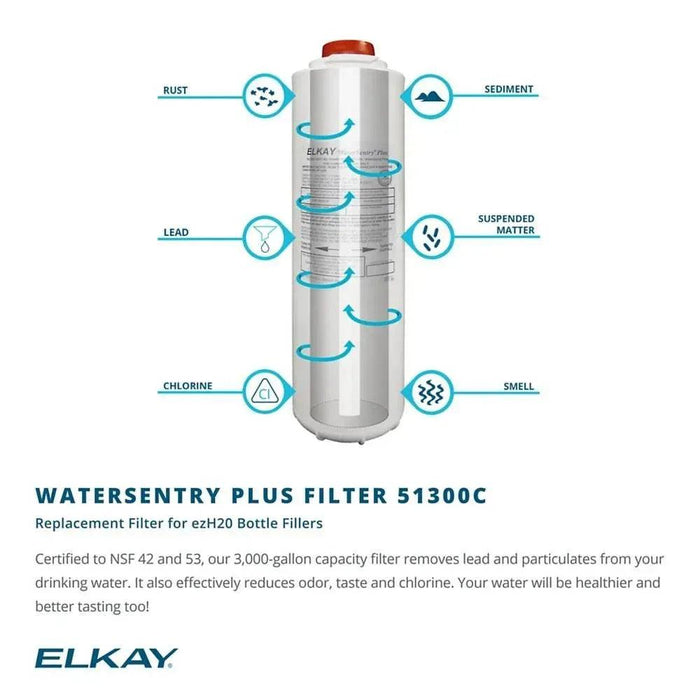

✓ NSF-Certified Filtration – 3,000-gallon filter reduces lead, chlorine, odor, and particulates
✓ Built-In Green Ticker™ – Shows plastic bottles saved in real time
✓ Antimicrobial Protection – Key components infused with silver ion agent to inhibit mold and mildew
✓ Real Drain System – Eliminates standing water, reducing maintenance and bacteria buildup
✓ Chilled Hydration – Delivers up to 8.0 GPH of refrigerated water
✓ Laminar Flow – Clean, splash-free filling at 1.1 GPM
✓ Certified Safe – Compliant with ADA, NSF 42, 53, 61, 372, 401, and UL 399 standards
Specifications
| Feature |
Details |
| Brand |
Elkay |
| Model Number |
LZWS-SS28K |
| Type |
Recessed Bottle Filler with Bi-Level Refrigerated Fountain |
| Number of Stations |
3 (Bottle Filler + Dual Fountains) |
| Material |
Stainless Steel |
| Activation |
Sensor (Bottle Filler), Push Button (Bubblers) |
| Chilling Capacity |
8.0 GPH (Gallons Per Hour) |
| Filtered |
Yes – NSF 42 & 53 Certified |
| Power Supply |
115V / 60Hz |
| Mounting Option |
Wall Mount (In-Wall Frame) |
| Installation Location |
Indoor Only |
| Dimensions |
Length: 58-1/4 inches, Width: 18 inches, Height: 40-13/16 inches |
| Shipping Dimensions |
Length: 42 inches, Width: 83-15/16 inches, Height: 46 inches |
| Shipping Weight |
167 lbs |
| Included With Product |
Bottle Filler (LZWSM8C), Fountain (LNTED8C), 2 Chillers (ECH8), Filter (EWF3000), Frames (MF200 & MFWS100) |
| Certifications |
ADA, ICC A117.1, NSF 42, 53, 61, 372, 401, UL 399, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120, GreenSpec |
| Country of Origin |
USA |
| Ideal For |
Airports, Universities, Hospitals, Government Buildings |
Warranty
Elkay Warranty
Return & Refund Policy
Elkay accepts returns within 30 days of delivery on most items, but authorization is required prior to return. All returns must be in new, unused condition and shipped freight prepaid. A restocking fee may apply, and certain items may be non-returnable depending on their condition or category.
To request a return, contact us at (314) 200-1341 or email support@thefountaindirect.com. We’ll help you coordinate directly with Elkay to ensure proper authorization and handling.
Downloads
