Product Information
The 7730 and 7925 Series provide convenient hydration solutions with a combination of drinking fountains and bottle fillers. Designed for parks, schools, recreational areas, and public spaces, these units ensure durability, accessibility, and vandal resistance.
Equipped with a gravity-type spout and recessed push-button flow adjustment, these fountains allow easy bottle filling while maintaining a barrier-free design. Available in pedestal-mounted configurations, they offer flexible solutions for accessible hydration.
Features
✔ Dual-function hydration – Drinking fountain and bottle filler combination.
✔ Barrier-free design – Ensures accessibility for all users.
✔ Heavy-duty construction – One-piece steel pipe with welded steel plates for durability.
✔ Vandal-resistant access panels – Prevents tampering while allowing easy maintenance.
✔ Push button water control – Three (3) chrome-plated brass push-button assemblies recessed in 1/2” steel plates.
✔ Adjustable flow regulation – Maintains steady water pressure.
✔ Steel bubbler guard – Protects against damage and vandalism.
✔ Replaceable in-line water filter – Ensures clean and safe drinking water.
✔ Weather-resistant finish – Standard woodland green powder coat, with optional stainless steel (-SS) and other colors available.
✔ Secure water supply control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient drainage system – 1-1/4” IPS waste pipes included for proper water disposal.
Available Models

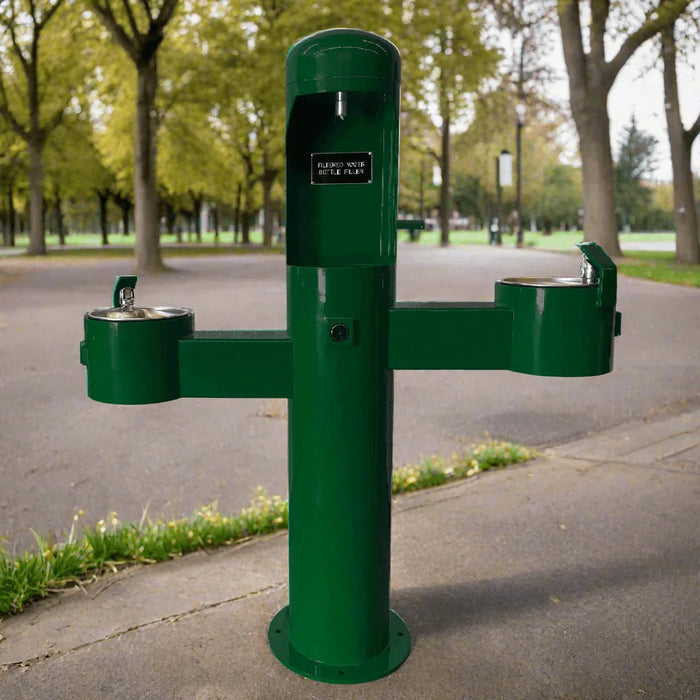

7730 – Drinking fountain pedestal with an additional fountain arm and a bottle filler arm

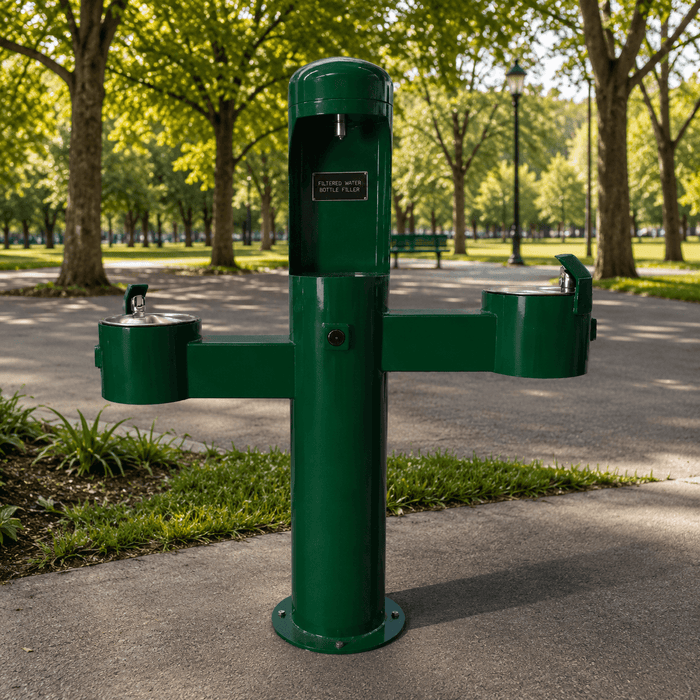

7925 – Bottle filler pedestal with two drinking fountain arms
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Surface-mounted plate welded to pedestal |
| Surface Requirements | Must be installed on a dry, level surface |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Length | Mounting Type |
|---|---|---|---|---|---|
| 7925 | Standard Surface Mount | 59 inches (150 cm) | 10.75 inches (27 cm) | 50.75 inches (129 cm) | Surface-mounted plate |
| 7730 | Standard Surface Mount | 54 inches (137 cm) | 10.75 inches (27 cm) | 50.75 inches (129 cm) | Surface-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
Optional Features
-SS | Stainless steel finish
Must-Read Before Buying
Stern-Williams Products Are Made-to-Order and Highly Customizable [Click here]
Need your fountain faster? Check out our Quick Ship Fountain Program [Click here] for quicker delivery options.
Stern-Williams Policies
- Warranty
- RGA Policy
- Custom Order Policy & Procedures
- Drinking Fountain & Shower Tower Cancellation Policy
- ADA Compliance
- ACA Compliance
Downloads
General IOM for Outdoor Water Products
