Product Information

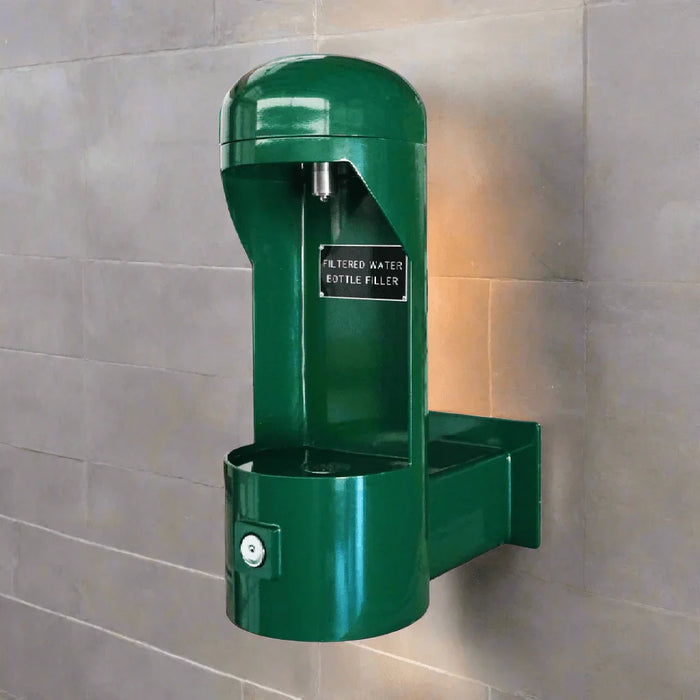

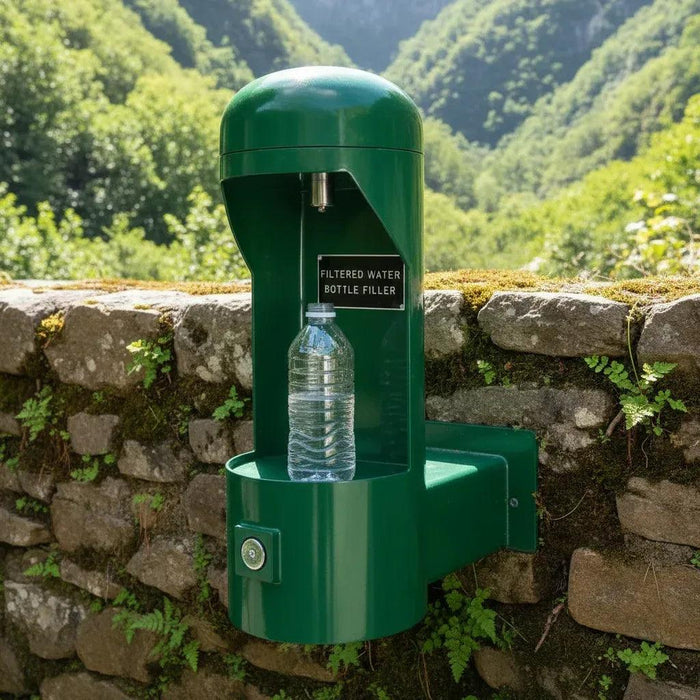

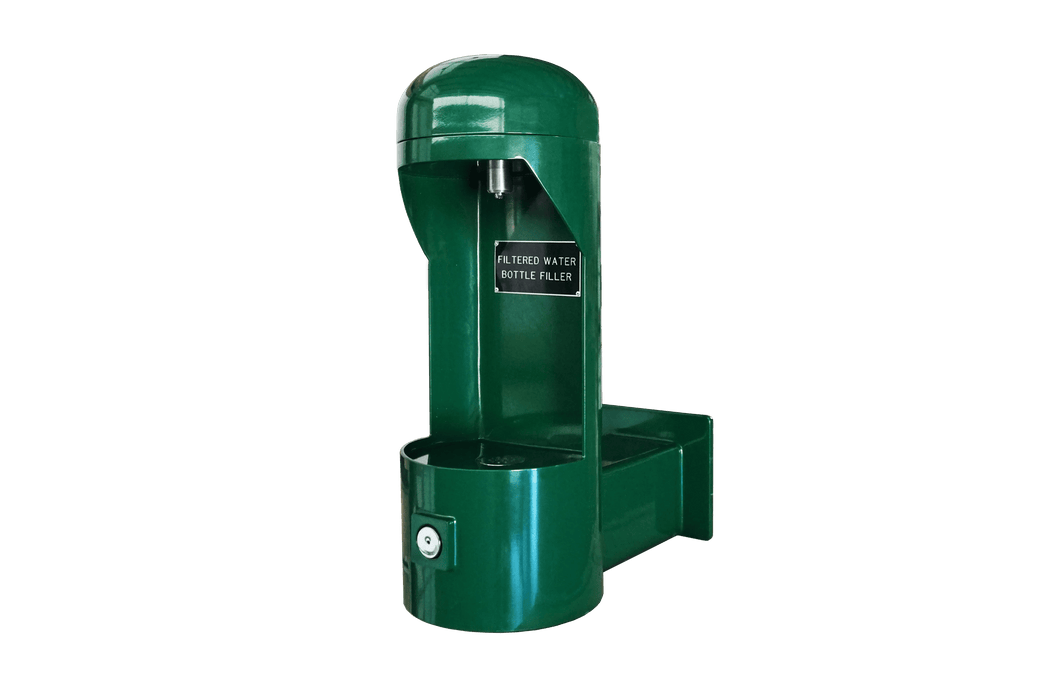

The 7300 Series offers a gravity-type bottle filler with a recessed push-button flow adjustment, ensuring convenient hydration in parks, schools, sports facilities, and public spaces. Available with or without a drinking fountain, this unit provides versatility, durability, and vandal resistance for high-traffic environments.
Constructed from one-piece heavy-duty steel pipe, this fountain and bottle filler combination is designed to withstand outdoor conditions while remaining low maintenance.
Features
✔ Dual hydration function – Available with or without a drinking fountain.
✔ Heavy-duty construction – One-piece steel pipe with welded steel plates for durability.
✔ Vandal-resistant access panels – Prevents tampering while allowing easy maintenance.
✔ Push button water control – Chrome-plated brass valve recessed in a 3/8” thick steel plate.
✔ Adjustable flow regulation – Maintains steady water pressure.
✔ Steel bubbler guard – Protects against damage and vandalism.
✔ Replaceable in-line water filter – Ensures clean and safe drinking water.
✔ Weather-resistant finish – Standard woodland green powder coat, with optional stainless steel (-SS) and other colors available.
✔ Secure water supply control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient drainage system – 1-1/4” IPS waste pipes included for proper water disposal.
Available Models
7300 – Standard single bottle filler with optional drinking fountain
7315 – Taller model for improved accessibility
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Surface-mounted plate included |
| Surface Requirements | Must be installed on a dry, level surface |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Length | Mounting Type |
|---|---|---|---|---|
| 7300 | Standard Surface Mount | 27 inches (69 cm) | 20 inches (51 cm) | Surface-mounted plate |
| 7315 | Extended Surface Mount | 34.5 inches (88 cm) | 20 inches (51 cm) | Surface-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
Optional Features
-SS | Stainless steel finish
-RV | Reverse heights
FLWMP-1 | Support carrier with a mounting plate (recommended for Model 7300)
FLWMP-2 | Support carrier with mounting plate (recommended for Model 7315)
Must-Read Before Buying
Stern-Williams Products Are Made-to-Order and Highly Customizable [Click here]
Need your fountain faster? Check out our Quick Ship Fountain Program [Click here] for quicker delivery options.
Stern-Williams Policies
- Warranty
- RGA Policy
- Custom Order Policy & Procedures
- Drinking Fountain & Shower Tower Cancellation Policy
- ADA Compliance
- ACA Compliance
Downloads
General IOM for Outdoor Water Products
