Product Information

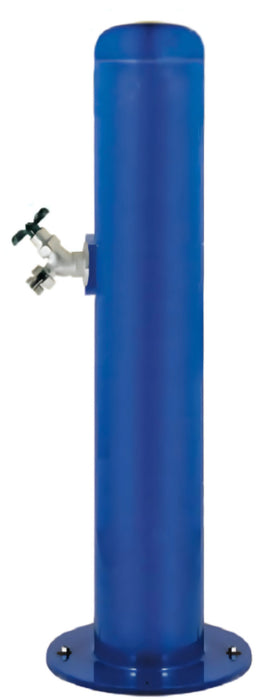

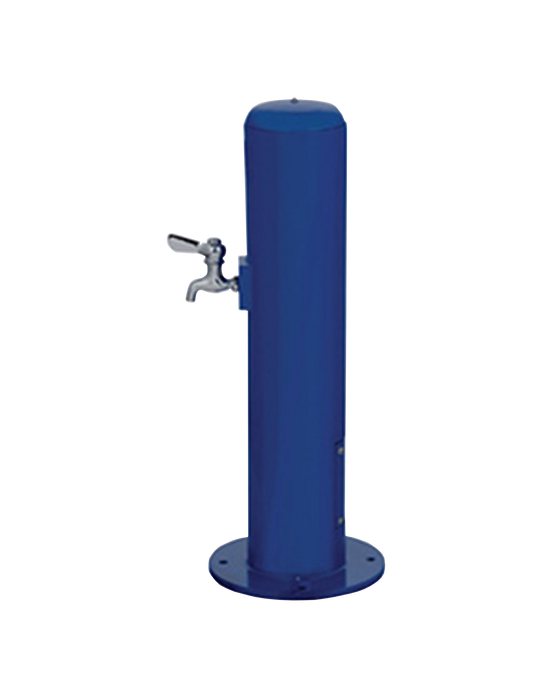

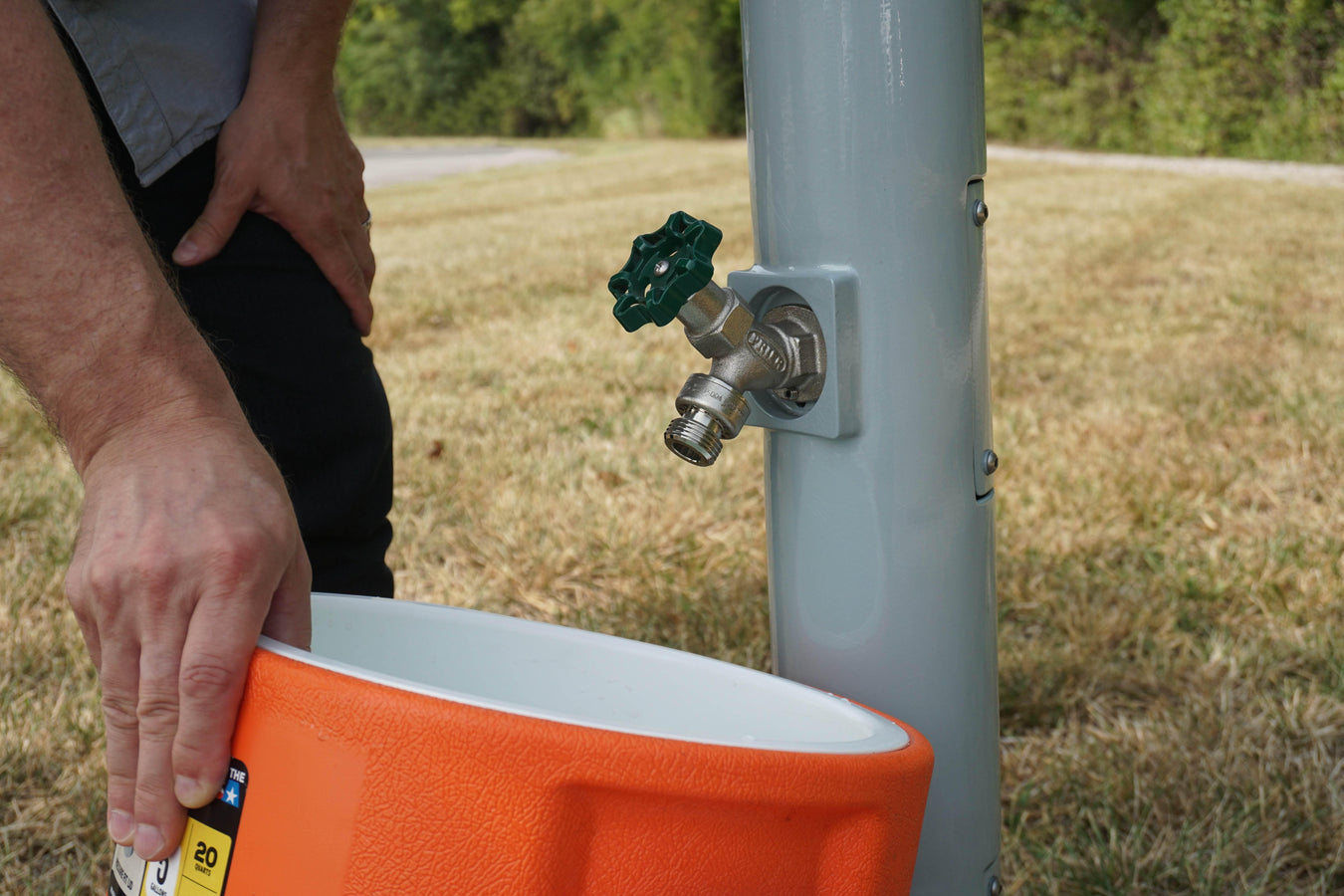

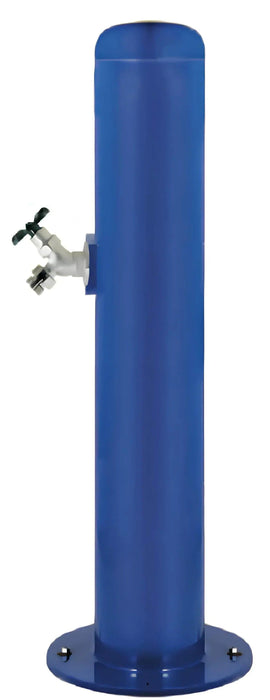

The 7000 Series Pedestal Jug Fillers provide reliable water access in parks, resorts, playgrounds, and recreational areas. Designed for mid-height installation, these units are available in surface-mounted or in-ground configurations. The deep Sky Blue powder-coated finish is scratch-resistant, ensuring a long-lasting and visually appealing water station.
Constructed from one-piece heavy-duty steel pipe, this jug filler is built to withstand outdoor conditions, resist vandalism, and provide easy maintenance.
Features
✔ Sturdy mid-height design – Ideal for parks, resorts, and recreational areas.
✔ Heavy-duty construction – One-piece steel pipe with welded steel plates for durability.

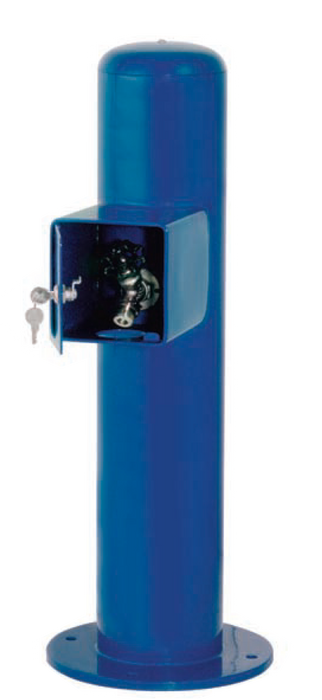

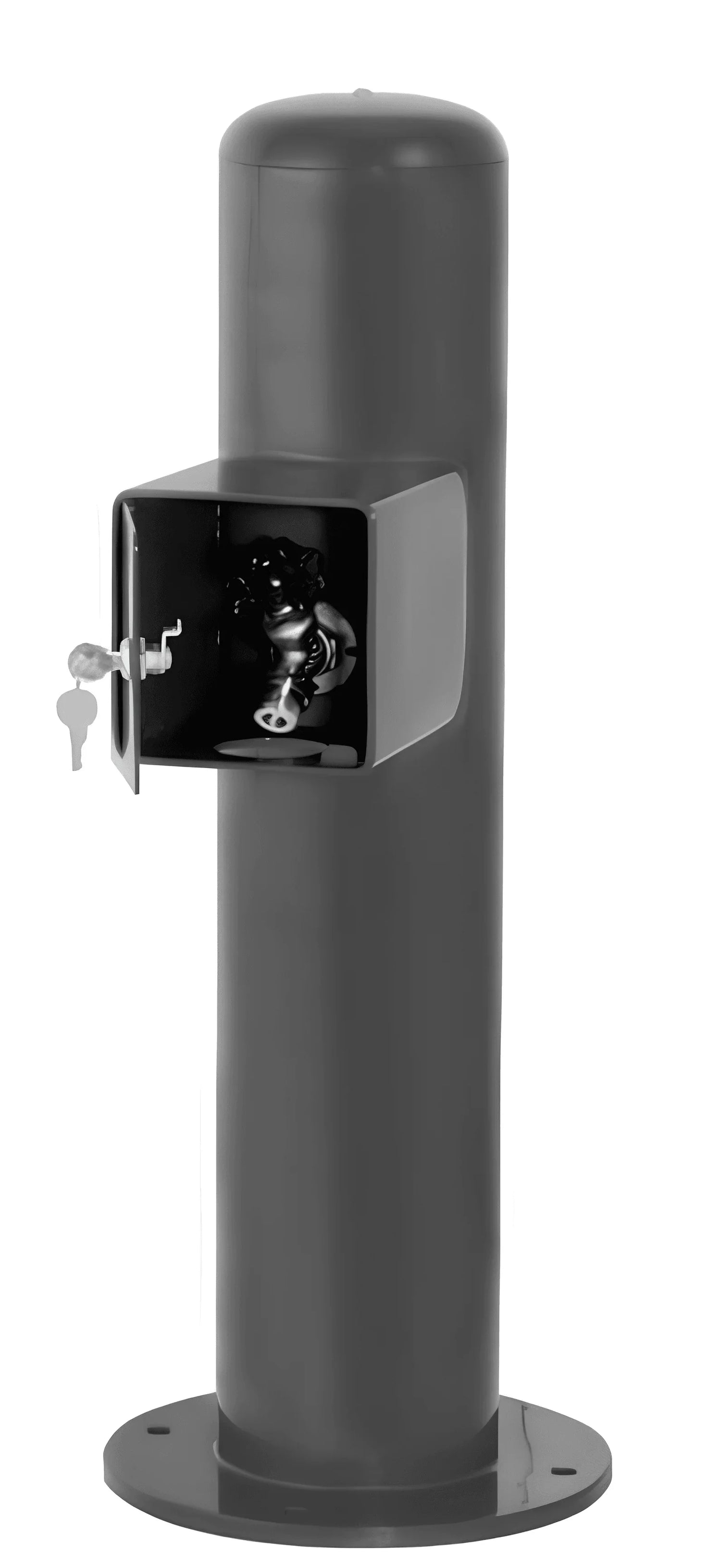

✔ Vandal-resistant access panels – Prevents tampering while allowing easy maintenance.
✔ Push button water control – Chrome-plated brass valve recessed in a 3/8” thick steel plate.
✔ Stainless steel supply fittings – Corrosion-resistant and connected to reinforced tubing.
✔ Weather-resistant finish – Standard Sky Blue powder coat, with optional stainless steel (-SS) and other color finishes available.
✔ Secure water supply control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient drainage system – 1-1/4” IPS waste pipes included for proper water disposal.

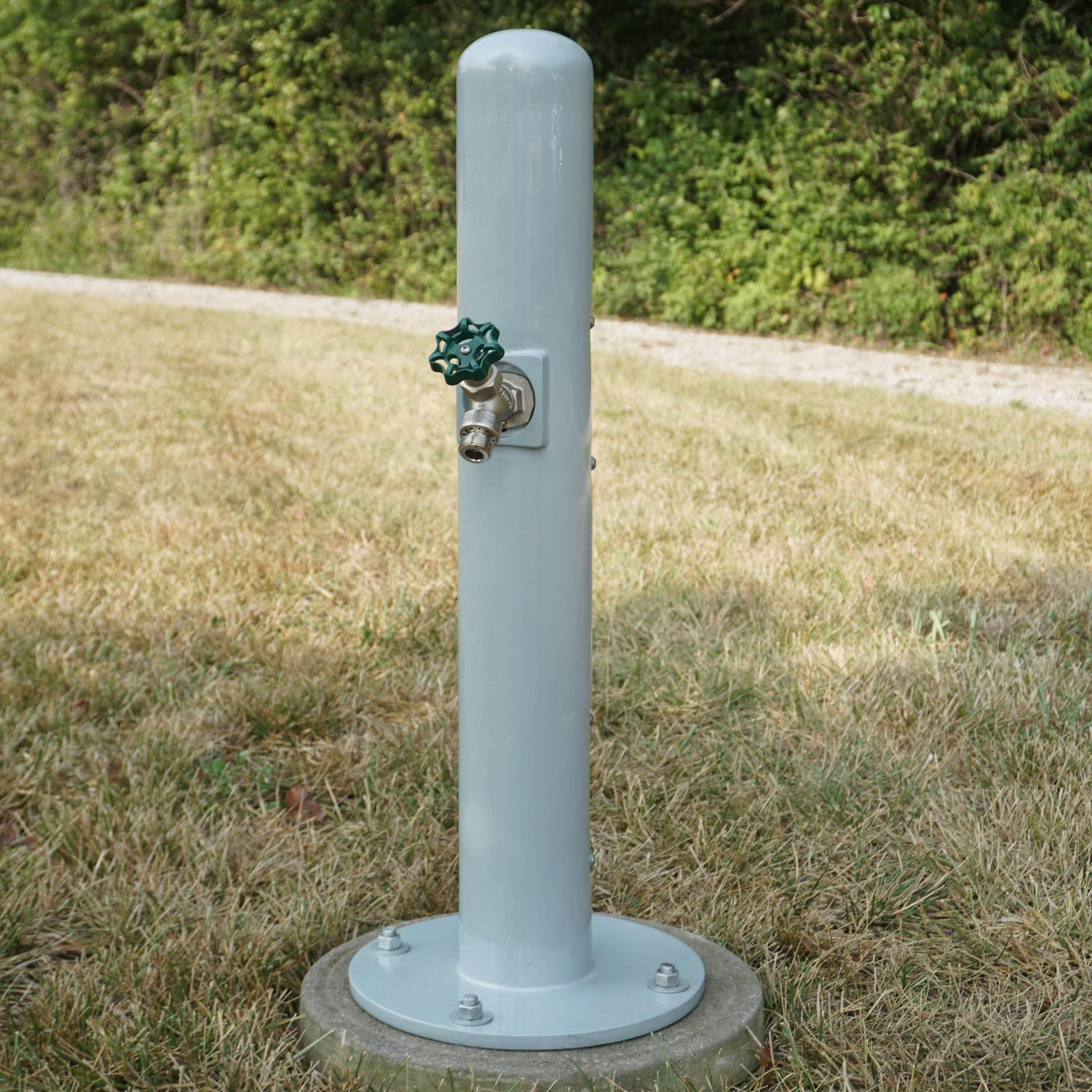

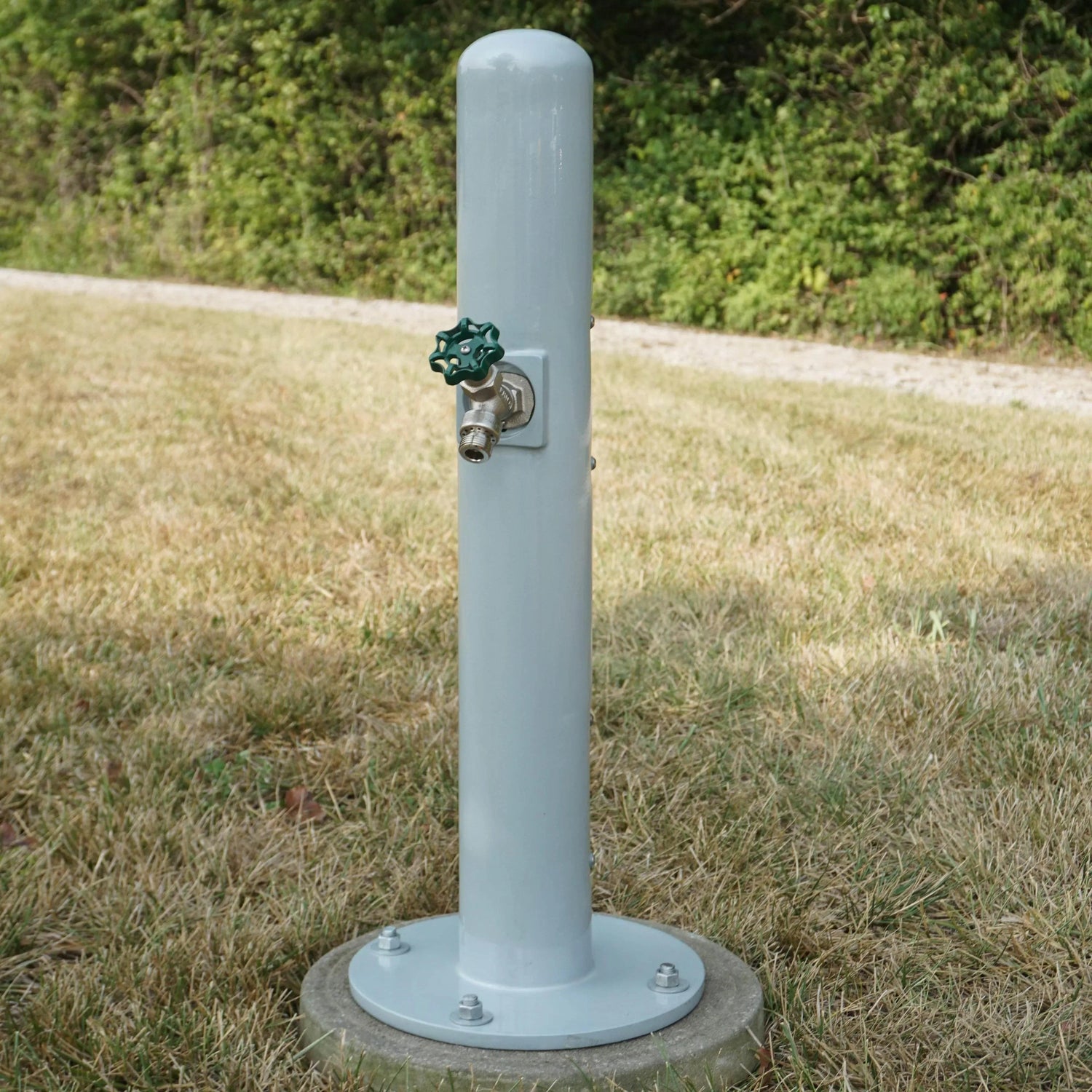

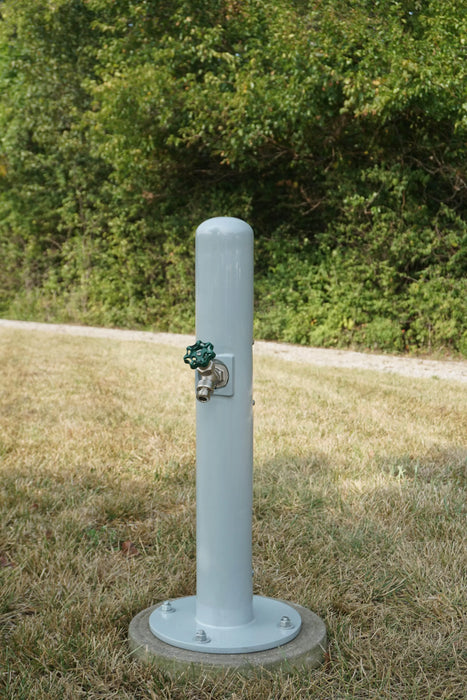

✔ Multiple mounting options – Available in surface-mounted and in-ground bury models.
Available Models
7000 – Surface-mounted pedestal jug filler
7000-MWL – Surface-mounted with welded mounting plate
7100 – In-ground bury model (requires 4” concrete slab)
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 1/8" (3.2 mm) wall thickness |
| Finish Options | Sky Blue powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Surface-mounted plate welded to pedestal (MWL model) or in-ground bury (7100 model) |
| Surface Requirements | Must be installed on a dry, level surface (surface-mount models) or in a 4” (10 cm) concrete slab (7100 model) |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Diameter | Mounting Type |
|---|---|---|---|---|
| 7000 | Surface-Mounted Model | 32 inches (81 cm) | 6.63 inches (17 cm) | Surface-mounted plate |
| 7100 | In-Ground Bury Model | 46 inches (117 cm) | 6.63 inches (17 cm) | In-ground installation (4” concrete slab required) |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
