Product Information
Our complete line of outdoor showers is available with foot sprays and/or body sprays in both metal and aggregate pedestal models. These units can be configured with sprays on up to four sides, making them a versatile and practical solution for resorts, playgrounds, and recreational outdoor areas.
Designed for accessibility, the 6800 series includes multiple models to accommodate different installation requirements. Side and front access configurations are available, with optional grab bars for additional support.
Fabricated from one-piece steel pipe, all exposed components are recessed in welded steel plates for enhanced durability and vandal resistance. A metering valve ensures controlled water flow, while timer-controlled spray heads minimize maintenance. The blue powder-coated finish is standard, with optional stainless steel (-SS) finishes available.
Features
✔ Wheelchair Accessible Design – Available in side or front access models, with or without grab bars.
✔ Heavy-Duty Steel Construction – Fabricated from one-piece steel pipe for superior strength and longevity.
✔ Scratch-Resistant Finish – Durable blue powder coat, with optional stainless steel (-SS) available.
✔ Water-Saving Metering Valve – Ensures controlled water flow, preventing unnecessary waste.
✔ Vandal-Resistant Push Button Valve – Chrome-plated brass push button recessed in a 3/8” thick steel plate.
✔ Timer-Controlled Spray Heads – Reduces maintenance while ensuring efficient water usage.
✔ Mist Heads – Made from heavy-duty materials and timer-controlled for consistent performance.
✔ Stainless Steel Supply Fittings – Connected to reinforced tubing for corrosion resistance and durability.
✔ Secure Water Supply Control – Equipped with a 1/2” IPS lock shield screwdriver stop.
✔ Efficient Drainage System – 1-1/4” IPS waste pipes included for proper water disposal.
✔ Surface Mounting Plate – Comes standard for secure installation.
✔ Easy Maintenance Access – Vandal-resistant access plates provide convenient servicing.
✔ Optional Grab Bars – Additional support for users who need extra stability.
Specifications
• Available Models: Wheelchair Accessible Shower Towers – Side and Front Access Options
• Column Pipe Dimensions: 6-5/8″ diameter steel pipe with 1/8″ wall thickness
• Material: Heavy-duty stainless steel and steel components
• Finish Options: Blue powder coat (standard), optional stainless steel (-SS) finish
• Mounting Type: Surface mounting plate welded to pedestal (SMP-6 included)
• Surface Requirements: Must be installed on a dry, level surface
• Waste Drainage: 1-1/4” IPS waste pipes included
• Water Supply: 1/2” IPS lock shield screwdriver stop
Available Models & Dimensions

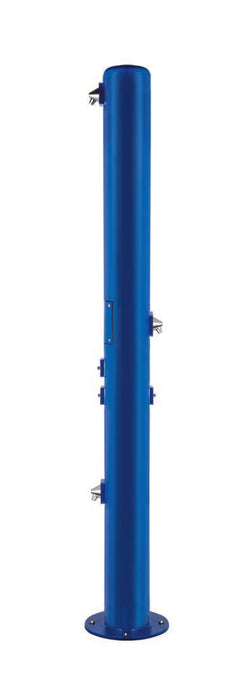

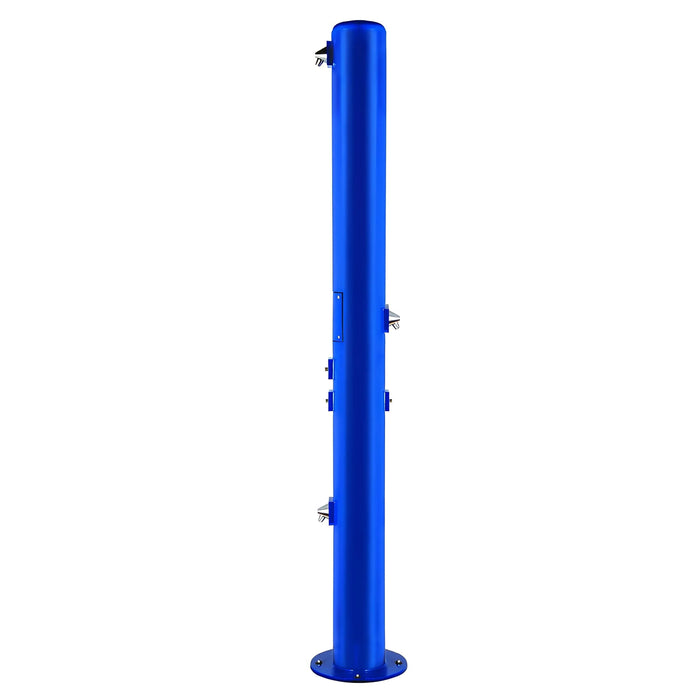

6800 – 80″H x 6-5/8″Dia – Side access
6815 – 80″H x 6-5/8″Dia – Front access

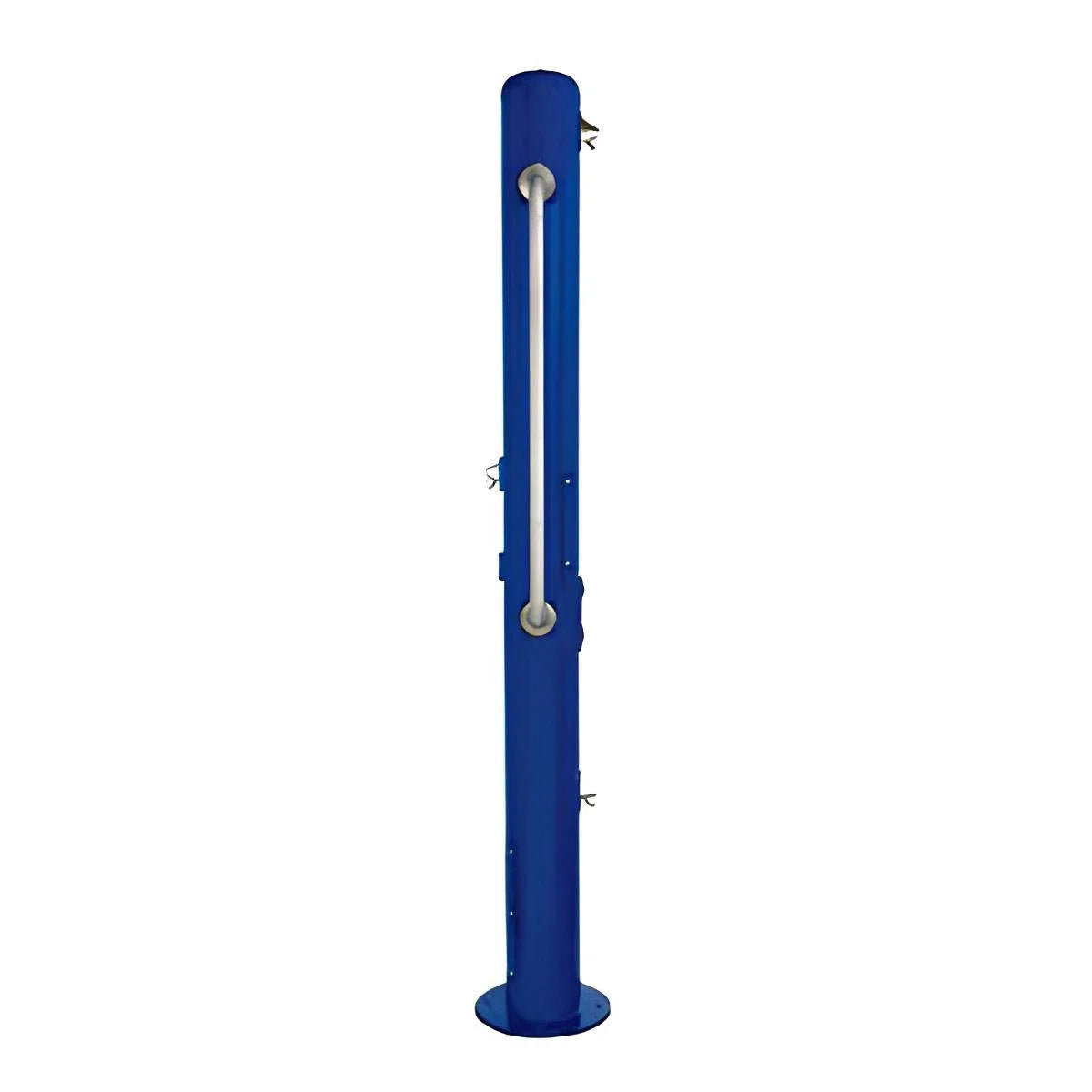

6825 – 80″H x 6-5/8″Dia – Side access with grab bar
6835 – 80″H x 6-5/8″Dia – Front access with grab bar
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
