Product Description:

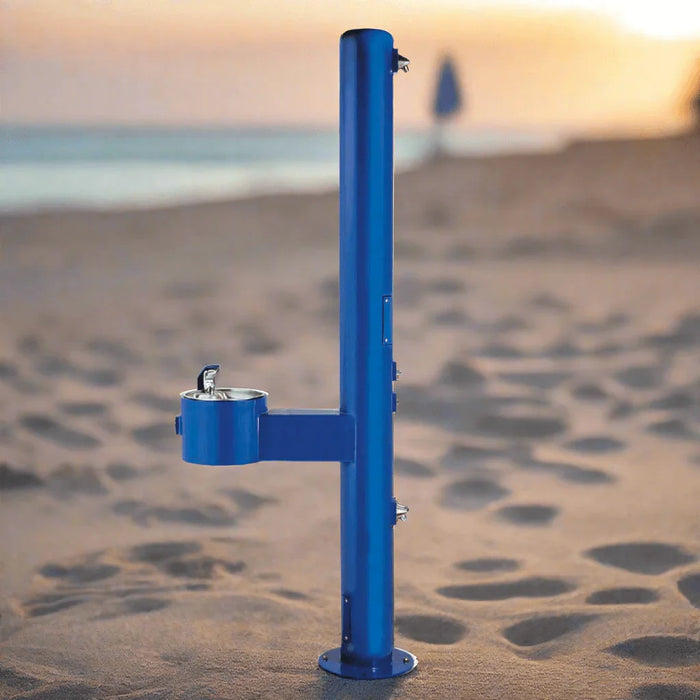

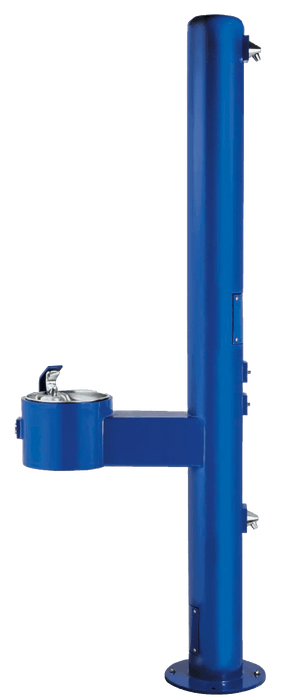

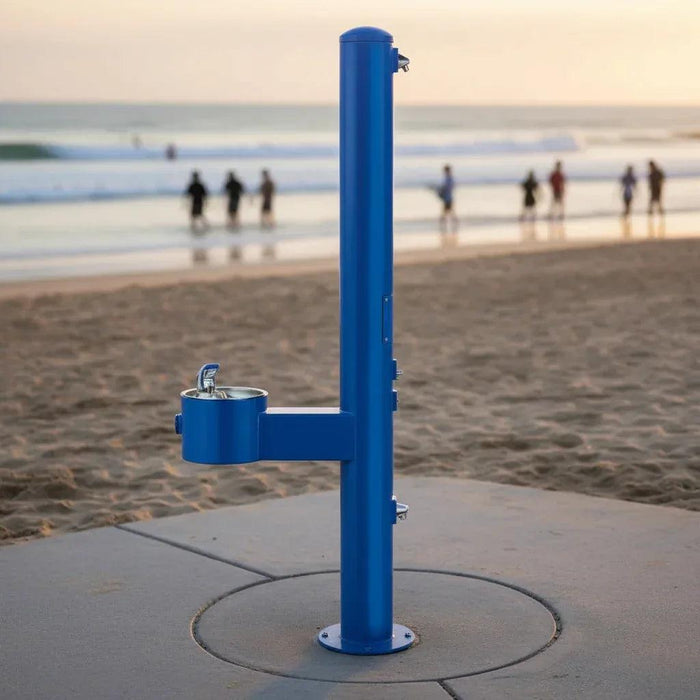

The 6600 Outdoor Drinking Fountain with Shower & Foot Spray is an ideal solution for outdoor volleyball courts, waterfront areas, and locations where sand is prevalent. Designed for high-traffic public spaces, this ADA-compliant unit provides a reliable hydration and cleaning station with a built-in metering valve for water conservation.
Constructed from one-piece steel pipe with welded steel plates, it ensures long-lasting performance in demanding environments. The stainless steel bubbler guard, chrome-plated brass bubblers, and vandal-resistant access plates offer enhanced security and durability. The timer-controlled shower and foot spray provide efficient water use, while the blue powder-coated finish offers weather resistance, with optional custom colors and stainless steel (-SS) finishes available.
Available in single, dual, and triple fountain styles, the 6000 Drinking Fountain with Shower & Foot Spray is perfect for public parks, beaches, and recreational facilities.
Features:
✔ Multi-Function Hydration & Cleaning Station – Includes a drinking fountain, shower, and foot spray for versatile use in outdoor environments.
✔ Durable One-Piece Steel Pipe Construction – Built from heavy-duty steel pipe with welded plates for maximum strength.
✔ Metering Valve for Water Conservation – Provides controlled water flow and helps reduce water waste.
✔ ADA-Compliant Design – Ensures accessibility for users of all abilities.
✔ Push Button Brass Valve – Chrome-plated and recessed in a 3/8” thick steel plate for vandal resistance.
✔ Vandal-Resistant Access Plates – Prevents tampering while allowing easy maintenance.
✔ Adjustable Flow Regulation – Allows for precise water control based on environmental needs.
✔ Heavy-Duty Steel Arm – 3/8” sheet steel arm enhances durability and strength.
✔ Stainless Steel 18-Gauge Receptor – Features a vandal-resistant chrome-plated brass drain plug.
✔ Corrosion-Resistant Supply Fittings – Stainless steel components connected to reinforced tubing for durability.
✔ Weather-Resistant Finish – Blue powder coat is standard, with optional custom colors and stainless steel (-SS) finish available.
✔ Built-In Water Filtration – In-line mesh screen strainer provides additional filtration to ensure water quality.
✔ Heavy-Duty, Vandal-Resistant Spray Heads – Designed to withstand harsh outdoor conditions.
✔ Timer-Controlled Water Valve – Reduces unnecessary water usage and lowers maintenance costs.
✔ Secure Water Supply Control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Included Drainage System – 1-1/4” IPS waste pipes provide proper drainage and ensure compliance.
Specifications:
| Feature | Details |
|---|---|
| Available Models | Single, Dual, and Triple Fountain Options |
| Fresh Water Flow Rate | 8.0 GPH (Gallons Per Hour) of chilled water refreshment |
| Column Pipe Dimensions | 10.75-inch (27 cm) diameter steel pipe(s) with 3/16-inch (4.8 mm) wall thickness |
| Shower Column Pipe Dimensions | 6.63-inch (17 cm) diameter steel pipe with 1/8-inch (3.2 mm) wall thickness |
| Material | Heavy-duty stainless steel, brass, and steel components |
| Finish Options | Blue powder coat (standard), optional stainless steel (-SS) finish |
| Mounting Type | Surface mounting plate welded to pedestal (SMP-6 included) |
| Surface Requirements | Must be placed on a dry, level surface |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions:
| Model | Type | Height | Width | Diameter |
|---|---|---|---|---|
| 6600 | Single Fountain | 80 inches (203 cm) | 26.63 inches (68 cm) | 6.63 inches (17 cm) |
| 6630 | Dual Fountain | 80 inches (203 cm) | 26.63 inches (68 cm) | 6.63 inches (17 cm) |
| 6650 | Triple Fountain | 80 inches (203 cm) | 26.63 inches (68 cm) | 6.63 inches (17 cm) |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
Optional Upgrades & Finishes:
- -SS | Stainless Steel Finish
- SMP-6 | Surface Mounting Plate
Must-Read Before Buying
Stern-Williams Products Are Made-to-Order and Highly Customizable [Click here]
Need your fountain faster? Check out our Quick Ship Fountain Program [Click here] for quicker delivery options.
Stern-Williams Policies
- Warranty
- RGA Policy
- Custom Order Policy & Procedures
- Drinking Fountain & Shower Tower Cancellation Policy
- ADA Compliance
- ACA Compliance
Downloads
6600_6630_6650_Spec Sheet
