Product Description:

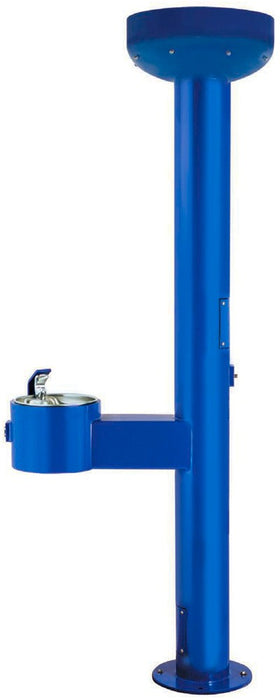

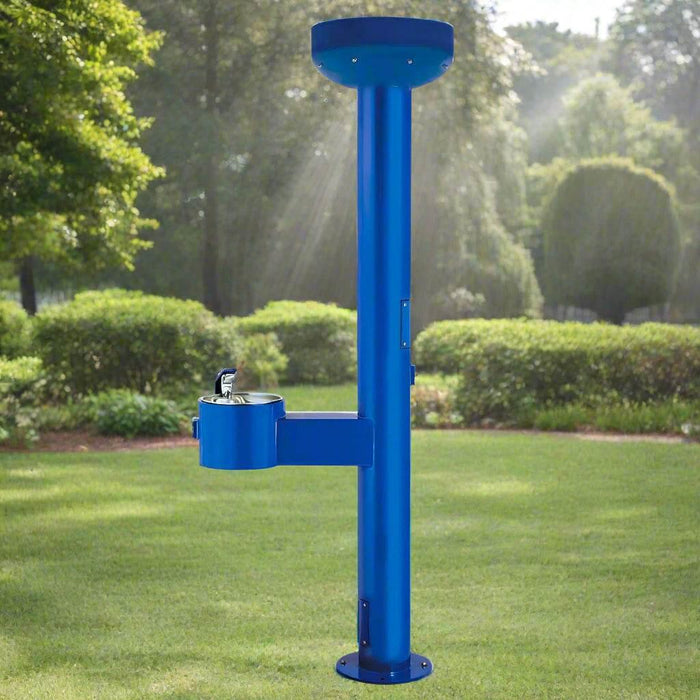

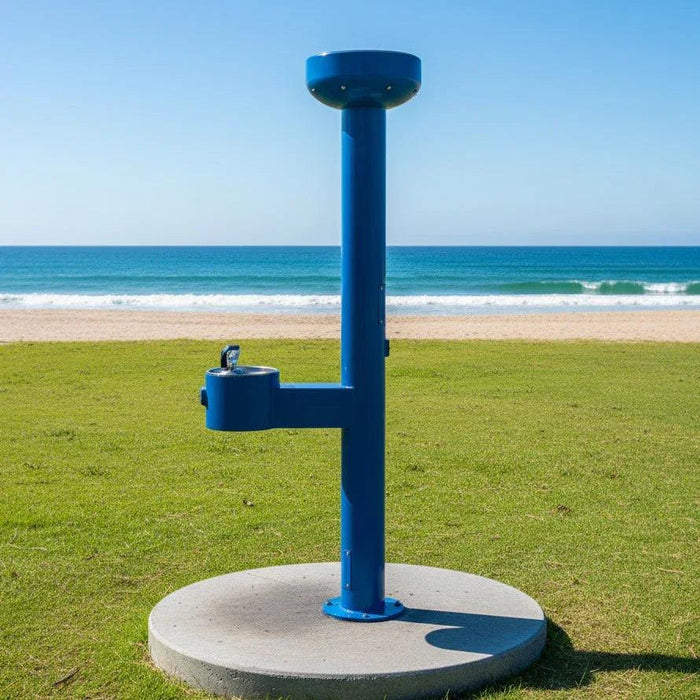

The 6475 Comfort Spray Station & Drinking Fountain is designed for maximum cool-down after rigorous outdoor activity, making it an excellent addition to parks, sports fields, and outdoor recreation areas. This ADA-compliant unit provides both hydration and cooling mist functionality to keep users refreshed in high-traffic environments.
Constructed from one-piece steel pipe with welded steel plates, this unit ensures long-lasting durability and vandal-resistant protection. The integrated timer-controlled spray heads and metering valve conserve water while maintaining an effective cooling experience. A push-button chrome-plated brass valve, stainless steel supply fittings, and reinforced tubing ensure reliable performance.
The 6475 Comfort Spray Station comes in a blue powder-coated finish, with optional stainless steel (-SS) and custom colors available.
Features:
✔ Dual-Purpose Cooling & Hydration Station – Combines a drinking fountain with a refreshing mist spray system.
✔ Durable One-Piece Steel Pipe Construction – Heavy-duty steel pipe and welded plates ensure structural integrity.
✔ ADA-Compliant Design – Designed to be accessible for users of all abilities.
✔ Vandal-Resistant Access Plates – Secure maintenance panels prevent tampering.
✔ Push Button Brass Valve – Chrome-plated and recessed in a 3/8” thick steel plate for added protection.
✔ Stainless Steel Supply Fittings – Reinforced tubing ensures long-lasting durability.
✔ Weather-Resistant Finish – Blue powder coat is standard, with optional stainless steel (-SS) and other color options available.
✔ Heavy-Duty Vandal-Resistant Spray Heads – Designed to withstand harsh outdoor environments.
✔ Timer-Controlled Water Valve – Ensures minimal maintenance and efficient water usage.
✔ Secure Water Supply Control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Included Drainage System – 1-1/4” IPS waste pipes provide proper drainage.
Specifications:
| Feature | Details |
|---|---|
| Available Models | Barrier-Free & Standard Options |
| Column Pipe Dimensions | Steel pipe with a diameter of 6.63 inches (168 mm) and a wall thickness of 0.125 inches (3.2 mm) |
| Material | Heavy-duty stainless steel and steel components |
| Finish Options | Standard blue powder coat; optional stainless steel (-SS) finish available |
| Mounting Type | Surface mounting plate welded to pedestal (SMP-6 included) |
| Surface Requirements | Must be installed on a dry, level surface |
| Waste Drainage | Includes 1.25-inch (32 mm) IPS waste pipes |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions:
| Model | Type | Height | Width | Diameter |
|---|---|---|---|---|
| 6475 | Barrier-Free | 84 inches (213 cm) | 26.63 inches (68 cm) | 6.63 inches (17 cm) |
| 6495 | Standard | 84 inches (213 cm) | 26.63 inches (68 cm) | 6.63 inches (17 cm) |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).

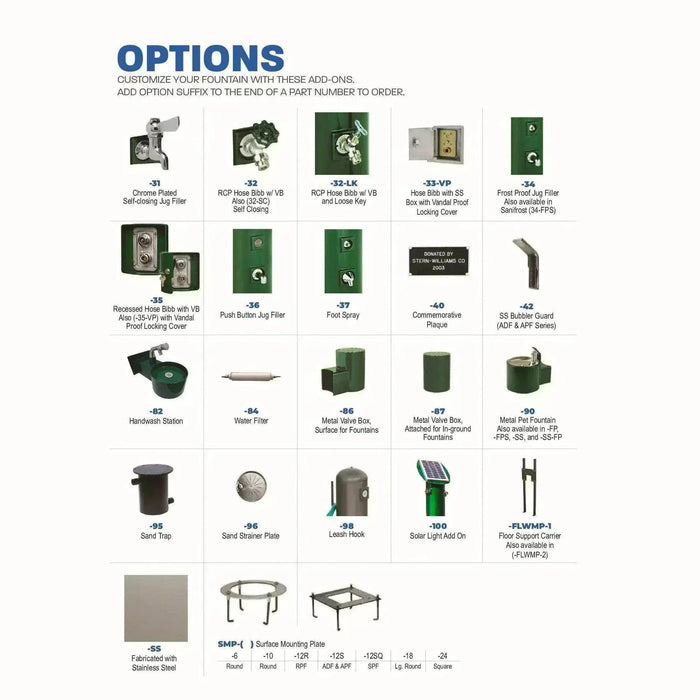

Optional Upgrades & Finishes:
- -SS | Stainless Steel Finish
- SMP-6 | Surface Mounting Plate
