Product Description:

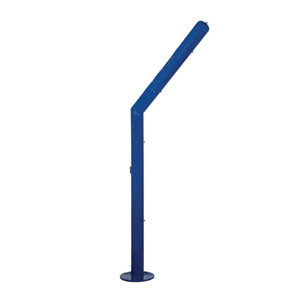

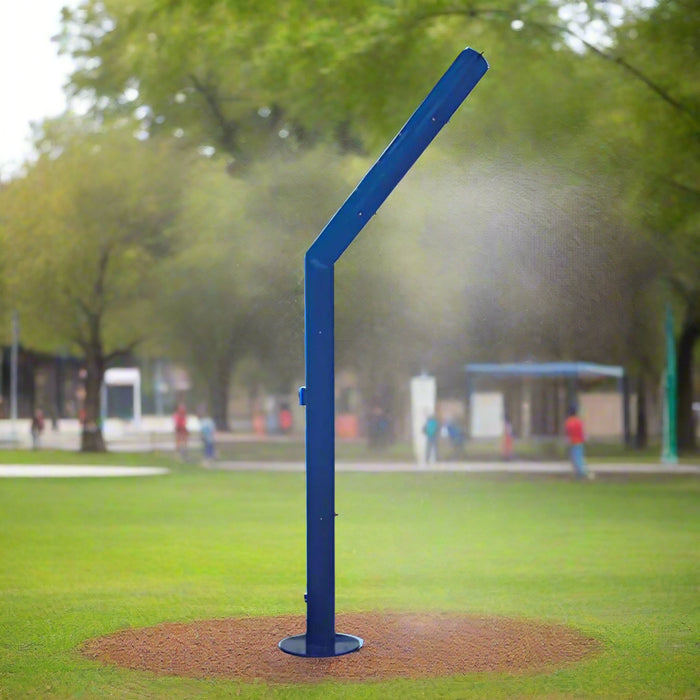

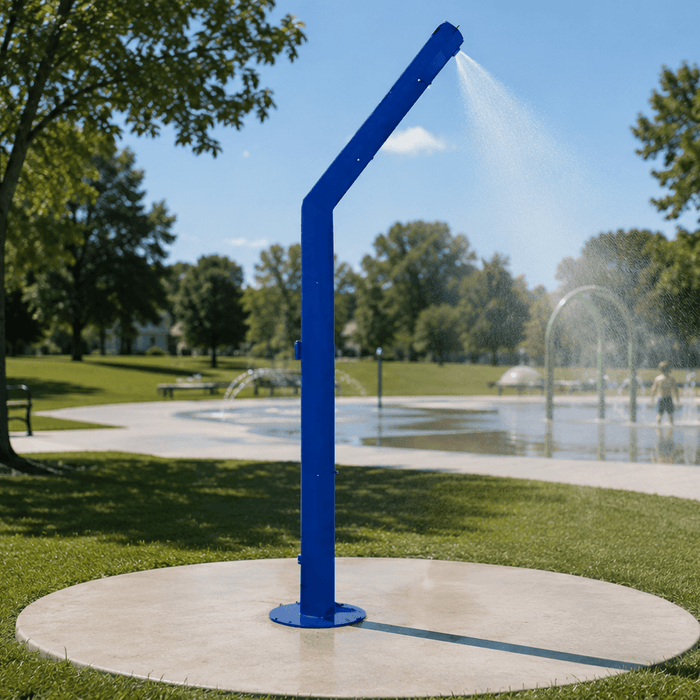

The 6425 Comfort Spray Station is designed for maximum cool-down after rigorous outdoor activity, making it an excellent addition to parks, sports fields, and recreational facilities. This unit provides a refreshing mist spray system controlled by a metering valve to conserve water while ensuring continuous cooling in high-traffic environments.
Constructed from one-piece steel pipe with welded steel plates, this spray station is built for durability and vandal resistance. The integrated timer-controlled spray heads and push-button chrome-plated brass valve enhance efficiency and reliability. A blue powder-coated finish ensures long-term weather resistance, with optional custom colors and stainless steel (-SS) finishes available.
Available in both standard and barrier-free models, the 6425 Comfort Spray Station is a durable, low-maintenance solution for outdoor cooling needs.
Features:
✔ High-Performance Cooling Station – Provides a refreshing mist spray to help users cool down after physical activity.
✔ Durable One-Piece Steel Pipe Construction – Built from heavy-duty steel pipe with welded plates for maximum strength.
✔ Metering Valve for Water Conservation – Ensures controlled water flow and reduces unnecessary water waste.
✔ Push Button Brass Valve – Chrome-plated and recessed in a 3/8” thick steel plate for added vandal resistance.
✔ Vandal-Resistant Access Plates – Secure panels provide easy maintenance while preventing tampering.
✔ Stainless Steel Supply Fittings – Reinforced tubing ensures long-lasting performance.
✔ Heavy-Duty Vandal-Resistant Spray Heads – Designed to withstand harsh outdoor environments.
✔ Timer-Controlled Water Valve – Provides efficient water usage with low maintenance.
✔ Weather-Resistant Finish – Blue powder coat is standard, with optional stainless steel (-SS) and other color options available.
✔ Secure Water Supply Control – 1/2” IPS lock shield screwdriver stop prevents unauthorized adjustments.
✔ Included Drainage System – 1-1/4” IPS waste pipes ensure proper water disposal.
Specifications:
| Feature | Details |
|---|---|
| Available Models | Standard & Barrier-Free Options |
| Column Pipe Dimensions | 6.63-inch (17 cm) diameter steel pipe with 1/8-inch (3.2 mm) wall thickness |
| Overall Dimensions | [Specify Width, Length, and Height if available] |
| Material | Heavy-duty stainless steel and steel components |
| Finish Options | Blue powder coat (standard), optional stainless steel (-SS) finish |
| Mounting Type | Surface mounting plate welded to pedestal (SMP-6 included) |
| Surface Requirements | Must be placed on a dry, level surface |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions:
| Model | Type | Height | Diameter |
|---|---|---|---|
| 6425 | Standard Model | 88 inches (224 cm) | 6.63 inches (17 cm) |
| 6450 | Barrier-Free Model | 84 inches (213 cm) | 6.63 inches (17 cm) |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
Optional Upgrades & Finishes:
- -SS | Stainless Steel Finish
- SMP-6 | Surface Mounting Plate
