Product Information

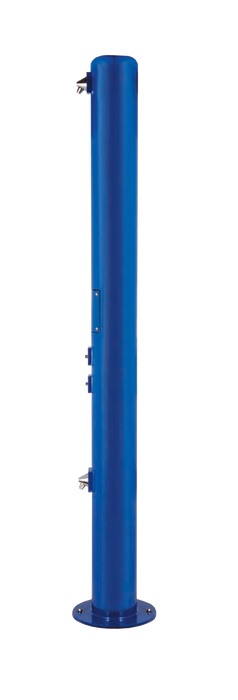

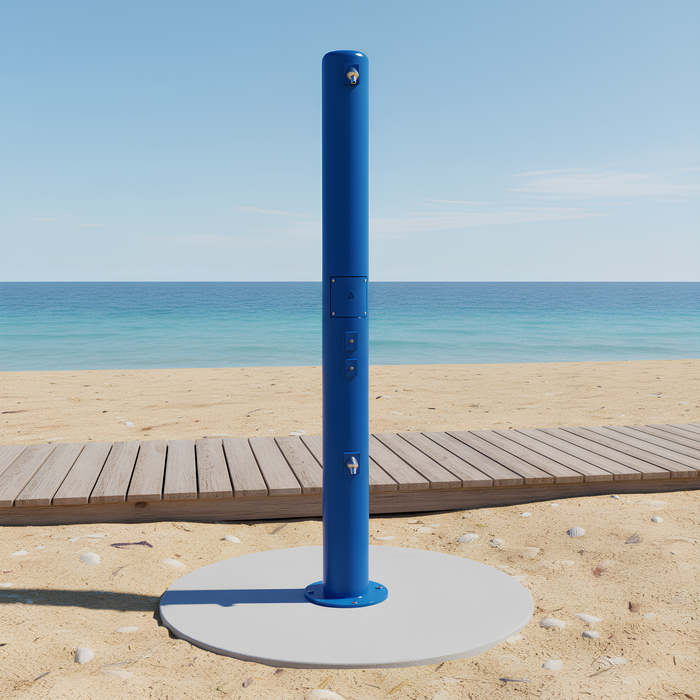

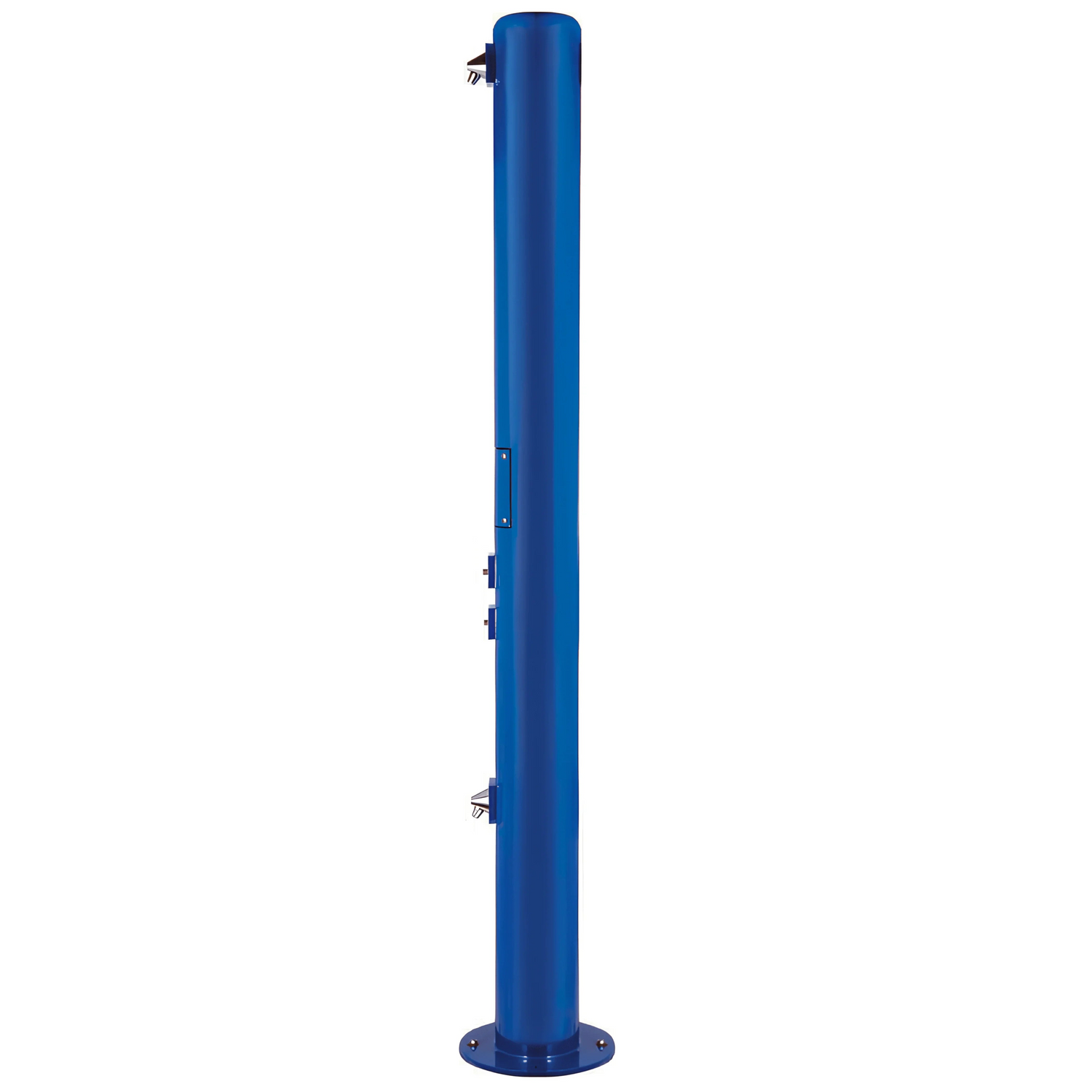

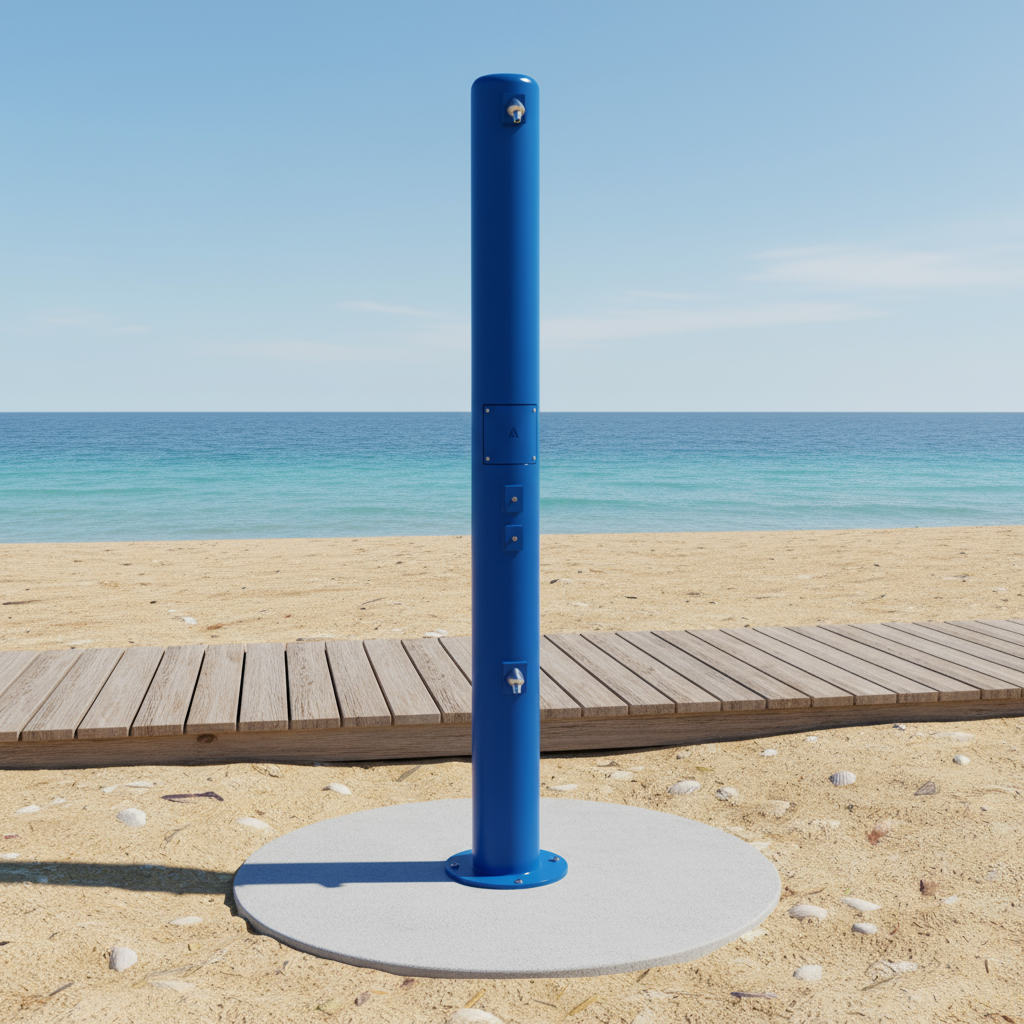

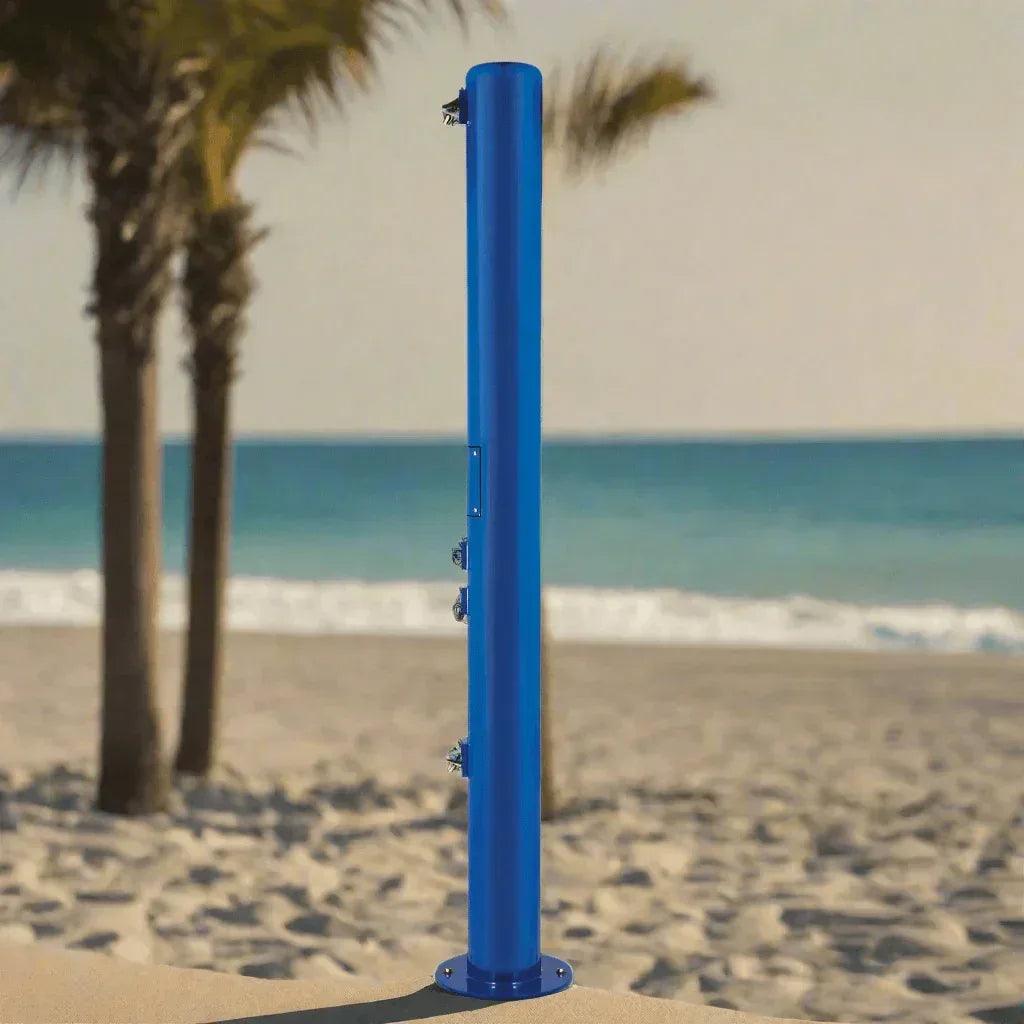

The 6200 Metal Pedestal Outdoor Body and Foot Shower is a durable and efficient water station designed for resorts, playgrounds, beaches, and recreational areas. It offers a full-body rinse and foot wash in a single unit, making it a practical solution for high-traffic outdoor spaces.
Built from one-piece steel pipe with welded plates, this unit ensures maximum durability and vandal resistance. The deep Sky Blue powder-coated finish is scratch-resistant, with an optional stainless steel (-SS) finish available for enhanced durability. A metering valve controls water flow, reducing waste, while timer-controlled spray heads ensure an efficient and refreshing rinse.
Available in pedestal-mounted (6200) and wall-mounted (-MWL) models, this shower provides flexible installation options to suit different locations.
Features
✔ Multi-Function Body and Foot Shower – Provides a full-body rinse and foot wash in a single unit.
✔ Heavy-Duty Steel Construction – Made from one-piece steel pipe with welded plates for superior strength.
✔ Scratch-Resistant Finish – Deep Sky Blue powder coat withstands outdoor conditions, with optional stainless steel (-SS) finish available.
✔ Water-Saving Metering Valve – Ensures controlled water flow, preventing unnecessary waste.
✔ Vandal-Resistant Push Button Valve – Chrome-plated brass push button, recessed in a 3/8” thick steel plate.
✔ Timer-Controlled Spray Heads – Reduces maintenance while ensuring efficient water usage.
✔ Stainless Steel Supply Fittings – Reinforced corrosion-resistant tubing for long-term durability.
✔ Pedestal & Wall-Mounted Models – Choose from a freestanding pedestal model (6200) or a space-saving wall-mounted option (-MWL).
✔ Secure Water Supply Control – 1/2” IPS lock shield screwdriver stop prevents tampering.
✔ Efficient Drainage System – 1-1/4” IPS waste pipes ensure proper drainage.
Specifications
| Feature | Details |
|---|---|
| Available Models | Pedestal & Wall-Mounted Showers |
| Column Pipe Dimensions | 6.63-inch (17 cm) diameter steel pipe with 1/8-inch (3.2 mm) wall thickness |
| Material | Heavy-duty stainless steel and steel components |
| Finish Options | Blue powder coat (standard), optional stainless steel (-SS) finish |
| Mounting Type | Surface Mount (Pedestal) or Wall Mount (-MWL) |
| Surface Requirements | Must be installed on a dry, level surface |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Diameter |
|---|---|---|---|
| 6200 | Pedestal Model | 80 inches (203 cm) | 6.63 inches (17 cm) |
| 6300 | Wall-Mounted Model (-MWL) |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
