Product Information

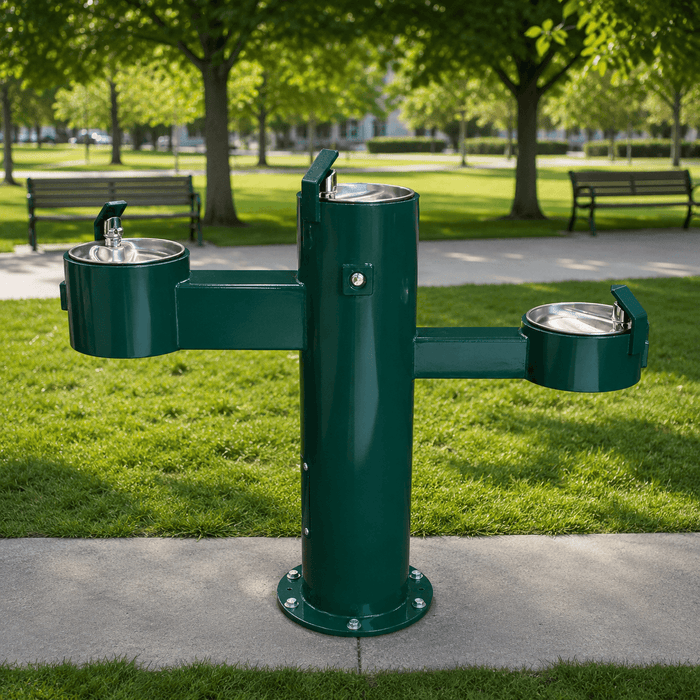

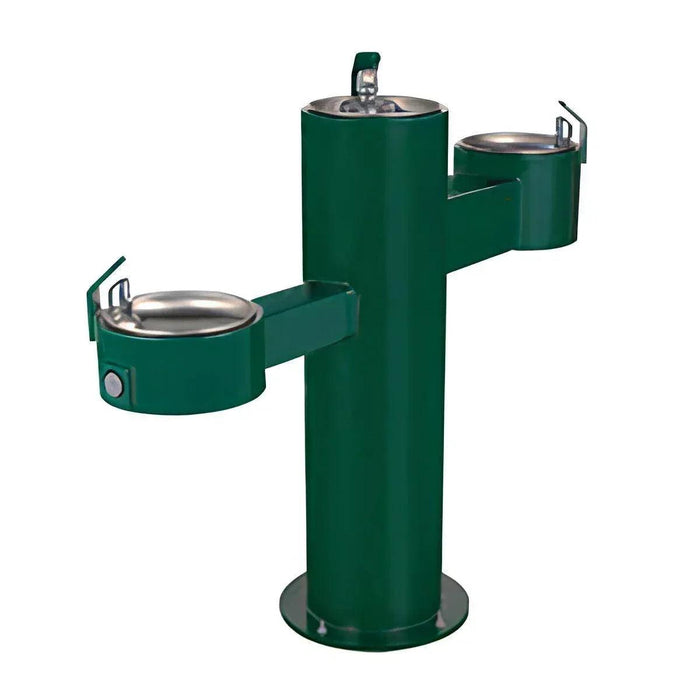

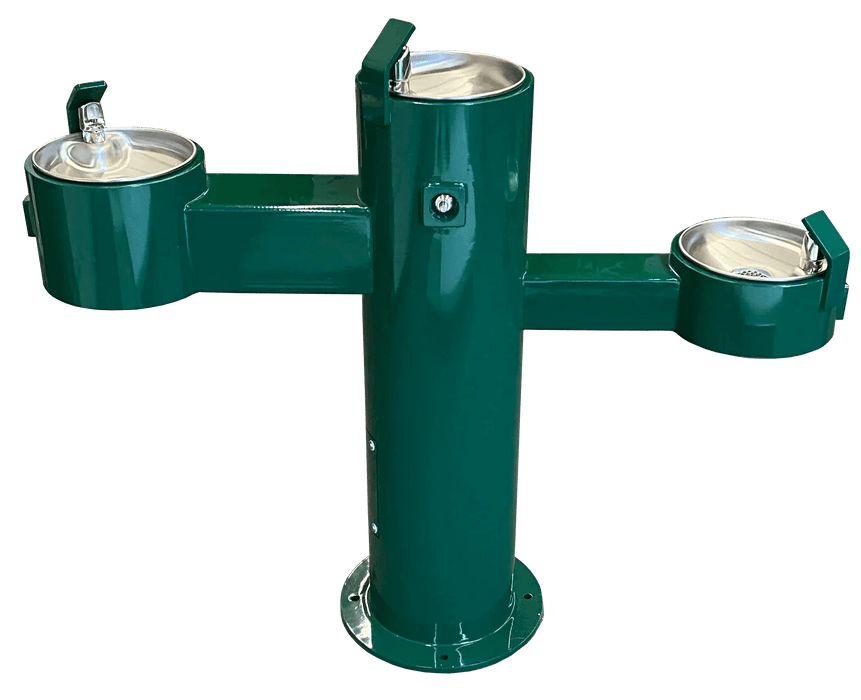

The 5925 Series Triple Pedestal Drinking Fountain features a striking, modern design with clean lines, engineered to withstand harsh outdoor conditions, resist vandalism, and endure heavy public use. This model includes three drinking fountains on a single pedestal, making it ideal for parks, schools, and high-traffic recreational areas.
Built from one-piece heavy-duty steel pipe, this ADA-compliant fountain provides durability, ease of maintenance, and an efficient water distribution system. The frost proof (-FP) option is available for locations subject to extreme cold, preventing freezing during winter months.
It is recommended that a dual check valve backflow prevention system be installed in the waterline for any FP fountain.
Features
✔ Triple Pedestal Design – Three drinking fountains on one unit for high-traffic locations.
✔ ADA Compliant – Ensures accessibility for all users.
✔ Heavy-Duty Construction – Fabricated from one-piece steel pipe with recessed welded steel plates.
✔ Vandal-Resistant Access Plates – Secure panels prevent tampering while allowing easy maintenance.
✔ Water-Saving Push Button Valve – Chrome-plated brass valve recessed in a 3/8” thick steel plate.
✔ Adjustable Flow Regulation – Provides controlled water distribution.
✔ Steel Bubbler Guard – Protects against damage and vandalism.
✔ Stainless Steel Supply Fittings – Reinforced tubing for long-term durability.
✔ In-Line Mesh Screen Strainer – Prevents debris from entering the water system.
✔ Powder-Coated Finish – Standard woodland green with optional colors and stainless steel (-SS) available.
✔ Frost Proof Option (-FP) – Prevents freezing in cold weather.
✔ Secure Water Supply Control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient Drainage System – 1-1/4” IPS waste pipes included.
Available Models
• 5925 – Standard triple pedestal drinking fountain
• 5925-FP – Frost proof triple pedestal drinking fountain
Optional Features
-31 | Chrome Plated Self-Closing Jug Filler
-32 | RCP Hose Bibb with VB
-32-LK | RCP Hose Bibb with VB and Loose Key
-32-SC | Self-Closing Hose Bibb with VB
-34 | Frost Proof Jug Filler
-35-VP | Recessed Hose Bibb with Locking Cover
-36 | Push Button Jug Filler
-37 | Foot Spray
-38 | Shutdown/Drain Valve
-40 | Commemorative Plaque
-84 | Water Filter
-85 | Valve Box (Recommended for FP Units)
-87 | Metal Valve Box
-90 | Pet Fountain (Attached)
-90-FP | Frost Proof Pet Fountain
-90-SS | Stainless Steel Pet Fountain
-90-SS-FP | Stainless Steel Frost Proof Pet Fountain
-95 | Sand Trap
-96 | Sand Strainer Plate
SMP-10 | Surface Mounting Plate
-SS | Stainless Steel Finish
Specifications
| Feature | Details |
|---|---|
| Available Models | Triple Pedestal Drinking Fountains – Standard & Frost Proof Options |
| Material | Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional custom colors and stainless steel -SS available) |
| Mounting Type | Surface-mounted plate welded to pedestal (SMP-10 included) |
| Surface Requirements | Must be installed on a dry, level surface |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Length | Mounting Type |
|---|---|---|---|---|---|
| 5925 | Triple Pedestal Drinking Fountain | 40 inches (102 cm) | 10.75 inches (27 cm) | 50.75 inches (129 cm) | Surface-mounted plate |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
Must-Read Before Buying
Stern-Williams Products Are Made-to-Order and Highly Customizable [Click here]
Need your fountain faster? Check out our Quick Ship Fountain Program [Click here] for quicker delivery options.
Stern-Williams Policies
- Warranty
- RGA Policy
- Custom Order Policy & Procedures
- Drinking Fountain & Shower Tower Cancellation Policy
- ADA Compliance
- ACA Compliance
Downloads
General IOM for Outdoor Water Products-A
