Product Information

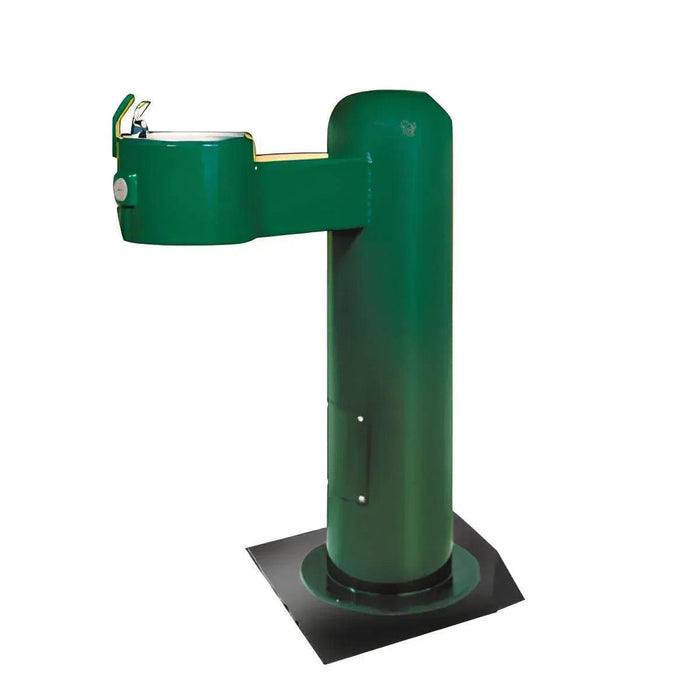

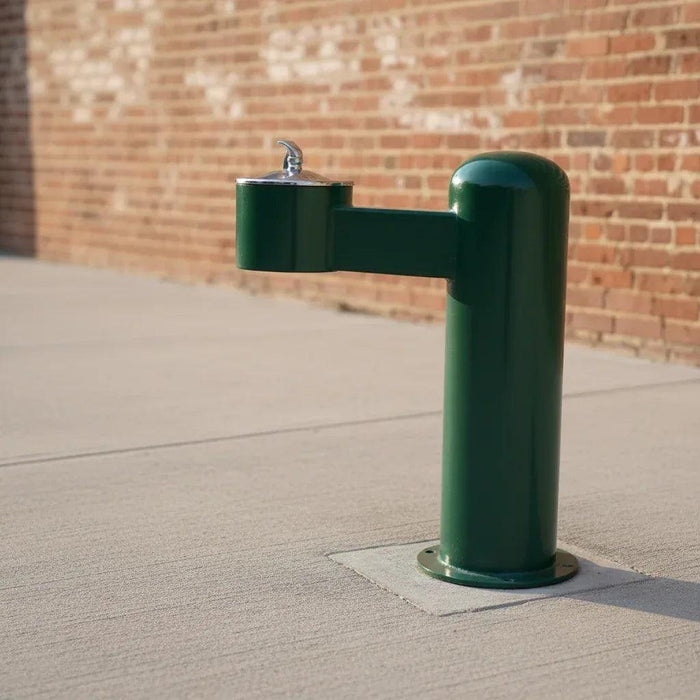

The 5400 Series is designed to meet ADA requirements while withstanding harsh outdoor conditions and heavy public use. These fountains are available as a stand-alone pedestal or as a wall-mounted unit (MWL models), making them versatile for various installations in parks, schools, recreational facilities, and public spaces.
Made from one-piece heavy-duty steel pipe, this series ensures durability and long-term performance. Available in standard, frost proof (-FP), and Sanifrost (-FPS) models, these fountains provide reliable hydration in any climate. Frost proof models prevent freezing in cold weather, while Sanifrost models prevent stored water from re-entering the bubbler, improving hygiene.
A dual check valve backflow prevention system is recommended for all FP models to maintain safe and clean water flow.
Features
✔ ADA compliant – Designed for accessibility.
✔ Heavy-duty construction – One-piece steel pipe with welded steel plates for durability.
✔ Vandal-resistant access panels – Secure design prevents tampering while allowing easy maintenance.
✔ Push button water control – Chrome-plated brass valve recessed in a 3/8” thick steel plate.
✔ Adjustable flow regulation – Maintains steady water pressure.
✔ Steel bubbler guard – Protects against damage and vandalism.
✔ Weather-resistant finish – Standard woodland green powder coat, with optional stainless steel (-SS) and other colors available.
✔ Frost proof option (-FP) – Prevents freezing in cold climates.
✔ Sanifrost option (-FPS) – Prevents stored water from re-entering the bubbler for better hygiene.
✔ Secure water supply control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient drainage system – 1-1/4” IPS waste pipes included for proper water disposal.
✔ Wall-mounted option (MWL models) – Provides flexibility for installation.
Available Models
5400 – Standard pedestal drinking fountain
5400-FP – Frost proof pedestal drinking fountain
5400-FPS – Sanifrost pedestal drinking fountain
5400-MWL – Surface and wall-mounted model
5400-MWL-FP – Frost proof surface and wall-mounted model
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Surface-mounted plate welded to pedestal (MWL models include wall-mounting options) |
| Surface Requirements | Must be installed on a dry, level surface |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Length | Mounting Type |
|---|---|---|---|---|---|
| 5400 | Single with Surface Mount | 38.25 inches (97 cm) | 10.75 inches (27 cm) | 30.75 inches (78 cm) | Surface-mounted plate |
| 5400-MWL | Surface & Wall-Mounted Model | 38.25 inches (97 cm) | 10.75 inches (27 cm) | 25.38 inches (64 cm) | Surface and wall-mounted |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
Optional Features
-31 | Chrome plated self-closing jug filler
-32 | RCP hose bibb with VB
-32-LK | RCP hose bibb with VB and loose key
-32-SC | Self-closing hose bibb with VB
-34 | Frost proof jug filler
-34-FPS | Sanifrost jug filler (-FPS units only)
-35-VP | Recessed hose bibb with locking cover
-36 | Push button jug filler
-37 | Foot spray
-38 | Shutdown/drain valve
-40 | Commemorative plaque
-84 | Water filter
-85 | Valve box (recommended for FP units)
-87 | Metal valve box
-90 | Pet fountain attached
-90-FP | Frost proof pet fountain
-90-FPS | Sanifrost (-FPS units only)
-90-SS | Stainless steel pet fountain
-90-SS-FP | Stainless steel frost proof pet fountain
-95 | Sand trap
-96 | Sand strainer plate
SMP-10 | Surface mounting plate
-SS | Stainless steel finish
