Product Information

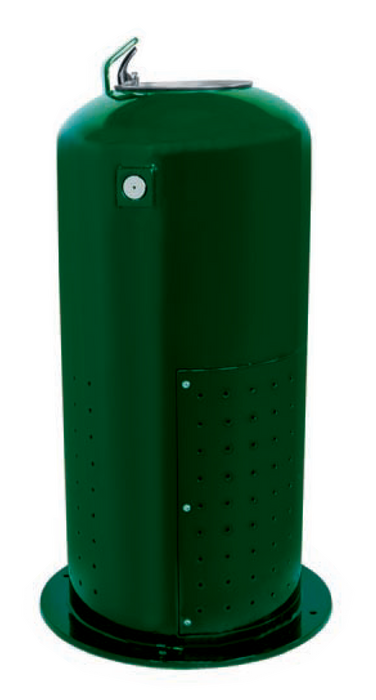

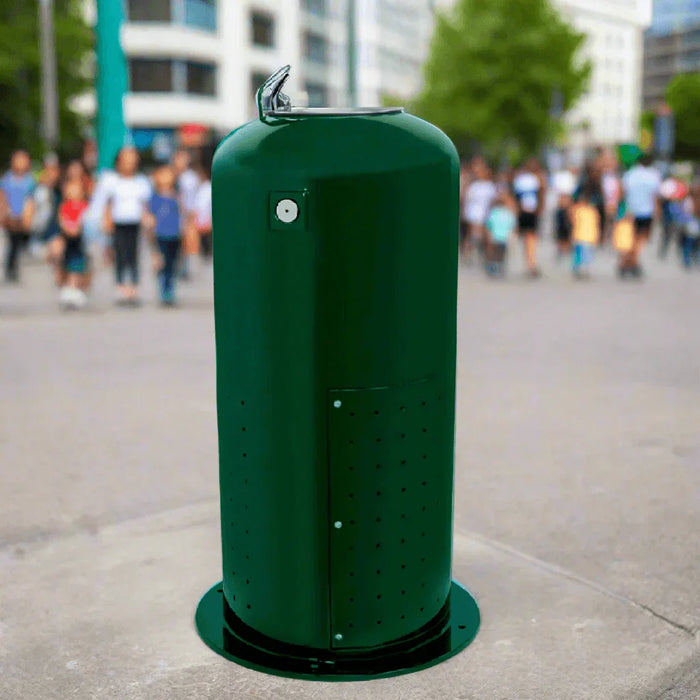

Chilled water. Heavy-duty build. Ready for nonstop public use. The 5380 Series delivers 8.0 GPH of refrigerated water, making it the go-to fountain for parks, schools, sports facilities, and other high-traffic environments. With single, dual, and triple configurations plus ADA-compliant and child-accessible options — it adapts to every setting without sacrificing durability.
Constructed from welded, heavy-gauge steel and designed to resist vandalism, this unit brings long-term performance and refreshing hydration all year long.
Key Benefits
✓ 8.0 GPH chilled water – Refrigerated water supply for year-round refreshment
✓ Heavy-duty construction – One-piece welded steel pipe built for constant public use
✓ Tamper-resistant access panels – Protect internal components while remaining easy to service
✓ Durable push-button controls – Chrome-plated brass valve recessed in thick steel
✓ Consistent water flow – Adjustable regulation maintains steady pressure
✓ Steel bubbler guard – Shields against vandalism and wear
✓ Weather-resistant finish – Standard woodland green powder coat, with stainless and custom color options
✓ Flexible configurations – Available in single, dual, and triple fountain designs
✓ Locked water supply – 1/2” IPS lock shield stop prevents unauthorized shutoff
✓ Built-in drainage – Includes 1-1/4” IPS waste pipes for clean water disposal
✓ ADA and child-accessible models – Ensures hydration access for all users
Specifications
| Feature |
Details |
| Material |
Heavy-duty steel pipe with welded steel plates |
| Finish Options |
Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type |
Surface-mounted plate included (SMP-18) |
| Surface Requirements |
Must be installed on a dry, level surface |
| Cooling Capacity |
8.0 GPH (Gallons Per Hour) chilled water output |
| Drainage |
1.25-inch (32 mm) IPS waste pipes included |
| Water Supply |
0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model |
Type |
Diameter |
Base Diameter |
Mounting Type |
| 5380 |
Standard, Single Bubbler |
18 inches (46 cm) |
22.5 inches (57 cm) |
Surface-mounted plate |
| 5480 |
Handicap Accessible, Single Bubbler |
18 inches (46 cm) |
22.5 inches (57 cm) |
Surface-mounted plate |
| 5780 |
Handicap Accessible, Dual Bubbler |
18 inches (46 cm) |
22.5 inches (57 cm) |
Surface-mounted plate |
| 5980 |
Handicap and Child Accessible, Triple Bubbler |
18 inches (46 cm) |
22.5 inches (57 cm) |
Surface-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
Must-Read
Lead Time: Made to Order — Ships in 4-6 weeks
This item is built just for you. Each piece is made to order, ensuring exceptional craftsmanship and attention to detail. A short wait for a product designed to last decades is a worthwhile investment.
Need it sooner? Check out our fast shipping options: Quick Ship Fountain Program
