Product Information

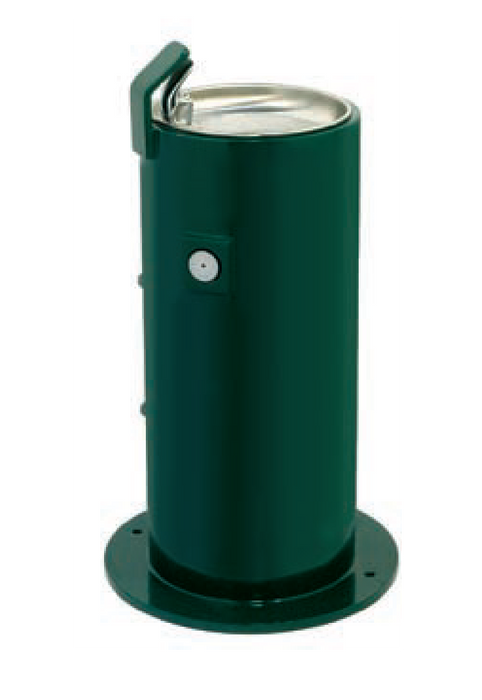

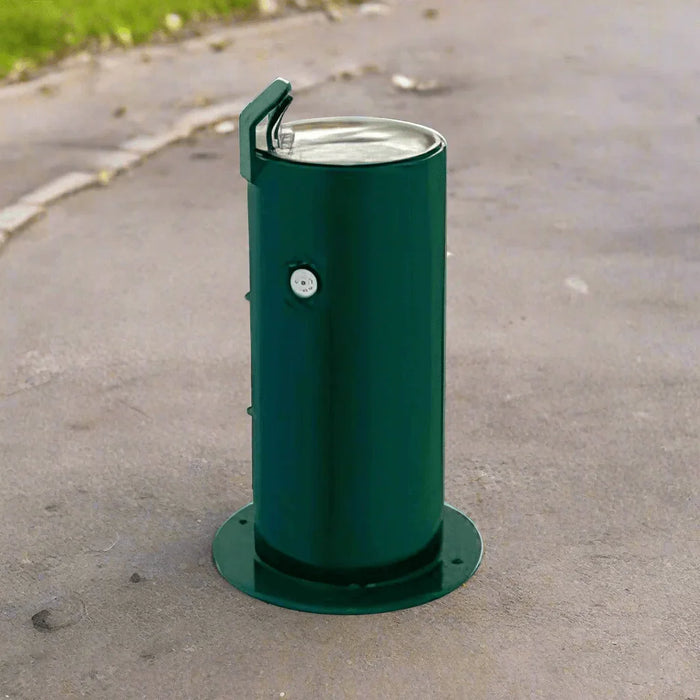

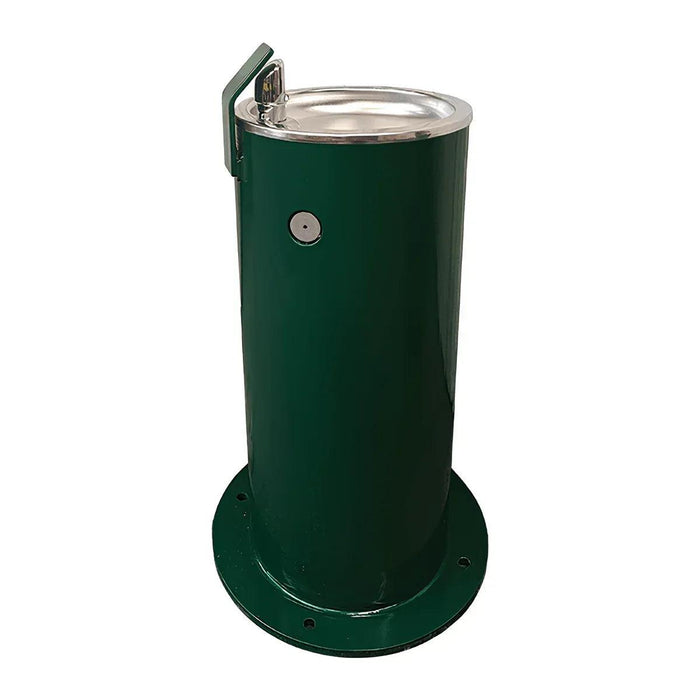

Finally, a drinking fountain built just for kids without cutting corners on durability. The 5335 Series delivers safe, easy hydration at child-friendly height, making it perfect for daycare centers, preschools, and schools. It’s built like the full-sized models, with the same heavy-duty construction and vandal-resistant design, just scaled to suit younger users.
Available in standard, frost-proof, and custom-height options, it’s a flexible, all-season solution for facilities that prioritize both safety and accessibility.
Key Benefits
✓ Child-height design – Sized for younger users in schools and childcare settings
✓ Built to last – One-piece welded steel pipe ensures long-term durability
✓ Tamper-resistant access – Recessed panels and push-button valve protect internal components
✓ Durable water control – Chrome-plated brass valve recessed into thick steel for vandal resistance
✓ Bubbler protection – Steel guard shields the outlet from damage
✓ Consistent water flow – Adjustable regulator keeps pressure stable
✓ Easy servicing – Welded bottom plate with special drain tool for quick maintenance
✓ Weather-resistant finish – Woodland green powder coat standard, with stainless and other color options
✓ Frost-proof (-FP) option – Prevents freezing in colder climates
✓ Locked supply control – 1/2” IPS lock shield stop prevents tampering
✓ Integrated drainage system – 1-1/4” IPS waste pipes included
✓ TX compliance available – Custom models meet specific height standards for age-based installations
Specifications
| Feature |
Details |
| Material |
Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options |
Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type |
Surface-mounted plate welded to pedestal |
| Surface Requirements |
Must be installed on a dry, level surface |
| Drainage |
1.25-inch (32 mm) IPS waste pipes included |
| Water Supply |
0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model |
Type |
Height |
Width |
Length |
Base Diameter |
Mounting Type |
| 5335 |
Standard Surface Mount |
24 inches (61 cm) |
10.75 inches (27 cm) |
N/A |
14.5 inches (37 cm) |
Surface-mounted plate |
| 5410 |
Standard Surface Mount |
32.25 inches (82 cm) |
10.75 inches (27 cm) |
30.75 inches (78 cm) |
N/A |
Surface-mounted plate |
| 5410-TX4 |
Surface Mount (Texas age group 4-11) |
34.25 inches (87 cm) |
10.75 inches (27 cm) |
30.75 inches (78 cm) |
N/A |
Surface-mounted plate |
| 5410-TX11 |
Surface Mount (Texas age group 11-15) |
36.25 inches (92 cm) |
10.75 inches (27 cm) |
30.75 inches (78 cm) |
N/A |
Surface-mounted plate |
| 5710 |
Standard Surface Mount |
35 inches (89 cm) |
10.75 inches (27 cm) |
30.75 inches (78 cm) |
N/A |
Surface-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
Optional Features
-31 | Chrome plated self-closing jug filler
-32 | RCP hose bibb with VB
-32-LK | RCP hose bibb with VB and loose key
-32-SC | Self-closing hose bibb with VB
-34 | Frost proof jug filler
-35-VP | Recessed hose bibb with locking cover
-36 | Push button jug filler
-37 | Foot spray
-38 | Shutdown/drain valve
-40 | Commemorative plaque
-84 | Water filter
-87 | Metal valve box
-90 | Pet fountain attached
-90-SS | Stainless steel pet fountain
-95 | Sand trap
-96 | Sand strainer plate
SMP-10 | Surface mounting plate
-SS | Stainless steel finish
Must-Read
Lead Time: Made to Order — Ships in 4-6 weeks
This item is built just for you. Each piece is made to order, ensuring exceptional craftsmanship and attention to detail. A short wait for a product designed to last decades is a worthwhile investment.
