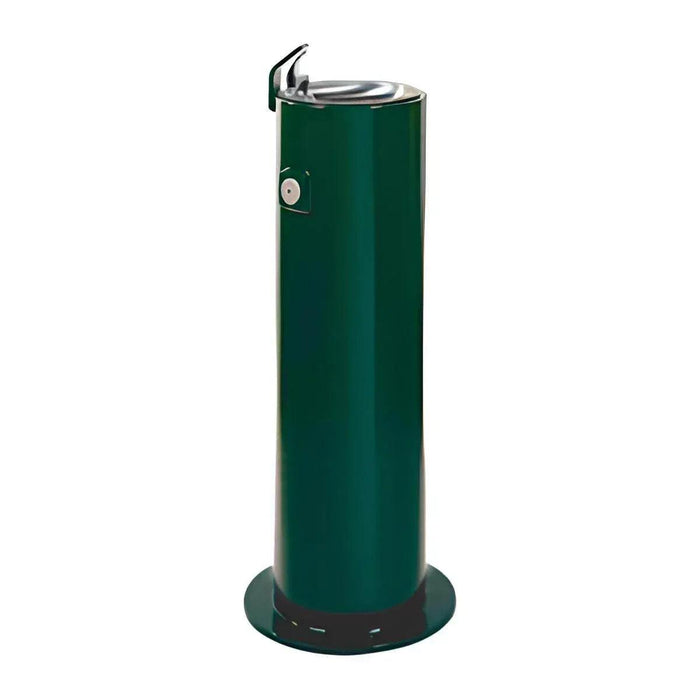

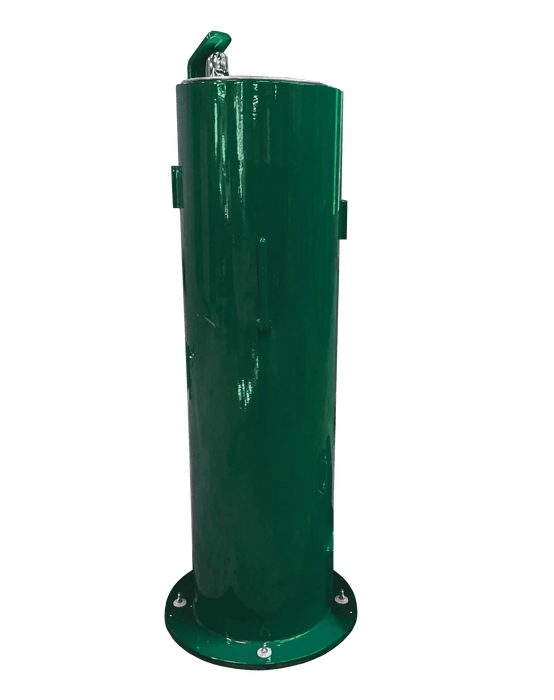

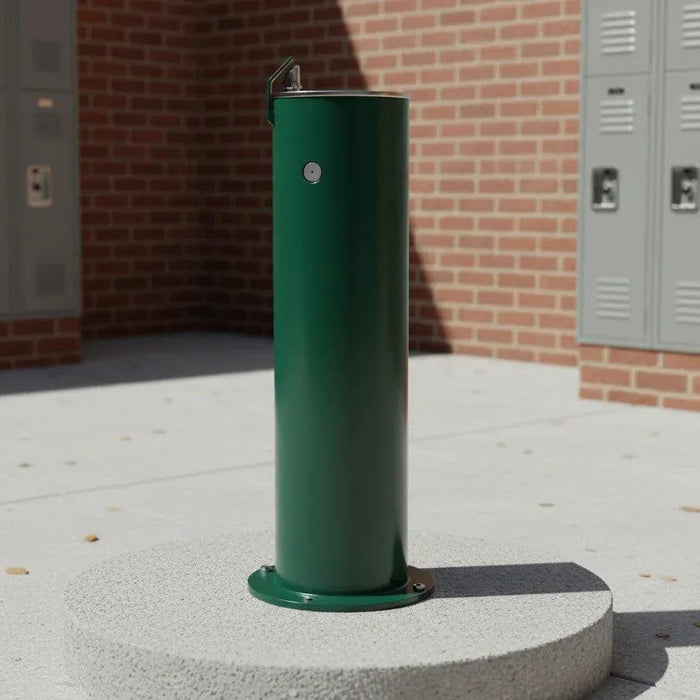

5325 Series Pedestal Drinking Fountains
The 5325 Series features a sleek cylindrical design, built to withstand harsh outdoor conditions, resist vandalism, and endure heavy use. This model is ideal for parks, schools, recreational areas, and public spaces where durability and reliability are essential.
Constructed from one-piece heavy-duty steel pipe, these fountains are available in standard, frost proof (-FP), and Sanifrost (-FPS) models. Frost proof models prevent freezing in cold weather, while Sanifrost models ensure stored water does not re-enter the bubbler, improving hygiene.
A dual check valve backflow prevention system is recommended for all FP models to maintain safe and clean water flow.
Features
✔ Modern cylindrical design – Striking look with clean, sleek lines.
✔ Heavy-duty construction – Built from one-piece steel pipe with welded steel plates.
✔ Vandal-resistant access panels – Secured panels prevent tampering while allowing easy maintenance.
✔ Push button water control – Chrome-plated brass valve recessed in a durable 3/8” thick steel plate.
✔ Adjustable flow regulation – Maintains steady water pressure.
✔ Steel bubbler guard – Protects against damage and vandalism.
✔ Weather-resistant finish – Standard woodland green powder coat, with optional stainless steel (-SS) and other color finishes available.
✔ Frost proof option (-FP) – Protects against freezing in cold climates.
✔ Sanifrost option (-FPS) – Prevents stored water from re-entering the bubbler for better hygiene.
✔ Secure water supply control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient drainage system – 1-1/4” IPS waste pipes included for proper water disposal.
Available Models
5325 – Standard pedestal drinking fountain
5325-FP – Frost proof pedestal drinking fountain
5325-FPS – Sanifrost pedestal drinking fountain
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Surface-mounted plate welded to pedestal |
| Surface Requirements | Must be installed on a dry, level surface |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Base Diameter | Mounting Type |
|---|---|---|---|---|---|
| 5325 | Surface Mount Fountain | 36 inches (91 cm) | 10.75 inches (27 cm) | 14.5 inches (37 cm) | Surface-mounted plate |
| 5325-FP | Surface Mount w/ Freeze Proof Valve | 36 inches (91 cm) | 10.75 inches (27 cm) | 14.5 inches (37 cm) | Surface-mounted plate |
| 5325-FPS | Surface Mount w/ Sanifrost | 36 inches (91 cm) | 10.75 inches (27 cm) | 14.5 inches (37 cm) | Surface-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
Downloads
General IOM for Outdoor Water Products-A
