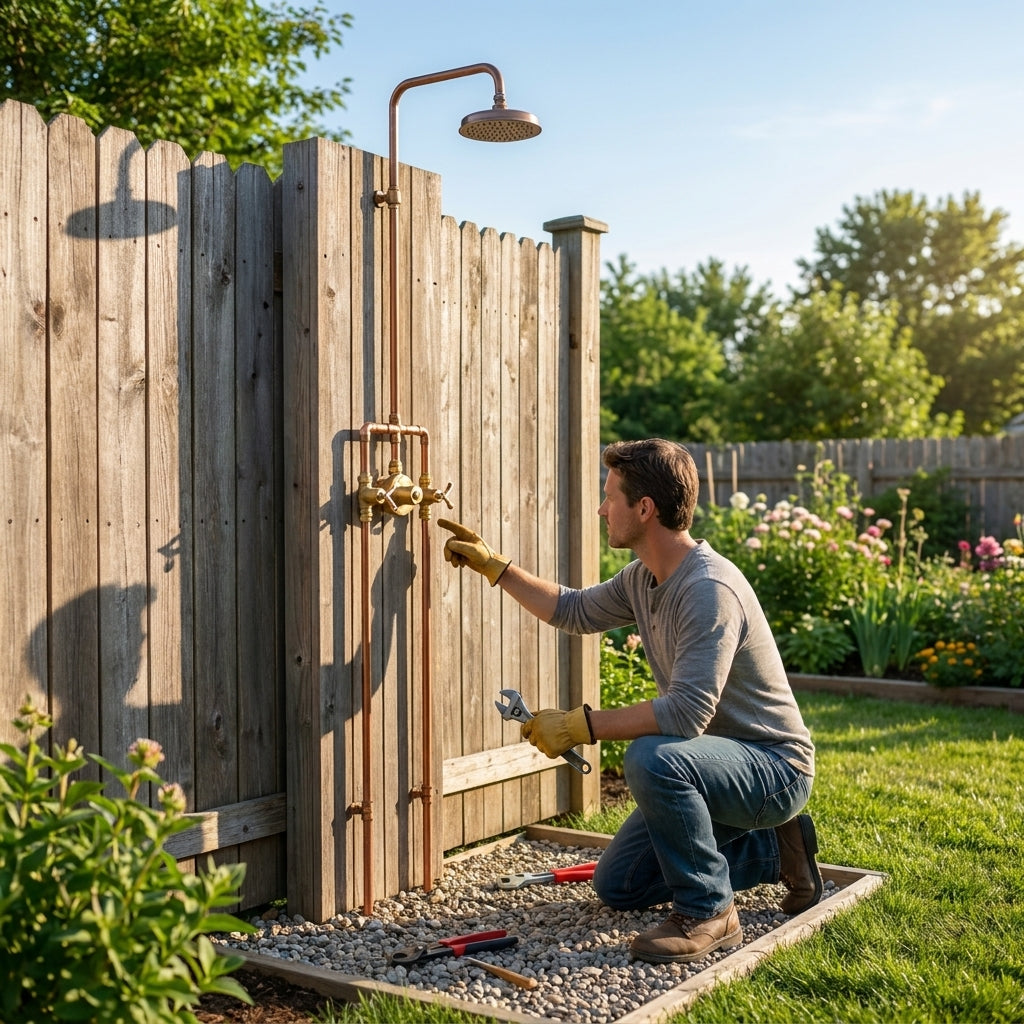

How to Plumb an Outdoor Shower with a Mixing Valve (2026)
Step-by-step guide to plumbing an outdoor shower with a mixing valve in 2026: supply lines, ASSE valve codes, temperature limits, and common leak fixes.
Plumbing an outdoor shower with a mixing valve means running hot and cold supply lines to a single valve body that blends them before the water reaches the shower head, so bathers never get scalded or shocked by cold well water on a pool deck or beach access point.
This guide covers the full run from supply lines to shower head, using a thermostatic or pressure-balancing mixing valve rated for outdoor exposure.
TL;DR
Plumbing an outdoor shower with a mixing valve requires a code-compliant ASSE 1070 valve (most municipalities require max 110°F output), 1/2-inch or 3/4-inch supply lines pitched for drainage, and a freeze-resistant shutoff if the shower stays installed through winter. The Alpha Outdoor 316L hot and cold mixer shower set is a Buy for anyone plumbing a new pool or beach shower in 2026 because it ships with the valve pre-mounted, cutting install time roughly in half. Skip any valve without a temperature-limit stop if kids or the public will use the shower.
Why this matters
An outdoor shower without a mixing valve is either scalding-hot from a black supply line baking in the sun or freezing-cold straight off a well line — neither is usable for more than a few seconds. A mixing valve solves that by blending hot and cold at a fixed or adjustable set point before the water reaches the shower arm.
Code matters here too. Most states require ASSE 1016 or ASSE 1070 rated valves on any shower accessible to the public, capping output at 110°F to prevent scald injuries. Skipping this step on a commercial or HOA installation is the fastest way to fail inspection. For reference material on the shower body itself, see installing a marine-grade stainless shower outdoors before you start cutting pipe.
What you'll need
- Thermostatic or pressure-balancing mixing valve, ASSE 1016 or 1070 rated
- 1/2-inch or 3/4-inch PEX, copper, or CPVC supply line (check local code — some municipalities ban PEX outdoors above grade)
- Shutoff valves for hot and cold lines (ball valves, not gate valves)
- Teflon tape and pipe dope
- Backflow preventer if tying into a potable municipal line
- Concrete anchor bolts or a mounting post if the shower is freestanding
- A shower unit with a mixer already integrated, such as the hot and cold mixer shower set, or a separate valve body plus shower head/arm
- Pipe wrench, tubing cutter, and a torch if soldering copper
- 2-4 hours for a single-shower install with existing supply stubbed nearby
The steps
1. Confirm your water source and pressure
Check static pressure at the nearest hose bib or spigot before you buy anything — most mixing valves need 20-80 PSI to function correctly. Low pressure below 20 PSI causes thermostatic valves to hunt and fail to hold temperature. Expected outcome: a pressure gauge reading that tells you whether you need a booster pump before proceeding. Common mistake: skipping this step and discovering the valve won't stabilize temperature after the concrete is already poured.
2. Run hot and cold supply lines to the valve location
Trench or sleeve both lines to the mounting point, keeping them separated by at least 6 inches to avoid heat transfer between them. Pitch the lines slightly toward a drain point so they can be blown out before freezing weather. Expected outcome: two stubbed lines, capped, sitting at the exact height the valve manufacturer specifies (usually 36-48 inches for a standing adult shower). Common mistake: running lines too close together, which lets residual heat from the hot line warm the cold line and defeats the mixing valve's calibration.
3. Install shutoff valves before the mixing valve
Mount a ball valve on both the hot and cold lines within reach of the mixing valve, not buried underground. Expected outcome: you can isolate and service the mixer without shutting off water to the whole property. Common mistake: using gate valves, which seize over time outdoors and eventually won't fully close.
4. Mount the mixing valve body
Secure the valve to the wall, post, or shower tower per the manufacturer's bracket spacing, then connect hot to the port marked H and cold to the port marked C — reversing these is the single most common install error. Wrap threads with Teflon tape, hand-tighten, then a quarter turn with a wrench. Expected outcome: a solidly mounted valve with no play when you push on the handle or lever. Common mistake: over-tightening compression fittings, which cracks brass valve bodies, especially in cold weather.
5. Set the temperature limit stop
Most ASSE-rated valves have an adjustable stop that caps maximum output temperature. Run water, check output with a thermometer at the shower head, and adjust the stop until it caps at 100-104°F for general use or lower for a splash pad or dog wash. Expected outcome: water that never exceeds your set point even if someone cranks the handle fully hot. Common mistake: skipping this step entirely and relying on the factory default, which may be set for residential indoor use, not public outdoor exposure.
6. Connect the shower arm and head
Attach the riser pipe, shower arm, and head above the valve, using the same thread-seal method as the supply lines. A unit like the Bondi Silver rinse-off shower comes with the arm pre-sized for standard valve spacing, which saves a trip to the hardware store for adapters. Expected outcome: water flows cleanly from the head with no drips at any joint. Common mistake: forcing a mismatched thread pitch between the valve outlet and the shower arm, which strips the fitting.
7. Pressure test and check for leaks
Turn both shutoffs on slowly and run the shower for 5 full minutes, checking every joint for weeping or drips. Cycle the valve from cold to hot and back to confirm it stabilizes within 10-15 seconds. Expected outcome: dry joints and a steady, held temperature across the full range. Common mistake: testing for 30 seconds and calling it done — slow leaks at threaded joints often take a few minutes of sustained pressure to show up.
8. Insulate or plan for winterization
If the shower stays outdoors through a freeze cycle, install a frost-proof shutoff or plan to drain the lines each fall. Expected outcome: no cracked valve body come spring. Common mistake: leaving standing water in exposed copper lines through a hard freeze — it splits pipe every time.
Troubleshooting
- Water temperature swings hot-to-cold — the pressure-balancing cartridge may be worn or the hot/cold lines are crossed at the valve inlet; check port labeling first.
- Low flow at the shower head — a clogged aerator or undersized supply line (under 1/2 inch) is the usual cause; check flow at the valve outlet before replacing anything downstream.
- Valve won't hold set temperature — pressure below 20 PSI on either line prevents the thermostatic element from balancing; retest static pressure.
- Leak at the valve body threads — usually over-tightened or under-taped threads; back off, re-tape with 3-4 wraps of Teflon, and reseat.
- Handle feels loose or spins freely — the set screw on the handle stem has backed out; a 2mm hex key retightens it in under a minute.
- Rust streaks near the valve within months — indicates a non-marine-grade fitting was used near a coastal or pool-chlorine environment; see keeping stainless steel rust-free for the maintenance schedule that prevents this in 2026 and beyond.
Tools and resources
- Pipe wrench, tubing cutter, torch (for copper), Teflon tape, pipe dope
- Pressure gauge and an outdoor-rated thermometer
- A complete outdoor shower unit such as the Wesley freestanding outdoor shower if you're starting from bare ground rather than an existing wall stub
- Local plumbing code reference for ASSE valve requirements in your jurisdiction
- A helper for the pressure-test step — one person watching joints while the other cycles the valve catches leaks faster
What to do next
Once the shower is plumbed and holding temperature, the next failure point is corrosion, not plumbing. Read how to choose an outdoor shower tower for a pool so the unit you just installed matches the site conditions it has to survive.
FAQ
What's the best mixing valve for an outdoor shower? An ASSE 1070-rated thermostatic valve is the best choice for public or shared outdoor showers because it locks maximum output at 110°F regardless of upstream pressure changes. Residential-only showers can use a simpler ASSE 1016 pressure-balancing valve.
Is a thermostatic valve better than a pressure-balancing valve? Thermostatic valves hold an exact temperature more precisely, which matters for public-facing installs; pressure-balancing valves are simpler and cheaper but only balance ratio, not exact degrees. For a home beach shower, pressure-balancing is usually enough.
How much does it cost to plumb an outdoor shower with a mixing valve? Material costs run from roughly $150 for a basic valve and fittings to $500+ for a full pre-assembled shower set with an integrated mixer; labor varies by whether supply lines already exist nearby.
Do I need a permit to install an outdoor shower with hot and cold water? Most municipalities require a permit for any new hot water line tie-in, especially on commercial or HOA property; check with your local building department before trenching.
Can I use PEX for outdoor shower supply lines? PEX works in many jurisdictions but some codes require UV-rated PEX or ban it entirely above grade outdoors; copper or CPVC is the safer default where code is unclear.
How do I winterize a mixing valve on an outdoor shower? Drain both supply lines fully, open the valve to release trapped water, and install a frost-proof shutoff if the shower stays mounted through freezing months; standing water in the valve body cracks it in a hard freeze.
What size pipe do I need for an outdoor shower? 1/2-inch supply is adequate for a single shower head; 3/4-inch is worth the extra cost if you're feeding a shower and a foot wash from the same line to avoid pressure drop.
Why does my mixing valve temperature keep drifting? Drift almost always traces back to pressure imbalance between hot and cold lines or a worn cartridge inside the valve; check static pressure on both lines before replacing the cartridge.
One last thing
The temperature-limit stop is the step installers skip most often in 2026, and it's the one code inspectors check first — set it before you ever hand the shower over for use, not after the first complaint about scalding water.
