How to Install a Marine Grade Stainless Outdoor Shower (2026)

Step-by-step guide to installing a 316L marine grade stainless outdoor shower in 2026. Covers supply rough-in, mounting, pressure testing, and winterizing.

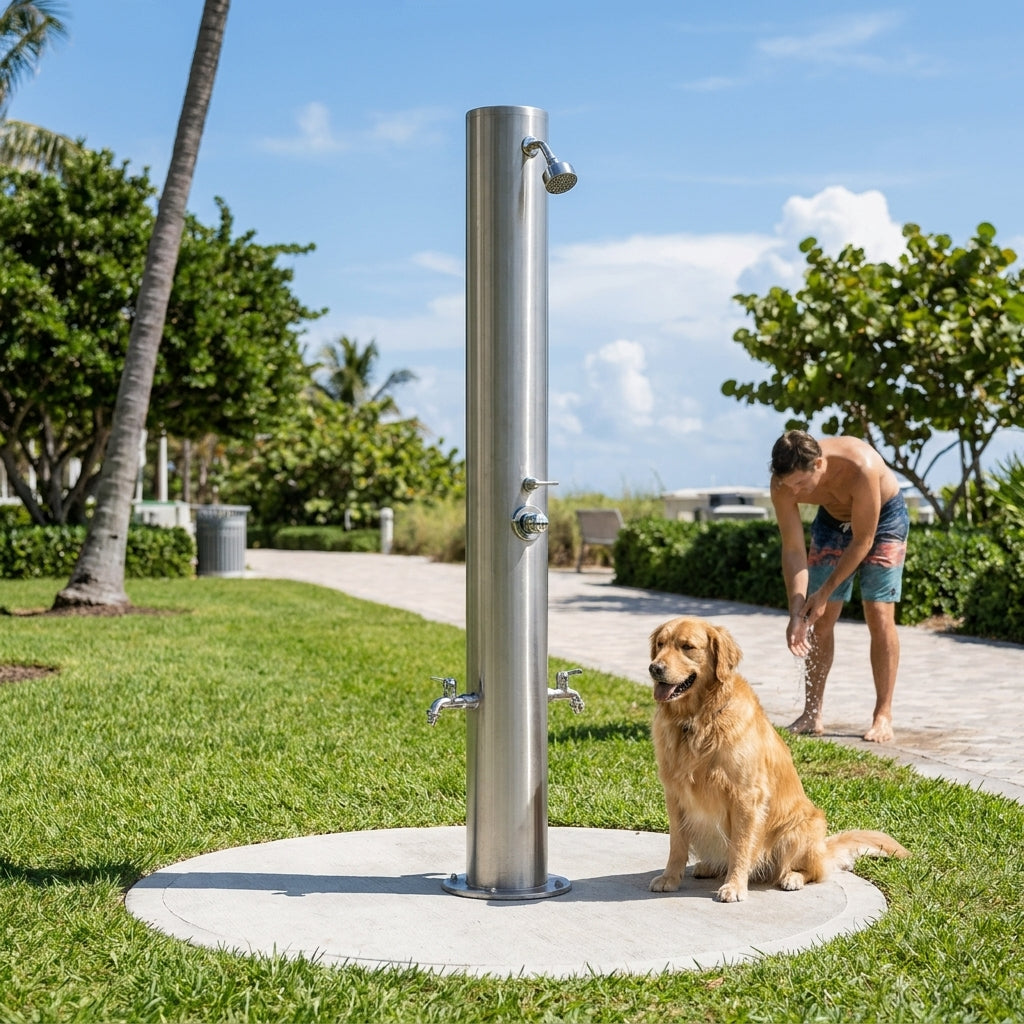

How to install a marine grade stainless shower outdoors

Marine grade stainless outdoor showers are built to handle saltwater, pool chemicals, and UV exposure that destroy chrome and powder-coated fixtures within a season. This guide walks you through every step of how to install a marine grade stainless outdoor shower — from picking the right location to testing the final connection.

TL;DR: Installing a marine grade stainless outdoor shower in 2026 takes 3–6 hours for a wall-mount and a full day for a freestanding pedestal install. You need a dedicated cold supply line (and a hot line if you want mixed water), a solid backing surface rated for outdoor use, and 316L stainless fixtures to resist chlorine and salt. The Bondi Silver 316L and the Alpha 316L wall-mount set are the two units sold at The Fountain Direct suited for pools, beaches, and park perimeters.

Why this matters

Standard shower hardware corrodes fast in outdoor environments. A 304-grade fixture at a pool deck can show rust streaks within 12 months. Marine grade 316L stainless contains molybdenum, which blocks chloride pitting — the specific corrosion mechanism activated by pool water and ocean air. Installing the right unit the right way in 2026 means a fixture that lasts 15–25 years with minimal maintenance.

What you'll need

Tools:

  • Pipe wrench and adjustable crescent wrench
  • Drill with masonry or wood bits (matched to your wall material)
  • Level (24-inch minimum)
  • Teflon tape (PTFE)
  • Thread sealant rated for potable water
  • Copper or stainless supply tubing (1/2-inch IPS standard)
  • Shutoff valve (ball-type, stainless or brass)
  • Pressure gauge (optional but recommended — target 40–80 PSI)
  • Concrete anchors or stainless lag screws
  • Silicone sealant (exterior grade, clear)

Materials and product:

Time: 3–6 hours for a wall-mount; 6–10 hours for a pedestal or in-ground post install.

Skill level: Intermediate DIY. You need basic plumbing knowledge — soldering optional if using compression or push-fit fittings.

The steps

Step 1: Choose and prepare the location

Pick a spot within 10 feet of an existing supply line to minimize pipe run length and pressure drop. The surface behind a wall-mount must be structural — concrete block, CMU, or pressure-treated framing with plywood backing rated for exterior use. A hollow vinyl fence post will not hold a shower arm under use torque.

Clear a 4-foot diameter working area. Mark the centerline of your supply stub-out at 48 inches above finished grade for a standard adult rinse shower, or 36 inches for a foot-rinse-only unit. Local ADA requirements for accessible outdoor showers specify a 60-inch minimum clear floor space and controls reachable from 15–48 inches above grade — confirm your design if the installation is in a public or commercial space.

Common mistake: Installing on a surface that looks solid but has a hollow air gap behind it. Tap the wall. Solid thud = good. Hollow knock = find the stud or add blocking before mounting.

Step 2: Run and rough-in the supply line

Shut off the water at the nearest isolation valve. Verify it's off with a downstream faucet before cutting any pipe.

Run your supply line from the nearest cold-water source (and hot, if applicable) to the rough-in location. For underground runs, use Type L copper or Schedule 40 PVC rated for outdoor burial at the depth required by your local frost line — in most of the continental US, that means 12–18 inches minimum in 2026. Bury at least 6 inches deeper than your local frost depth if the line will remain active year-round.

Install a dedicated shutoff valve within 12 inches of the point where the pipe enters the wall or emerges from grade. This lets you isolate the shower for winter without shutting down the entire system.

Install a backflow preventer at the supply connection. Most US jurisdictions require one for any outdoor water outlet connected to the potable supply.

Expected outcome: A capped, pressure-tested stub-out at the correct height and location, holding 80 PSI for 15 minutes with zero drop.

Step 3: Mount the backing plate or wall bracket

Hold the shower's mounting plate or bracket against the wall at the marked centerline. Use your level to confirm plumb on both axes. Mark all anchor hole locations with a pencil.

Drill pilot holes matched to your anchor type:

  • Concrete or CMU: 3/8-inch masonry bit, sleeve anchors minimum 2.5 inches embedment
  • Wood framing: 5/16-inch pilot bit, 3-inch stainless lag screws into studs

Apply a bead of exterior silicone sealant around each hole before inserting the anchor. This blocks water intrusion behind the plate — the single most common cause of corrosion in "stainless" outdoor fixtures that fail prematurely.

Set the plate, torque fasteners to snug-plus-quarter-turn (do not over-torque stainless — it galls). Recheck level.

Common mistake: Skipping the silicone bead. Water wicks into the anchor hole, sits behind the mounting plate, and rusts the fasteners or degrades the wall substrate. Takes 2 minutes to do correctly.

Step 4: Connect the supply fitting

Wrap the male threads of the shower's supply inlet with 3 wraps of Teflon tape, then apply a thin layer of thread sealant over the tape. Hand-thread the connection first to confirm clean engagement, then tighten 1.5–2 full turns past hand-tight with a wrench. Do not exceed 2 turns past hand-tight on 316L stainless fittings — the alloy is softer than brass and cross-threading causes galling that locks the joint permanently.

For units with a hot/cold mixer valve (like the Alpha 316L set), connect hot to the left port and cold to the right — standard US plumbing convention. Confirm the mixer's max inlet pressure rating before opening the supply. Most outdoor shower mixers are rated to 87 PSI; if your supply pressure runs higher, install a pressure reducing valve upstream.

Expected outcome: Wrench-tight connection with no cross-threading, tape visible but not hanging loose at the joint.

Step 5: Mount the shower arm, head, and any accessories

Thread the shower arm into the wall elbow or the unit's integrated body. Most 316L stainless arms use 1/2-inch NPT. Same Teflon-plus-sealant protocol applies.

Attach the showerhead. Hand-tighten plus one full turn — showerheads are designed to be removable for cleaning, so don't reef on them.

For units with a handheld wand (like the Delta 316L wall-mounted rail with hand shower), slide the rail bracket onto the mounting plate studs before final tightening. Route the hose behind the arm, not in front — it reduces UV exposure on the hose.

Common mistake: Over-tightening the showerhead against a stainless arm. The joint seizes. If you ever need to remove the head for descaling, you'll round the fitting trying to break it loose. Hand-tight plus one turn is correct.

Step 6: Pressure test and check for leaks

Slowly open the shutoff valve — do not crack it fully open on the first test. Bring pressure up over 15–20 seconds. Visually inspect every joint: supply stub-out, backflow preventer, inlet fitting, arm elbow, showerhead. Run your hand around each joint. Any moisture = retighten or reseat.

Once all joints are dry at partial pressure, open the valve fully. Activate the shower and run for 3 minutes. Check flow rate — a properly sized 1/2-inch supply at 40–60 PSI should deliver 1.5–2.5 GPM at the head for a standard outdoor rinse application.

Expected outcome: No drips at any joint, consistent flow at the head, no pressure drop after 3 minutes running.

Step 7: Finish, seal, and winterize if applicable

Apply a final bead of clear exterior silicone around the perimeter of the mounting plate where it meets the wall. Smooth with a wet finger. This is cosmetic and protective — it stops water from sheeting behind the plate during rain.

If the installation is in a climate with hard freezes, install a drain-down valve or use a self-draining supply line configuration so the pipe can be blown out or drained before first frost. 316L stainless handles freeze-thaw cycling at the fixture body, but water trapped in the supply pipe will crack it regardless of what the fixture is made of.

Label the shutoff valve. If this is a commercial or institutional install, attach a laminated tag noting the 2026 install date and product spec for future maintenance staff.

Troubleshooting

Low flow at the showerhead Most likely: supply line undersized, a partially closed valve upstream, or a clogged aerator screen. Remove the showerhead, run the line briefly into a bucket — if flow is strong there, the head is restricted. Soak in white vinegar for 30 minutes to dissolve mineral deposits.

Drip at the wall fitting after tightening The Teflon tape may have bunched instead of sealing. Drain the line, back out the fitting, remove all old tape, reapply 3 clean wraps in the direction of thread travel (clockwise when facing the male end), and reinstall.

Mixer valve runs hot even on full cold setting The cold supply pressure is significantly higher than the hot. Install a pressure balancing union or a pressure reducing valve on the cold side. Pressure differential above 20 PSI commonly causes this on outdoor mixer valves.

Mounting plate has visible rust streaking within 90 days The fasteners are not 316L stainless. Standard 304 or zinc-plated hardware corrodes aggressively at pool-side. Replace with 316L stainless or A4-grade (marine-rated) fasteners.

Shower arm rotates under use The wall elbow fitting is loose or the backing substrate compressed. Add a backing plate of 1/2-inch marine-grade plywood or UHMW plastic behind the wall surface and remount.

Water pools around the base Outdoor showers require a drain or a gravel pit to handle runoff. A minimum 6-inch gravel bed (3/4-inch clean stone) under a 24x24-inch footprint handles typical residential use. Commercial installs need a dedicated floor drain connected to a gray-water or storm system per local code.

Tools and resources

What to do next

Once the shower is running cleanly, walk through the drain and grading situation. The most common post-install complaint for outdoor showers in 2026 is water ponding within 6 feet of the fixture. Slope the surrounding surface at least 1/4 inch per foot away from the unit, or install a trench drain at the drip line. If you're equipping a larger outdoor amenity area — park, pool complex, sports facility — The Fountain Direct's full outdoor fixture catalog covers pedestal drinking fountains, bottle fillers, and ADA-compliant outdoor fixtures that pair with a rinse shower installation.

FAQ

What is the difference between 304 and 316L stainless steel for an outdoor shower? 316L contains molybdenum, which resists chloride pitting. Pool decks, marinas, and coastal locations expose fixtures to chloride ions daily. 304 will rust in these conditions within 1–3 years. 316L is the correct spec for any outdoor shower near water.

How long does it take to install a marine grade stainless outdoor shower? A wall-mount install takes 3–6 hours for someone with basic plumbing experience. A freestanding pedestal that requires an in-ground supply run takes 6–10 hours. Both estimates assume the supply line rough-in is part of the scope.

Do I need a permit to install an outdoor shower? In most US jurisdictions in 2026, yes — any new plumbing connection to the potable water supply requires a permit and inspection. Check with your local building department before starting work. Fines for unpermitted plumbing are typically $200–$1,000 plus mandatory correction.

Can a 316L stainless shower handle freezing temperatures? The fixture body handles freeze-thaw cycling. The supply pipe does not. Drain or blow out the supply line before the first hard freeze each year, or install a frost-proof supply valve rated for your local freeze depth.

What water pressure do I need for an outdoor shower? Most outdoor shower mixer valves are designed for 30–87 PSI. Below 30 PSI, flow is inadequate for a useful rinse. Above 87 PSI, install a pressure reducing valve upstream of the shower. Standard US residential supply runs 40–80 PSI.

How do I clean a 316L stainless outdoor shower? Rinse weekly with fresh water to remove chlorine and salt residue. For mineral deposits, apply white vinegar with a soft cloth — do not use steel wool or abrasive pads, which scratch the passive layer and accelerate corrosion. Annual inspection of all fittings and fasteners is sufficient maintenance in most climates.

Can I use a marine grade stainless shower indoors? Yes. 316L is specified for indoor pool surrounds, locker rooms, and commercial wet areas for the same corrosion reasons. The install method is identical; the drain requirements are typically more formal for indoor use.

What's the best outdoor shower for a public park or school? For high-traffic institutional settings in 2026, specify a vandal-resistant pedestal unit with a foot-actuated or push-button valve to reduce wear. Foot showers at entry points to pool areas see the heaviest use and benefit from simple, buttonless valve designs. The Fountain Direct carries institutional-grade outdoor fixtures built for that load.

One last thing

The single most overlooked detail in marine grade outdoor shower installs is fastener grade. The fixture itself is 316L, the supply fitting is brass or stainless — but installers routinely reach for whatever lag screws are on the shelf. Zinc-plated lags in a pool-side environment show rust at the mounting plate within 60–90 days, which stains the wall and makes a $400 stainless shower look like a $40 failure. Specify A4 (marine-rated) or 316L stainless fasteners every time. They cost $6 more per unit and last 20 years instead of one season.
