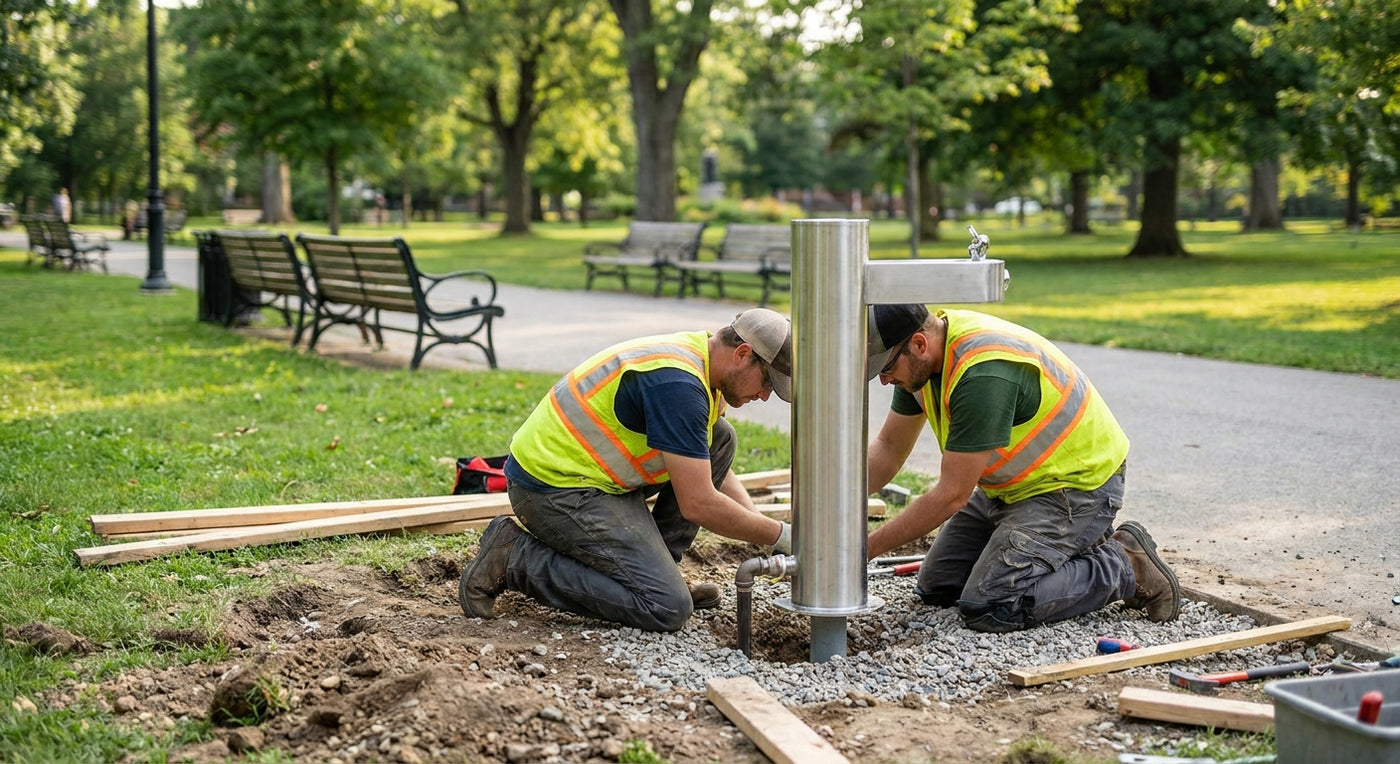

Install Outdoor Drinking Fountain in a Park: 2026 Steps
Installing an outdoor drinking fountain in a public park comes down to three things: a supply line buried below the frost line, an ADA-compliant reach height, and a concrete pad rated to anchor vandal-resistant hardware. Skip any one of those in 2026 and you're back out with a jackhammer before the next budget cycle.
- Install outdoor drinking fountain projects need a trench below the local frost line and a 4-inch concrete pad before the unit ever gets bolted down.
- The Elkay LK4420FRK bi-level pedestal fountain is Buy-rated for freeze-resistant park installs at grade in 2026.
- ADA spout height must sit at 38 inches or lower or the inspection fails on day one.
- Municipal water taps almost always require a backflow preventer; skip it and the permit stalls.
- Budget 2 to 3 days for trenching, pad curing, and final inspection on a standard pedestal fountain.
Why this matters
A park fountain sits outside for 15 to 25 years if it's installed right. Installed wrong, the most common failure in year one is a cracked pedestal from freeze expansion — the supply line never got below frost depth, or the drain wasn't graded to shed water.
Parks departments also get audited on ADA compliance more than any other park amenity category. A fountain mounted 2 inches too high fails inspection and gets ripped out, concrete pad and all. Reading up on how to choose a commercial drinking fountain for parks before you buy avoids a second trip to the supplier.
The fix costs more than the fountain. Get the trench depth, pad spec, and reach height right on the first pour and none of that applies to you.
What you'll need
- A freeze-resistant fountain rated for outdoor, unheated installs — the freeze-resistant pedestal fountain with pet station is built for exactly this
- 1-inch copper or Schedule 40 PVC water supply line
- A backflow preventer or vacuum breaker (required by most municipal water codes)
- Concrete forms, rebar, and ready-mix for a 4-inch minimum pad
- A trencher or trenching shovel — rental for anything over 20 linear feet
- Pea gravel and bedding sand for drainage under the pad
- Anchor bolts sized to the fountain's mounting pattern (usually 3/8-inch or 1/2-inch)
- A torque wrench, pipe wrench, level, and PVC primer/cement or compression fittings
- A signed permit from the local water authority or plumbing inspector
The steps
1. Locate utilities and confirm the site
Call 811 before any digging — it's free and it's the law in every state. Mark water, electric, and irrigation lines with flags, then confirm the fountain's final position clears any ADA path-of-travel requirements (36 inches of clear width minimum). Common mistake: skipping the utility call and hitting an irrigation main on day one, which turns a one-day dig into a three-day repair.
2. Pull the permit and check reach height
Most municipalities require a plumbing permit for any new outdoor water connection, and park fountains almost always fall under ADA Section 602. The accessible spout has to sit at 38 inches or lower above the finished grade, with the pet station or bi-level spout typically set lower again. Get the permit before you pour concrete — inspectors in most jurisdictions won't sign off on a slab poured without one on file.
3. Trench below the frost line
Dig the supply trench 24 to 36 inches deep depending on your region's frost depth — parts of the upper Midwest and Northeast need 42 inches or more. Run 1-inch line from the water main to the fountain location, bed it in 4 inches of sand, and install the backflow preventer at the tap, not at the fountain. Expected outcome: a supply line that won't crack from freeze expansion for the life of the install. Common mistake: burying the line at 18 inches because it's always worked before — one hard winter proves that wrong.
4. Pour the concrete pad
Form a pad at least 4 inches thick and sized 6 inches larger than the fountain's base on every side, with rebar tied at 12-inch intervals for added anchor strength. Slope the pad slightly — a 1/4-inch drop per foot — away from the fountain so standing water doesn't pool at the base. Let it cure a full 7 days before setting anchor bolts under load; walking on it after 48 hours is fine, bolting hardware to it isn't.
5. Set anchor bolts and mount the fountain
Position the mounting template on the cured pad, drill, and set anchor bolts to the fountain manufacturer's bolt pattern — a mismatch here is the most common return reason on pedestal units. The Elkay LK4420FRK bi-level pedestal fountain uses a standard four-bolt pattern that most trenching crews can template in under 30 minutes. Torque bolts to spec, not by feel — overtightening cracks the pedestal casting.
6. Connect the supply line and pressure-test
Run the final connection from the trenched line to the fountain's inlet, install a shutoff valve at the base for future service, and pressure-test the line at 80 PSI for 15 minutes before backfilling. A drop of more than 2 PSI over that window means a leak somewhere in the joint — find it before you cover the trench, not after.
7. Backfill, grade, and inspect
Backfill in 6-inch lifts, compacting each layer, then grade the surrounding surface to shed water away from the pad. Schedule the final plumbing and ADA inspection once water is flowing and the pad has fully cured. Expected outcome: a signed-off, code-compliant install that's ready for public use the same day.
Troubleshooting
Water flow is weak after install. Check the pressure regulator at the main tap first — most municipal supply runs at 50-60 PSI, and anything under 40 PSI at the fountain inlet means a kinked or undersized line, not a bad fixture.
The fountain freezes despite a freeze-resistant rating. The rating covers the fixture body, not the supply line above frost depth. If the trench was dug at 18 inches in a 36-inch frost zone, the line freezes upstream of the fountain every time.
ADA inspection fails on spout height. Re-measure from finished grade, not from the pad's top edge before grading — a 2-inch grading error is the single most common cause of a failed reach-height check.
Standing water pools at the base. The pad wasn't sloped during the pour. Regrading the surrounding soil to a 1/4-inch-per-foot drop away from the pad usually solves it without breaking concrete.
Pressure test shows a slow leak. Check threaded joints before soldered or solvent-welded ones — threaded fittings account for most slow leaks found during the 80 PSI test window.
Vandalism damage to the bowl or spout within the first year. Standard hardware, not vandal-resistant bolts, was used at mounting. Swapping to tamper-resistant fasteners at the next service call is cheaper than replacing the fountain again.
Tools and resources
- Permit checklist from your local water authority and plumbing inspector
- 811 utility locate service (free, required in most states before digging)
- Torque wrench matched to the fountain's bolt spec
- The ADA vandal-resistant fountain and bottle filler bundle if the park spec calls for a combined fountain-and-filler unit rather than two separate fixtures
- A pressure gauge rated to at least 100 PSI for the final line test
What to do next
Once the fountain is running and inspected, the next seasonal task is prepping it for the first freeze. Read how to winterize an outdoor drinking fountain before the first hard frost of the year — most freeze damage claims in 2026 traced back to a skipped fall shutoff, not a bad fixture.
FAQ
How deep does the water line need to be for an outdoor drinking fountain?
The supply line needs to sit below the local frost line, typically 24 to 36 inches in most of the US and up to 42 inches or more in the upper Midwest and Northeast. Check your local frost depth chart before trenching, since this varies by county, not just by state.
What is the ADA-required height for a public drinking fountain?
The accessible spout must sit at 38 inches or lower above finished grade under ADA Section 602. Bi-level and pet-station units typically add a second, lower spout in the 30 to 32 inch range to cover both standards on one fixture.
Do I need a permit to install an outdoor drinking fountain in a park?
Yes, almost every municipality requires a plumbing permit for a new water connection, and most also require an ADA compliance sign-off. Pull the permit before pouring the concrete pad, since inspectors generally won't approve a slab poured without one on file.
How thick should the concrete pad be under a park fountain?
A 4-inch minimum pad with rebar tied at 12-inch intervals is standard for pedestal fountains in 2026. Sizing the pad 6 inches larger than the fountain's base on every side gives the anchor bolts enough surrounding concrete to hold under load.
Is a backflow preventer required for a park drinking fountain?
Yes, nearly every municipal water code requires a backflow preventer or vacuum breaker on any new outdoor fixture. Install it at the water tap, not at the fountain itself, so it protects the entire supply line.
How long does it take to install an outdoor drinking fountain?
A standard pedestal fountain install takes 2 to 3 days once the permit is in hand, split between trenching and pad pour, a curing period, and final connection and inspection. Cold-weather installs can add a day if the ground needs to be thawed before trenching.
Can I install a drinking fountain myself instead of hiring a plumber?
Most municipalities require a licensed plumber to make the final water connection and sign off on the backflow preventer, even if a contractor handles the trenching and concrete work. Check your local code before starting; unpermitted work usually has to be redone.
What causes an outdoor drinking fountain to crack in winter?
Cracking almost always comes from a supply line buried above the frost line, not from the fountain fixture itself. Freeze-resistant units still need a properly buried line and a fall shutoff to survive winter without damage.
One last thing
Most installers over-focus on the fountain and under-focus on the trench, but the trench is what actually determines whether the fixture survives its first winter. A freeze-resistant pedestal fountain buried on an 18-inch line in a 36-inch frost zone will crack just as fast as a non-rated unit — the rating only covers what's above ground.
Check your county's published frost depth chart before you rent the trencher, not after the concrete's already poured.
