Installing a coin-operated timer on an outdoor shower means splicing a metered valve into the water supply line between the shut-off and the shower riser, not swapping the shower head itself. A coin or token release triggers a preset flow window, then the valve closes on its own. The timer mechanism is a separate purchase from a coin-timer or plumbing supplier — outdoor shower brands build the shower body and valve, not the coin box. Plan on a licensed plumber for the supply-line tie-in in 2026, and an electrician if you go with an electronic model that needs low-voltage or 120V power.
- Installing a coin operated timer on an outdoor shower means splicing a metered valve into the supply line, not the shower head.
- A licensed plumber handles the water tie-in; electronic coin timers need an electrician for the low-voltage or 120V run.
- Coin mechanisms are sold separately from the shower body — the shower manufacturer builds the fixture, not the coin box.
- Skipping a backflow preventer is the most common code violation on public coin-op shower installs in 2026.
- Mechanical coin timers hold up better than electronic ones in coastal, salt-air locations.
Why this matters
Coin-operated timers show up almost exclusively on public and semi-public installs — beach access points, campground wash stations, marina shower blocks — where an operator needs to control water use without staffing an attendant. Get the install wrong and you're either flooding the enclosure with a stuck valve or fielding complaints about a shower that shuts off mid-rinse. The plumbing and electrical work is the same whether the fixture is a wall-mounted unit or a freestanding outdoor shower tower, but the mounting surface and access to the supply line change what the install actually looks like on site. The coin-operated outdoor shower buying guide covers which fixture types pair best with a coin mechanism before you get to the plumbing.
How do you install a coin-operated timer on an outdoor shower?
- Check local code first. Most jurisdictions require a backflow preventer on any coin-op or public shower supply line before a timer goes in — confirm this before you buy anything. See backflow preventer requirements for what inspectors typically look for.
- Pick mechanical or electronic. Mechanical (spring-wound) coin timers run on water pressure alone and need no power; electronic timers use a solenoid valve and need 24V low-voltage or 120V wiring run to the enclosure.
- Shut off the water supply at the main or the nearest isolation valve feeding the shower.
- Cut into the supply line at the point where the coin box will sit — usually inside a locked enclosure at knee-to-waist height, ahead of the mixing valve if the shower has hot and cold.
- Install the backflow preventer or check valve on the supply side of the coin mechanism, not after it.

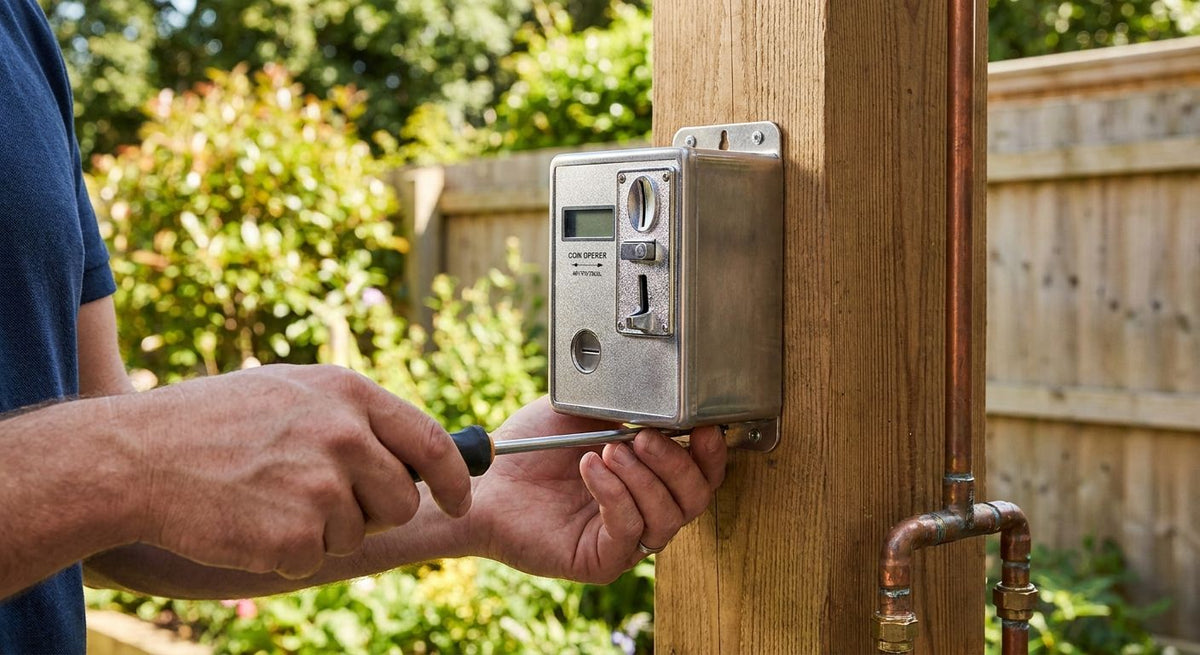

- Mount the coin box in a weatherproof, tamper-resistant enclosure rated for outdoor exposure — this is where 316L stainless or powder-coated housings earn their keep in coastal settings.
- Wire the electronic solenoid (skip this step for mechanical units) and test the circuit before closing the enclosure.
- Restore water pressure and test the coin cycle several times to confirm the shut-off timing is consistent and the valve seats fully closed between cycles.
If the shower is fed by a mixing valve for hot and cold blending, the coin timer install order matters — read plumbing a mixing valve before you cut any pipe, since the timer typically sits downstream of the mixer, not upstream.
Mechanical coin timer install
A mechanical coin timer runs entirely on water pressure — no wiring, no battery, no solenoid to fail. It's the simpler install of the two and the one most beach and campground operators pick for 2026 builds because there's nothing electronic to corrode in salt air. Best for: outdoor, coastal, or unpowered locations. The tradeoff is less flexibility — you can't remotely adjust the flow window without physically resetting the spring mechanism.
Electronic coin timer install
An electronic coin timer uses a solenoid valve triggered by the coin acceptor, which means a low-voltage or 120V run to the enclosure and, in most cases, a licensed electrician on site. Best for: locations with existing power infrastructure and an operator who wants adjustable flow times without opening the housing. The tradeoff is more points of failure outdoors — connectors, seals, and circuit boards all need weatherproofing that mechanical units don't.
Why installation complexity varies
- Existing plumbing type — retrofitting a coin timer onto an existing wall-mounted shower is faster than adding one to a new freestanding pedestal install where the supply line has to be trenched.
- Mechanical vs. electronic mechanism — mechanical skips the wiring step entirely; electronic adds an electrician to the job.
- Local backflow and code requirements — some municipalities require inspection sign-off on any coin-op or public shower line, which adds a step most private installs skip.
- Mounting surface — a concrete slab install lets you run supply lines below grade; a post-mounted freestanding shower usually means surface-run conduit or pipe.
- Coastal or marine exposure — salt air pushes most installers toward 316L stainless enclosures and mechanical mechanisms over electronic ones.
- Expected use volume — a high-traffic public beach shower needs a heavier-duty coin mechanism than a low-traffic HOA pool shower.
A push-button self-closing shower like the Costera Luna already does the same core job as a coin timer — it limits how long water runs per activation — without the coin mechanism, which is worth weighing before you commit to a coin-op retrofit. The Fountain Direct sells the outdoor shower fixtures and wash stations that pair with either approach; the coin mechanism itself comes from a plumbing supply or vending-hardware source.
Do outdoor showers need a backflow preventer for a coin-op install?
Yes — most jurisdictions require a backflow preventer on any coin-operated or public-use shower line in 2026, and it's the single most-cited code gap inspectors flag on these installs. Install it on the supply side of the coin mechanism, never downstream. Full detail on when it's required is covered in backflow preventer requirements.
Can you use a push-button timer instead of a coin mechanism?
Yes — a push-button timer gives the same metered-flow control as a coin box without collecting money, which is the right call for HOA pools, gyms, or facilities that don't need to charge per use. See push-button timer foot shower for how that mechanism differs from a coin timer at install time.
Does a coin timer work with a hot-and-cold mixing valve shower?
Yes, but the coin timer install order matters — the timer typically goes downstream of the mixing valve so it's metering the already-blended water, not raw hot or cold supply. Get the sequence wrong and you'll end up metering only one line.
FAQ
How much water does a coin-operated shower timer release per coin?
That's set by the specific timer mechanism you buy, not the shower fixture, so check the manufacturer's spec sheet for that model rather than assuming a standard duration.
Can I install a coin timer myself?
The plumbing tie-in and backflow preventer install should go to a licensed plumber, and electronic models need an electrician for the wiring — a coin timer touches the water supply and often 120V power, both of which fall under local code.
Is a mechanical or electronic coin timer better for outdoor use?
Mechanical coin timers hold up better outdoors, especially near salt air, because there's no circuit board or solenoid to corrode; electronic timers offer adjustable flow windows but need more weatherproofing.
Where does the coin box mount on an outdoor shower?
The coin box mounts in a weatherproof, tamper-resistant enclosure on the supply line ahead of the shower valve, usually at knee-to-waist height for easy coin access.
Do coin-operated showers need a backflow preventer?
Yes, most jurisdictions require one on any coin-operated or public shower line in 2026, installed on the supply side of the coin mechanism.
Can a coin timer be added to an existing outdoor shower?
Yes, retrofitting a coin timer onto an existing wall-mounted or freestanding shower is possible as long as there's an accessible point on the supply line to cut in the mechanism and enclosure.
What's the difference between a coin timer and a push-button timer?
A coin timer requires payment to release water for a set window, while a push-button timer releases the same metered flow for free — the plumbing install is nearly identical for both.
One last thing
Most operators skip the test-cycle step and regret it: run the coin cycle at least five times after install, not once, because a mechanical timer's spring tension can drift on the first few cycles before it settles into a consistent shut-off window. Test it before the enclosure gets locked and bolted down, not after the first complaint call in 2026.
