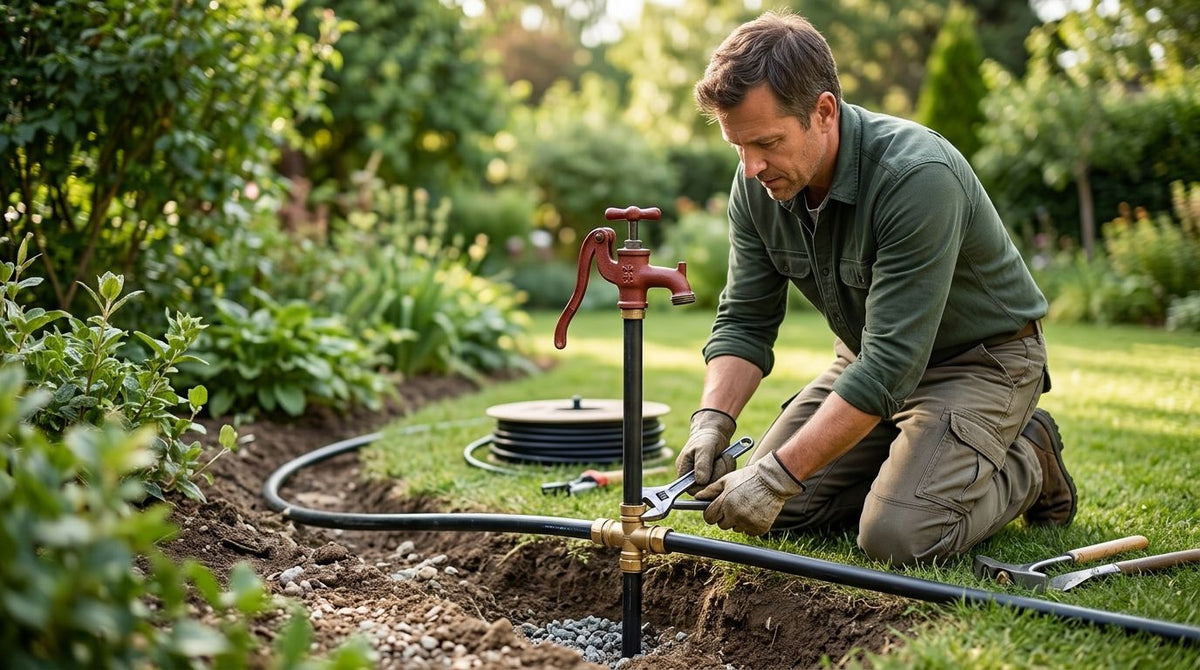

Connect a Yard Hydrant to an Irrigation Line (2026)
Tapping a yard hydrant into an existing irrigation lateral is a half-day job if you size the branch correctly and protect the drain from freezing — get either wrong and you're re-digging within a season. Instead of trenching a brand-new water line for outdoor hose bibs and wash stations, you connect a yard hydrant to irrigation line infrastructure that's already buried and get a full-flow, freeze-resistant water point without touching the rest of the system.
- A 3/4-inch tee off an existing irrigation lateral is enough to feed most yard hydrants without starving zone pressure.
- Self-draining hydrants like the Elkay LK4461YHLHB need a gravel sump under the weep hole, not just a bury depth.
- A backflow preventer or vacuum breaker between the irrigation main and the hydrant is required under most 2026 plumbing codes.
- To connect a yard hydrant to irrigation line correctly, tap the main or an always-on zone — not a timed zone that only pressurizes on a schedule.
- The same branch can feed a pedestal jug filler or wash station with one added tee, no second trench needed.
Why this matters
Parks departments, campgrounds, plumbing contractors and facilities crews add yard hydrants after the irrigation system is already in the ground, not before. Running a fresh supply line from the meter or well pump costs a full day of trenching; tapping an existing lateral is usually a 3-to-5-hour job once the pipe is exposed.
The catch is that irrigation laterals aren't built for year-round, unscheduled draws. They're sized for scheduled zone pressure, sometimes fed through a timer valve, and rarely have a backflow device positioned where a hand-operated hydrant needs one. Get the tap point wrong in 2026 and you'll have a hydrant that only runs during the sprinkler cycle — or worse, one that lets stagnant hose water siphon back into the irrigation main.
Before you start
- Materials: a shut-off valve, fittings matching your existing pipe material (Schedule 40 PVC, polyethylene, or copper), a freeze-resistant yard hydrant rated for your local bury depth, a backflow preventer or vacuum breaker, and 3-4 inches of pea gravel for the drain sump.
- Access: know where your irrigation main enters the yard and which zone valve, if any, sits between that point and your intended tap. If you're supplying a yard hydrant for parks and campgrounds, confirm with the site plan before you dig — utility locates matter as much for irrigation as for gas or electric.
- The gotcha: most irrigation laterals are only pressurized during their programmed watering window. Tap into a scheduled zone line and your new hydrant works fine on Tuesday morning at 6 a.m. and delivers nothing the rest of the week. Tap upstream of the zone valves, off the main or a valve manifold, so the branch stays pressurized around the clock.
Locate and isolate the tap point
- Trace the irrigation line back from your intended hydrant location to the main supply or the manifold where zone valves branch off. Pick a point upstream of any zone valve.
- Shut off water at the main isolation valve, not just the irrigation controller — a controller only stops the electric signal, not the water.
- Expose about 2 feet of pipe at the tap point and let it drain fully before cutting.
Expected result: a dry, accessible section of always-on supply line, free of standing water, ready for the tee.
Install the tee and backflow preventer
- Cut in a 3/4-inch tee matching your pipe material — solvent-weld for PVC, compression or barbed insert fittings for poly.
- Thread a dedicated shut-off valve onto the new branch so you can isolate the hydrant without shutting down the whole irrigation system later.
- Install a backflow preventer or atmospheric vacuum breaker downstream of that valve, oriented per the device's flow arrow. This step is non-negotiable in most jurisdictions as of 2026 — a hydrant with a hose attached is a cross-connection risk the moment the hose end sits in a bucket or puddle.
Expected result: a shut-off-capable, backflow-protected branch line, independent of the irrigation zone schedule.
Set the yard hydrant and build the drain sump
- Dig the hydrant hole to your area's frost line depth or deeper — this is what makes a yard hydrant freeze-resistant instead of a glorified hose bib.
- At the base, dig roughly one cubic foot of extra depth and fill it with 3-4 inches of pea gravel. This sump is where the self-drain feature actually empties the standpipe when you shut the handle off; skip it and the water has nowhere to go.
- Connect the hydrant's inlet riser to the branch line, apply thread sealant or tape at every joint, and set the unit plumb.
- Backfill, leaving the hydrant head 6-8 inches above grade so a mower or hose reel doesn't catch the handle.
Expected result: the hydrant stands plumb, the handle operates without binding, and the standpipe drains completely within a couple of minutes of shutoff — no standing water pooling at the base.
The Elkay LK4461YHLHB is built for exactly this setup — a locking hose bib body over a self-draining standpipe, meant to sit on an always-on branch rather than a scheduled zone.
Feeding a jug filler off the same branch
Once the branch line, backflow preventer and shut-off are in place, you don't need a second trench to add a jug filler or wash station in the same area — add a second tee downstream of the backflow device and run a shorter riser to the second fixture.
- Locate the second fixture within reach of the same branch, ideally under 15 feet to avoid a pressure drop at both outlets.
- Tee off after the backflow preventer, never before it — every fixture on the branch needs to sit downstream of that protection.
- Set the second fixture's own shut-off valve so either point can be serviced without killing water to the other.
A pedestal jug filler like the Stern-Williams 7000-32 works well paired this way with a hydrant on the same branch — one for jugs and coolers, one for hoses and general wash-down.
Yard hydrant vs. pedestal jug filler on the same branch
| Fixture | Best for | Pros | Cons |
|---|---|---|---|
| Elkay LK4461YHLHB Yard Hydrant | Hose connections, wash-down, freeze-prone sites | Self-draining standpipe, locking hose bib deters tampering | Not built for filling jugs or coolers cleanly |
| Stern-Williams 7000-32 Pedestal Jug Filler | Filling water jugs, coolers, animal troughs | Pedestal height suited to containers, vandal-resistant body | Not a hose-bib replacement for wash-down tasks |
Verdict: run the hydrant for hose work and the jug filler for containers — pairing both on one branch beats specifying either as a do-everything fixture.
Troubleshooting
- No flow at the hydrant, irrigation zones work fine: the tap point is downstream of a zone valve instead of upstream. Move the tee to the always-on side of the manifold.
- Water won't drain from the standpipe after shutoff: the gravel sump is undersized or missing, or fine soil has silted the weep hole shut. Re-dig the sump and add a full cubic foot of clean pea gravel.
- Leak at the tee joint: thread sealant was skipped or under-applied on a threaded fitting, or the solvent weld didn't get full cure time before pressurizing. Redo the joint and let PVC cement cure per the can's instructions before turning water back on.
- Low pressure at the hydrant with irrigation running normally: the branch line diameter is undersized for the fixture, or a partially closed shut-off valve is throttling flow. Confirm the branch is a full 3/4-inch and the valve is fully open.
- Standpipe cracked after a hard freeze: the hydrant wasn't buried to the local frost line, or the drain sump backed up with water that then froze in place. Reset the bury depth and rebuild the sump before spring.
Customize your workflow
Once the branch is live, the next decision is matching the hydrant itself to your climate and traffic. Sites in freeze-prone regions should size bury depth and sump volume against the coldest recorded ground frost, not the average winter — a guide on how to choose a yard hydrant for freeze protection walks through that sizing decision in more detail.
Jurisdictions vary on where the backflow preventer requirement applies and what device type is acceptable — check local plumbing code before finalizing the branch design, since a vacuum breaker that's fine in one county can fail inspection in another.
FAQ
What size pipe do I need to connect a yard hydrant to an irrigation line?
A 3/4-inch branch line is enough for most single-hydrant setups. Feeding a hydrant and a second fixture like a jug filler off the same branch, keep the main tap at 3/4 inch or larger so pressure doesn't drop at either outlet.
Do I need a backflow preventer for a yard hydrant?
Yes, in most jurisdictions as of 2026 a backflow preventer or vacuum breaker is required between the irrigation main and the hydrant. A hose left in a bucket or puddle is a cross-connection risk without one.
Can I tap a yard hydrant off a scheduled irrigation zone?
No, not reliably. A scheduled zone only pressurizes during its programmed watering window, so the hydrant would only deliver water on that schedule. Tap upstream of the zone valves, off the main or manifold instead.
How deep does a yard hydrant's drain need to be buried?
Bury the standpipe to at least your local frost line depth, then add roughly one cubic foot of gravel below the weep hole so the self-drain has somewhere to empty. Skipping the gravel sump is the most common reason a freeze-resistant hydrant still cracks in winter.
What's the difference between a yard hydrant and a hose bib?
A hose bib is a simple shutoff spigot with no drainage feature, while a self-draining yard hydrant empties its own standpipe below the frost line when shut off. That drainage is what keeps a yard hydrant usable through freezing winters where a standard hose bib would crack.
Can a yard hydrant run off a well pump instead of municipal irrigation?
Yes, the same tee-and-backflow approach works on a well-fed irrigation line. Confirm your well pump's pressure tank can hold flow when the hydrant draws outside the irrigation schedule, since well systems often size pumps around zone timing.
Why won't my yard hydrant drain after I shut it off?
Standing water at the base after shutoff almost always means the gravel sump is missing, undersized, or clogged with fine soil. Re-excavate the base and rebuild the sump with clean pea gravel rather than reusing the original backfill.
Can one branch line feed both a yard hydrant and a wash station?
Yes, tee off downstream of the backflow preventer to add a second fixture on the same protected branch. Keep runs under about 15 feet between fixtures to avoid a noticeable pressure drop at either outlet.
One last thing
The difference between a yard hydrant that survives a hard winter and one that cracks by February almost never comes down to the fixture itself — it comes down to one cubic foot of clean gravel around the weep hole. Skip that detail during a 2026 install and the warranty on the hydrant won't cover what's really a drainage problem, not a product defect.
