Elkay Drinking Fountain & Bottle Filler Guide (2026)

For 2026, choose Elkay ezH2O when bottle filling is the priority, Soft Sides when rounded heavy-duty construction matters, and a freeze-resistant outdoor family when the unit will face cold weather. Start with the product family, then narrow the choice by mounting, refrigeration, filtration, accessibility, and duty grade.

Elkay model families at a glance for 2026

Elkay model numbers become easier to compare when you separate the catalog into product families. This 2026 buyer table uses live models sold by The Fountain Direct and focuses on the specification differences that change installation and day-to-day use.

Elkay family	Best for	Typical configuration	Representative model
ezH2O	Schools, offices, universities, and high-traffic indoor facilities that need bottle filling	Bottle filler paired with a single or bi-level fountain; filtered and non-filtered versions vary by model	Elkay EZWS-SFGRN28K ezH2O bottle filling station
Soft Sides	Institutional installations where rounded basins, mechanical operation, and durable construction matter	Single or bi-level fountains; some combinations add a bottle filler or vandal-resistant hardware	Elkay EZVRSM-EDFPV217D1LK Soft Sides bi-level fountain and filler
Outdoor freeze-resistant	Parks, campuses, recreation areas, and exposed public sites in cold climates	Non-refrigerated pedestal or wall-mounted systems with protected valves and vandal-resistant components	Elkay LK4430BF1UFRKEVG outdoor tri-level station
Liv built-in dispensers	Indoor kitchens, offices, wellness rooms, and remodels that need a recessed dispenser rather than a fountain	Filtered wall-mounted dispensing; refrigeration and activation vary by model	Elkay Liv EZ LBWDM0BKBC built-in dispenser

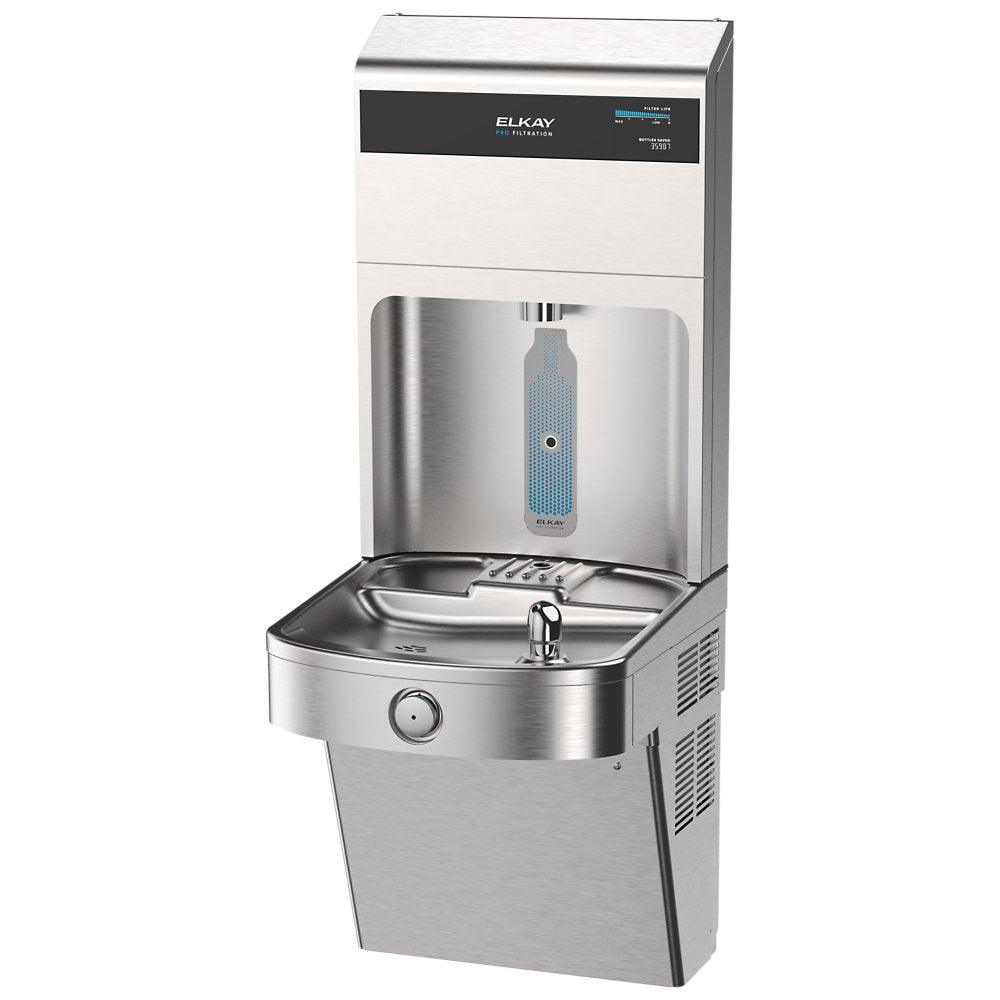

ezH2O: bottle filling first

The ezH2O family is the starting point when reusable-bottle filling drives the project. Models range from surface-mount and in-wall fillers to combined stations with single or bi-level coolers. In 2026 specifications, check whether the exact suffix includes filtration, refrigeration, sensor activation, vandal resistance, or a connected monitoring package; the family name alone does not confirm those features.

Choose ezH2O for a school hallway, office corridor, airport, or university when the project needs fast bottle filling and a familiar wall-mounted format. Do not assume every ezH2O unit is filtered or chilled. Read the individual specification sheet before ordering.

Soft Sides: rounded institutional fountains

Soft Sides identifies a fountain design with contoured basins and rounded edges. The family includes basic fountains as well as bi-level and bottle-filler combinations, so it is better treated as a basin and construction family than a single feature package.

For a 2026 institutional project, choose Soft Sides when the fountain itself must handle frequent public use and the rounded profile fits the site. Then verify ADA status, number of stations, mounting method, filtration, refrigeration, and whether the product needs electrical service. The EZVRSM-EDFPV217D1LK example pairs mechanical activation with a bi-level layout and does not require electrical power.

Outdoor freeze-resistant: specify climate protection directly

Outdoor and freeze-resistant are separate requirements. An outdoor-rated fountain is not automatically protected for freezing weather. For cold-climate 2026 projects, the product specification must explicitly identify a freeze-resistant system.

Pedestal stations suit open parks and recreation areas where a wall is unavailable. Wall-mounted outdoor fountains fit buildings, field houses, and exterior corridors with accessible plumbing. Confirm drainage, supply-line routing, winter operating conditions, and mounting requirements before selecting either format.

Liv and countertop dispensers: different use case

Elkay Liv and countertop dispensers serve a different buyer than a public drinking fountain. Liv models recess into an indoor wall for bottle and glass filling. Countertop dispensers can add chilled, ambient, or sparkling water depending on the model. These families belong in offices, kitchens, healthcare spaces, and wellness rooms rather than exposed public corridors.

ADA and filtration checks for 2026

ADA compliance depends on both the product and the installation. A model listed as ADA compliant still needs the correct mounting height, clear floor space, knee and toe clearance, and reach range for the finished site. Bi-level units can serve users at two heights, but the project team should verify the complete installation against the current plan and local requirements.

• Confirm the exact product lists ADA and ICC A117.1 compliance where the project requires it.
• Check whether the unit is single level, bi-level, or part of a multi-station layout.
• Verify wall projection, mounting height, approach, and clear floor space before rough-in.
• Use the manufacturer specification and installation sheets for the exact model number.

Filtration is also model-specific. A filtered unit includes a compatible cartridge system; a non-filtered unit uses the building water supply without an onboard filter. For 2026 filter planning, compare contaminant certifications, cartridge family, rated capacity, replacement access, and whether the facility can maintain the replacement schedule.

1. Mounting: surface, in-wall, or retrofit

Surface-mount coolers with an integrated filler are the standard install and the easiest replacement for an existing wall fountain, reusing the same rough-in. In-wall units recess the cabinet for tight corridors where ADA protrusion limits matter. Retrofit fillers mount above an existing fountain and add bottle filling without touching the fountain below.

2. Refrigerated or not

Refrigerated coolers chill on demand and need a power circuit and vent clearance. Non-refrigerated units dispense at line temperature, cost less, and go where power is awkward. Indoor public buildings usually choose refrigerated; back-of-house and mild-climate sites often do not need it.

3. Filtered or filterless

Filtered models carry the WaterSentry cartridge and the certified lead and microplastics reduction that schools and public facilities typically specify. Filterless models cost less up front and suit sites with treated building water. If you change your mind later, the EWF3000 kit adds filtration to a filterless unit.

4. Single or bi-level

Bi-level configurations pair a high and low unit for ADA compliance in public corridors. Single ADA-height units serve smaller spaces. If the station replaces a bi-level fountain, stay bi-level and keep the accessibility you already had.

5. Duty grade

Standard cabinets serve offices and schools. Vandal-resistant models harden the sensors and fixings for parks, transit, and correctional settings. Pro Filtration units are the newest tier, built around the ultra-capacity FL10 10,000-gallon filter plus a sediment prefilter, aimed at high-traffic sites that want one filter change a year instead of three. See a configured example: the LZS8WSBPRO-FSR5 Pro Filtration station.

Worked examples

• Middle school hallway: refrigerated, filtered, bi-level, standard duty. The classic spec.
• City park restroom block: non-refrigerated, filtered, vandal-resistant.
• Corporate lobby: refrigerated, filtered, single ADA, standard duty, in-wall if the corridor is tight.
• Stadium concourse: refrigerated, Pro Filtration, bi-level.

Once the unit is chosen, plan the consumable: every filtered station needs a cartridge on a 12-month cycle at most. Our filters collection carries the full current lineup. Need help matching a spec sheet or a bid line item? Send us the requirements and we will spec the exact model, with trade pricing for volume orders through our B2B program.
