Product Description

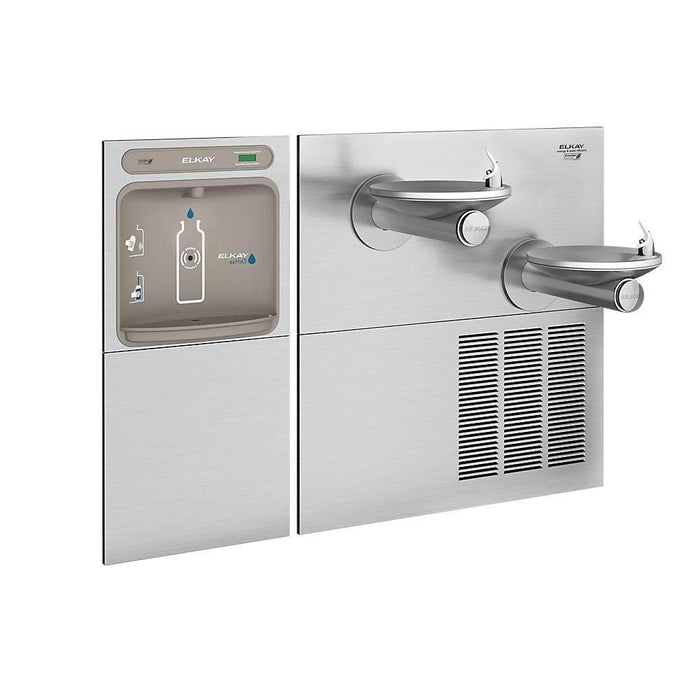

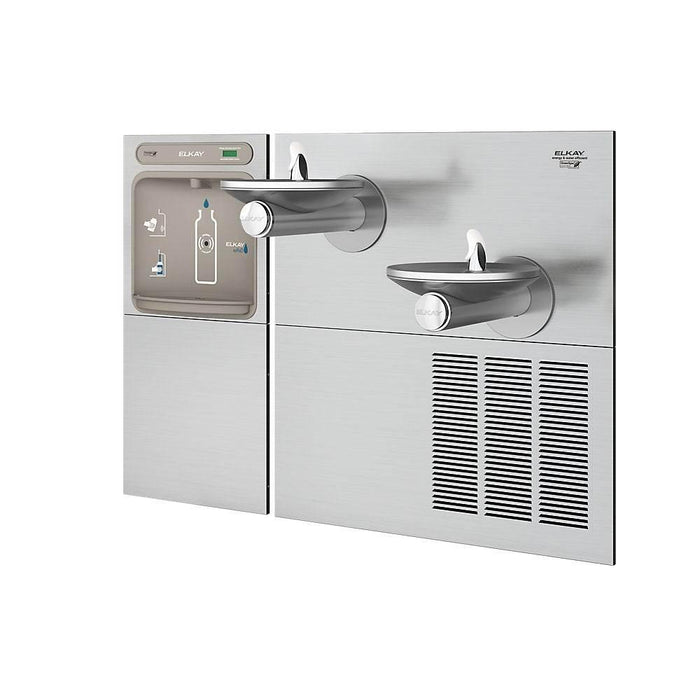

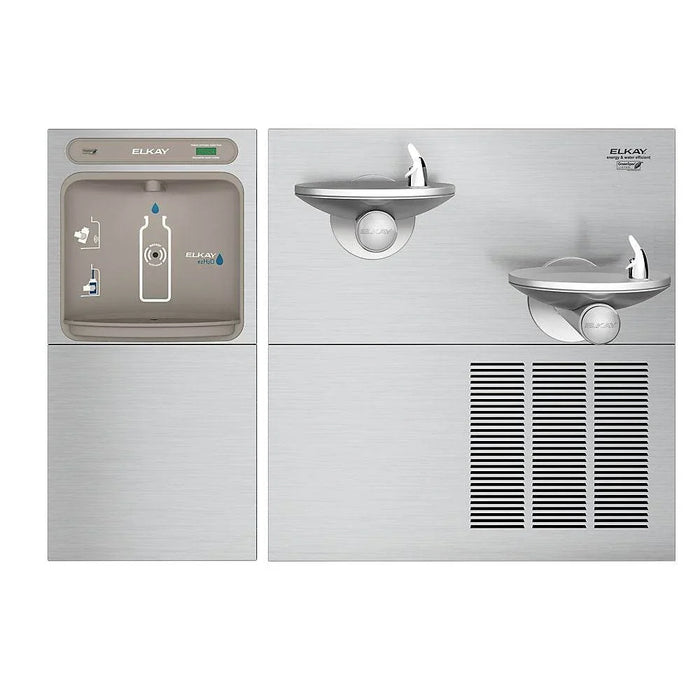

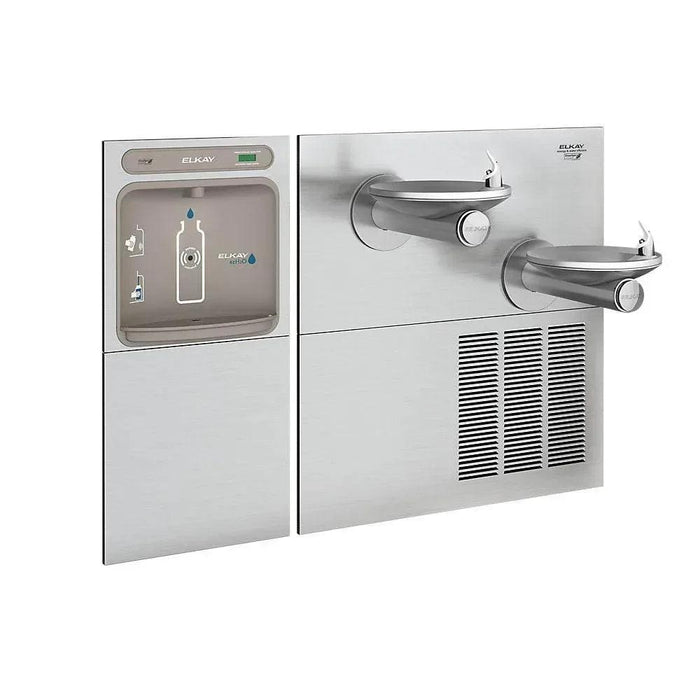

If you’re still using outdated drinking fountains, you’re not just behind—you’re wasting money, energy, and space. The Elkay EZWS-SFGRN28K is the all-in-one hydration station built for modern environments that value both design and function.
This unit combines a hands-free ezH2O® bottle filler, a bi-level SwirlFlo® stainless steel fountain, and a powerful dual-chiller system that keeps up with even the busiest locations. It chills up to 8 gallons per hour, saves on energy, and eliminates plastic waste—all while looking like it belongs in a luxury facility.
If you're designing for a school, university, or any high-traffic interior, this is the kind of install that makes you look like a genius.
Features
✓ Three Stations in One – Bottle filler plus two fountains = zero lines, zero complaints
✓ ADA-Compliant Bi-Level Access – Comfortable for adults, accessible for kids and wheelchair users
✓ Touchless Bottle Filler – Sensor-activated with a 20-second auto shut-off for hygiene and convenience
✓ Flexi-Guard StreamSaver™ Bubblers – Antimicrobial mouth guards plus laminar flow for clean, splash-free drinking
✓ 8 GPH Refrigeration System – Hermetically sealed and energy-efficient cooling
✓ Silver Ion Antimicrobial Protection – Keeps key touchpoints stain-free and odor-free
✓ Real Drain System – No standing water, no risk of bacteria buildup
✓ Green Ticker™ Display – Visibly tracks how many plastic bottles you've eliminated
✓ In-Wall SwirlFlo® Mounting – Seamless, upscale look that sets your facility apart
✓ Built to Withstand Demand – Ideal for high-traffic interior spaces with nonstop usage
Specifications
| Feature |
Details |
| Brand |
Elkay |
| Model Number |
EZWS-SFGRN28K |
| Type |
Bottle Filler + Bi-Level Drinking Fountain |
| Number of Stations |
3 |
| Material |
Stainless Steel |
| Activation |
Sensor (Filler), Push Button (Fountains) |
| Chilling Capacity |
8.0 GPH (Gallons Per Hour) |
| Filtered |
No |
| Power Supply |
115V / 60Hz |
| Mounting Option |
Wall Mount (In-Wall Frame Included) |
| Installation Location |
Indoor |
| Dimensions |
Length: 58-1/4 inches, Width: 19 inches, Height: 40-13/16 inches |
| Shipping Dimensions |
Length: 41 inches, Width: 68-7/16 inches, Height: 46 inches |
| Shipping Weight |
164 lbs |
| Included Components |
Bottle Filler (EZWSM8C), Fountain (ERPBGRND28C), Chillers (2 x ECH8GRN), Mounting Frames (MF200, MFWS100) |
| Certifications |
ADA, ICC A117.1, NSF 372, NSF 61, UL 399, GreenSpec, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120 |
| Country of Origin |
USA |
| Ideal For |
Universities, Schools, Office Buildings, High-Use Facilities |
Warranty
Elkay Warranty
Return & Refund Policy
Elkay accepts returns within 30 days of delivery on most items, but authorization is required prior to return. All returns must be in new, unused condition and shipped freight prepaid. A restocking fee may apply, and certain items may be non-returnable depending on their condition or category.
To request a return, contact us at (314) 200-1341 or email support@thefountaindirect.com. We’ll help you coordinate directly with Elkay to ensure proper authorization and handling.
Downloads
