Product Information

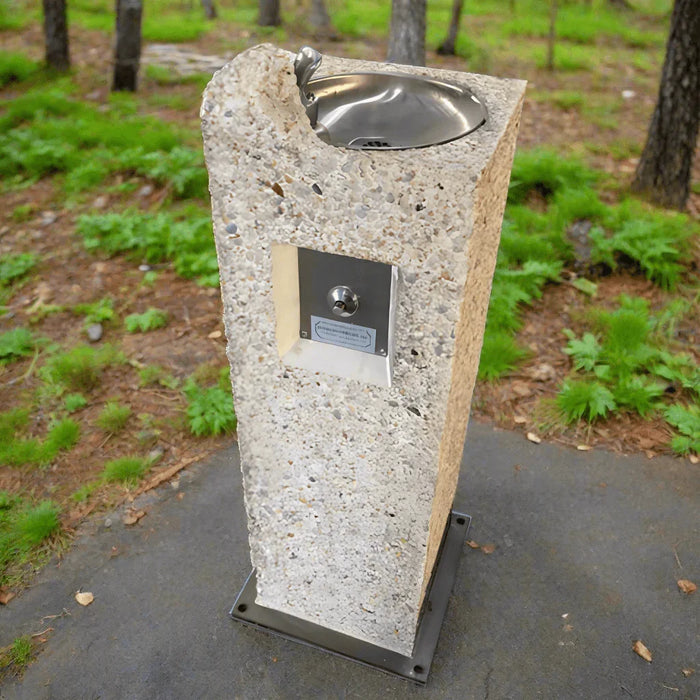

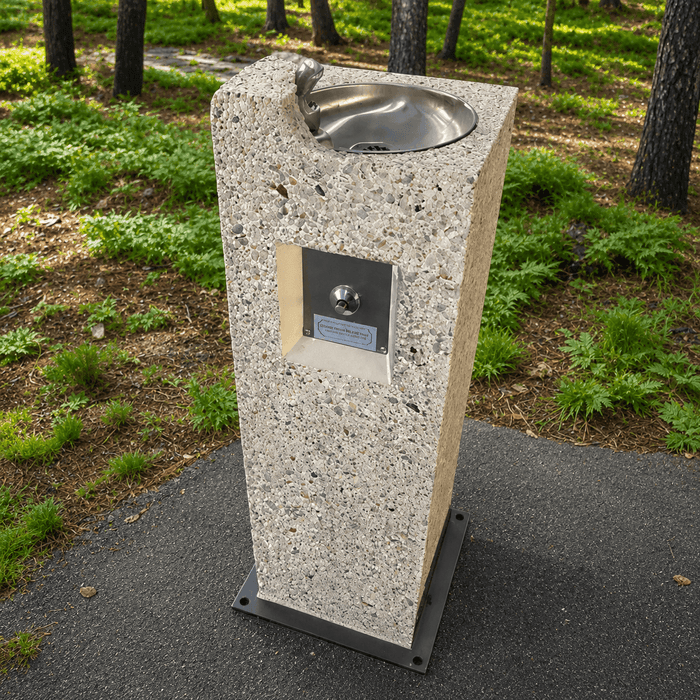

The SPF-3100 Series is a durable, high-performance drinking fountain with a square aggregate finish, designed to provide 8.0 GPH of chilled water refreshment in public and commercial spaces. Built for high-traffic environments, these fountains ensure long-term durability and performance.
Featuring a surface-mounted design with a welded pedestal plate, these units are available in standard, frost proof (-FP), and Sanifrost (-FPS) models, providing versatility for various climates. Frost proof models prevent freezing, while Sanifrost models ensure stored water does not re-enter the bubbler, improving hygiene.
It is recommended that a dual check valve backflow prevention system be installed in the waterline for any FP fountain.
Features
✔ Single Square Pedestal Drinking Fountain – Designed for high-traffic environments.
✔ 8.0 GPH Cooling Capacity – Provides chilled water refreshment.
✔ Heavy-Duty Aggregate & Steel Construction – Maintains a durable, long-lasting finish.
✔ Surface Mounting Plate – Comes standard for secure installation.
✔ Water-Saving Push Button Valve – Centered on a vandal-resistant stainless steel access plate.
✔ Adjustable Flow Regulation – Ensures controlled water flow.
✔ Stainless Steel Supply Fittings – Reinforced tubing for long-term durability.
✔ In-Line Mesh Screen Strainer – Prevents debris from entering the water system.
✔ Frost Proof Option (-FP) – Prevents freezing in cold weather.
✔ Sanifrost Option (-FPS) – Prevents stored water from re-entering the bubbler.
✔ Secure Water Supply Control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient Drainage System – 1-1/4” IPS waste pipes included for proper water disposal.
Optional Features
-31 | Chrome Plated Self-Closing Jug Filler
-32 | RCP Compression Type, Hose Bibb with VB
-32-LK | RCP Compression Type, Hose Bibb with VP and Loose Key
-32-SC | Self-Closing Hose Bibb with VB
-33-VP | Compression Type, Hose Bibb with Stainless Steel Box and Locking Cover
-34 | Frost Proof Jug Filler
-34-FPS | Sanifrost Jug Filler (-FPS Units Only)
-36 | Push Button Jug Filler
-37 | Foot Spray
-38 | Shutdown/Drain Valve
-40 | Commemorative Plaque
-60 | Matching Step for Round Fountain
-84 | Water Filter
-85 | Valve Box (Recommended for FP Units)
-94 | Pet Fountain (Attached)
-94-FP | Frost Proof Pet Fountain
-94-FPS | Sanifrost (-FPS Units Only)
-95 | Sand Trap
-96 | Sand Strainer Plate
SMP-12SQ | Surface Mounting Plate (SPF Series)
Specifications
| Feature | Details |
|---|---|
| Available Models | Single Square Pedestal Drinking Fountains – Frost Proof & Sanifrost Options |
| Material | Heavy-duty aggregate and stainless steel components |

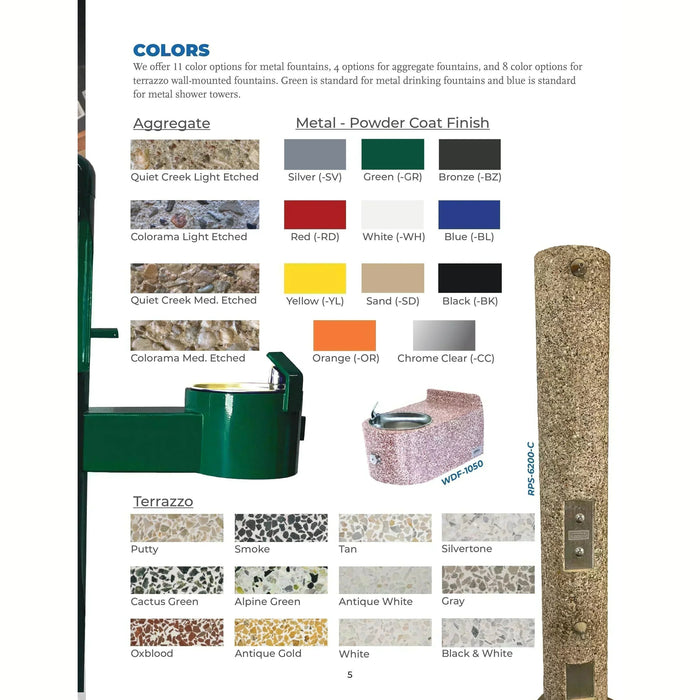

| Finish Options | Colorama light etched, Colorama medium etched |
| Mounting Type | Surface mounting plate welded to pedestal (SMP-12SQ included) |
| Surface Requirements | Must be installed on a dry, level surface |
| Cooling Capacity | 8.0 GPH (Gallons Per Hour) chilled water output |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Length | Finish |
|---|---|---|---|---|---|
| SPF-3100-C | Single Square Pedestal | 36 inches (91 cm) | 12 inches (30 cm) | 12 inches (30 cm) | Colorama, light etched |
| SPF-3101-C | Single Square Pedestal | 36 inches (91 cm) | 12 inches (30 cm) | 12 inches (30 cm) | Colorama, medium etched |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
