Product Information

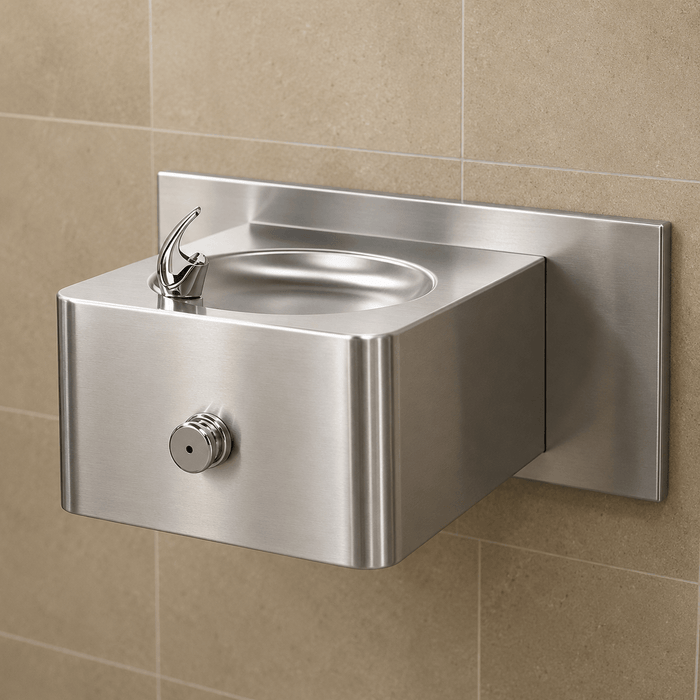

Lustrous satin-finish stainless steel satisfies the criteria for cleanliness and easy care in medical centers and office buildings. A push-button control is conveniently located on the front panel for easy operation. The vandal-resistant bottom plate and mounting plate come standard for enhanced durability. The beveled front design is available with or without a back plate.
FP models are frost-proof and recommended for installations in cold-weather environments. It is advised to install a dual check valve backflow prevention system in the waterline for any FP fountain.
Features
✔ Satin-Finish Stainless Steel – Easy to clean and maintain, ideal for medical and commercial environments.
✔ Push Button Valve – Located on the front panel for simple operation.
✔ Adjustable Flow Regulation – Allows precise water control.
✔ Vandal-Resistant Construction – Includes bottom and mounting plates for added security.
✔ Stainless Steel Supply Fittings – Reinforced tubing ensures long-term durability.
✔ In-Line Mesh Screen Strainer – Prevents debris from entering the water system.
✔ Protective Stainless Steel Back Plate – Enhances durability and aesthetics.
✔ Frost Proof Option (-FP) – Available for cold-weather installations.
✔ Secure Water Supply Control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient Drainage System – 1-1/4” IPS waste pipes included.
✔ Optional Cane Touch Apron (BFCA-1) – Enhances accessibility for visually impaired users.
Specifications
| Feature | Details |
|---|---|
| Available Models | Stainless Steel Wall-Mounted Drinking Fountains |
| Material | 18-gauge brushed stainless steel |
| Finish Options | Satin-finish stainless steel |
| Mounting Type | Wall-mounted with standard mounting plate |
| Surface Requirements | Must be installed on a dry, level wall surface |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Extension |
|---|---|---|---|---|

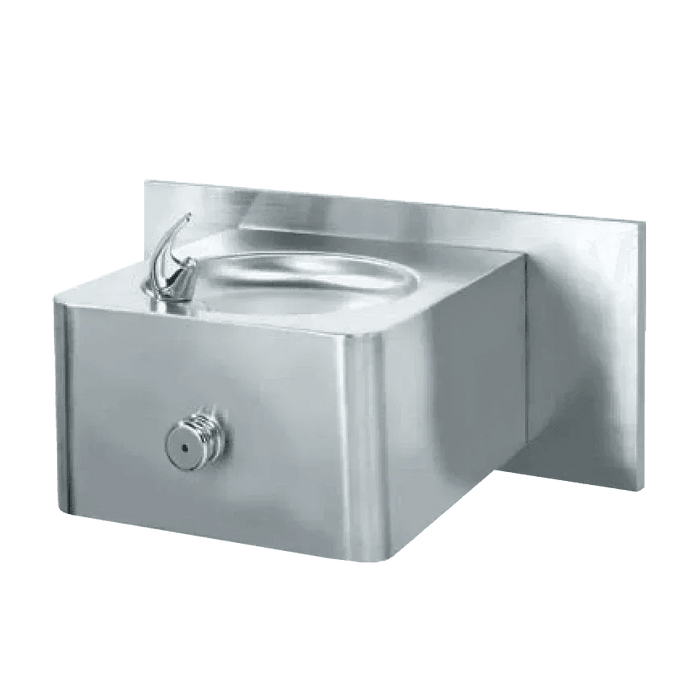

| SF-5100 | With back plate | 9.63 inches (24 cm) | 19 inches (48 cm) | 13 inches (33 cm) |
| SF-5100-FP | Frost Proof Model (with back plate) | Same as SF-5100 | Same as SF-5100 | Same as SF-5100 |
| SF-5110 | Standard Model | 7 inches (18 cm) | 12 inches (30 cm) | 12.5 inches (32 cm) |
| SF-5110-FP | Frost Proof Model | Same as SF-5110 | Same as SF-5110 | Same as SF-5110 |
⚠ Note: All dimensions are subject to a manufacturing variance of ± 1/4″ (6 mm).
