Product Description

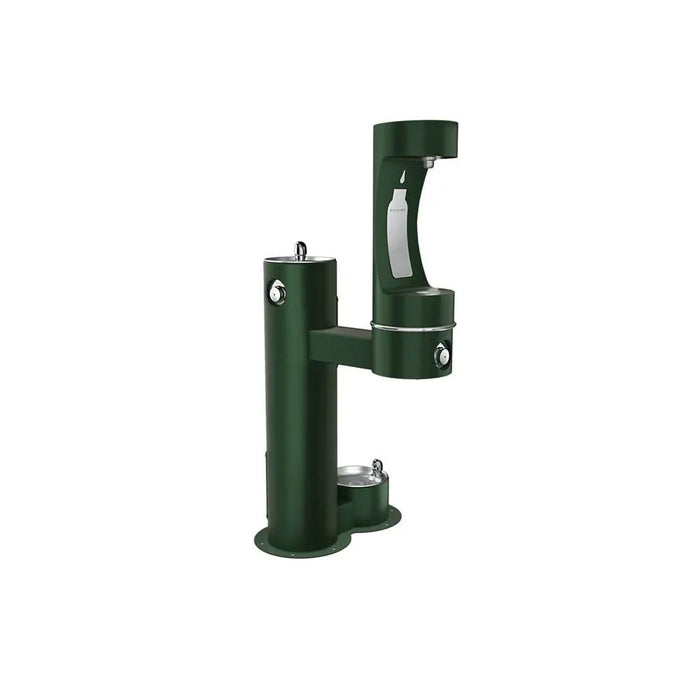

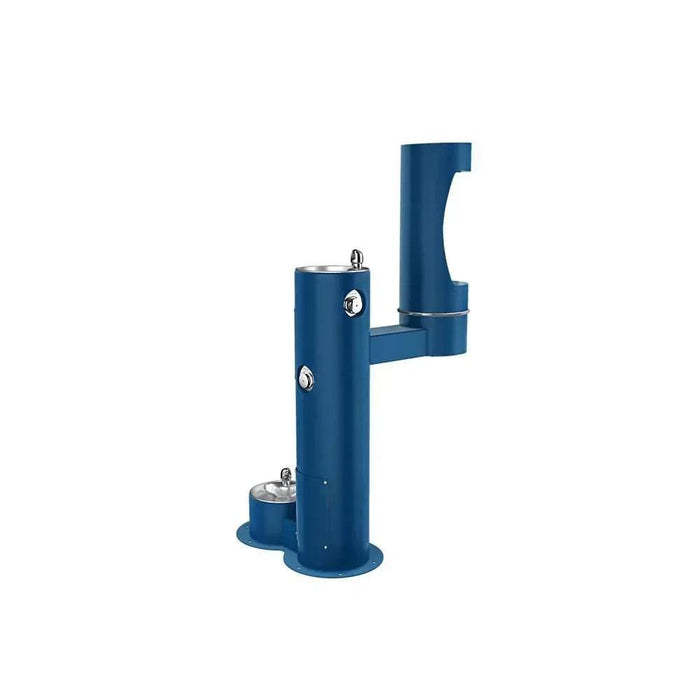

Want a hydration solution that serves everyone—including pets? The Elkay LK4420BF1LDBFRK is your go-to option. Built for parks, campuses, and public spaces, this bi-level station delivers clean drinking water through a lower bottle filler, an upper bubbler, and an integrated pet fountain—all in a vandal-resistant, freeze-resistant, all-weather design.
Crafted from 300 Series stainless steel with a powder-coated exterior, this unit is built to last. It works without power and is fully sealed to protect against groundwater contamination and freezing temperatures—perfect for high-traffic outdoor areas.
Features

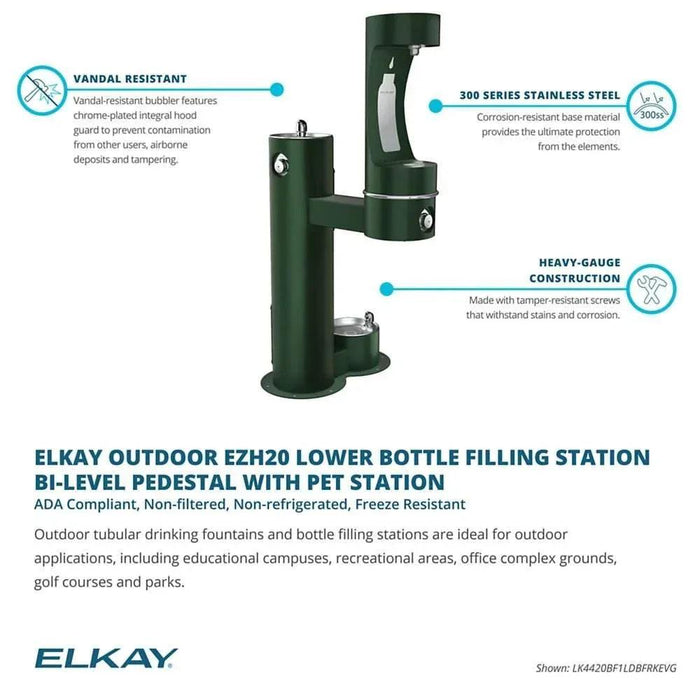

✓ All-Weather Durability: Heavy-gauge stainless steel with a powder-coated finish resists rust, corrosion, and outdoor abuse.
✓ Vandal-Resistant Design: Tamper-resistant screws and chrome-plated hood guards deter damage and misuse.

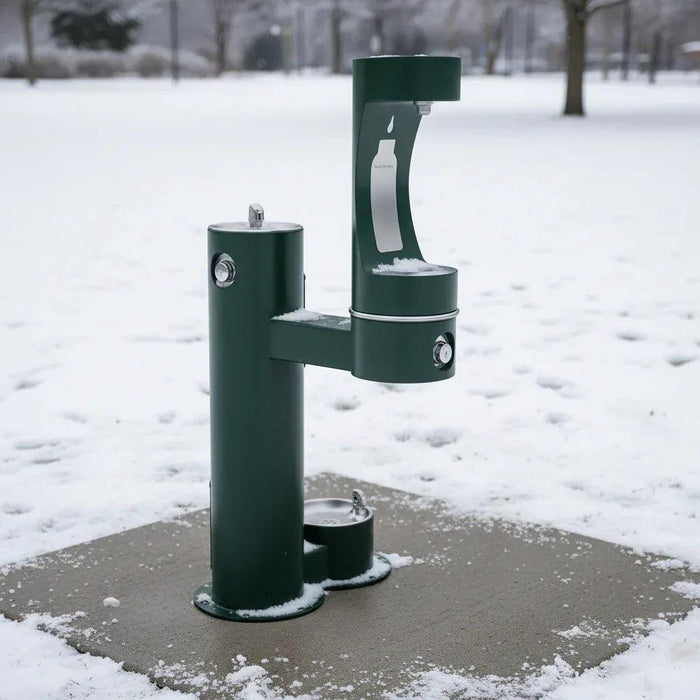

✓ Freeze-Resistant System: Fully sealed to prevent groundwater contamination and ensure operation in cold weather.
✓ Hygienic Laminar Flow: Clean, splash-free water every time—no mess, no waste.

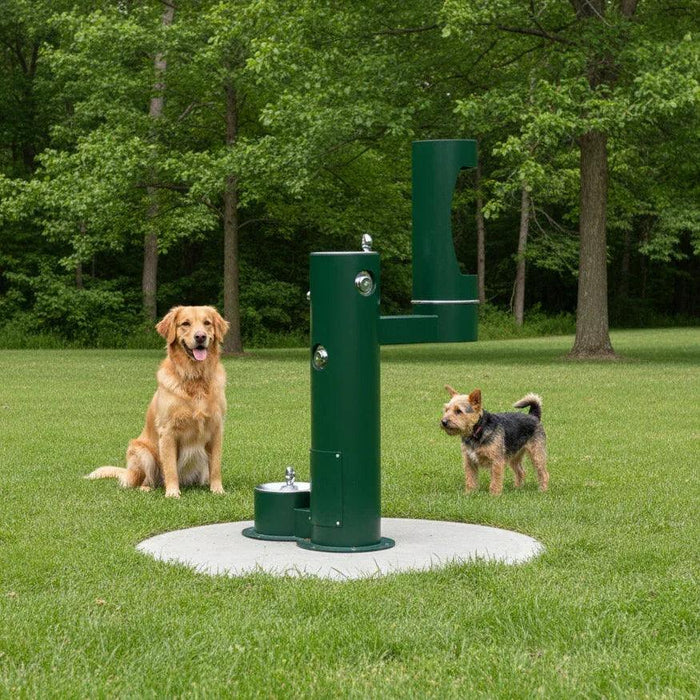

✓ Pet Fountain Included: Features slow drainage for easy, mess-free pet hydration.
✓ No Power Required: Operates reliably without electricity or complicated maintenance.
✓ ADA Compliant: Accessible for all users, including wheelchair access.
✓ Certified Safe: Meets NSF 372 (Lead-Free), NSF 61, ASME A112.19.3, and GreenSpec standards.

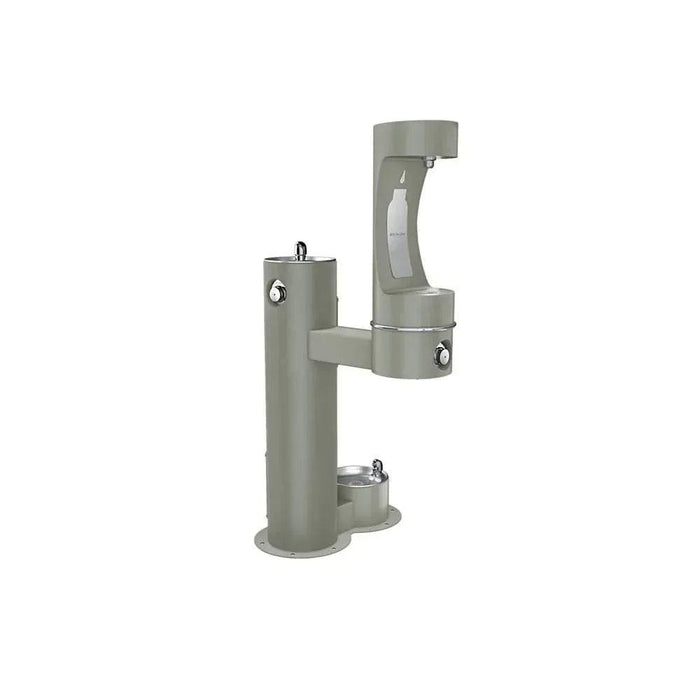

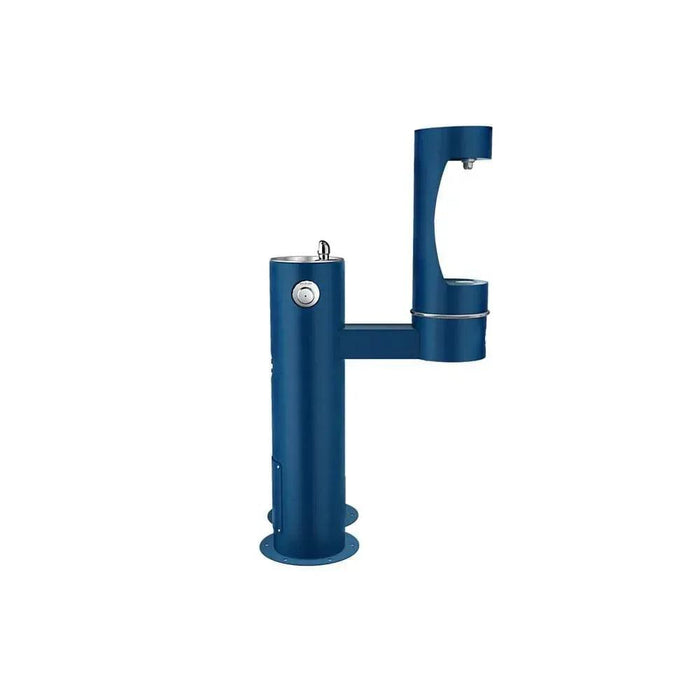

✓ Customizable Finish: Choose from four durable, eye-catching colors.
Specifications
| Feature |
Details |
| Brand |
Elkay |
| Model Number |
LK4420BF1LDBFRK |
| Type |
Outdoor Bi-Level Bottle Filling Station with Pet Fountain |
| Number of Stations |
2 (Lower Bottle Filler + Upper Bubbler + Pet Fountain) |
| Material |
300 Series Stainless Steel (Corrosion-Resistant) |
| Activation |
Manual (Push Button for Bubbler and Pet Fountain) |
| Chilling Capacity |
Non-Refrigerated |
| Freeze Resistance |
Fully Sealed Freeze-Resistant System |
| Dimensions (WxDxH) |
26" x 31" x 64" |
| Shipping Dimensions |
46-1/2" x 36-5/8" x 64-11/16" |
| Shipping Weight |
184 lbs |
| Installation |
Floor Mount / Freestanding |
| Color Options |
4 Finish Options Available |
| Certifications |
ADA, ICC A117.1, ASME A112.19.3, NSF 372 (Lead-Free), NSF 61, GreenSpec |
| Country of Origin |
USA |
| Ideal For |
Parks, Campuses, Pet-Friendly Recreational Areas |
Warranty
Elkay offers a 1-Year Limited Warranty on most components. For full coverage terms, see Elkay's official documentation.
Return & Refund Policy
Elkay accepts returns within 30 days of delivery on most items, but authorization is required prior to return. All returns must be in new, unused condition and shipped freight prepaid. A restocking fee may apply, and certain items may be non-returnable depending on their condition or category.
To request a return, contact us at (314) 200-1341 or email support@thefountaindirect.com. We’ll help you coordinate directly with Elkay to ensure proper authorization and handling.
Downloads
Specification Sheet (pdf)
Installation Instructions (pdf)
CAD Front (dwg)
CAD Top (dwg)
CAD Side (dwg)
Warranty (pdf)
