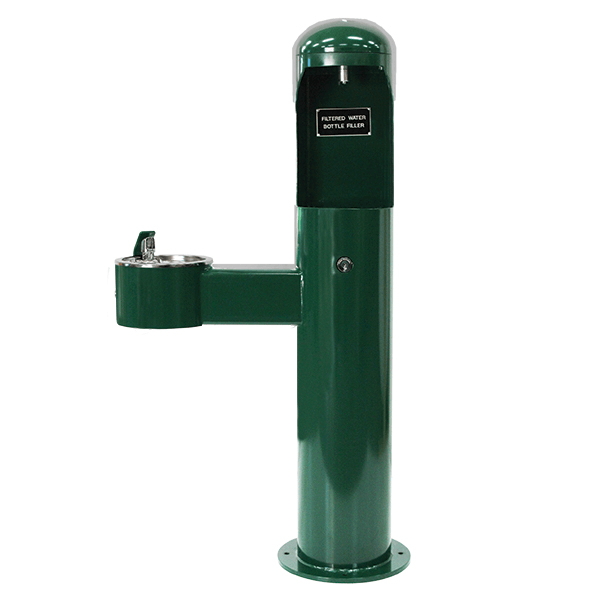

Product Information
The 7700 Series provides easy access to hydration with a gravity-type bottle filler and drinking fountain combination. Designed for parks, recreational spaces, schools, and public areas, this model ensures durability, vandal resistance, and ease of use. An optional pet fountain attachment makes it a versatile solution for pet-friendly locations.
Constructed from one-piece heavy-duty steel pipe, this fountain is built to withstand outdoor conditions while maintaining a low-maintenance, high-performance design.
Features
✔ Dual hydration function – Drinking fountain with a gravity-type bottle filler.
✔ Heavy-duty construction – One-piece steel pipe with welded steel plates for long-lasting durability.
✔ Vandal-resistant access panels – Secured panels prevent tampering while allowing easy maintenance.
✔ Push button water control – Chrome-plated brass valve recessed in a 3/8” thick steel plate.
✔ Adjustable flow regulation – Maintains steady water pressure.
✔ Steel bubbler guard – Protects against damage and vandalism.
✔ Replaceable in-line water filter – Ensures clean and safe drinking water.
✔ Weather-resistant finish – Standard woodland green powder coat, with optional stainless steel (-SS) and other colors available.
✔ Pet fountain option – Can be customized with an additional pet fountain attachment.
✔ Secure water supply control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient drainage system – 1-1/4” IPS waste pipes included for proper water disposal.
Available Models
7700 – Drinking fountain with bottle filler (pet fountain optional)
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Surface-mounted plate welded to pedestal |
| Surface Requirements | Must be installed on a dry, level surface |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Model & Dimensions
| Model | Type | Height | Width | Length | Mounting Type |
|---|---|---|---|---|---|
| 7700 | Standard Surface Mount | 59 inches (150 cm) | 10.75 inches (27 cm) | 30.75 inches (78 cm) | Surface-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
Must-Read Before Buying
Stern-Williams Products Are Made-to-Order and Highly Customizable [Click here]
Need your fountain faster? Check out our Quick Ship Fountain Program [Click here] for quicker delivery options.
Stern-Williams Policies
- Warranty
- RGA Policy
- Custom Order Policy & Procedures
- Drinking Fountain & Shower Tower Cancellation Policy
- ADA Compliance
- ACA Compliance
Downloads
General IOM for Outdoor Water Products
