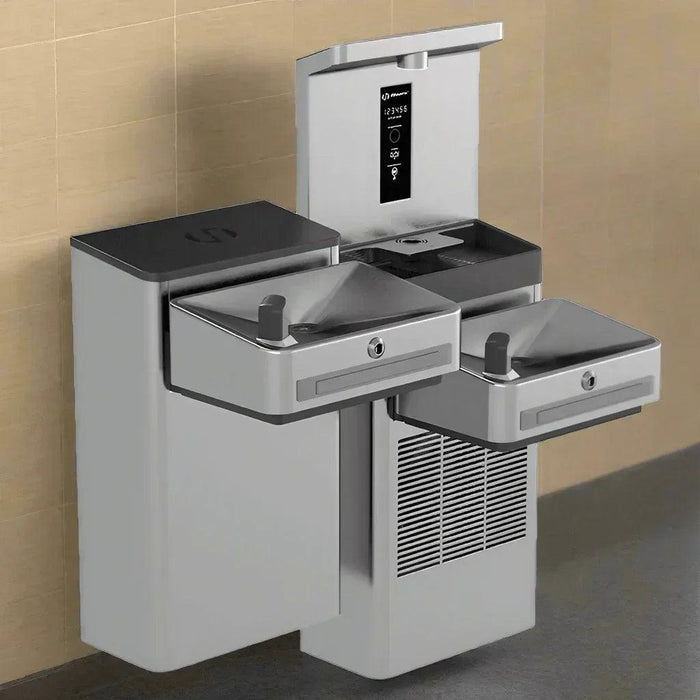

Haws 1212SFH Wall Mount Hi-Lo ADA Filtered Water Cooler with Bottle Filler – Stainless Steel

Why Shop With Us?

Free
Shipping

No Sales
Tax

Manufacturer
Warranty

30 Day
Returns
Free
Shipping
No Sales
Tax
Manufacturer
Warranty
30 Day
Returns
If you run a school, office, or gym, your guests expect hydration to be clean, easy, and fast. The Haws 1212SFH delivers all of that and more, with a modern, touchless design that makes other water coolers feel outdated. ADA-compliant dual-height fountains? Check. Motion-activated bottle filler? Done. Built-in filtration that shuts off when it hits capacity? You bet. And if you're not using it? The built-in smart energy mode powers down to save you money while you're away. If you want a hydration station that’s engineered for safety, speed, and savings, this is the only logical choice.
Lead Time: Ships in 2 weeks.
Each unit reflects lasting quality. A brief wait ensures you receive a product engineered for decades of performance.
✓ Touchless hydration that keeps users safe – Hands-free bottle filler and sensor-activated fountains eliminate cross-contamination.
✓ Energy-saving intelligence – System powers down refrigeration and lights after 2 hours of inactivity, saving energy and cost.
✓ No guesswork on filter status – Electronic Lifecycle Control shuts off water flow when the 3000-gallon capacity is reached.
✓ ADA-compliant Hi-Lo design – Dual-height drinking fountains provide inclusive access for all users.
✓ Designed for durability – Vandal-resistant sensors, bubbler heads, and heavy-duty 304 stainless steel outer shell.
✓ Quick bottle refills – 1.1 GPM fill rate means you’re not standing around waiting.
✓ 24-hour auto purge – Keeps water fresh and system clean by flushing automatically once a day.
✓ Self-regulating bubbler – Automatically adjusts to incoming water pressure—no need to fine-tune.
✓ Smart shutdown programming – You can schedule shutdowns during weekends or holiday closures.
Model | 1212SFH |
---|---|
Material | 304 Stainless Steel Outer Shell, Galvanized Steel Frame |
Mounting | Wall Mounted |
Dimensions | Length: 18-3/4", Width: 34-1/16", Height: 40-3/4" |
ADA Compliant | Yes |
Cooling Capacity | 8.0 GPH at 50°F from 80°F inlet at 90°F ambient |
Filter Capacity | 3,000 gallons (Electronic Lifecycle Control shuts off when max is reached) |
Flow Rate | 1.1 GPM bottle filler |
Power | 115V, 60Hz, 350W, 5 Amps |
Certifications | NSF/ANSI 42, 53, 61 (Q ≤ 1), 372, ADA, CSA, ASHRAE 18, UL, FCC |
Indoor Use | Yes (not rated for outdoor/poolside areas) |
Made In | USA |
