Product Description

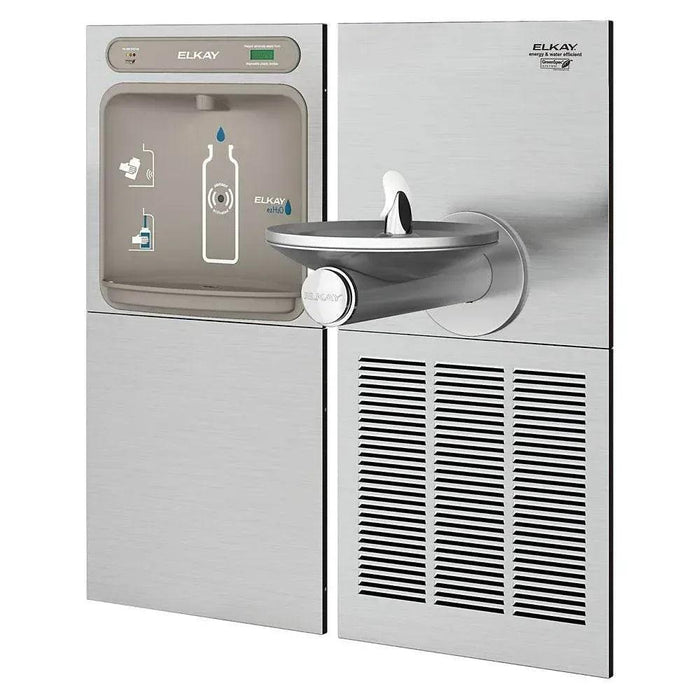

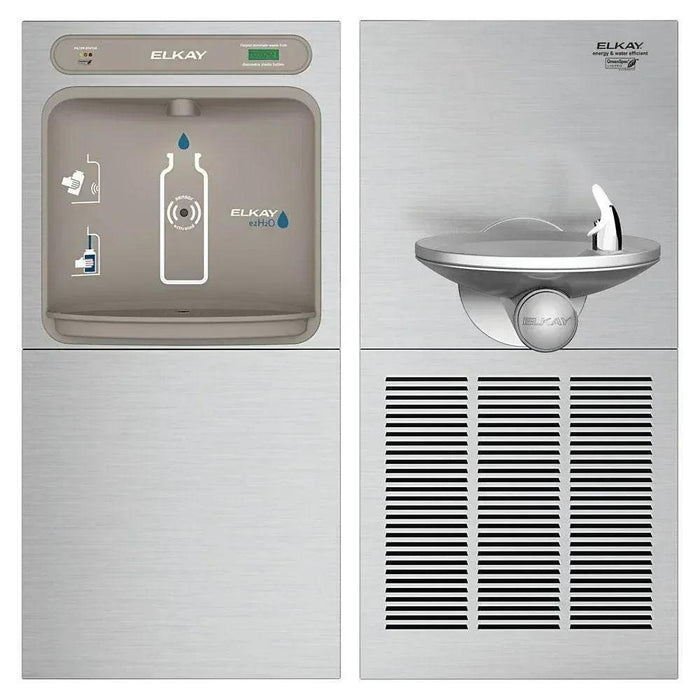

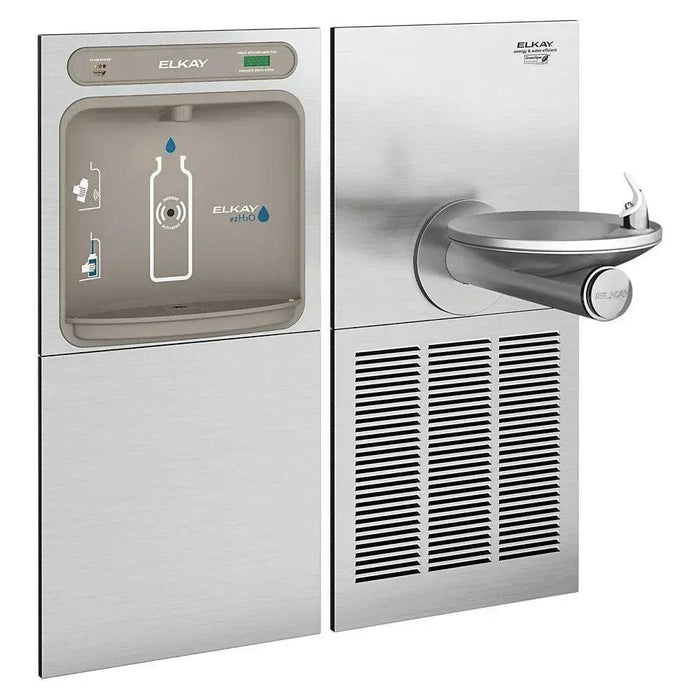

If you're upgrading a modern facility, don't settle for outdated hydration. The Elkay LZWS-SFGRN8K combines elegant SwirlFlo® fountain design with a touchless, sensor-activated bottle filler, NSF-certified filtration, and chilled water delivery—all in a fully recessed ADA-compliant unit that looks as good as it performs.
With real-time Green Ticker™ tracking, antimicrobial protection, and high-efficiency cooling, this two-in-one solution gives your guests, students, or staff filtered water at the touch of a bottle. It’s whisper-quiet, energy-saving, and engineered for heavy use—a serious upgrade for any premium indoor environment.
When your building demands form and function, this is the hydration station that delivers both.
Features
✓ Recessed SwirlFlo® Design – Sleek, curved stainless steel design adds a premium feel
✓ Touchless Bottle Filling – Sensor-activated with a 20-second auto shut-off
✓ ADA-Compliant Access – Bottle filler and fountain meet federal accessibility standards
✓ High-Efficiency Refrigeration – Uses less power without sacrificing chilled output

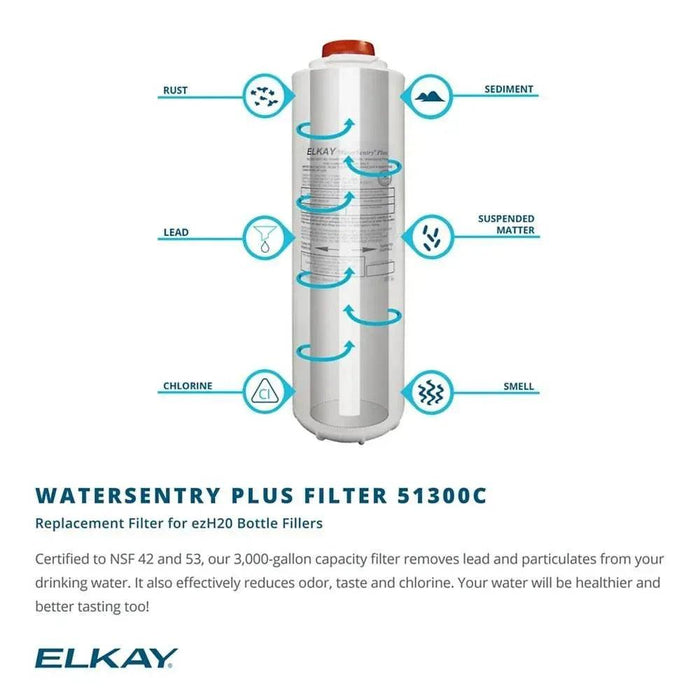

✓ NSF-Certified Filtration – 3,000-gallon capacity reduces lead, chlorine, and particles
✓ Flexi-Guard StreamSaver™ Bubbler – Antimicrobial, injury-resistant, and water-saving
✓ Antimicrobial Protection – Silver ion-treated components resist mold and mildew
✓ Laminar Flow Output – Smooth stream reduces splashing
✓ Visual Filter Monitor – LED status light shows when filter needs replacement
✓ Real Drain System – Eliminates standing water and bacteria buildup
Specifications
| Feature |
Details |
| Brand |
Elkay |
| Model Number |
LZWS-SFGRN8K |
| Type |
Recessed Bottle Filling Station with Refrigerated Fountain |
| Number of Stations |
2 (Bottle Filler + Single Fountain) |
| Material |
Stainless Steel |
| Activation |
Sensor (Bottle Filler), Push Button (Fountain) |
| Chilling Capacity |
8.0 GPH (Gallons Per Hour) |
| Filtered |
Yes – NSF 42 & 53 Certified |
| Power Supply |
115V / 60Hz |
| Mounting Option |
Wall Mount (In-Wall Frame) |
| Installation Location |
Indoor Only |
| Dimensions |
Length: 39-1/2 inches, Width: 19 inches, Height: 40-13/16 inches |
| Shipping Dimensions |
Length: 28-1/4 inches, Width: 75-15/16 inches, Height: 46 inches |
| Shipping Weight |
130 lbs |
| Included With Product |
Bottle Filler (LZWSMDC), Fountain (ERPBGRND8C), Chiller (ECH8GRN), Filter (EWF3000), Mounting Frames (MF100, MFWS100) |
| Certifications |
ADA, ICC A117.1, NSF 42, 53, 61, 372, 401, UL 399, GreenSpec, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120 |
| Country of Origin |
USA |
| Ideal For |
Corporate Buildings, Universities, Healthcare Facilities, Indoor Public Spaces |
Warranty
Elkay Warranty
Return & Refund Policy
Elkay accepts returns within 30 days of delivery on most items, but authorization is required prior to return. All returns must be in new, unused condition and shipped freight prepaid. A restocking fee may apply, and certain items may be non-returnable depending on their condition or category.
To request a return, contact us at (314) 200-1341 or email support@thefountaindirect.com. We’ll help you coordinate directly with Elkay to ensure proper authorization and handling.
