Product Information

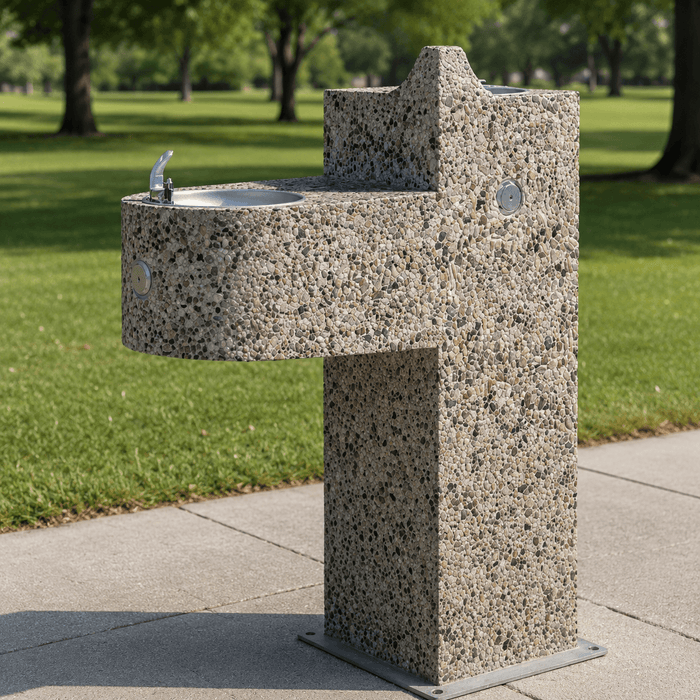

Tough enough for any environment. Chilled water when it matters most. These all-purpose aggregate drinking fountains are built for nonstop use in nature areas, parks, schools, and commercial spaces. With 8.0 GPH cooling capacity, a rugged surface-mounted pedestal, and a long-lasting aggregate-and-steel finish, this unit keeps delivering no matter the foot traffic or weather conditions.
Available in single, double, and triple configurations, and with frost-proof or Sanifrost upgrades, it’s a no-fuss solution for clean, year-round hydration.
Key Benefits
✓ Dual aggregate fountain – Designed to serve multiple users in high-traffic outdoor areas
✓ 8.0 GPH cooling capacity – Provides consistently chilled drinking water
✓ Heavy-duty aggregate & steel construction – Built to endure public use and harsh conditions
✓ Secure surface mounting – Stainless steel pedestal plate provides maximum stability
✓ Push-button operation – Water-saving valve recessed in a vandal-resistant access plate
✓ Steel bubbler guard – Shields drinking outlets from impact or tampering
✓ Flow regulation – Adjustable system maintains ideal water pressure
✓ Reinforced internals – Stainless steel supply fittings with durable tubing
✓ Debris filtration – In-line mesh screen prevents particles from entering the water system
✓ Frost-proof upgrade (-FP) – Keeps water flowing even in freezing temperatures
✓ Sanifrost upgrade (-FPS) – Improves hygiene by preventing backflow of stagnant water
✓ Locked water control – 1/2” IPS lock shield stop deters unauthorized use
✓ Efficient drainage system – Includes 1-1/4” IPS waste pipes for proper disposal
✓ Custom configurations – Available in single, dual, or triple fountain styles to fit your space
Specifications
| Feature | Details |
|---|---|
| Available Models | Dual Aggregate Drinking Fountains – Frost Proof & Sanifrost Options |
| Material | Heavy-duty aggregate and stainless steel components |
| Finish Options | Colorama light etched, Colorama medium etched, Quiet Creek light etched, Quiet Creek medium etched |
| Mounting Type | Surface mounting plate welded to pedestal (SMP-12S included) |
| Surface Requirements | Must be installed on a dry, level surface |
| Cooling Capacity | 8.0 GPH (Gallons Per Hour) chilled water output |
| Waste Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Optional Features
-31 | Chrome Plated Self-Closing Jug Filler
-32 | RCP Compression Type, Hose Bibb with VB
-32-LK | RCP Compression Type, Hose Bibb with VP and Loose Key
-32-SC | Self-Closing Hose Bibb with VB
-33-VP | Compression Type, Hose Bibb with Stainless Steel Box and Locking Cover
-34 | Frost Proof Jug Filler
-34-FPS | Sanifrost Jug Filler (-FPS Units Only)
-36 | Push Button Jug Filler
-37 | Foot Spray
-38 | Shutdown/Drain Valve
-40 | Commemorative Plaque
-42 | Stainless Steel Bubbler Guard
-65 | Matching Step for Square Fountain
-84 | Water Filter
-85 | Valve Box (Recommended for FP Units)
-94 | Pet Fountain (Attached)
-94-FP | Frost Proof Pet Fountain
-94-FPS | Sanifrost (-FPS Units Only)
-95 | Sand Trap
-96 | Sand Strainer Plate
SMP-12S | Surface Mounting Plate
Available Models & Dimensions
| Model | Type | Height | Width | Length | Base Size | Finish |
|---|---|---|---|---|---|---|
| ADF-3700-C | Dual Aggregate Fountain | 40 inches (102 cm) | 12 inches (30 cm) | 30 inches (76 cm) | 15-inch (38 cm) square base | Colorama, light etched |
| ADF-3701-C | Dual Aggregate Fountain | 40 inches (102 cm) | 12 inches (30 cm) | 30 inches (76 cm) | 15-inch (38 cm) square base | Colorama, medium etched |
| ADF-3700-Q | Dual Aggregate Fountain | 40 inches (102 cm) | 12 inches (30 cm) | 30 inches (76 cm) | 15-inch (38 cm) square base | Quiet Creek, light etched |
| ADF-3701-Q | Dual Aggregate Fountain | 40 inches (102 cm) | 12 inches (30 cm) | 30 inches (76 cm) | 15-inch (38 cm) square base | Quiet Creek, medium etched |
Must-Read
Lead Time: Made to Order — Ships in 4-6 weeks
This item is built just for you. Each piece is made to order, ensuring exceptional craftsmanship and attention to detail. A short wait for a product designed to last decades is a worthwhile investment.
Need it sooner? We also offer faster shipping options. Contact us to explore available alternatives.
Stern-Williams Products Are Made-to-Order and Highly Customizable [Click here]
Need your fountain faster? Check out our Quick Ship Fountain Program [Click here] for quicker delivery options.
