Product Information

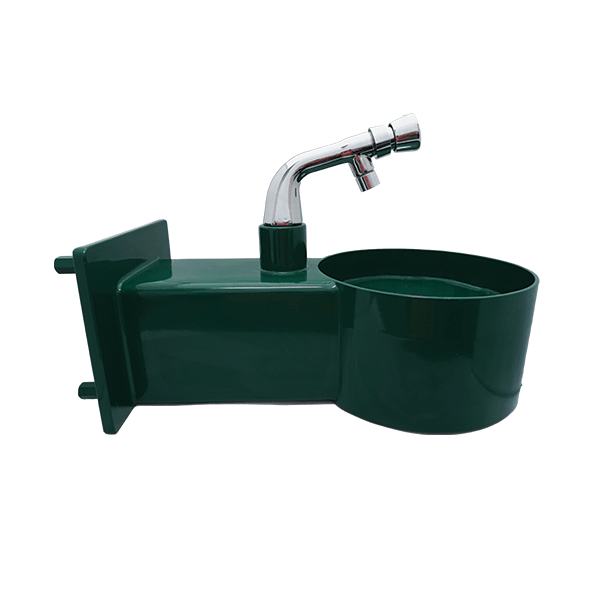

The 8100 Series Handwash Station is a sturdy and versatile solution designed for parks, schools, public spaces, and commercial environments. It can function as a stand-alone unit, an addition to a Stern-Williams drinking fountain, or a wall-mounted fixture, providing convenient handwashing access in high-traffic areas.
Built with heavy-duty stainless steel components, this station offers long-term durability, vandal resistance, and low maintenance, making it ideal for indoor and outdoor applications.
Features
✔ Multiple installation options – Available as a pedestal, wall mount, or an addition to an existing fountain.
✔ Heavy-duty construction – One-piece steel pipe with welded steel plates for enhanced durability.
✔ Vandal-resistant access panels – Prevents tampering while allowing easy maintenance.
✔ Push button handle – Simple and efficient operation.
✔ Adjustable flow regulation – Ensures steady and controlled water flow.
✔ Stainless steel supply fittings – Corrosion-resistant and connected to reinforced tubing.

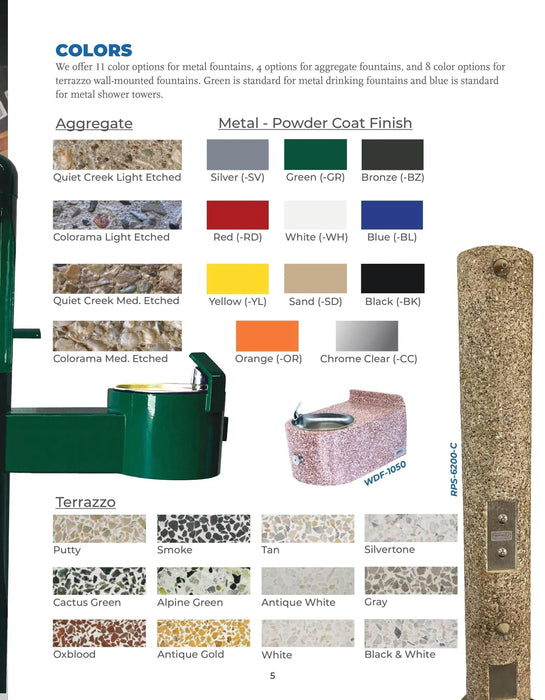

✔ Weather-resistant finish – Standard woodland green powder coat, with optional stainless steel (-SS) and other colors available.
✔ Secure water supply control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
Available Models
8100 – Pedestal mount

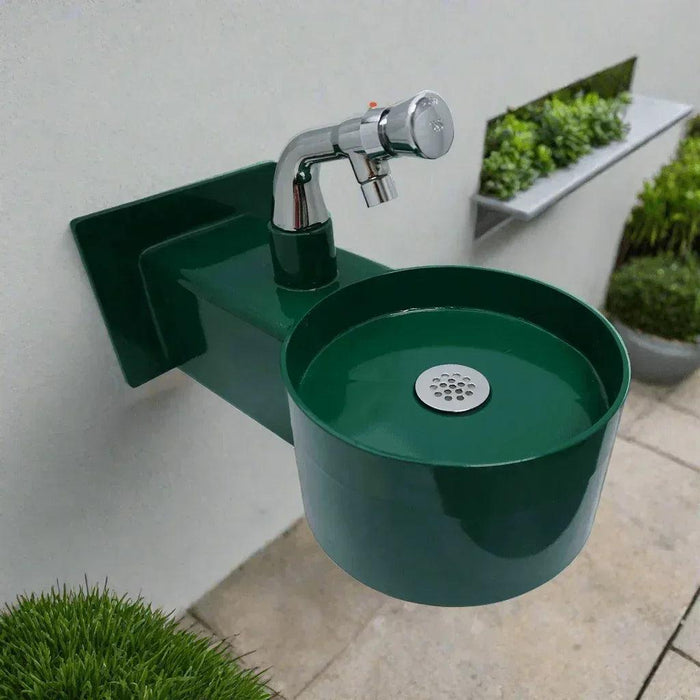

8200 – Concealed wall mount
8205 – Front wall mount
8215 – Concealed mount pedestal
8220 – Front mount pedestal
8500 – Pedestal fountain with integrated handwash station
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with welded plates |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Pedestal or wall-mounted options available |
| Surface Requirements | Must be installed on a dry, level surface |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Width | Length | Diameter | Mounting Type |
|---|---|---|---|---|---|---|
| 8100 | Pedestal Mount | 36 inches (91 cm) | 10.75 inches (27 cm) | N/A | 14.5 inches (37 cm) | Pedestal-mounted |
| 8200 | Wall-Mounted Model | 6 inches (15 cm) | 20 inches (51 cm) | N/A | 10.75 inches (27 cm) | Wall-mounted |
| 8205 | Wall-Mounted Model | 6 inches (15 cm) | 20 inches (51 cm) | N/A | 10.75 inches (27 cm) | Wall-mounted |
| 8215 | Wall-Mounted Model | 15 inches (38 cm) | 35 inches (89 cm) | 20 inches (51 cm) | N/A | Wall-mounted |
| 8220 | Wall-Mounted Model | 15 inches (38 cm) | 35 inches (89 cm) | 20 inches (51 cm) | N/A | Wall-mounted |
| 8500 | Pedestal Mount | 40 inches (102 cm) | 30 inches (76 cm) | N/A | 14.5 inches (37 cm) | Pedestal-mounted |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
