Product Information

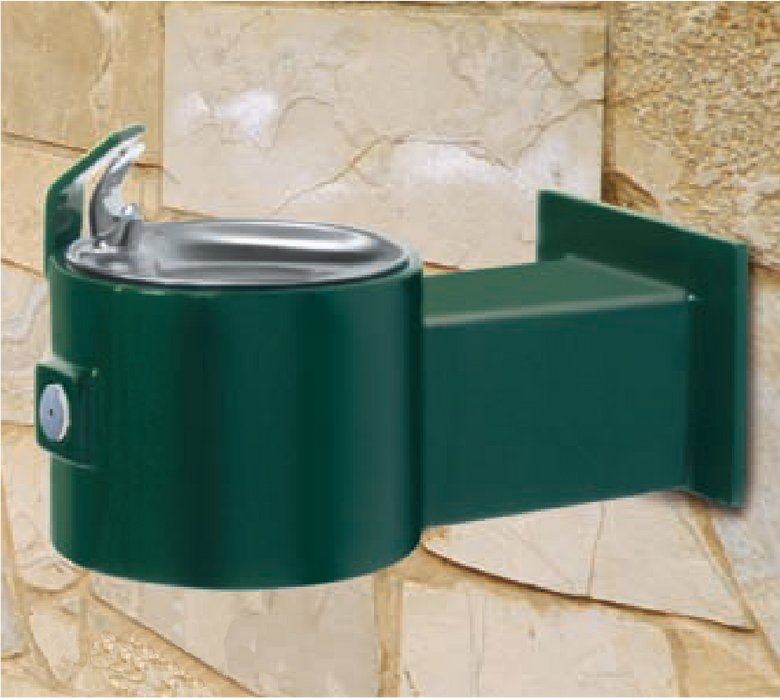

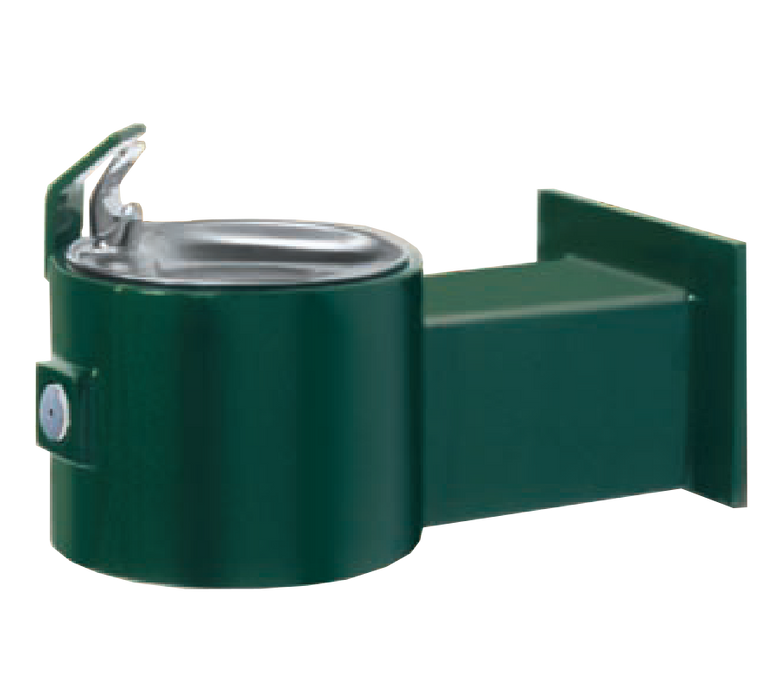

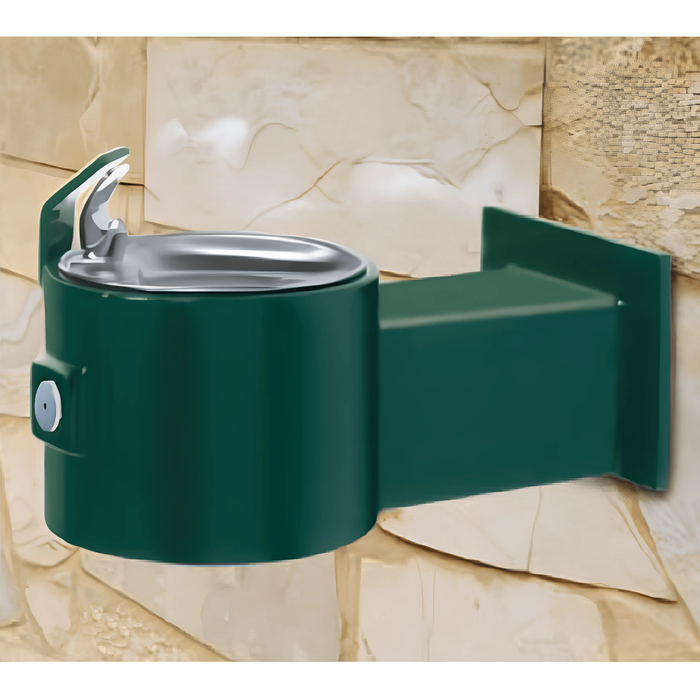

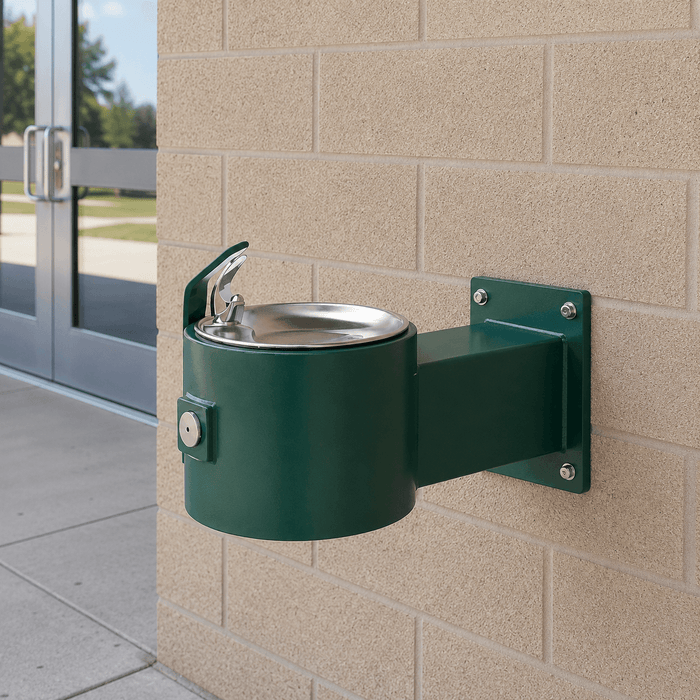

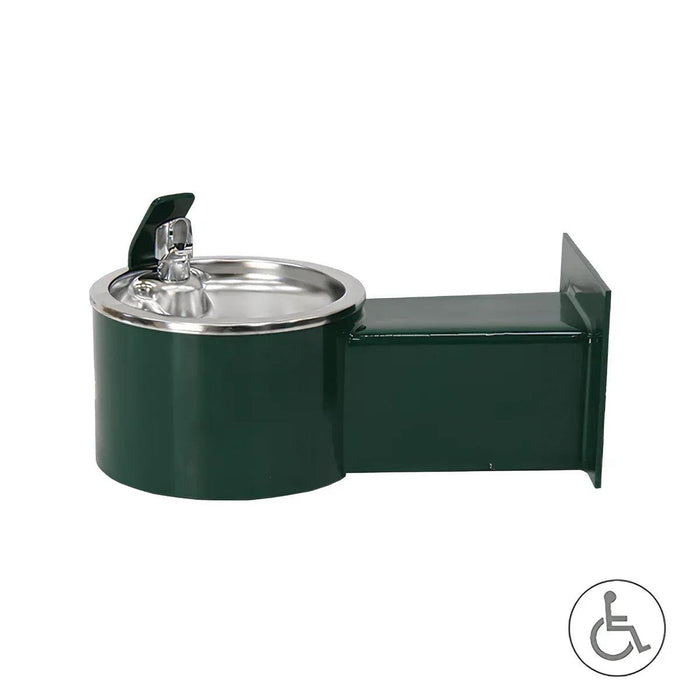

The 5300 Series features a sleek, modern design built to withstand harsh conditions, resist vandalism, and provide long-term durability. Designed for parks, schools, universities, and public spaces, this model ensures reliable hydration in high-traffic areas.
Available in front mount (5300) and rear mount (5305) configurations, this unit is constructed with heavy-duty stainless steel components and a chrome-plated brass bubbler locked to the receptor for added security.
The frost proof (-FP) option ensures continued use in cold climates by preventing freezing. A dual check valve backflow prevention system is recommended for all FP models to maintain safe and clean water flow.
Features
✔ ADA compliant – Fully accessible for all users.
✔ Heavy-duty construction – Built from one-piece steel pipe with welded steel plates.
✔ Vandal-resistant design – Access panels and push-button valve recessed in a 3/8” thick steel plate prevent tampering.
✔ Push button water control – Chrome-plated brass valve for durability.
✔ Adjustable flow regulation – Maintains steady water pressure.
✔ Steel bubbler guard – Protects against damage and vandalism.
✔ Attractive stainless steel back plate – Provides additional protection.
✔ Weather-resistant finish – Standard woodland green powder coat, with optional stainless steel (-SS) and other colors available.
✔ Frost proof option (-FP) – Prevents freezing in cold weather.
✔ Secure water supply control – 1/2” IPS lock shield screwdriver stop prevents unauthorized tampering.
✔ Efficient drainage system – 1-1/4” IPS waste pipes included for proper water disposal.
Available Models
5300 – Front mount wall drinking fountain
5300-FP – Frost proof front mount wall drinking fountain
5305 – Rear mount wall drinking fountain
5305-FP – Frost proof rear mount wall drinking fountain
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Wall-mounted with included plate |
| Surface Requirements | Must be installed on a dry, level surface |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Length | Mounting Type |
|---|---|---|---|---|
| 5300 | Wall-Mounted Model | 8 inches (20 cm) | 20 inches (51 cm) | Wall-mounted plate |
| 5305 | Wall-Mounted Model | 8 inches (20 cm) | 20 inches (51 cm) | Wall-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
