Water Bottle Filling Station for Bowling Alleys (2026)

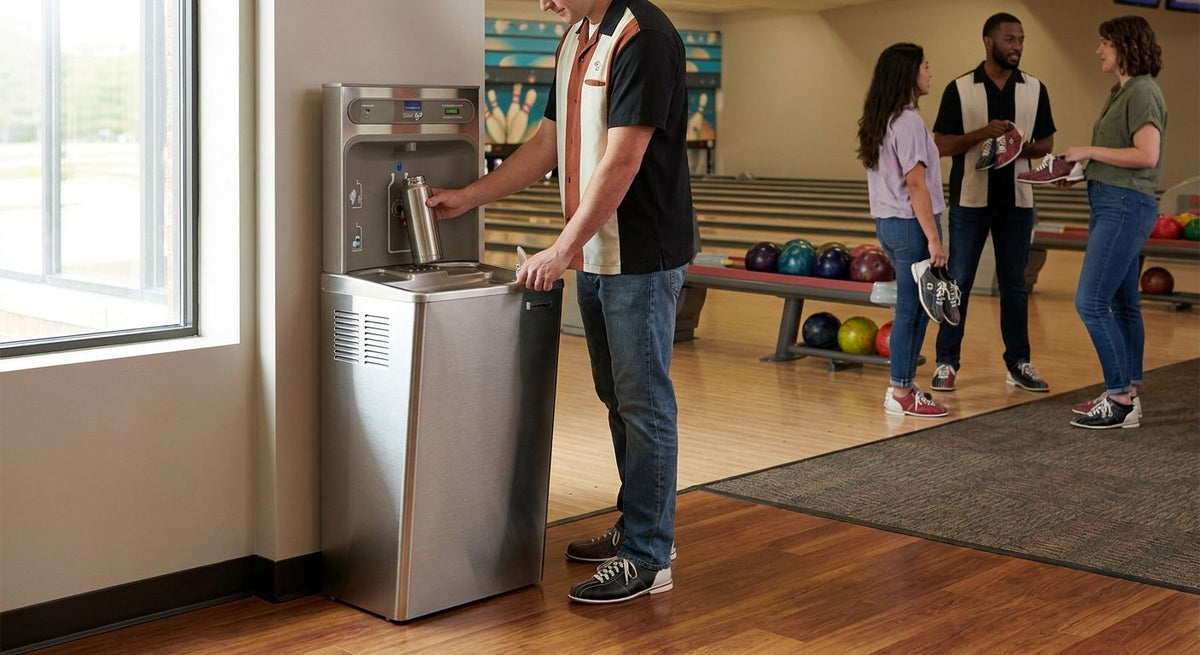

Bowling center water bottle filling stations are wall-mounted or floor-standing fixtures that dispense filtered or unfiltered water straight into a bottle or cup, placed along the concourse, near ball returns, or by the snack bar so leagues and open-play bowlers refill without walking off the approach. Bowling alleys push more foot traffic past a single fixture than a typical office or retail floor, and that traffic brings kids, spilled soda, and hours-long league nights that standard fountains weren't built to survive.
- A water bottle filling station for bowling alleys works best bi-level, ADA compliant, and vandal-resistant near lanes and the concourse.
- Oasis PGSBFSL Bi-Level Sports Bottle Filler ($2,794) fits concourse zones on a tight 2026 budget. Buy.
- Skip plastic bubbler heads in bowling centers; ball-return traffic and rowdy leagues crack them within a season.
- Oasis PWLNEBQ in-wall touchless UV-C filler ($2,105) saves floor space on narrow concourse walls.
- Refrigerated bi-level coolers run $600-$750 more than non-refrigerated twins in 2026 catalog pricing.
Why a water bottle filling station matters for bowling centers
Bowling centers run on foot traffic that standard water fountains weren't built for. League nights push 20 to 40 bowlers per lane through the same concourse for three-plus hours, snack bar lines cross right past the water fixture, and birthday parties bring kids who lean on bubbler buttons the way they lean on ball-return rails.
That traffic is why plain drinking fountains fail early in bowling centers: standard plastic bubblers crack, non-vandal-resistant bodies dent, and single-height units draw ADA complaints from bowlers using wheelchairs at accessible lanes. An ADA vandal-resistant 14-gauge fountain and bottle filler bundle solves both problems in one wall-mounted unit — ADA-height access plus a filler spout that tops off a bottle without the slow trickle you get from a bubbler alone.
The other 2026 pressure point is snack bar overlap. Centers with concessions push soda and beer traffic past the same walkway as the water station, so a corrosion-resistant stainless body matters more here than it would in a typical break room.
Map your center's water demand zones
Walk the floor before pricing hardware. A 24-lane center with weekly leagues moves different water volume than an 8-lane boutique bar-and-bowl, and the fixture spec should follow the traffic, not the other way around.
- Count lanes and average bowlers per league night to size draw
- Mark the concourse choke point near ball returns and shoe rental
- Flag arcade and party rooms where kids cluster mid-afternoon
- Check existing plumbing risers near restrooms or the snack bar for the cheapest hookup point
- Note whether the snack bar already competes for water pressure during peak league hours
Choose vandal-resistant construction first
Skip anything with exposed plastic buttons or thin-gauge housing — bowling centers chew through fixtures faster than gyms or corporate lobbies do.
- Pick 14-gauge or heavier stainless steel bodies over painted metal
- Choose brass or vandal-resistant bubbler heads, not plastic
- Look for recessed or shielded push-buttons that survive kids and rowdy leagues
- Confirm the spec sheet lists a vandal-resistant rating, not just "commercial grade"
The Elkay EZH2O vandal-resistant mechanical bottle filling station pairs a bi-level fountain with a bottle filler in one vandal-rated body — exactly the spec this traffic pattern calls for.
Decide bi-level vs single-height for ADA
Most bowling centers carry accessible lanes by law, and the water station serving that cluster needs to match.
- Confirm the accessible lane cluster's location before you pick a wall spot
- Choose a bi-level or hi-lo unit so seated and standing bowlers both reach the spout
- Verify knee clearance and forward-reach dimensions against ADA guidelines before ordering
- Plan for a dual-station layout if the accessible cluster sits far from the main concourse
The Haws 1119P hi-lo ADA vandal-resistant fountain with bottle filler covers dual-height access in one wall-mounted, dual-station unit.
Pick filtered vs non-filtered, refrigerated vs non-refrigerated
Filtration and refrigeration are separate decisions, and a bowling center doesn't need to default to the priciest combination on every wall.
- Non-filtered units cost less and work fine on municipal water that already tastes fine
- Filtered units matter more in older buildings running galvanized or lead-era plumbing
- Refrigerated coolers run roughly $600 to $750 more than non-refrigerated twins in the same body style, based on 2026 catalog pricing
- Skip refrigeration on a low-traffic side concourse and put the budget toward a second unit near the lanes instead
Plan the plumbing route before you order
Install cost swings more on plumbing distance than on the fixture price itself.
- Trace the nearest cold-water line and drain — bowling centers often have one near the restroom bank
- Avoid running new lines under lanes or the ball-return mechanism
- Confirm floor-standing units have drain access; wall-mounted units need supply and drain stub-outs only
- Get a plumber's read on wall thickness before ordering a recessed or in-wall model
Budget the faster path once the groundwork is done
Once lane count, ADA cluster location, and plumbing access are mapped, ordering a pre-configured bundle beats specifying parts separately.
- A combined fountain-and-bottle-filler unit skips a second install trip
- Vandal-resistant, ADA, bi-level units in one SKU cut coordination between plumber and general contractor
- Standardizing on one unit chain-wide simplifies parts stock and repair calls across multiple centers
Quick spec comparison for bowling center bottle fillers
| Option | Best For | Price | Key Limitation |
|---|---|---|---|
| Oasis PGSBFSL Bi-Level Sports Bottle Filler | Concourse zones on a tight 2026 budget | $2,794 | No chiller — water runs at ambient temperature |
| Oasis PG8SBFSL Bi-Level Sports Bottle Filler (refrigerated) | High-traffic lane areas during league nights | $3,408 | Higher upfront cost than the non-refrigerated twin |
| Oasis PGV8EBFSL Split-Level Filtered Electronic Bottle Filler (refrigerated) | Centers wanting filtered water at the spout | $3,536 | Highest price point of the group |
| Oasis PWLNEBQ In-Wall Touchless UV-C Bottle Filler | Tight concourse walls with no floor space to spare | $2,105 | Bottle filler only, no integrated fountain |
Verdict: for most bowling centers, a bi-level bottle filler near the accessible lanes wins on compliance and durability over a plain fountain retrofit.
Common mistakes bowling centers make
- Installing a single-height fountain right next to accessible lanes, triggering ADA complaints
- Choosing plastic bubbler heads that crack within one league season of rowdy use
- Skipping filtration in older buildings, then fielding taste complaints from league regulars
- Placing the unit in the same alcove as the snack bar line, creating a bottleneck at halftime
- Forgetting the drain requirement on floor-standing units and rerouting plumbing mid-install
FAQ
What's the best water bottle filling station for a bowling alley?
A bi-level, vandal-resistant, ADA-compliant bottle filler wins for most bowling centers because it serves both standing and seated bowlers at accessible lanes while surviving high foot traffic. The Oasis PGSBFSL at $2,794 is a solid non-refrigerated starting point for concourse zones.
Is a bi-level fountain required for bowling centers?
Bi-level or hi-lo units are required wherever the station serves an ADA-accessible lane cluster, since single-height fountains don't meet forward-reach and knee-clearance rules. Centers without accessible lanes near the fixture can use a single-height unit, but most modern centers standardize on bi-level for simplicity.
How much does a bottle filler cost for a bowling center in 2026?
Bi-level sports bottle fillers run from roughly $2,105 for an in-wall touchless unit up to $3,536 for a filtered, refrigerated split-level model in 2026 catalog pricing. Installation cost depends heavily on plumbing distance from the nearest supply and drain line.
Do bowling centers need filtered water stations?
Filtration matters most in older buildings with galvanized or lead-era plumbing, where league regulars are more likely to notice taste or clarity issues. Newer centers on modern municipal supply can skip filtration and put the budget toward a second unit instead.
Where should the water station go in a bowling center?
Place it along the concourse near the accessible lane cluster, away from the snack bar queue and ball-return traffic, so it doesn't create a bottleneck during league changeovers. A second unit near the arcade or party room area covers kid-heavy traffic separately.
Is vandal-resistant construction really necessary for bowling alleys?
Yes — bowling centers see more button-mashing, leaning, and accidental impact near fixtures than a typical office or retail floor. Plastic bubbler heads and thin-gauge housings crack within a single busy league season in that environment.
Can an existing drinking fountain be retrofitted with a bottle filler?
Some fountain bodies accept a bottle-filler retrofit kit, but bowling centers generally get better durability and a cleaner install from a combined fountain-and-bottle-filler unit ordered as one SKU. Retrofitting also means a second plumbing visit that a combined unit avoids.
One last thing
The cheapest fixture on the spec sheet is rarely the cheapest to own in a bowling center: a $2,105 in-wall touchless filler with no integrated fountain still needs a separate drinking fountain nearby to serve non-bottle traffic, while a combined bi-level unit at $2,794 to $3,408 covers both in one wall cutout and one plumbing trip. Run the math on total install cost, not just sticker price, before choosing between the two approaches for 2026 budgets.
