How to Install an Outdoor Foot Wash Station (2026)

Step-by-step guide to installing an outdoor foot wash station in 2026 — supply line sizing, anchoring, drainage, winterization, and pressure testing.

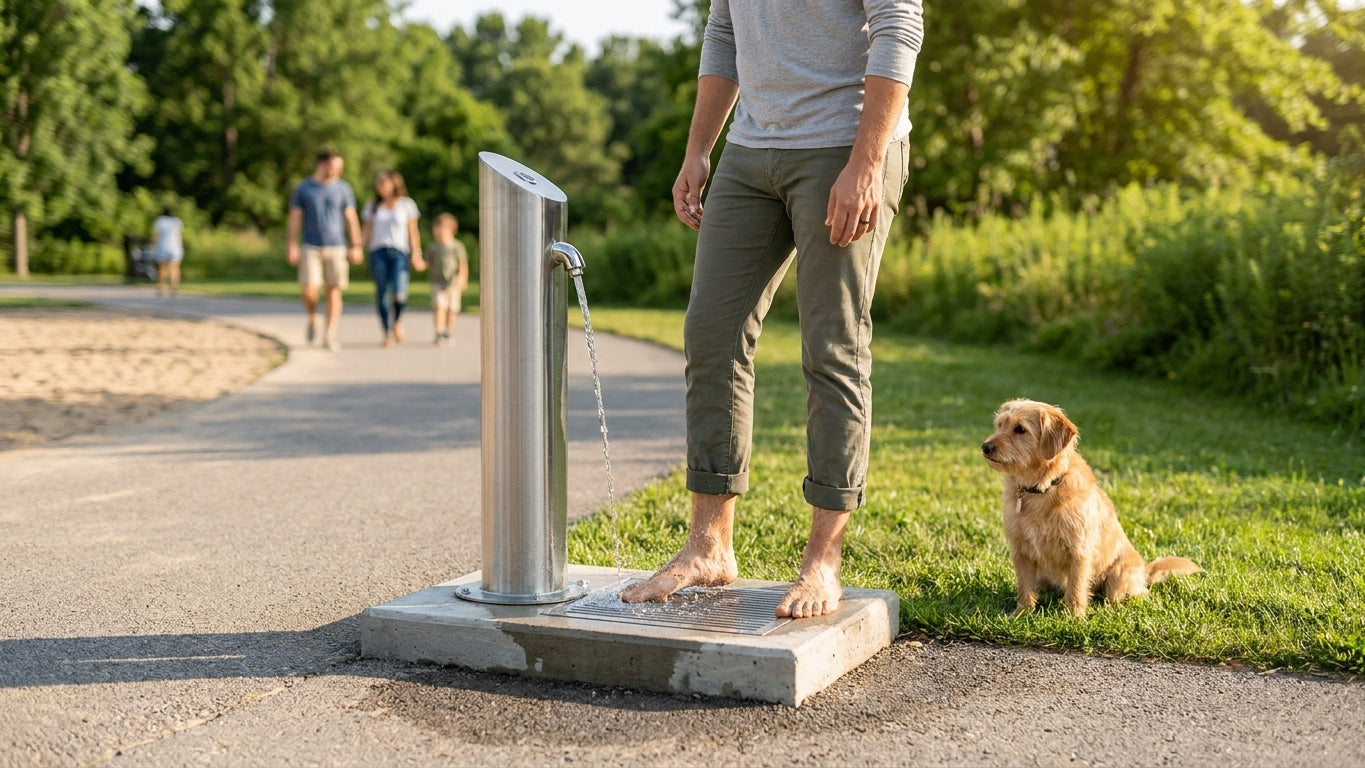

How to install an outdoor foot wash station

Installing an outdoor foot wash station takes one to two hours for most plumbing-competent contractors or experienced DIYers — but skipping a single step sends water where it shouldn't go, creates freeze-damage liability, or puts the unit out of ADA compliance before the first user touches it. This guide covers every step, from site planning through final pressure check, so your 2026 installation goes in right the first time.

TL;DR: An outdoor foot wash station requires a cold-water supply line, a proper drain or ground-level discharge point, and secure anchoring to a slab, deck, or wall. Choose a frost-resistant or freeze-protected model for climates that drop below 32°F. Run 1/2-inch minimum supply line, set working pressure between 30–80 PSI, and test for leaks before backfilling or finishing the deck surface. The 6000 Series outdoor foot showers from The Fountain Direct is built for exactly this kind of commercial or institutional installation.

Why this matters in 2026

Pool decks, beach access points, playgrounds, and sports facilities all face increased pressure from health codes and ADA guidelines that weren't enforced as strictly even five years ago. A correctly installed foot wash station keeps sand, bacteria, and chemicals off interior floors, satisfies local health ordinances, and protects the surrounding surface from standing water damage. Getting the rough-in right the first time avoids expensive do-overs when concrete or pavers go back down.

What You'll Need

Tools:

  • Pipe wrench and adjustable wrench
  • Drill with hammer bit (for concrete anchoring)
  • Level (24-inch minimum)
  • Teflon tape and pipe joint compound
  • Torpedo level
  • Marking chalk or pencil
  • Shovel or trencher (for below-grade supply line)
  • Pressure gauge

Materials:

  • Outdoor foot wash station unit
  • 1/2-inch minimum supply line (copper, CPVC, or PEX — match to your local code)
  • Isolation ball valve (shutoff) rated for outdoor use
  • Stainless steel anchor bolts (minimum 3/8-inch diameter for concrete)
  • Threaded fittings appropriate to your supply pipe material
  • Drain assembly or drain field materials if no floor drain exists
  • Vacuum breaker / anti-siphon device (required in most jurisdictions)
  • Frost-free hose bib or freeze protection kit (freeze-risk climates only)

Time: 1–3 hours depending on whether supply line is already roughed in.

Permits: Most jurisdictions require a plumbing permit for new water connections to fixed fixtures. Pull the permit before breaking ground — inspectors routinely flag unpermitted outdoor fixtures during commercial property reviews in 2026.

The Steps

Step 1 — Choose and Prepare the Installation Location

Pick a surface that can support the anchor load and directs drainage away from the building foundation. For pool decks, position the unit at the deck perimeter, 36 inches minimum from the pool edge to satisfy most local health codes. For beach access walkways, locate it at the transition point between the path and the public access ramp.

The surface must be level within 1/4 inch over 24 inches. Use a long level and mark high and low spots before you anchor anything. Unlevel installs put uneven stress on the supply connection and cause the foot pedal or push valve to bind over time.

Common mistake: Choosing a location based on aesthetics before confirming where the supply line can realistically be run. Run the supply path mentally first — find the nearest shutoff or water main, note the linear footage, and confirm the elevation drop allows drainage to exit the slab perimeter.

Expected outcome: A marked installation footprint on a level surface, with a confirmed supply path and a drainage exit point identified.

Step 2 — Run and Rough-In the Supply Line

Excavate or route 1/2-inch supply line from the nearest cold-water source to the unit's planned location. Bury below the local frost depth if the line will be live year-round — NOAA frost depth maps are freely available online and are the reference point most local inspectors use in 2026.

Install an isolation ball valve within 12 inches of the unit connection point. This allows servicing or winterization without shutting down the entire water system. Terminate the supply line with a threaded male adapter at the correct height — most pedestal foot wash stations accept the supply at ground level or 4–6 inches above the slab; check your specific unit's rough-in sheet.

Install a vacuum breaker on the supply side, downstream of the ball valve. This is non-negotiable in most US jurisdictions and is required by the Uniform Plumbing Code for any fixture that could create a cross-connection with potable water.

Common mistake: Using 3/8-inch supply line because it's cheaper or easier to route. At 3/8 inch, flow rate drops enough to make the foot wash feel weak at the nozzle — particularly when multiple fixtures share the same branch.

Expected outcome: Supply line terminated at the correct height with ball valve and vacuum breaker installed, capped and pressure-tested before the unit is set.

Step 3 — Set and Anchor the Unit

Position the foot wash station over the anchor bolt holes. Drop a plumb bob or use a torpedo level on two perpendicular faces to confirm the unit is both level and plumb before drilling. Mark anchor hole centers through the base plate onto the concrete or deck surface.

Drill anchor holes to the diameter and depth specified in the unit's installation instructions — typically 3/8-inch diameter, 2.5 inches deep for standard concrete. Set stainless steel expansion anchors or wedge anchors (not zinc or galvanized — outdoor moisture corrodes non-stainless hardware within 18 months in most climates). Torque to the manufacturer's specification; overtorquing cracks the base plate, undertorquing allows vibration-driven loosening.

For wall-mounted foot wash units, locate studs or use rated masonry anchors. The pull force on a wall-mounted unit is higher than it looks — users brace against the wall during use.

Common mistake: Anchoring to pavers without setting anchor bolts into the base slab beneath. Pavers shift; if the anchor is in the paver only, the unit will rock within one season.

Expected outcome: Unit is anchored solid, plumb, and level with no movement when lateral force is applied by hand.

Step 4 — Make the Supply Connection

Wrap all male threaded connections with two full wraps of Teflon tape, then apply a thin layer of pipe joint compound over the tape. Thread the supply inlet on the unit onto the roughed-in supply stub. Hand-tighten first, then use a pipe wrench — 1.5 to 2 additional turns past hand-tight for threaded brass-to-brass connections. Do not exceed 3 turns past hand-tight or you risk cracking the unit's inlet casting.

Check that the connection is not under mechanical stress — the supply line should arrive at the inlet without bending or pulling. If the line is slightly off-axis, use a short nipple and elbow to realign before connecting to the unit.

Common mistake: Over-relying on Teflon tape alone on coarse-threaded fittings. Tape alone on coarse threads leaks. Tape plus compound does not.

Expected outcome: Supply connection is hand-tight plus 1.5–2 wrench turns, properly aligned, with no visible tape shredding or cross-threading.

Step 5 — Address Drainage

Foot wash stations discharge at or near ground level. In most outdoor settings, the discharge drains to the surrounding surface and away via slope. The surrounding slab or deck must slope a minimum of 1/8 inch per foot away from the unit and toward a drain or open landscape area.

If the unit is in an enclosed deck area or a surface with no natural slope exit, tie the discharge to a floor drain or a small dry well sized for the expected flow rate. Most single-nozzle foot wash stations discharge at 1.0–2.5 GPM. A 2-cubic-foot dry well handles this volume in average-permeability soil.

Never discharge directly against a building foundation or a paver edge that retains water — standing water against foundations is a moisture intrusion source and creates freeze-thaw damage in cold climates.

Common mistake: Assuming "outdoor" means drainage takes care of itself. On flat concrete decks, water pools at the unit base and accelerates corrosion of the anchor hardware.

Expected outcome: Water discharged during testing flows away from the unit base within 10 seconds with no pooling at the anchor points.

Step 6 — Pressure Test and Final Check

With the unit anchored and connected, slowly open the isolation ball valve. Bring the system up to operating pressure gradually — don't slam the valve open. Most municipal supplies run 40–80 PSI. Attach a pressure gauge to a nearby test port or hose bib to confirm working pressure is within the unit's rated range (check the spec sheet; most outdoor foot wash stations are rated for 20–80 PSI).

Inspect every threaded connection for weeping or drips. A dry paper towel held against each fitting reveals slow seeps that visual inspection misses. Activate the foot pedal or push valve and confirm the nozzle pattern is correct and the valve shuts off fully when released.

If pressure exceeds 80 PSI, install a pressure-reducing valve (PRV) upstream of the ball valve. High pressure accelerates valve seat wear and causes the foot wash to dribble after release.

Common mistake: Testing at low pressure and calling it done. Low-pressure tests miss leaks that only appear at full line pressure once the system normalizes after a few hours.

Expected outcome: No drips at any connection after 10 minutes at full line pressure. Valve activates cleanly and shuts off with no dribble.

Step 7 — Winterization Planning

If the installation is in a climate with sub-freezing winters, document the shutoff and drain procedure before the unit sees its first winter in 2026. The isolation ball valve installed in Step 2 is your primary winterization point. Close it, then open the foot valve to release pressure and drain the line above the valve.

For units that cannot be fully drained by gravity, a freeze-resistant or frost-protected model is required from the start — not an afterthought. Frost-resistant foot wash stations use a self-draining valve that empties the supply tube automatically after each use.

Common mistake: Assuming the unit drains itself without confirming the unit is specifically rated frost-resistant. Standard outdoor fixtures fail at 32°F if water sits in the supply tube.

Expected outcome: A written winterization checklist posted near the shutoff valve before the first freeze event.

Troubleshooting

Low flow at the nozzle — Check working pressure at the isolation valve. If pressure is adequate (30+ PSI), the issue is a restricted inlet screen. Remove the screen, flush, and reinstall. Supply line undersized at 3/8 inch is the other common cause.

Valve won't shut off completely — Debris on the valve seat. Flush the line with the foot valve held open for 30 seconds before reassembling. If flushing doesn't clear it, the seat is worn and the valve cartridge needs replacement.

Water pools at the base — Deck slope is insufficient, or the drain path is blocked. Regrade the surrounding surface or add a channel drain at the low point.

Anchor hardware corroding within 12 months — Non-stainless hardware was used. Replace with 316-grade stainless steel fasteners. In salt-air or coastal environments, 316L marine-grade hardware is the minimum acceptable standard.

Leak at the supply connection after pressure increases — The connection was made tape-only without pipe compound. Shut off the ball valve, drain, disassemble the fitting, clean the threads, and remake the connection with tape plus compound.

Unit rocks or shifts underfoot — Anchor bolts are set in pavers, not base concrete, or were not torqued to spec. Re-anchor using the base slab.

Tools and Resources

What to Do Next

Once the foot wash station is in and pressure-tested, the next decision is whether your site also needs a full outdoor shower tower for rinse-off. The how to install a marine grade stainless shower outdoors guide covers the full-body rinse-off installation process using the same rough-in principles covered here.

FAQ

What's the best location for an outdoor foot wash station? At a transition point between a dirty surface and a clean one — the entry to a pool deck, the base of a beach access walkway, or the entrance to a sports facility. Position it so users don't have to step back onto sand or grass after using it.

Do I need a permit to install an outdoor foot wash station? In most US jurisdictions in 2026, yes. Any new fixed plumbing connection requires a permit. Commercial and institutional sites almost always require inspection. Check with your local building department before starting.

What supply line size do I need? 1/2-inch minimum for a single foot wash station. If multiple fixtures share the same branch, size up to 3/4 inch at the branch point to maintain flow rate at each fixture.

Is a vacuum breaker required? Yes in most US jurisdictions. The Uniform Plumbing Code requires a backflow prevention device on any fixture that could create a cross-connection with potable water. An outdoor foot wash station qualifies.

How do I winterize an outdoor foot wash station? Close the isolation ball valve upstream of the unit, then open the foot valve to release pressure and drain the supply tube above the valve. For frost-resistant self-draining models, confirm the internal drain is functioning by activating the valve after shutoff — water should stop flowing within 5 seconds.

Can a foot wash station be installed on a wood deck? Yes, but anchor into the deck framing joists, not just the decking boards. Use stainless steel lag bolts long enough to penetrate 2.5 inches into the joist. Seal around any deck penetration for the supply line to prevent rot.

How much water pressure do foot wash stations require? Most commercial models operate between 20–80 PSI. Below 20 PSI, flow rate is insufficient for effective foot rinsing. Above 80 PSI, install a pressure-reducing valve upstream to protect the valve cartridge.

How long does installation take? With supply line already roughed in: 1–2 hours. If you're running new supply line from scratch, budget 3–5 hours including trenching, line installation, and final connection. Concrete curing (if you're setting anchors in new concrete) adds 24 hours minimum before the unit should bear load.

One Last Thing

The single most expensive mistake on outdoor foot wash installations in 2026 is using zinc or galvanized anchor hardware in coastal or pool-chemical environments. Zinc hardware fails in as little as 12 months when exposed to salt air or chlorine off-gassing. The cost difference between zinc and 316-grade stainless fasteners is under $10 per installation. The cost of pulling a corroded, frozen anchor bolt out of concrete is two to four hours of labor. Buy the stainless hardware every time.
