Adjust Drinking Fountain Bubbler Flow: 2026 Fix Guide
Most bubbler flow problems come down to one small screw that nobody adjusts because nobody can find it — this guide shows exactly where it lives and how far to turn it.
- The flow control screw sits inside or just below the bubbler head on almost every commercial fountain sold in 2026.
- Quarter-turns only — a full turn swings the arc from a dribble to a face-height spray.
- Target a 4 to 6 inch arc height for adult use; drop to 2-4 inches for elementary schools and daycares.
- Weak flow after adjustment is usually mineral buildup in the nozzle, not a bad valve.
- Outdoor freeze-resistant units need the screw re-checked every spring after winterization.
Why this matters
A bubbler set too high sprays water past the basin and soaks whoever leans in. Set too low, and users mash the button five times trying to get a drink, which wears the valve out faster than normal use ever would. Facilities teams at schools, parks departments, and gyms deal with this complaint constantly in 2026, and it's almost never a defective fountain — it's a flow screw that was never touched after install.
Getting the arc right takes less than 10 minutes with a screwdriver and no water shutoff in most cases. If your bubbler head is worn out entirely rather than just misadjusted, replacement bubbler heads for outdoor drinking fountains covers when to swap the part instead of tuning it.
What you'll need
- A flathead or Phillips screwdriver (check your model — most use flathead, some newer bi-level units use a small hex key)
- A tape measure or ruler
- A rag or towel for splash cleanup
- 10-15 minutes of uninterrupted access to the unit
- Gloves if the fountain is a public unit that hasn't been cleaned recently
You generally don't need to shut off the water supply for a routine flow adjustment. If the valve is seized or you're removing the bubbler head entirely, shut off the isolation valve first — most commercial units have one under the basin or in the wall box behind an access panel.
The steps

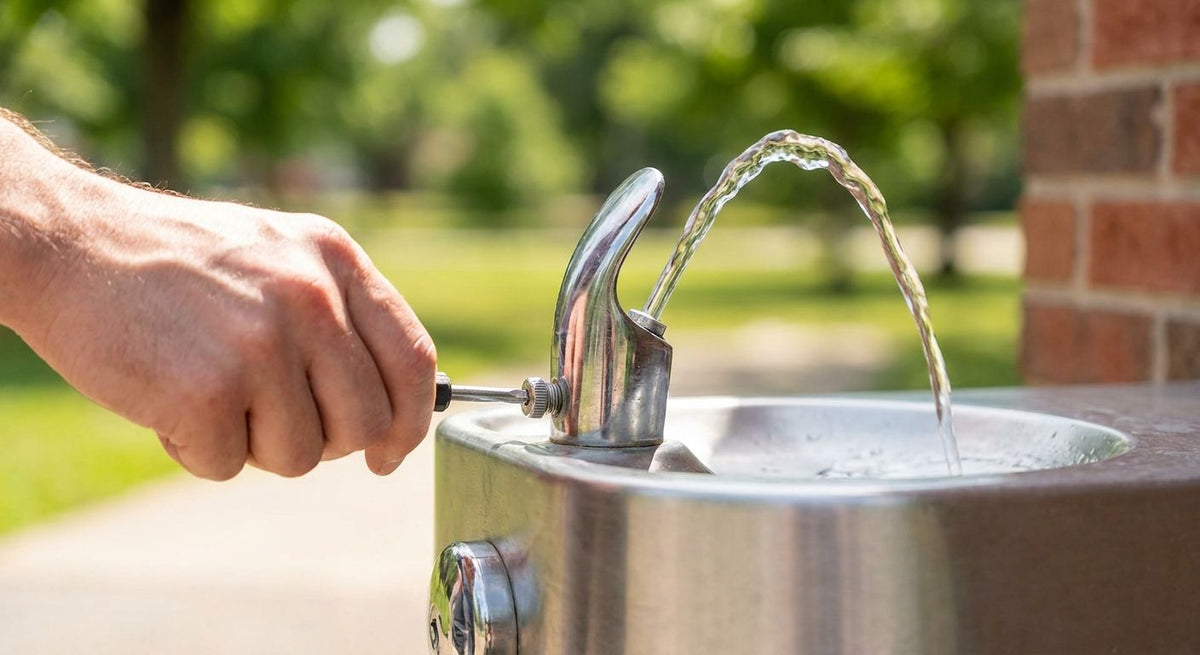

1. Locate the flow control screw
The adjustment screw sits inside the bubbler head itself on most units, recessed just below or beside the nozzle opening. On bi-level and ADA fountains like the Haws 1119P hi-lo ADA fountain with bottle filler, each basin has its own independent screw, so adjusting one side does not touch the other. On older pedestal units, the screw can be on the valve stem below the basin instead of the bubbler head — check both spots before assuming it's missing.
2. Press the activation button and watch the current arc
Run the fountain for 5-10 seconds and watch where the water peaks. This gives you a baseline before you touch anything, and it tells you which direction you need to turn — a spray that overshoots the basin needs less flow, a weak dribble needs more.
3. Make quarter-turn adjustments only
Turn the screw clockwise to reduce flow, counterclockwise to increase it. Move in quarter turns and re-test after each one — a full turn on most commercial valves is the difference between a trickle and a stream that clears the basin. This is the single most common mistake: people crank the screw a full rotation, get a wild spray, then crank it back too far the other way and end up with nothing.
4. Test and measure the arc height
Activate the fountain and measure the peak height of the water arc with your tape measure. A 4 to 6 inch arc works for general adult use in offices, gyms, and public buildings. For elementary schools, daycares, and dog-height pet fountains, 2 to 4 inches keeps splash-back down without making users struggle to reach the stream.
5. Check consistency across multiple presses
Press the button five or six times in a row. Flow that starts strong and tapers off points to a supply pressure problem or a partially closed isolation valve, not a bad adjustment. If the arc height is inconsistent press to press, the flow screw isn't the fix — check the water line pressure before adjusting further.
6. Clean the nozzle before you call it done
A slightly clogged nozzle can mimic a low-flow adjustment problem. Wipe the bubbler opening with a rag and, if it's crusted with mineral deposits, soak a cotton swab in vinegar and clear the opening before your final test. Skipping this step means you'll come back in a month thinking the fountain needs re-adjusting when it actually needs cleaning — the full process is in how to clean a stainless steel drinking fountain.
7. Log the setting
Write down how many quarter-turns from fully closed you landed on, and date it. Facilities crews managing dozens of units across a campus save real time in 2026 by not re-diagnosing the same fountain twice a year.
Troubleshooting
- Flow won't reduce no matter how far you turn the screw. Mineral deposits have likely jammed the valve stem itself, not just the nozzle. Turn off the isolation valve, remove the bubbler head, and check for scale buildup around the valve seat.
- Water sprays sideways instead of straight up. The nozzle opening is clogged on one side or the bubbler head is misaligned from being bumped. Clean it first; if the spray still angles off, the head needs replacing.
- Flow was fine for a week, then dropped off. A screen or aerator upstream of the bubbler is catching sediment. This is common on older buildings and after any nearby water main work.
- No flow at all after your last adjustment. You likely closed the screw fully by accident, or the screw threads stripped from over-tightening. Back it out counterclockwise in small increments; if there's no resistance at all, the screw has stripped and the valve needs a part replacement.
- Outdoor unit sprays weak in spring after winter shutdown. Freeze-resistant valves sometimes need a re-check after winterization procedures reset the internal drain-back mechanism. Confirm the isolation valve is fully open before touching the flow screw.
- Bi-level fountain has one side working and one side weak. Each basin adjusts independently — you likely only adjusted one side. Go back and check the second screw.
Tools and resources
- Flathead screwdriver and tape measure (the only tools most adjustments require)
- Vinegar and a soft cloth for nozzle cleaning
- How to troubleshoot a drinking fountain that won't turn on if the unit has no flow at all rather than a weak arc
- How to find replacement parts for an Elkay drinking fountain if the valve stem or bubbler head is damaged beyond adjustment
- The Fountain Direct's product pages list bubbler and valve type per model, which tells you whether you're dealing with a flathead screw or a hex adjustment before you're standing in front of the unit
What to do next
If you're maintaining an outdoor unit, flow adjustment is one piece of a seasonal routine, not a one-time fix. Check how to winterize an outdoor drinking fountain before cold weather hits — freeze-resistant valves still need proper drain-down, and skipping it is the fastest way to end up re-adjusting a flow screw on a cracked valve body come spring 2026.
FAQ
How do I adjust drinking fountain bubbler flow without shutting off the water?
Most bubbler flow screws sit inside or below the nozzle head and can be turned with the water supply on — just make quarter-turn adjustments and re-test between each one. Shutting off the isolation valve is only necessary if you're removing the bubbler head entirely.
What's the ideal arc height for a drinking fountain?
A 4 to 6 inch arc works well for general adult use in offices, gyms, and public buildings. Elementary schools, daycares, and pet fountains should be set lower, around 2 to 4 inches, to reduce splash-back.
Why is my drinking fountain flow weak even after adjusting the screw?
Weak flow after an adjustment is usually a clogged nozzle or mineral deposits in the valve, not a bad screw setting. Clean the bubbler opening with vinegar before making further adjustments.
Is the flow adjustment screw the same on every drinking fountain?
No. Most units use a flathead screw inside the bubbler head, but some bi-level and newer 2026-model fountains use a small hex key instead. Check the manufacturer spec sheet for your specific model before assuming the tool.
Can turning the flow screw too far damage the fountain?
Yes. Over-tightening past the point of resistance can strip the screw threads, which means the valve can no longer hold an adjustment and needs a part replacement. Always stop at the first sign of resistance.
Do bi-level fountains need separate flow adjustments for each basin?
Yes, each basin on a bi-level or ADA fountain has its own independent flow screw. Adjusting the adult-height basin has no effect on the lower basin's arc.
How often should a public drinking fountain's flow be re-checked?
Check flow at least twice a year — once in spring after winterization and once mid-summer when usage peaks. High-traffic units in schools and parks benefit from a quarterly check.
Does cold weather affect bubbler flow adjustment?
Outdoor freeze-resistant fountains can need a flow re-check after the internal drain-back mechanism resets post-winter. Confirm the isolation valve is fully open before adjusting the bubbler screw in spring.
One last thing
The screw itself rarely fails — the nozzle does. Before you assume a fountain needs a new valve, clean the bubbler opening with vinegar and re-test; a high share of "broken flow" service calls turn out to be scale buildup that a five-minute cleaning fixes for free.
