Product Description

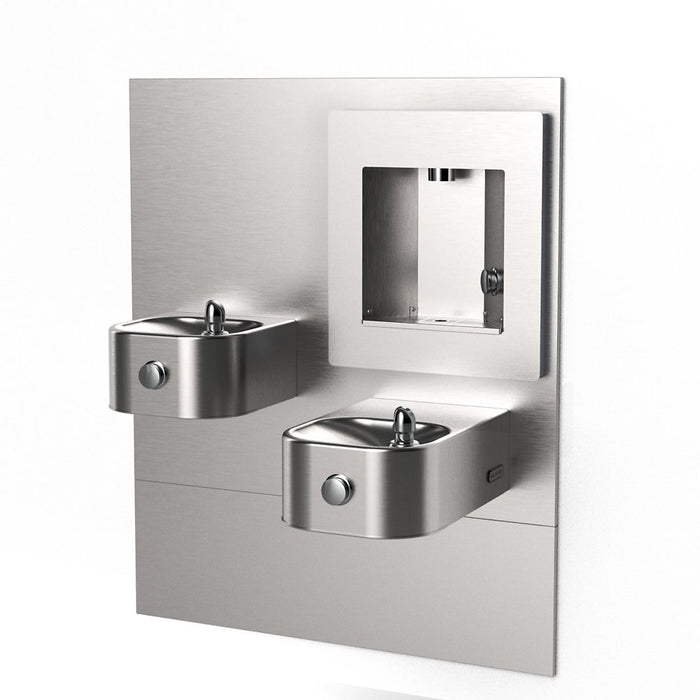

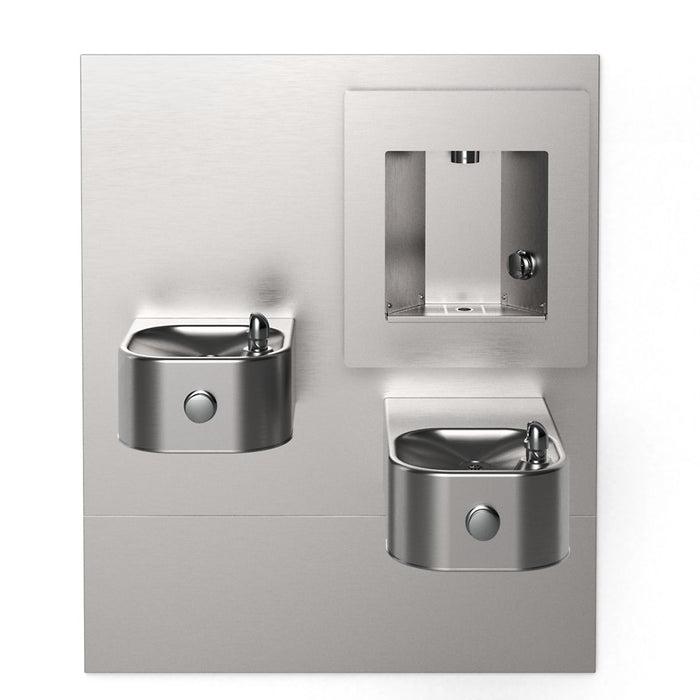

Tired of water stations that fall apart in high-traffic areas? The Elkay EZLMSN-EDFPVM217DK is built like a tank, but with elegance. This mechanical bottle filling station with bi-level Soft Sides® fountains delivers no-fuss hydration without needing electricity—perfect for places where power access is limited or vandal resistance is critical.
Made from heavy-duty stainless steel with tamper-proof brass bubblers and push-button controls, this unit is ideal for schools, rec centers, and public buildings. The mechanically activated bottle filler dispenses water at a strong 1.0 GPM, and the laminar flow design keeps splashing to a minimum.
It installs cleanly into the wall with the included in-wall frame, and works both indoors and out. If you’re serious about durability, accessibility, and simplicity, this is the unit you go with.
Features
✓ No Power Required – Fully mechanical activation for bottle filler and fountains
✓ Bi-Level Soft Sides® Design – ADA accessible, great for children and wheelchair users
✓ Vandal-Resistant Construction – Brass components, tamper-proof hardware, rugged design
✓ 1.0 GPM Fill Rate – Laminar flow ensures smooth, splash-free water delivery
✓ Chrome-Plated Hood Guards – Prevents tampering and contamination from airborne debris
✓ Real Drain System – Keeps water moving to avoid bacterial growth
✓ Indoor or Outdoor Use – Engineered to perform in both controlled and open-air settings
✓ Built to Withstand Abuse – Ideal for schools, public parks, or any high-impact zone
✓ In-Wall Frame Included – For a clean, secure architectural install
✓ ADA Compliant – Accessible for all users
Specifications
| Feature | Details |
|---|---|
| Brand | Elkay |
| Model Number | EZLMSN-EDFPVM217DK |
| Type | Mechanical Bottle Filling Station with Bi-Level Fountain |
| Number of Stations | 2 |
| Material | Stainless Steel |
| Activation | Mechanical Push Button (Filler + Fountain) |
| Chilling Capacity | Non-Refrigerated |
| Filtered | No |
| Power Supply | None Required |
| Mounting Option | Wall Mount (In-Wall Frame Included) |
| Installation Location | Indoor and Outdoor |
| Dimensions | Length: 38-1/2 inches, Width: 19-3/8 inches, Height: 34-5/8 inches |
| Shipping Dimensions | Length: 41 inches, Width: 21 inches, Height: 38 inches |
| Included Components | Bottle Filler (EBWDCM0SSC), Fountain (EDFPV217LWS-NF), Frame (MFWS202) |
| Certifications | ADA, ICC A117.1, NSF 372, NSF 61, ASME A112.19.3, CSA B45.4 |
| Country of Origin | USA |
| Ideal For | Classrooms, Parks, Government Buildings, Schools |
Warranty
Elkay provides a 1-Year Limited Warranty on this product. Structural components are built to last in abusive environments.
Return & Refund Policy
Elkay accepts returns within 30 days of delivery on most items, with prior authorization required. Items must be new, unused, and shipped freight prepaid. A restocking fee may apply.
To begin a return, contact us at (314) 200-1341 or email support@thefountaindirect.com. We'll help coordinate the process with Elkay.
